BRIEF

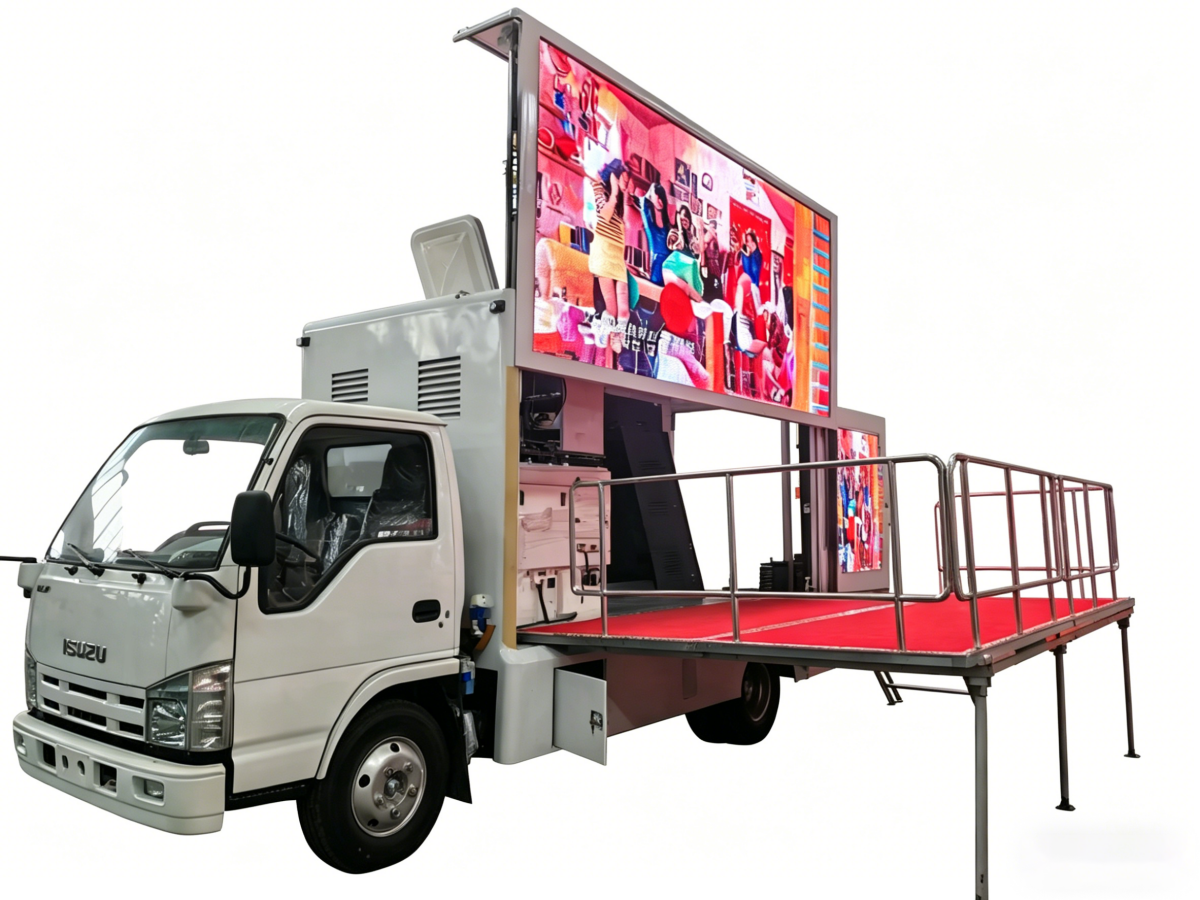

Built on the trusted ISUZU 100P light truck chassis, the ISUZU 100P P4 Waterproof Mobile LED Advertising Truck is a specialized mobile advertising vehicle designed for high‑impact outdoor promotions and live events. Powered by the ISUZU 4KH1CN6LB engine, it delivers 120 horsepower (88 kW) at 1,500 rpm with a peak torque of 290 N·m, ensuring reliable performance and low running costs for both city streets and highway travel.
The truck is equipped with two high‑resolution P4 LED screens, each measuring 4,480×1,920 mm, for a combined display area of 17.2 m². These fully waterproof screens deliver sharp, vibrant visuals that perform flawlessly in all weather conditions. A 20 kW silent generator provides uninterrupted, noise‑sensitive power, making the truck ideal for long‑duration campaigns and crowded urban environments. The advanced LED control system includes integrated audio, an industrial computer, and a NovaStar VX400 video processor, enabling seamless multimedia playback and synchronized audio‑visual experiences.
Beyond advertising, the truck features a hydraulic lift and stage system that transforms it into a complete mobile performance platform. Live shows, product demonstrations, and interactive marketing activities can be staged with ease, turning any location into a brand experience center. This combination of mobility, cutting‑edge LED technology, and stage functionality makes the ISUZU 100P Mobile LED Truck a versatile, all‑in‑one solution for modern outdoor advertising and event promotions.
FEATURES
- Reliable Chassis
Built on the proven ISUZU 100P light truck chassis – stable, durable, and suitable for both city streets and highway driving.
- Efficient Powertrain
Powered by the ISUZU 4KH1CN6LB engine, delivering 120 hp (88 kW) @ 1,500 rpm and peak torque of 290 N·m – reliable performance with low operating costs.
- High‑Resolution LED Screens
Equipped with two P4 high‑definition LED screens, each measuring 4,480×1,920 mm, for a total display area of 17.2 m² – sharp and vibrant visuals.
- All‑Weather Waterproof
Fully waterproof screens perform flawlessly in rain or snow – ideal for outdoor advertising in any weather.
- Silent Generator
A 20 kW silent generator provides long‑duration, uninterrupted power with low noise – perfect for crowded urban environments and night events.
- Professional Control System
Includes integrated audio, an industrial computer, and a NovaStar VX400 video processor – supports seamless multimedia playback and synchronized audio‑visual control.
- Hydraulic Lift & Stage
Built‑in hydraulic lift and stage system quickly transforms the truck into a mobile performance platform – supports live shows, product demonstrations, and interactive marketing activities.
- All‑in‑One Versatility
Combines mobile advertising, outdoor display, and stage functionality – a versatile solution for modern outdoor advertising and event promotions.
SPECIFICATION
| CATEGORY | ITEM | PARAMETER |
|---|---|---|
| General | Drive Type | 4×2 |
| Overall Dimensions (L×W×H) | 7050×2460×3225 mm | |
| Wheelbase | 3815 mm | |
| Gross Vehicle Weight (GVW) | 7,300 kg | |
| Curb Weight | 4,500 kg | |
| Front / Rear Track | 1504 mm / 1525 mm | |
| Front / Rear Overhangs | 1015 mm / 2220 mm | |
| Ground Clearance | 420 mm | |
| Cab | Cab Model | 100P 1X |
| Cab Type | Day cab, standard roof | |
| No. of Seats | 2 | |
| Instrument & Controls | Center lock, power windows, multi-function LCD instrument panel, power steering, A/C | |
| Engine | Make | ISUZU/4KH1CN6LB |
| Horsepower | 88 kW / 120 HP | |
| Max Torque | 290N·m | |
| Emission Standard | EURO 6 | |
| Displacement | 2.999 L | |
| Engine Type | 4-Cylinder in-line, diesel engine | |
| Transimission | Make/Model | ISUZU/MSB-5MT |
| Type | Manual | |
| Gear Numbers | 5F+1R | |
| Synchronizer | Equipped | |
| Steering | Type | Recirculating ball, powered adjustable column |
| Position | Left Hand Side | |
| Chassis | Type | U-profile parallel ladder cold riveted cross |
| Frame Layer | 2-layer standard body unit mounting | |
| Suspension | Mechanical, Semi-elliptic Leaf Springs 8/6+5 | |
| Axle | Front Axle Rating | 2,500 kg |
| Rear Axle Rating | 4,800 kg | |
| Rear Axle Ratio | 5.571 | |
| Brake | Service Brake | Hydraulic brake |
| Parking Brake | Spring energy, compressed air operating on the rear wheels | |
| Others | ABS | |
| Superstructure | Box Dimension | 5200×2400×2150 mm |
| Floor | Pattern plate floor | |
| Power Supply System | 20kW low-noise generator | |
| LED Screen Size | 2 sides, 4480×1920 mm | |
| Screen Type | Full color, outdoor waterproof LED screen | |
| Pixel Pitch | P4 high-resolution | |
| LED control system | Industrial computer with control system | |
| Speaker System | Waterproof speakers, amplifier | |
| Video processor | Novastar VX400 LED Video Processor | |
| Screen Installation Type | Hydraulic lifting screen, lifting height 1.5m | |
| Stage | Foldable stage | |
| Cooling System | Loop ventilation cooling system |
