BRIEF

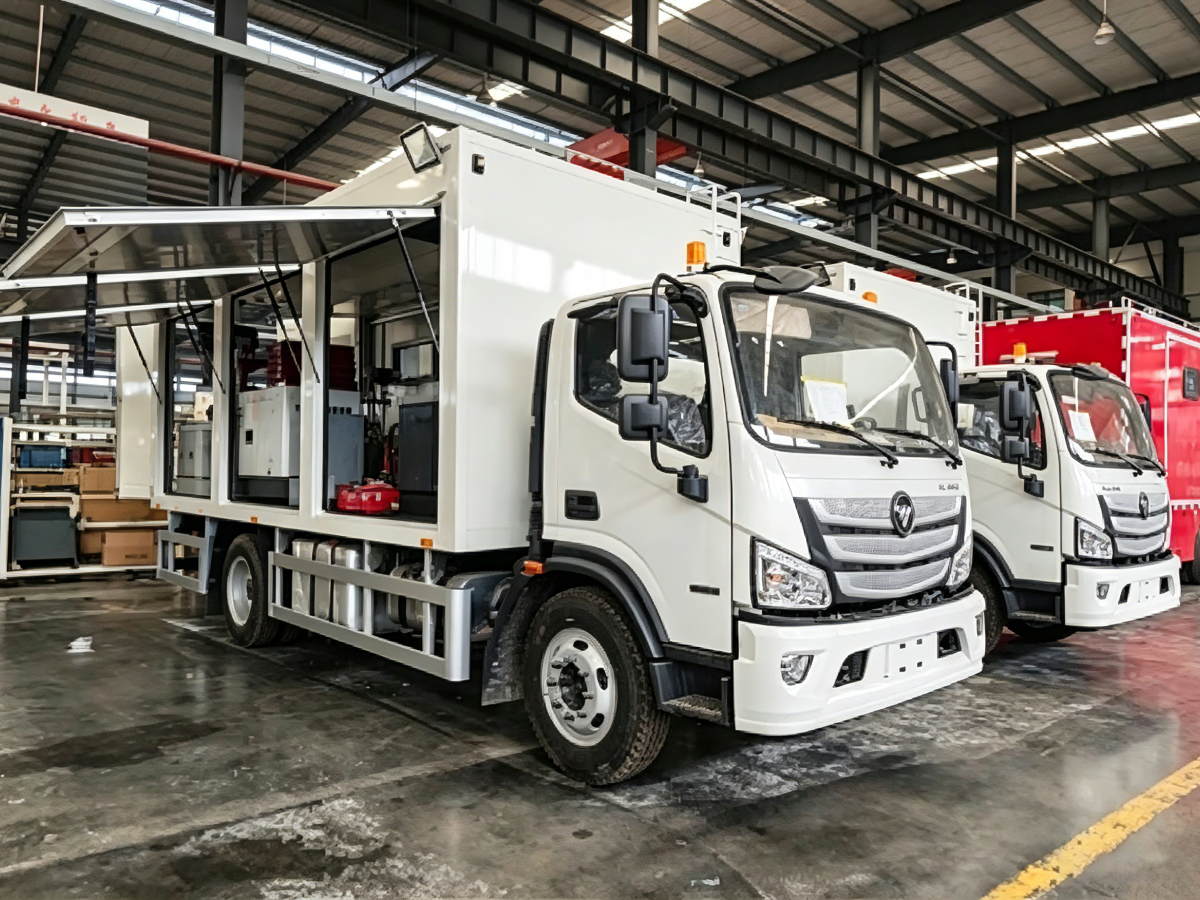

The FOTON 4×2 Mobile Maintenance Truck is a self‑contained field repair workshop built on a 12‑tonne truck chassis. It enables professional equipment maintenance anywhere – on remote construction sites, mining operations, municipal fleets, or agricultural fields – without relying on a fixed garage.

The all‑aluminium van body is highly resistant to corrosion, salt spray, and temperature shocks, making it suitable for harsh climates and long‑term outdoor use. Inside, the vehicle is equipped with a dedicated workbench, dual‑source power supply (220V mains or generator), a ≥250 litre integrated clean/waste water system, and comprehensive safety features (leakage protection, grounding, lightning protection, multiple fire extinguishers). With a right‑side upward‑opening flap, 180° rear doors, push‑out windows, and a concealed rear ladder, every detail is designed for efficient, convenient, and safe on‑site repairs. Whether for routine maintenance, breakdown diagnosis, or emergency rescue, this FOTON mobile maintenance truck minimises equipment downtime and eliminates costly transport to a central workshop.

FEATURES

1. All‑Aluminium Van Body – Durable in Harsh Environments

• 1.5/1.0mm aluminium skin – Resists salt spray, corrosion, and thermal shock.
• 2.0mm aluminium tread floor – Anti‑slip, impact‑resistant, easy to clean.
• Reinforced frame – Supports 1500 kg roof crane for heavy lifts.

2. Smart Access & Ergonomic Operation – Work Comfortably On Site

• Right side flap with air springs – Stays open automatically, waterproof design.
• 180° rear door – Full rear access for large equipment.
• ≥3 left push‑out windows – Natural light and ventilation.
• Concealed rear ladder – Pulls out without tools, safe roof access.

3. Complete Power System – Work Independently Anywhere

• 220V 60Hz quick socket – Plug directly into the site mains.
• Manual changeover switch – Instant swap between mains and generator.
• Control box – Leakage protection, air switches, volt/amp display.
• Grounding + lightning protection – Safe for open‑area work.
• 12V 2000Wh emergency supply – Lights work for hours without external power.

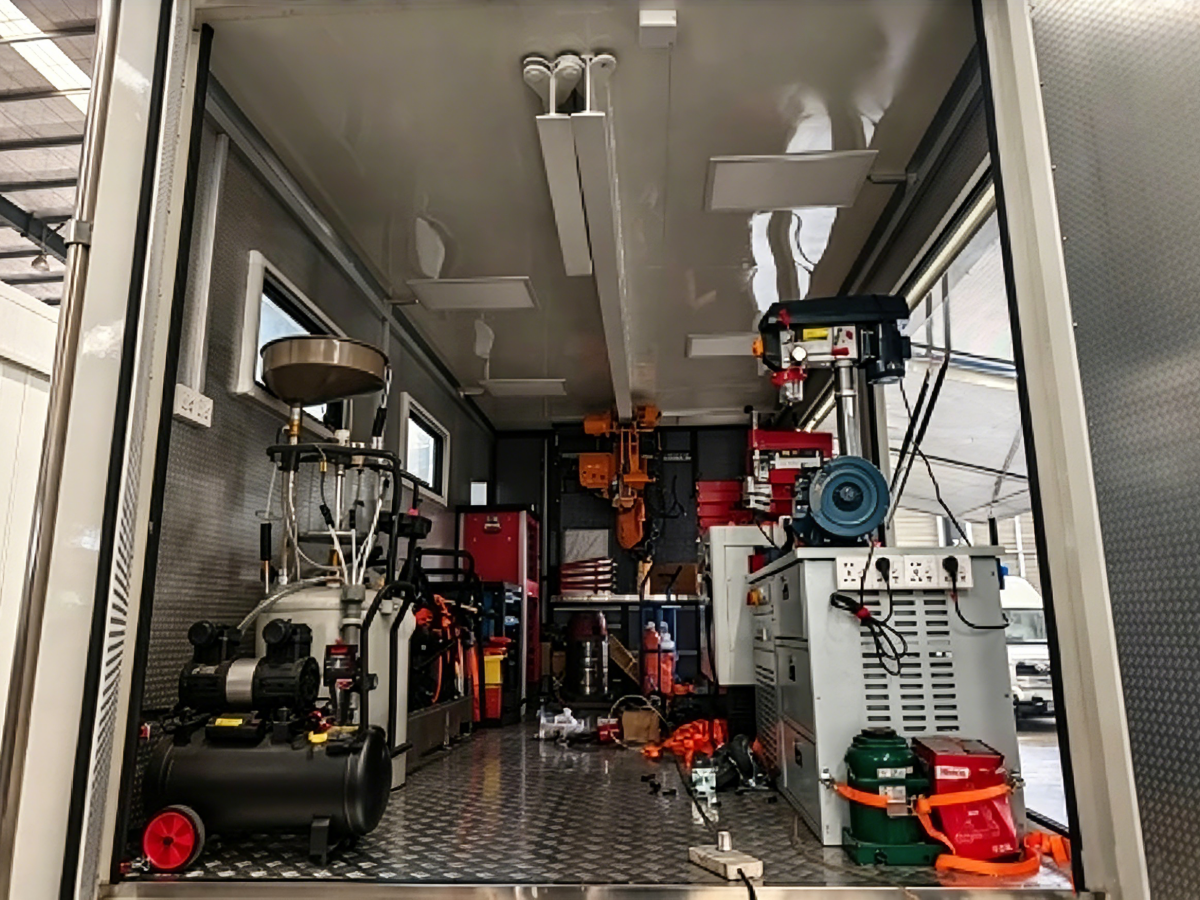

4. Interior Workshop Facilities – As Professional as a Fixed Garage

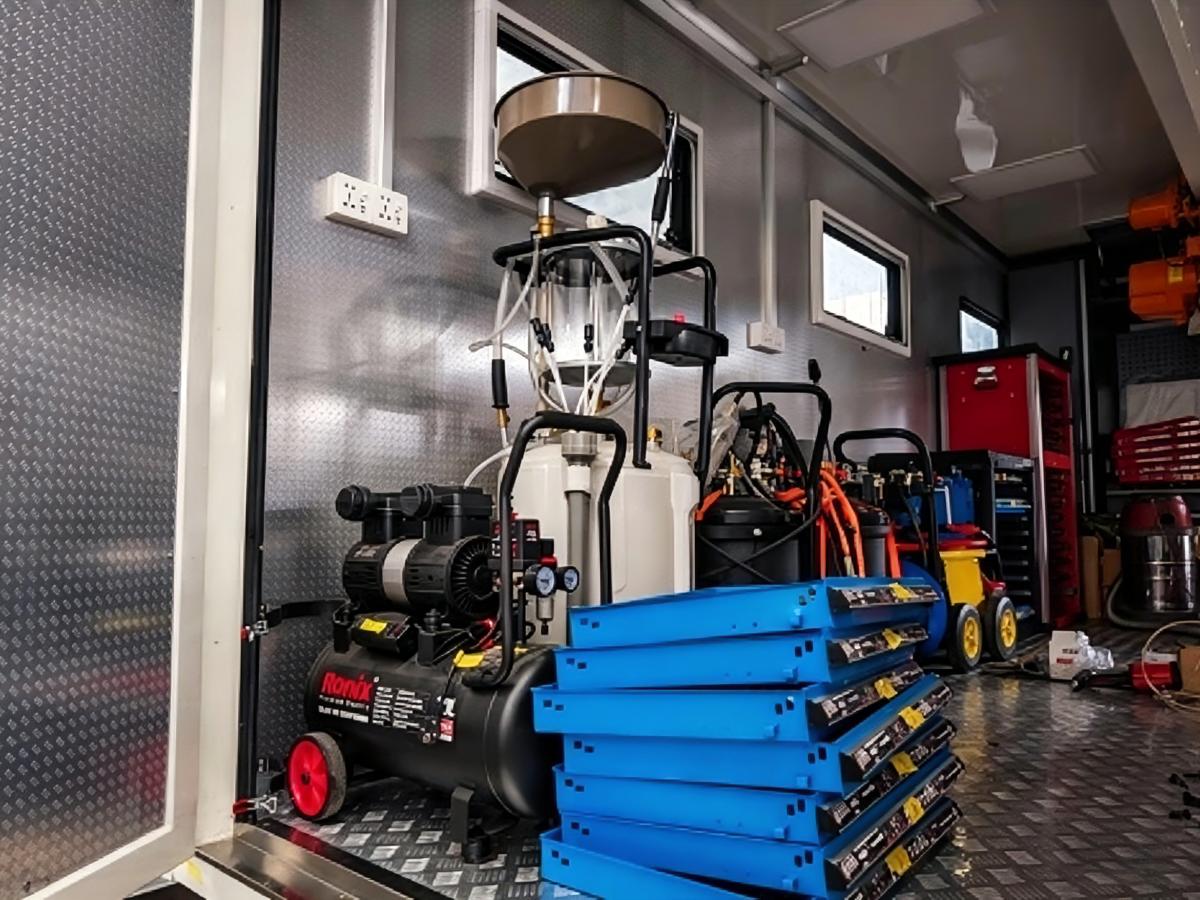

• Dedicated workbench – Mount drill, grinder, etc. for on‑site precision work.
• Custom equipment fixing – Secure transport of customer‑owned tools.

5. Clean Water & Wastewater System – Washing, Cooling & Environmental Compliance

• Automatic pump + full piping – One‑button water supply.
• ≥250L clean + waste tanks – Side‑mounted, bottom drain. No illegal discharge.

6. Comprehensive Fire Safety – Be Ready for Emergencies

• Four extinguisher types (water, foam, CO₂, dry powder) – Covers solid, oil, and electrical fires.

7. Lighting System – Work Safely Day or Night

• Left/right emergency LED work lights – Adjustable, illuminates both sides.
• 4 interior LED ceiling lights – Shadow‑free, runs on emergency supply.
• Full LED road & marker lights – Safer driving and roadside parking.

SPECIFICATION

Vehicle Specification
Overall Dimensions	7785 × 2450 × 2810 mm
Chassis Brand	FOTON
Cab	Single row cab with A/C
Drive Mode	4×2, LHD
Wheelbase	4200 mm
G.V.W.	11, 600 kg
Engine	Cummins, lSF3.8S3168
Horsepower	168HP
Emission Standard	Euro Ⅲ
Gearbox	Manual Type, 6F+1R
Front/Rear Axle loading	3, 600 kg / 8, 000 kg
Tire	8.25R20 16PR, 6 pcs with one spare
Van Body
Outer Layer	1.5 mm aluminum alloy, high flatness, anti-salt spray, anti-corrosion, temperature shock resistant
Inner Layer	1.0 mm aluminum alloy, high flatness, anti-salt spray, anti-corrosion, temperature shock resistant
Van Frame	Reinforced frame structure, supports roof rail crane, rated load 1500 kg
Van Body	Exterior painted white; logos and lettering available upon buyer’s request. Smooth surface, no burrs or sharp protrusions.
Van Floor	2.0 mm aluminum tread plate, anti-slip, anti-salt spray, anti-corrosion, heavy impact resistant
Rear / Left / Right Side Bumper	Fixed steel anti-collision guard

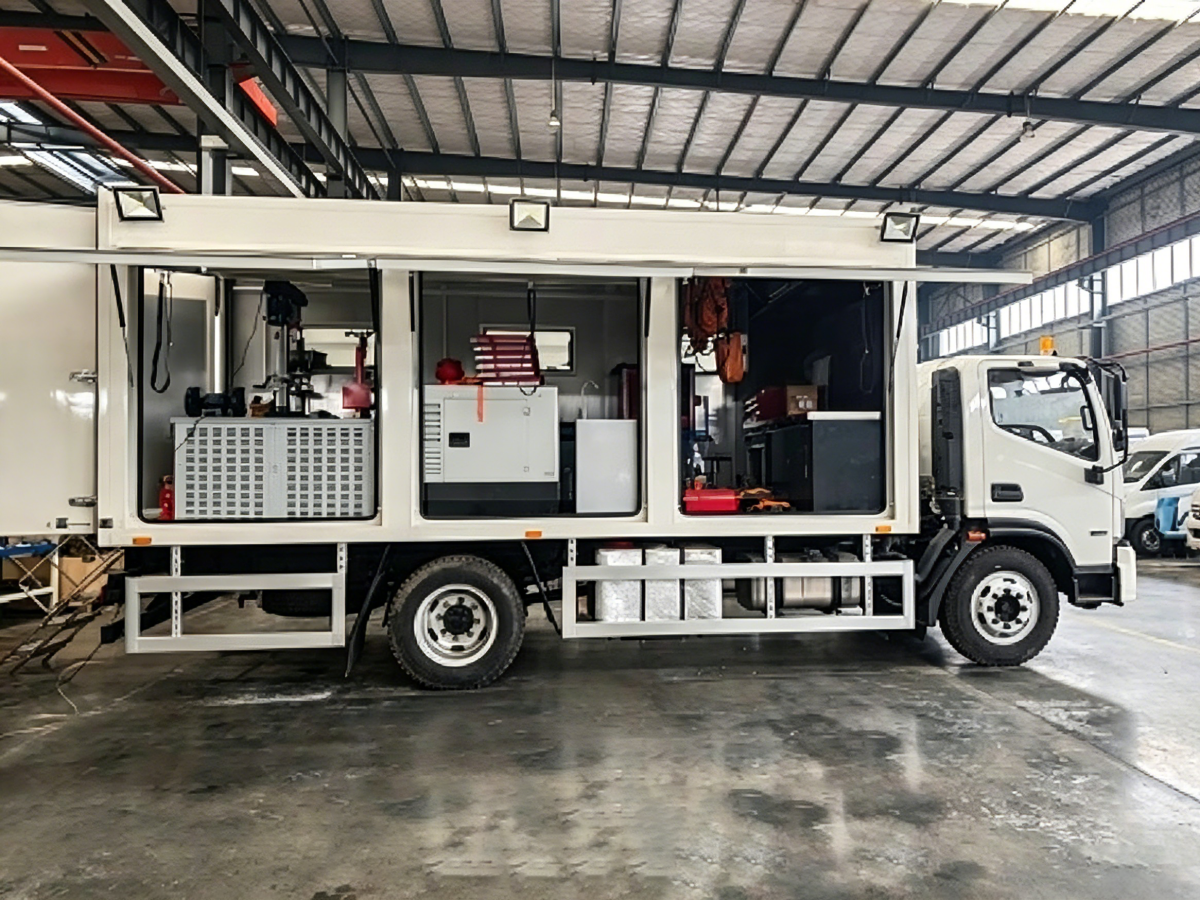

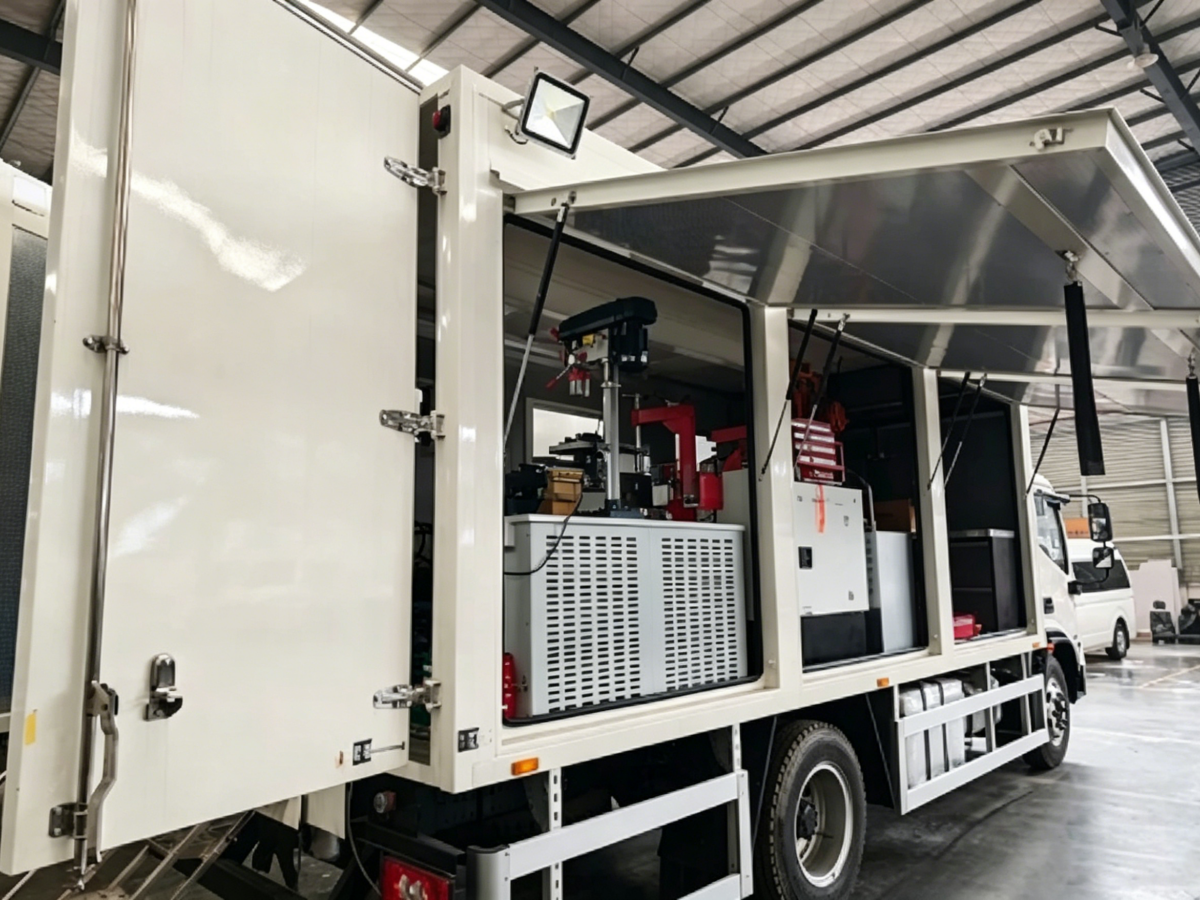

Right Side Flap	The right side flap can be lifted upward, supported by air springs, and will not fall without external force. Waterproof design against rain intrusion.
Flap Pull Ropes	Two elastic pull ropes are installed to prevent over-opening and enable easy closing
Lighting System
Rear Marker Lights	2 red LED lights
Rear Tail Light Assembly	2 sets of red, yellow & white combination lights
Left & Right Side Marker Lights	3 yellow LED lights + 3 spare parts of the same specification
Left / Right Emergency Working Light	1 set 12V warm white LED light, manually adjustable vertically for night operation
Interior LED Lighting	4 sets 12V LED ceiling lights for lighting without mains/generator; 1 set of matching spare parts included
Emergency Lighting Power	≥12V 2000Wh power supply for emergency lighting
Mains Socket	220V 60Hz quick socket on the left side for maintenance tools and equipment
Power Changeover Switch	Manual switch for mains / generator power selection
Power Control Box	Equipped with leakage protection, air switches, branch circuit breakers; current & voltage display
Grounding System	Full vehicle grounding for electrical safety
Lightning Protection	Vehicle equipped with lightning protection system
Internal and External Structure & Accessory
Rear Door	180° outward opening

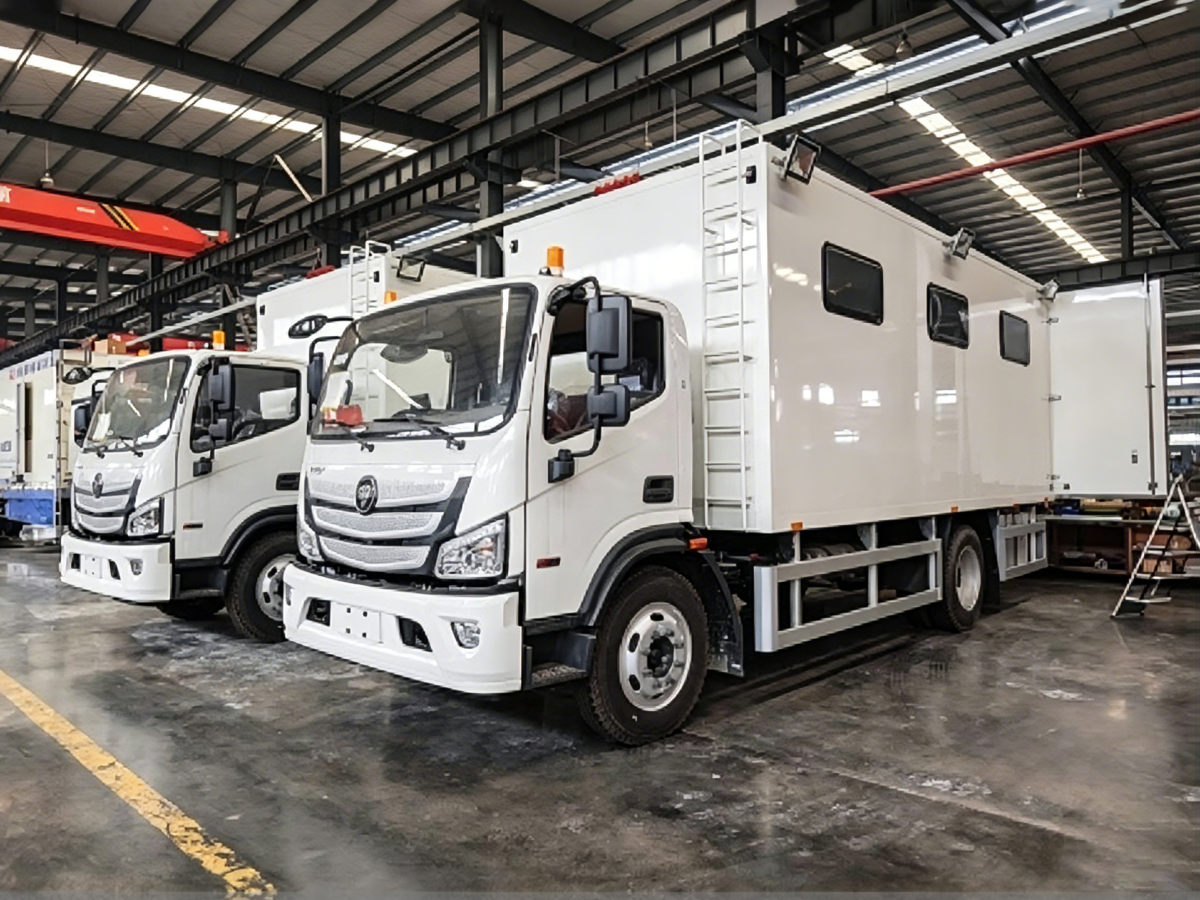

Left Windows	≥3 sets outward-pushing windows
Rear Access Ladder	Retractable ladder under rear, with hidden handrails, no disassembly required

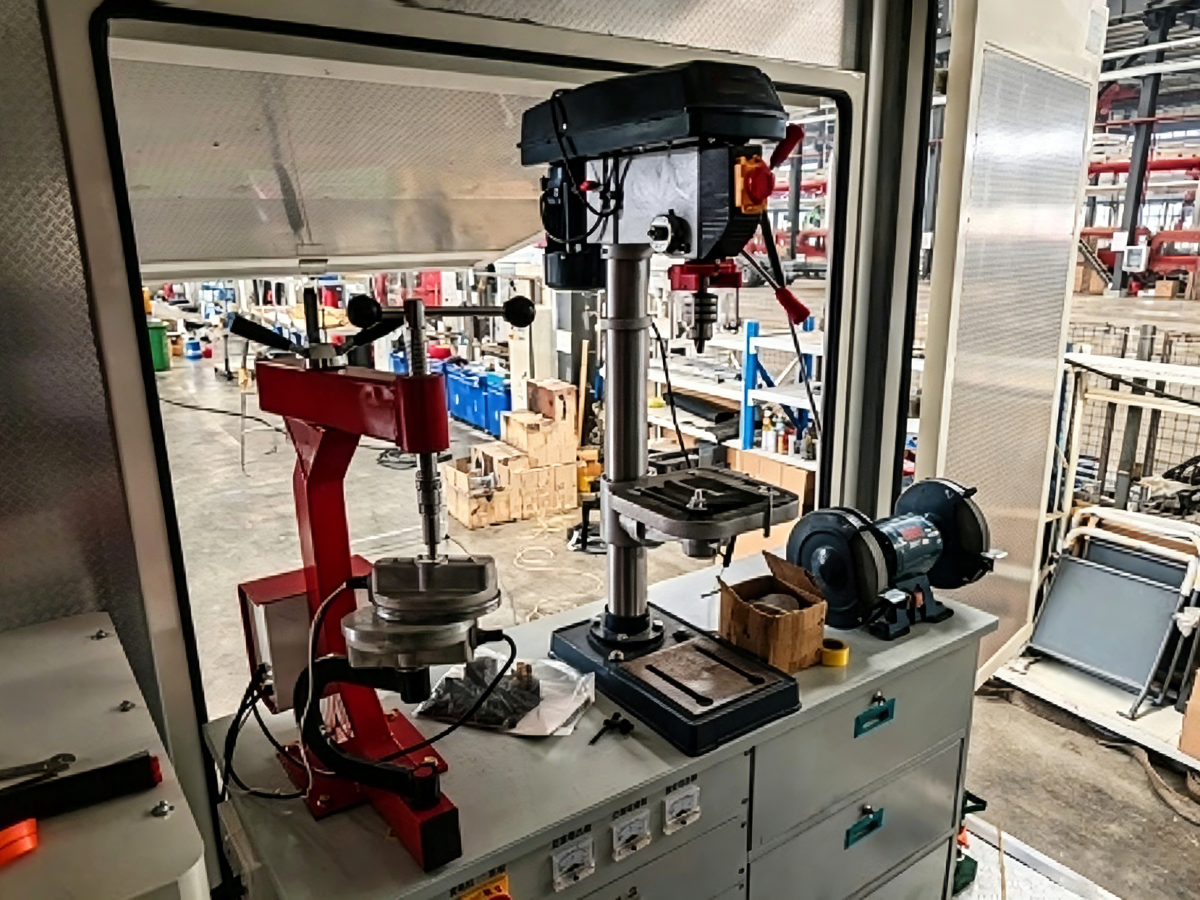

Internal Workbench	Special workbench for vertical drill, grinder, etc.
Special Equipment Mounting	Custom fixing solution for customer-owned equipment
Water Pump	Automatic water pump installed inside van to supply water from clean water tank
Water Pipeline System	Complete inlet and drainage piping
Water Tank	PVC Water tank + sewage tank ≥ 250 liters. Waste Water Tank, side-mounted waste water tank with bottom drain valve Clean Water Tank, side-mounted clean water tank with bottom drain valve
Fire Extinguishing System	Water-based, foam, CO₂, and dry powder fire extinguishers
