Unwavering Reliability, Unmatched Comfort: The Champion for Horse Transport

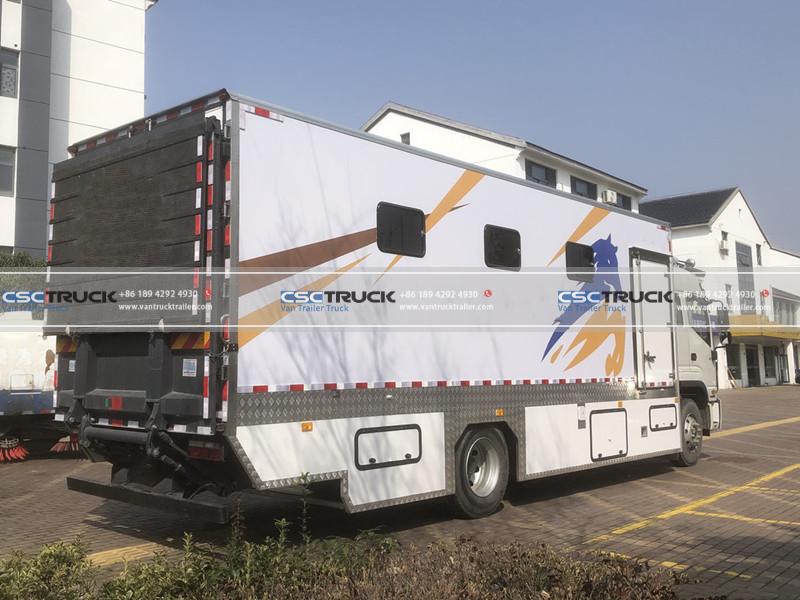

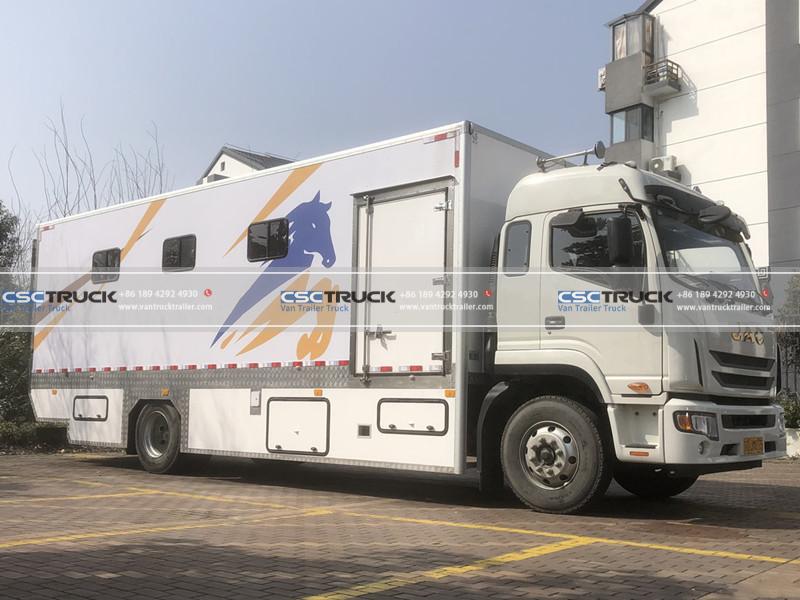

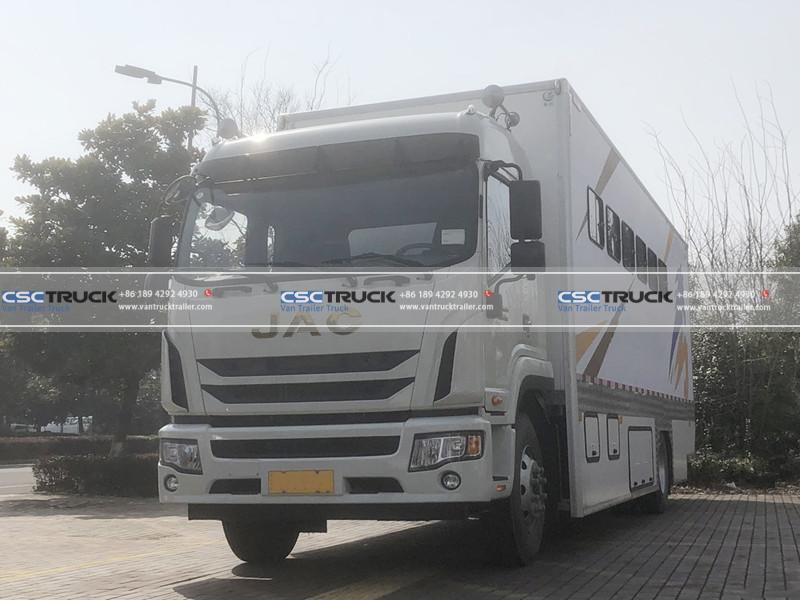

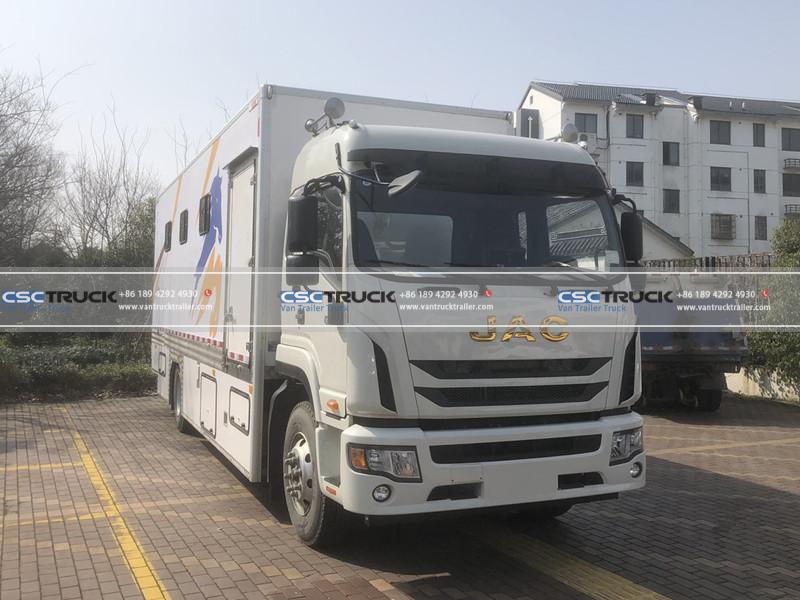

The JAC 10 Meter Horse Truck redefines the standard for equine transportation. This meticulously designed vehicle prioritizes the safety and comfort of your valuable horses, ensuring a smooth and stress-free journey over any distance.
Built to Endure, Engineered for Excellence
-
Robust JAC Chassis (Model HFC5181XXYB80K1E4S): Provides a rock-solid foundation, guaranteeing durability and stability even on the most demanding journeys.
-
Powerful Performance: The Anhui Cummins B4.0NS6B195 engine delivers an impressive 195 horsepower (143 kW) with its 4-liter displacement, ensuring ample power for transporting even the heaviest loads.
-
Eco-Friendly Operations: Adherence to EURO II, III, IV, V, and VI emission standards minimizes environmental impact while complying with global regulations.
Spacious Comfort, Uncompromising Safety
-
Ample Cargo Box: Measuring 8.3 x 2.42 x 2.4 meters, this spacious box-type cargo area provides ample room for your horses to stand comfortably and move around during transport.
-
Reliable 8-Speed Transmission: The Fast 8JS75TC transmission offers smooth gear changes and optimal performance, enhancing the driving experience and fuel efficiency.
-
Safety First: With a rated load capacity of 9.505 tons and a vehicle weight of 8.3 tons, this truck ensures the safe transportation of your horses. Optimized front (1.4 meters) and rear overhangs (3.4 meters) further enhance stability on the road.
Tailored for Versatility, Engineered for Performance
-
Upper Installation Flexibility: Compatibility with CSCTRUCK VanTruckTrailer upper installations allows for additional features or customized configurations to perfectly suit your specific transport needs.
-
Precise Handling: The 1915mm front wheel track and 1800mm rear wheel track contribute to precise steering and stable handling, especially important when navigating challenging terrains.
-
Timely Deliveries: A maximum speed of 89 km/h ensures efficient transportation of your horses over long distances, maintaining productivity and meeting delivery deadlines.
-
Enhanced Comfort: The sophisticated 3/9+7 leaf spring suspension system optimizes load distribution and enhances ride comfort for your horses, even on rough or uneven roads.
Experience the unmatched reliability and superior comfort of the JAC 10 meter livestock truck. Choose the champion for first-class travel, ensuring the well-being of your equine companions on every journey.
SPECIFICATIONS:
| Parameter | Value |
|---|---|
| Wheelbase | 7150mm |
| Body Dimensions | 10.6×2.55×3.7 meters |
| Drive Type | 4X2 |
| Front Overhang/Rear Overhang | 1.4/3.4mm |
| Rated Load | 9.505 tons |
| Vehicle Weight | 8.3 tons |
| Maximum Speed | 89 km/h |
| Front Wheel Track | 1915mm |
| Rear Wheel Track | 1800mm |
| Engine Parameters | |
| Engine Model | Anhui Cummins B4.0NS6B195 |
| Number of Cylinders | 4 cylinders |
| Maximum Output Power | 143 kW |
| Maximum Horsepower | 195 horsepower |
| Displacement | 4L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Fuel Type | Diesel |
| Rated Speed | 2400 rpm |
| Cargo Box Parameters | |
| Cargo Box Type | Box-type |
| Cargo Box Dimensions | 8.3×2.42×2.4 meters |
| Cargo Box Length | 8.3 meters |
| Cargo Box Width | 2.42 meters |
| Cargo Box Height | 2.4 meters |
| Upper Installation Brand | CSCTRUCK VanTruckTrailer |
| Transmission Parameters | |
| Transmission Model | Fast 8JS75TC |
| Number of Gears | 8 gears |
| Chassis Parameters | |
| Chassis Brand | JAC |
| Chassis Model | HFC5181XXYB80K1E4S |
| Number of Leaf Springs | 3/9+7 |
