Maneuverable and Efficient: The Ideal Choice for Short-Haul Animal Transport

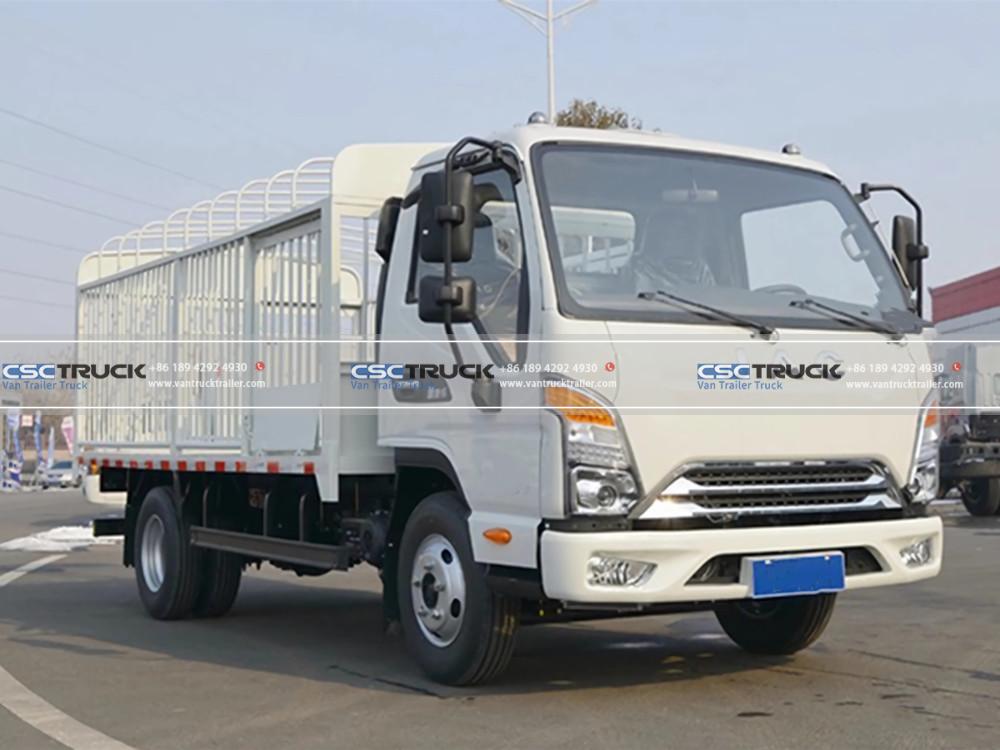

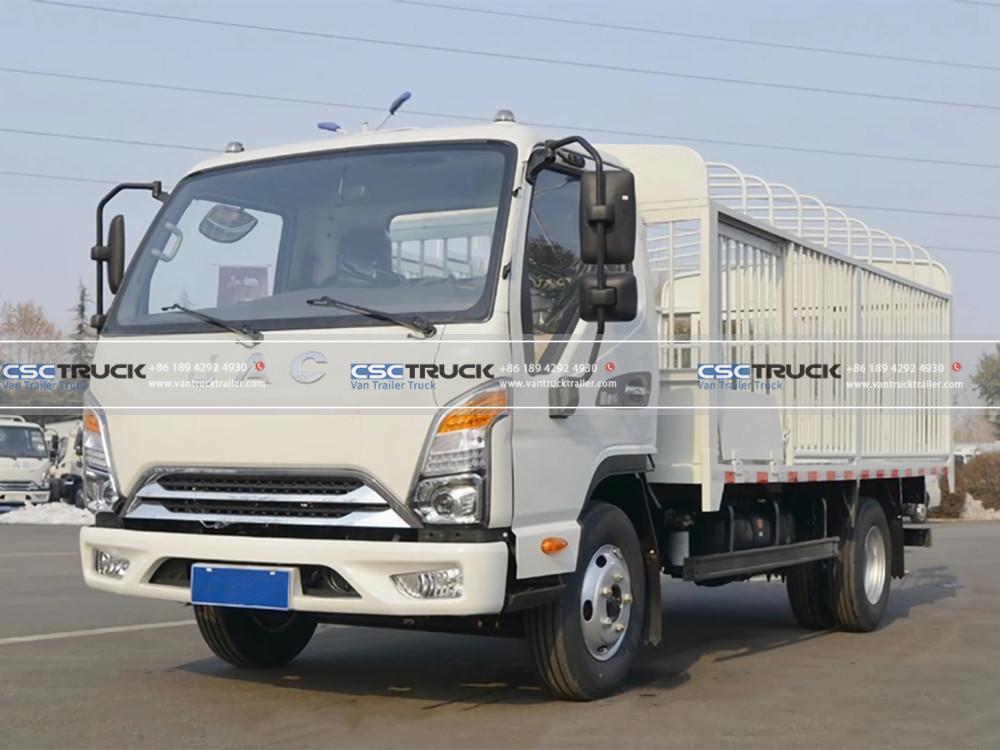

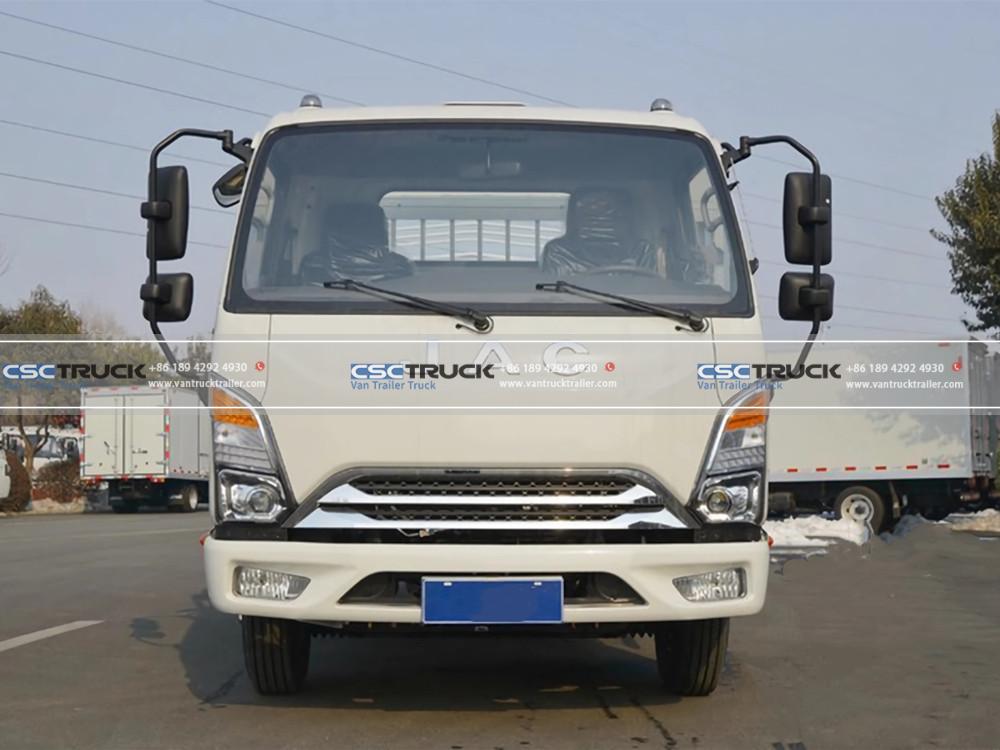

The JAC 6 Meter Livestock Truck is the perfect solution for smaller-scale animal transportation needs. This maneuverable and efficient vehicle prioritizes both animal comfort and operational efficiency, making it ideal for short-haul journeys and frequent deliveries.
Compact Design, Maximum Efficiency
- 3365mm Wheelbase: Provides a balance between maneuverability and cargo space, allowing for easy navigation in urban and rural environments.
- 5.995 x 2.18 x 3.25 meter Body Dimensions: Offers ample space for transporting a comfortable number of animals.
- Grid-Type Cargo Box (4.18 x 2.075 meters): Provides optimal ventilation and animal visibility during transport.
Reliable Performance, Minimized Environmental Impact
- 4X2 Drive Train: Enables efficient operation on various road conditions.
- Quanchai Q25-152E60 Engine: This 4-cylinder engine delivers a robust 152 horsepower (112 kW) while complying with EURO II, III, IV, V, and VI emission standards.
Swift Deliveries, Effortless Control
- Maximum Speed of 100 km/h: Ensures timely deliveries and efficient operation.
- 5-Speed Xingrui ML645B Manual Transmission: Offers smooth gear changes and driver control.
Durable Construction, Enhanced Stability
- JAC HFC1045P22K1C7S Chassis: Renowned for its robust construction, this chassis guarantees a safe and reliable driving experience.
- 5/5+6 Leaf Spring Suspension: Provides a comfortable ride for your animals and exceptional load-bearing capacity.
- Six 7.00R16LT 8PR Tires: Offer superior traction and stability on various road surfaces.
Additional Features:
- HFC5045CCQP22K1C7S Vehicle Announcement: May include signage or branding specific to your business
- CSCTRUCK VanTruckTrailer Upper Installation: Ensures quality and reliability for any additional equipment or customized configurations you may need
Experience the unmatched efficiency and maneuverability of the JAC 6 Meter Livestock Truck. The ideal choice for smaller-scale animal transportation needs, ensuring a smooth and comfortable journey for your animals.
SPECIFICATIONS:
| Parameter | Value |
|---|---|
| Wheelbase | 3365mm |
| Body Dimensions | 5.995×2.18×3.25 meters |
| Drive Type | 4X2 |
| Front Overhang/Rear Overhang | 1.1/1.53mm |
| Rated Load | 1.58 tons |
| Vehicle Weight | 2.72 tons |
| Maximum Speed | 100 km/h |
| Front Wheel Track | 1595mm |
| Rear Wheel Track | 1560mm |
| Engine Parameters | |
| Engine Model | Quanchai Q25-152E60 |
| Number of Cylinders | 4 cylinders |
| Maximum Output Power | 112 kW |
| Maximum Horsepower | 152 horsepower |
| Displacement | 2.5L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Fuel Type | Diesel |
| Rated Speed | 3000rpm |
| Cargo Box Parameters | |
| Cargo Box Type | Grid-type |
| Cargo Box Dimensions | 4.18×2.075 meters |
| Cargo Box Length | 4.18 meters |
| Cargo Box Width | 2.075 meters |
| Upper Installation Parameters | |
| Vehicle Announcement | HFC5045CCQP22K1C7S |
| Upper Installation Brand | CSCTRUCK VanTruckTrailer |
| Vehicle Type | Livestock and Poultry Transport Vehicle |
| Cab Parameters | |
| Cab | Manual |
| Transmission Parameters | |
| Transmission Model | Xingrui ML645B |
| Number of Gears | 5 gears |
| Chassis Parameters | |
| Chassis Brand | JAC |
| Chassis Model | HFC1045P22K1C7S |
| Frame Size | 180×65×4.5mm |
| Front Axle Description | – |
| Rear Axle Description | – |
| Speed Ratio | – |
| Number of Leaf Springs | 5/5+6 |
| Tires | |
| Number of Tires | 6 |
| Tire Specifications | 7.00R16LT 8PR |
