Dominate Concrete Transport: Engineered for Efficiency, Built for Durability

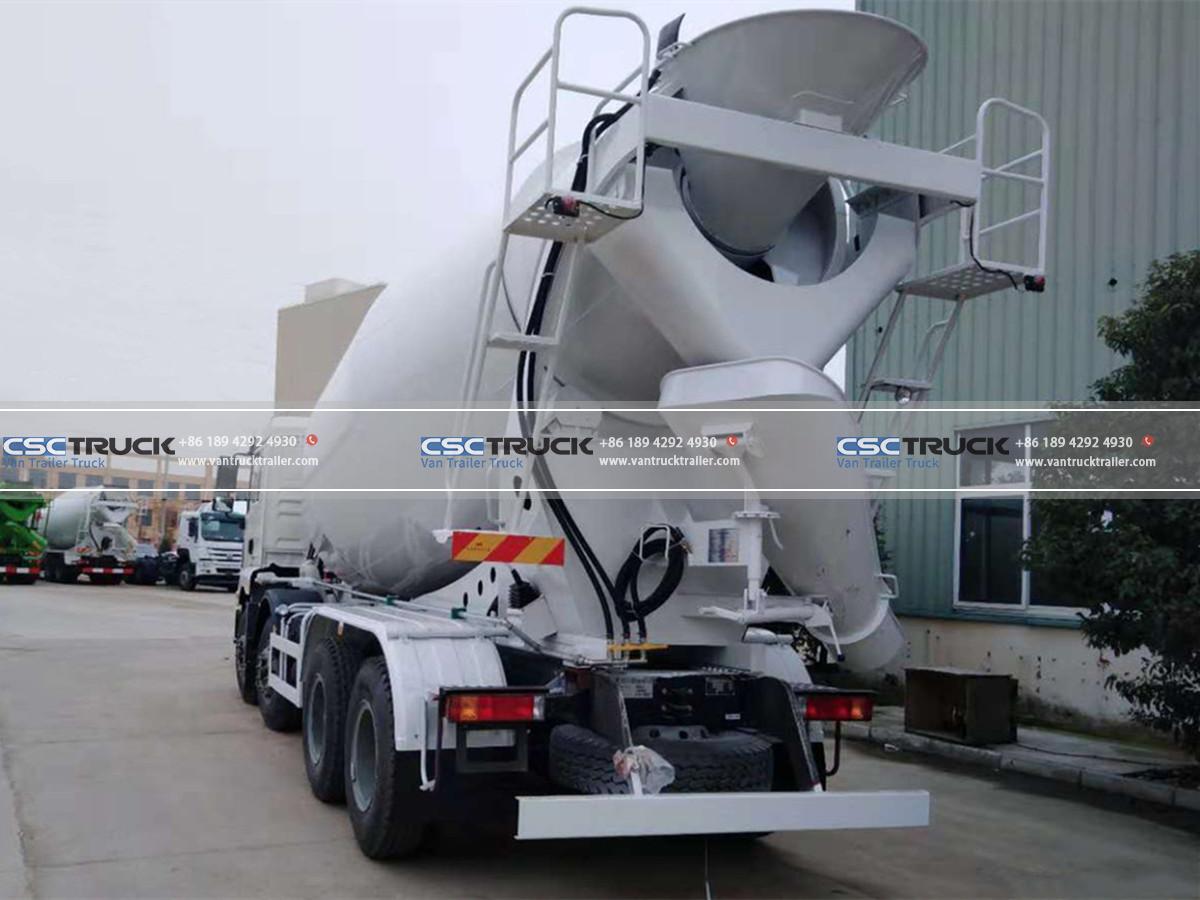

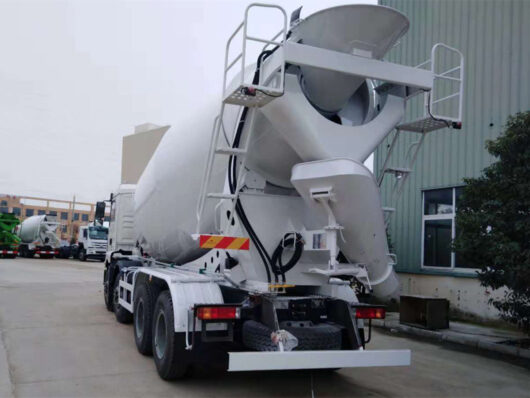

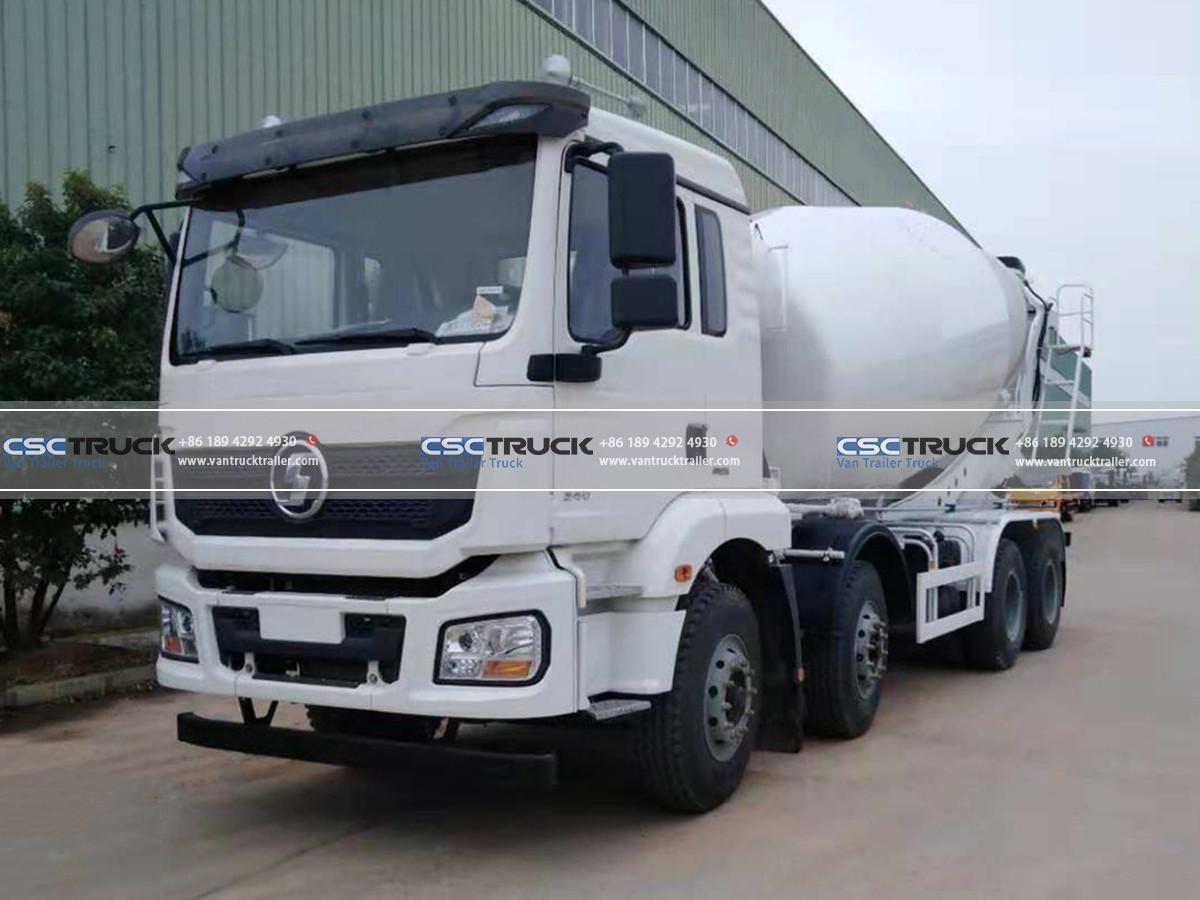

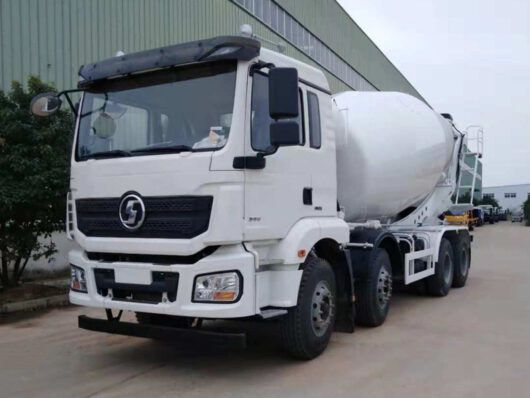

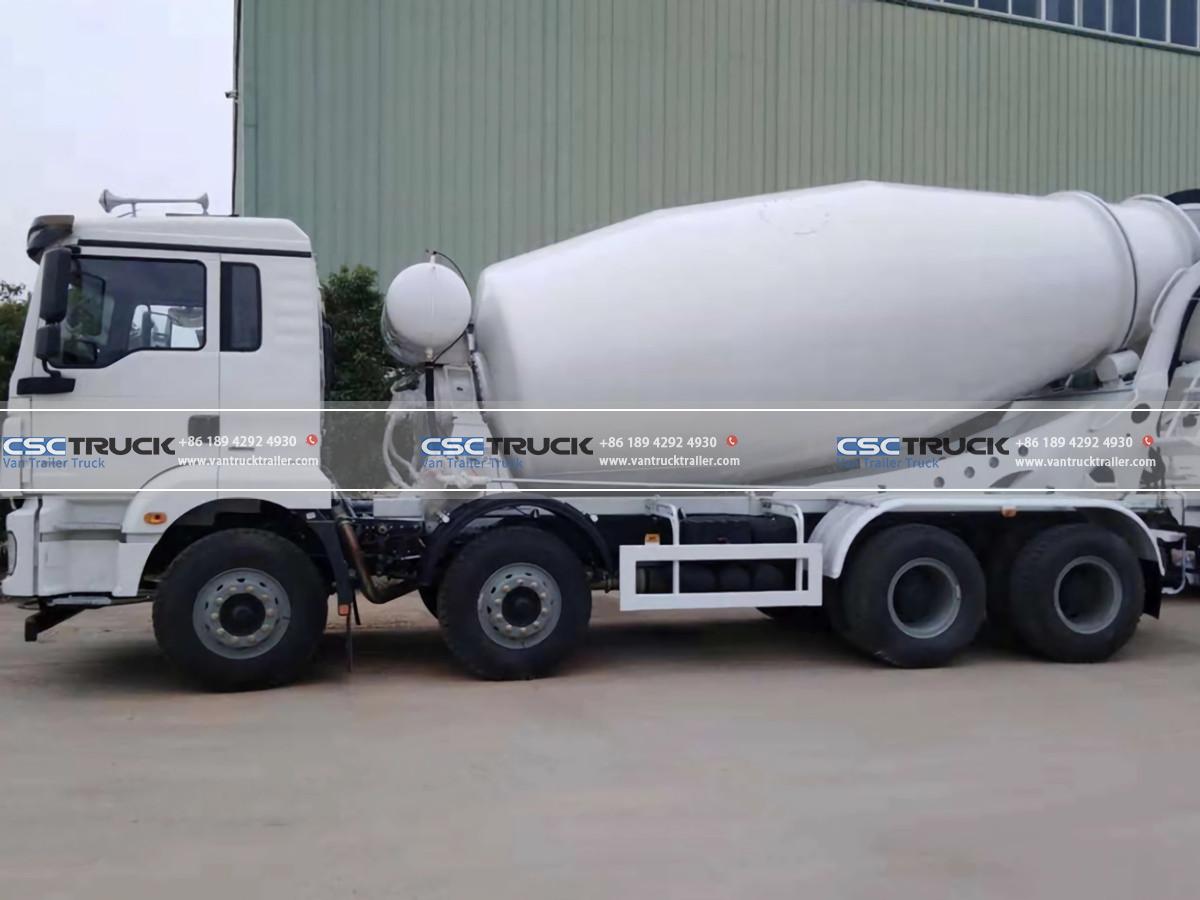

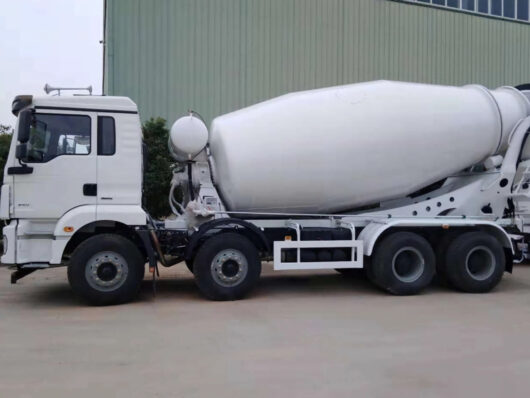

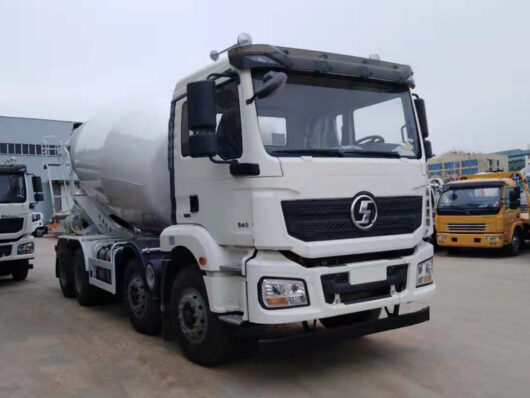

The Shacman 8 CBM Concrete Truck is the undisputed champion of concrete delivery. This robust and feature-rich vehicle is meticulously engineered to conquer even the most demanding construction projects, ensuring smooth and reliable concrete transportation on every job.
Unwavering Performance, Unmatched Efficiency
- 8X4 Drive Train: Conquer diverse road conditions with exceptional traction and control, easily navigating construction sites.
- Spacious Body Dimensions (9.35 x 2.5 x 3.82 meters): Provides ample space for efficient concrete transportation, maximizing project productivity.
- Balanced Overhangs (1.485m Front / 1.665m Rear): Optimizes weight distribution for superior handling and stability.
- Optimized Wheelbase (1800+3000+1400mm): Enhances maneuverability on construction sites while maintaining excellent stability.
Powerhouse Engine, Eco-Friendly Operations
- Weichai WP7.340E53 Engine (250 kW / 340 HP): Delivers exceptional power for efficient concrete transportation, adhering to EURO II-VI emission standards.
- High-Pressure Common Rail + SCR Technology: Enhances fuel efficiency and reduces emissions for a cleaner and more sustainable future.
Advanced Technology, Unwavering Reliability
- Spacious 7.98m³ Mixing Tank (15m³ Geometric Capacity): Allows for substantial concrete volumes, meeting demanding project requirements.
- CSCTRUCK VanTruckTrailer Upper Installation: Ensures high-quality and reliable concrete handling operations.
- Fast 10JSD140 Transmission (10 Gears): Provides smooth and efficient gear shifting for optimal performance.
- Shacman SX5310GJBMB6 Chassis & MAN 11.5T Rear Axle: Renowned for its robust construction and exceptional load-bearing capacity, guaranteeing a safe and reliable driving experience on uneven terrain.
- Durable 11.00R20 Tires: Ensure excellent traction and durability on various road surfaces.
Unmatched Capacity, Uncompromising Safety
- Rated Load Capacity of 17.47 Tons: Minimize trips and maximize efficiency by transporting substantial concrete volumes.
- Maximum Speed of 80 km/h: Delivers timely concrete delivery to construction sites without compromising safety.
Experience the unmatched power, unwavering reliability, and superior efficiency of the Shacman 8 CBM Concrete Mixer Truck. Dominate concrete transport with a vehicle engineered for efficiency and built for durability.
SPECIFICATIONS:
| Parameter | Value |
|---|---|
| Drive Type | 8X4 |
| Body Dimensions | 9.35×2.5×3.82 meters |
| Front Overhang/Rear Overhang | 1.485/1.665 meters |
| Wheelbase | 1800+3000+1400mm |
| Rated Load | 17.47 tons |
| Vehicle Weight | 13.4 tons |
| Maximum Speed | 80 km/h |
| Front Wheel Track/Rear Wheel Track | Front: 2036/2036mm; Rear: 1860/1860mm |
| Engine Parameters | |
| Engine Model | Weichai WP7.340E53 |
| Fuel Type | Diesel |
| Number of Cylinders | 6 cylinders |
| Maximum Output Power | 250 kW |
| Maximum Horsepower | 340 horsepower |
| Displacement | 7.47L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Engine Type | Electronic controlled high-pressure common rail + SCR |
| Fuel Injection System | – |
| Rated Speed | 2100 RPM |
| Upper Installation Parameters | |
| Vehicle Type | Concrete Mixer Truck |
| Upper Installation Brand | CSCTRUCK VanTruckTrailer |
| Mixing Tank Capacity | 7.98m³ |
| Mixing Drum Geometric Capacity | 15m³ |
| Other | – |
| Cab Parameters | |
| Cab | – |
| Transmission Parameters | |
| Transmission Model | Fast 10JSD140 |
| Number of Gears | 10 gears |
| Chassis Parameters | |
| Chassis Model | SX5310GJBMB6 |
| Chassis Series | Shacman |
| Frame Size | – |
| Front Axle Description | – |
| Rear Axle Description | MAN 11.5T single-stage |
| Speed Ratio | 5.286 |
| Number of Leaf Springs | 3/3/5 |
| Tires | |
| Number of Tires | 12 |
| Tire Specifications | 11.00R20 |
