Built to Conquer Any Project: Confidence in Every Mix

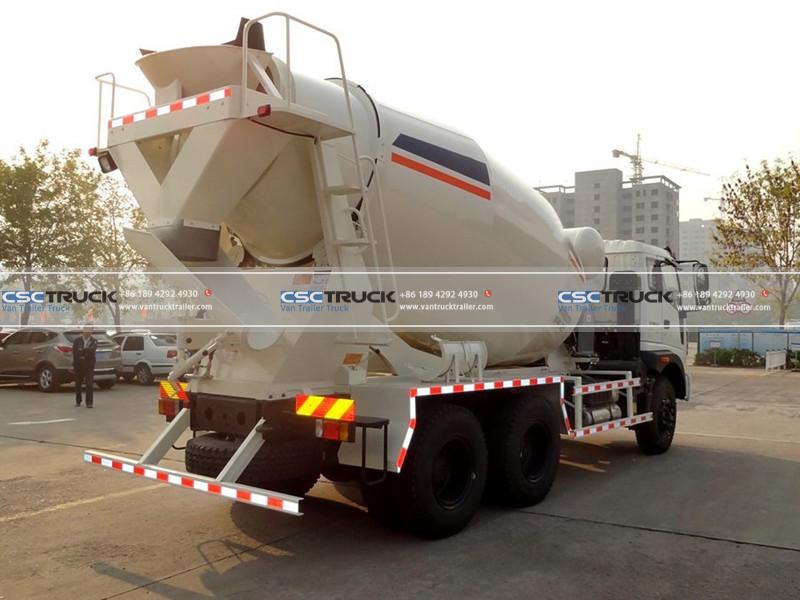

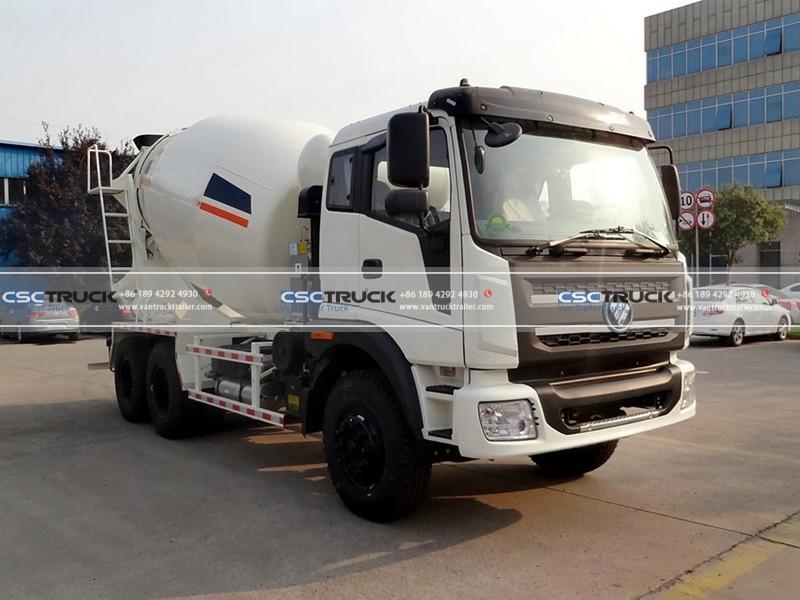

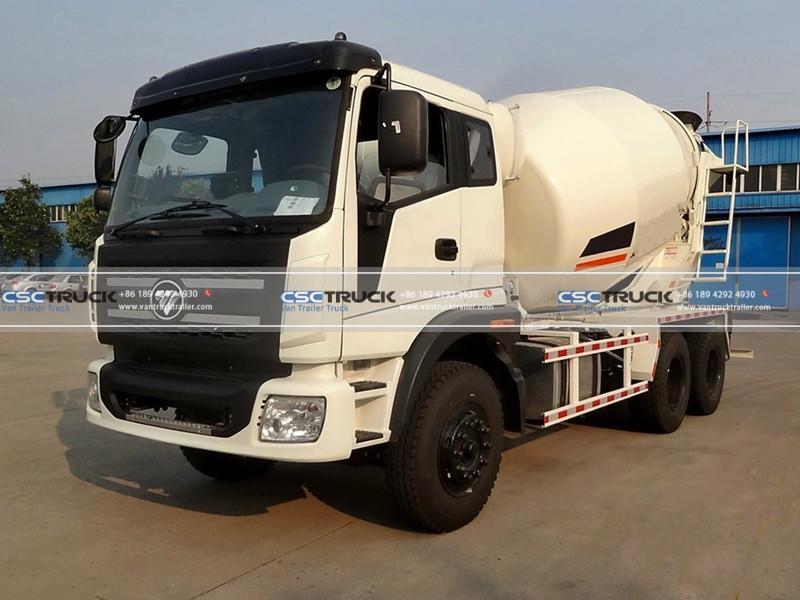

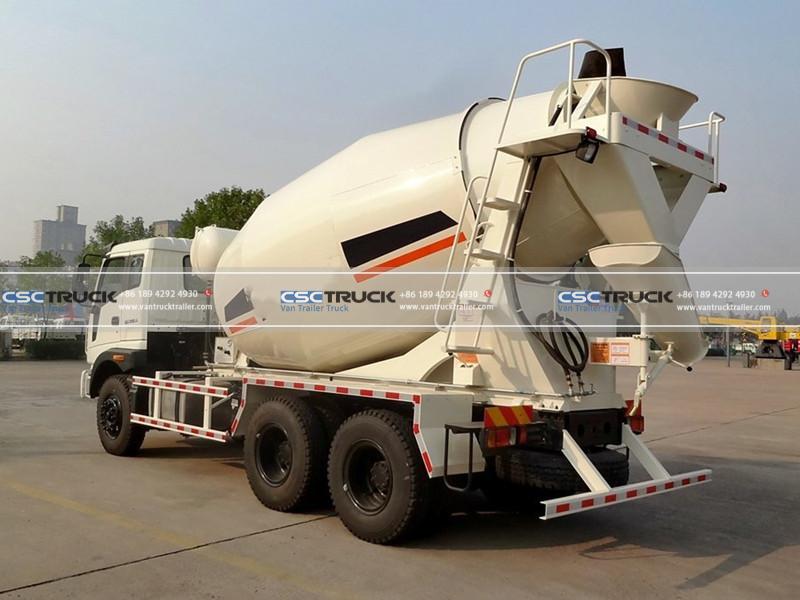

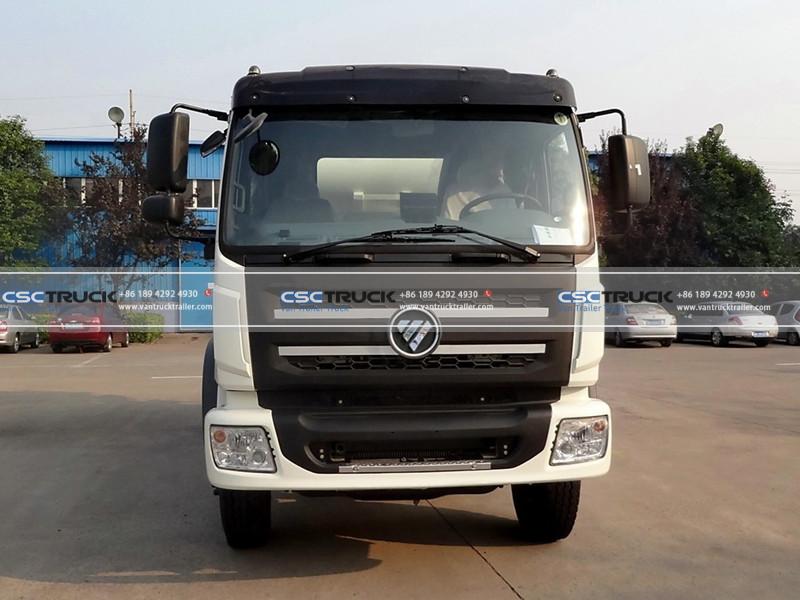

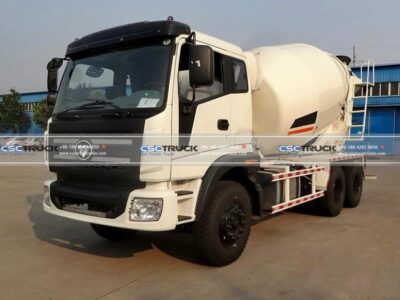

The Foton 5 CBM Construction Mixer Truck is the cornerstone of efficient and reliable concrete delivery. This robust and versatile vehicle is meticulously engineered to conquer even the most demanding construction projects, ensuring seamless operation and optimal performance at every stage.
Uncompromising Power, Unwavering Environmental Responsibility
- Yuchai YC6A260-40 Engine: This 7.255L powerhouse delivers a remarkable 260 horsepower (191 kW), ensuring efficient mixing and transportation of construction materials.
- EURO II-VI Emission Standards: Comply with regulations while minimizing environmental impact.
Exceptional Capacity, Unmatched Durability
- High Load Capacity (12.005 tons): Delivers substantial carrying capacity for construction materials, minimizing trips and maximizing productivity.
- 6X4 Drive Train & Sturdy Chassis: Provides superior stability and control, even on challenging terrains.
- 435S Air Brakes: Enhance safety and driver control during operation.
Seamless Mixing, Swift Operations

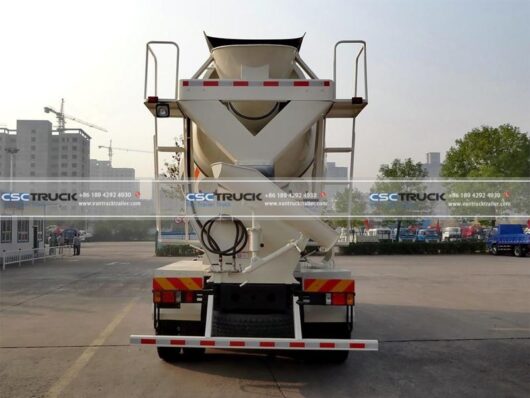

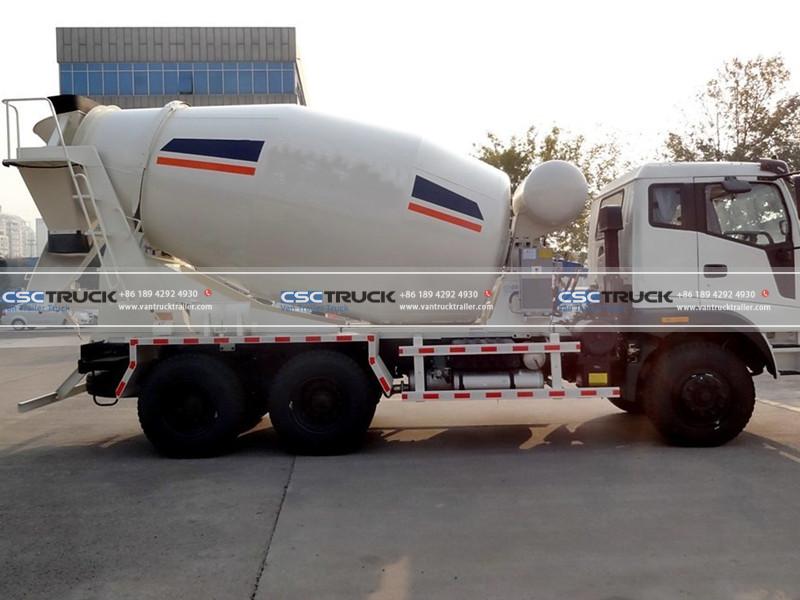

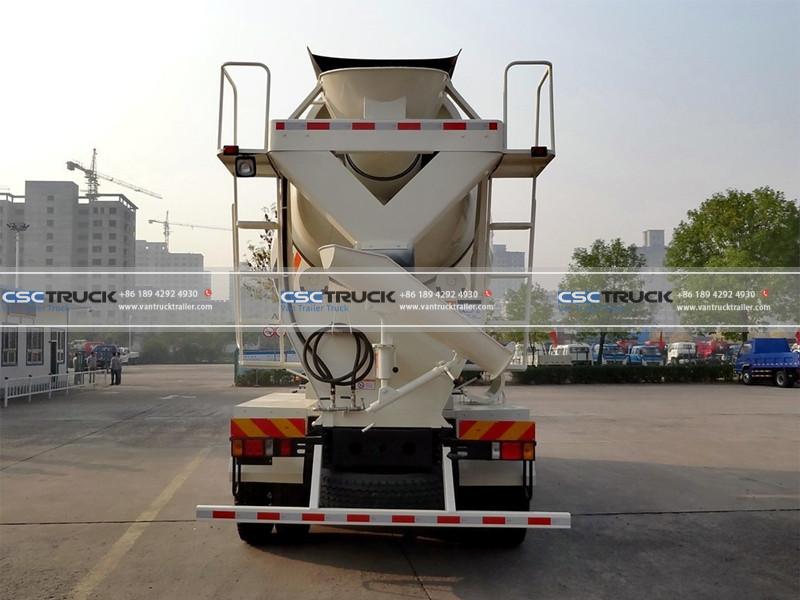

- 5 Cubic Meter Mixing Tank: Offers ample capacity for efficient concrete production.
- Rapid Mixing and Unloading: 3m³/min loading speed and 2m³/min unloading speed keep your project on schedule.
Effortless Control, Unwavering Stability
-
Fast 10JSD120 Transmission (10 Gears): Provides smooth gear changes and optimal performance under varying load conditions.
-
Reliable Traction: Wide wheel tracks (1963mm front / 1860mm rear) and 10/11 leaf springs contribute to superior stability and handling on diverse surfaces.
-
Durable Tires (11.00-20 16PR): Designed to handle heavy loads and provide excellent traction on any terrain.
Experience the unmatched performance, unwavering reliability, and superior efficiency of the Foton 5 CBM Construction Mixer Truck. Choose your on-site champion, ensuring a smooth and productive workflow on every construction project.
SPECIFICATIONS:
| Parameter | Description |
|---|---|
| Drive Type | 6X4 |
| Body Dimensions | 8.623×2.5×3.85 meters |
| Wheelbase | 3700+1300mm |
| Rated Load | 12.005 tons |
| Vehicle Weight | 12.8 tons |
| Maximum Speed | 80 km/h |
| Front Wheel Track | 1963mm |
| Rear Wheel Track | 1860mm |
| Engine Parameters | |
| – Engine Model | Yuchai YC6A260-40 |
| – Fuel Type | Diesel |
| – Number of Cylinders | 6 cylinders |
| – Maximum Output Power | 191 kW |
| – Maximum Horsepower | 260 horsepower |
| – Displacement | 7.255L |
| – Emission Standard | EURO Ⅱ, EURO Ⅲ, EURO Ⅳ, EURO Ⅴ, EURO Ⅵ |
| Upper Installation Parameters | |
| – Mixing Tank Capacity | 5m³ |
| – Loading Speed | 3m³/min |
| – Unloading Speed | 2m³/min |
| Transmission Parameters | |
| – Transmission Model | Fast 10JSD120 |
| – Number of Gears | 10 gears |
| Chassis Parameters | |
| – Chassis Model | Foton |
| – Rear Axle Description | 435S Air Brake |
| – Number of Leaf Springs | 10/11 |
| Tires | |
| – Number of Tires | 10 |
| – Tire Specifications | 11.00-20 16PR |
