Unleash Unmatched Capacity, Deliver Efficiency: The Champion of Concrete Transportation

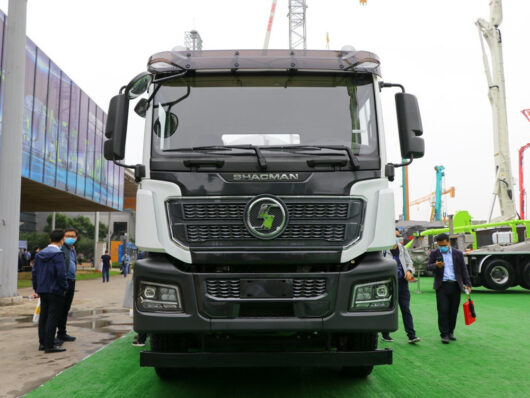

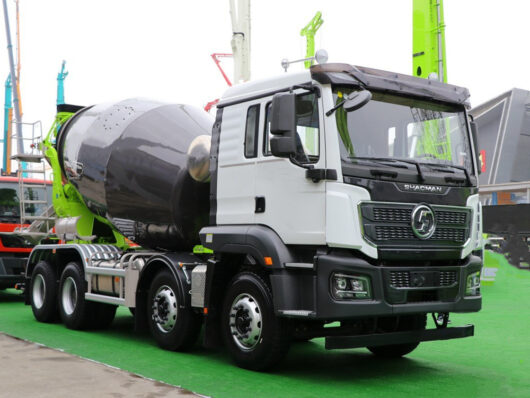

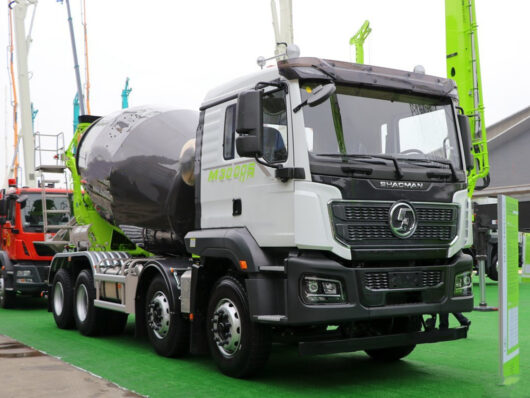

The Shacman 8 CBM Concrete Truck is the undisputed leader in concrete delivery. This robust and feature-rich vehicle is meticulously engineered to conquer even the most demanding construction projects, ensuring smooth and reliable transportation of concrete materials on every job.
Unwavering Performance, Unmatched Terrain Capability
- 8X4 Drive Train: Conquer diverse terrains with exceptional traction and control, easily navigating construction sites.
- Spacious Body Dimensions (9.8 x 2.55 x 3.96 meters): Maximize concrete volume per trip, optimizing transportation efficiency for large-scale projects.
- Balanced Overhangs (1.525m Front / 2.075m Rear): Optimize weight distribution for superior handling and stability during transport.
- Reinforced Wheelbase (1800+3000+1400mm): Enhances structural integrity and load-bearing capacity for heavy-duty hauling.
Heavy-Duty Hauling, Uncompromising Safety
- Rated Load Capacity of 17.07 Tons: Minimize trips and maximize efficiency by transporting substantial concrete volumes.
- Vehicle Weight of 31 Tons: Sturdy construction ensures durability and stability during transport, even on uneven terrain.
- Maximum Speed of 80 km/h: Delivers timely concrete delivery to construction sites without compromising safety.
Powerhouse Engine, Eco-Friendly Operations
- Weichai WP8.340E51 Engine (250 kW / 340 HP): Delivers exceptional power for efficient concrete transportation, adhering to EURO II-VI emission standards.
Advanced Mixing Technology, Operator Comfort

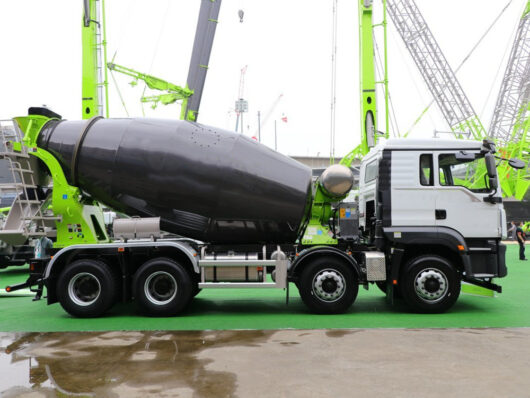

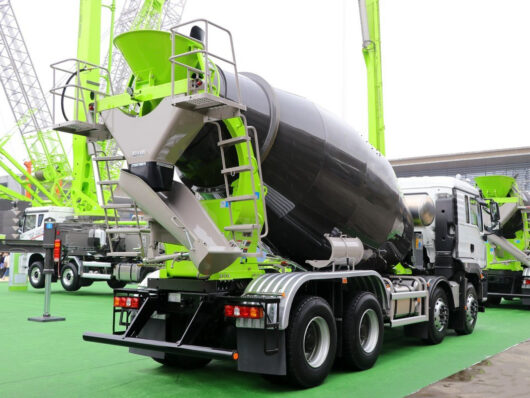

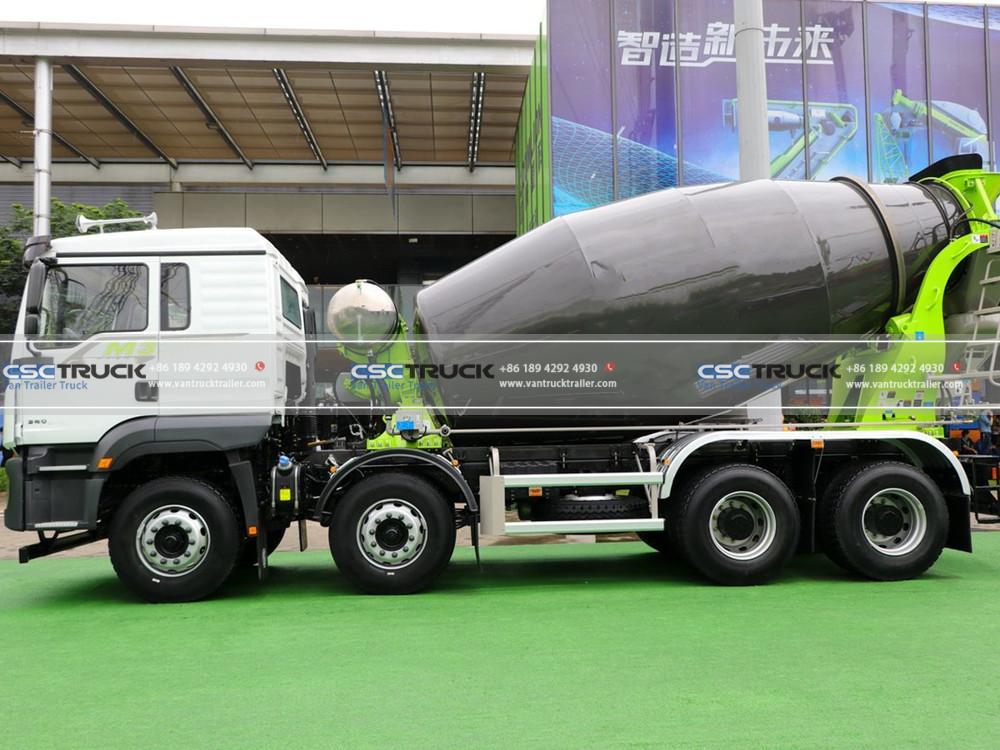

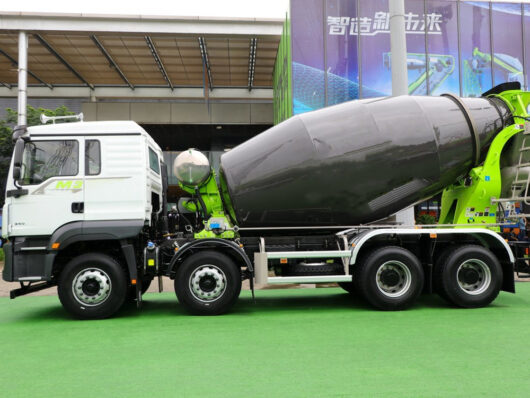

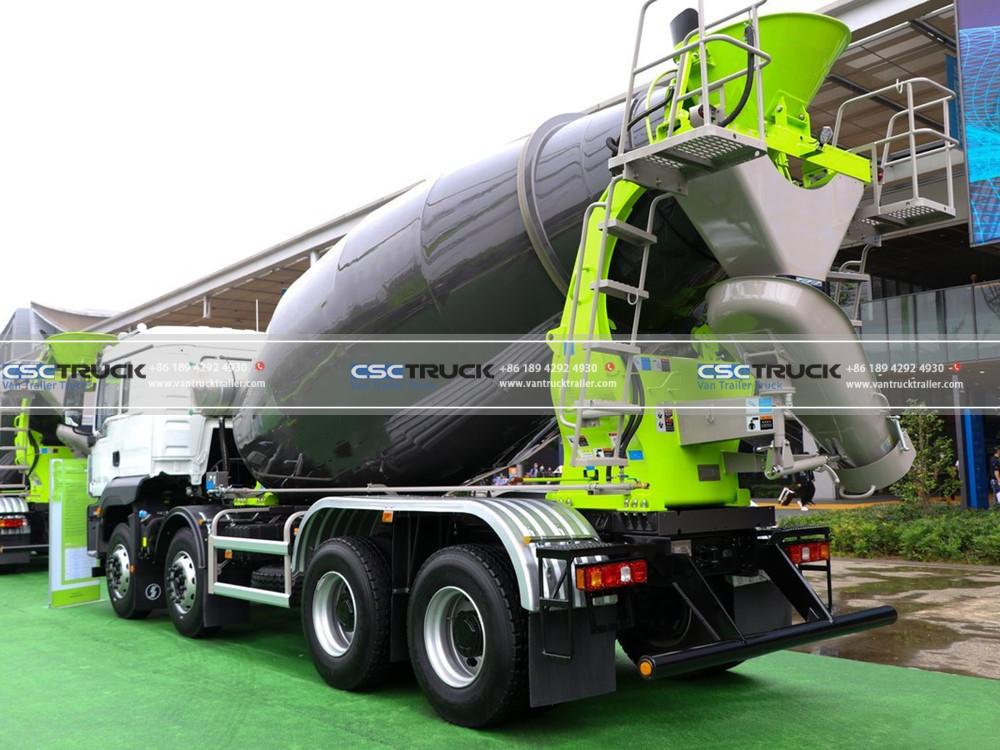

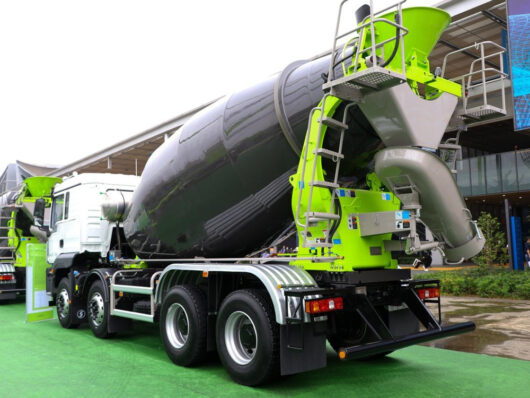

- Large 8 CBM Mixing Tank: Allows for efficient concrete mixing and transportation, meeting project demands.
- CSCTRUCK VanTruckTrailer Upper Installation: Ensures high-quality and reliable concrete handling operations.

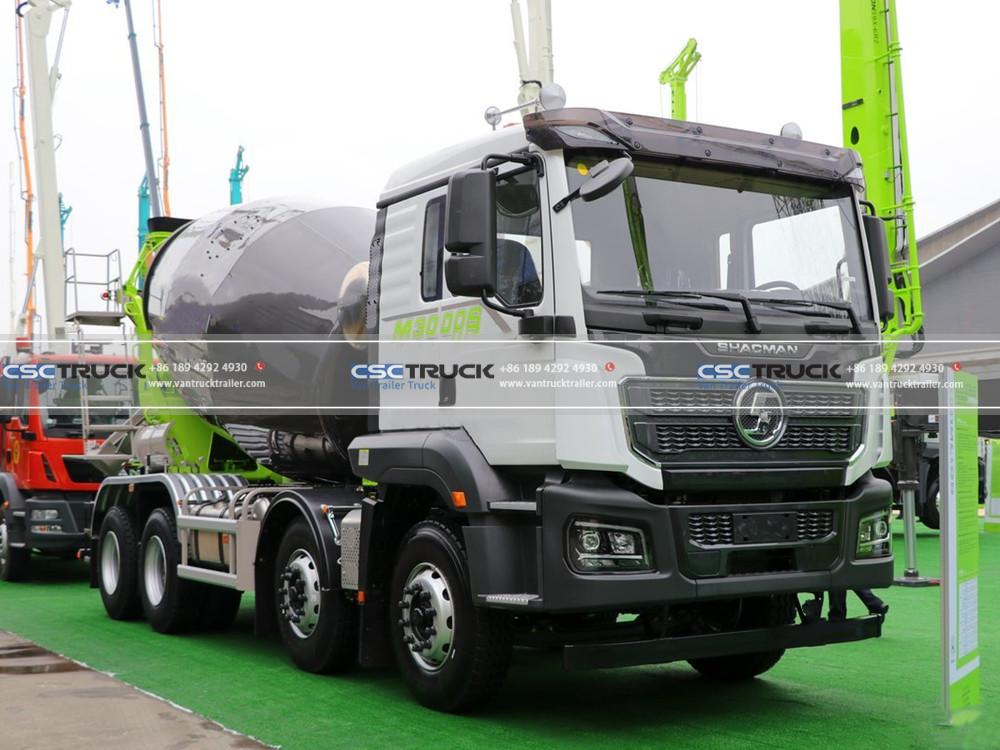

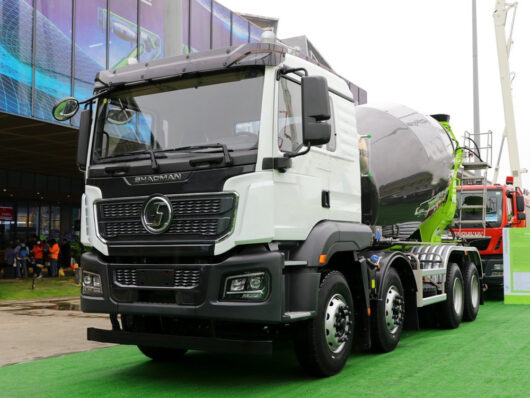

- Delong M300S Pro Cab: Provides a comfortable and ergonomic workspace for optimal operator productivity and safety.
- Fast 10-Speed Transmission: Offers smooth gear shifting and efficient power transfer under varying load conditions.
- Shacman SX5310GJBMB6 Chassis: Renowned for its robust construction, guaranteeing a safe and reliable driving experience even on uneven terrain.
- Enhanced Leaf Springs (10/10/12): Contribute to superior load-bearing capacity and stability during transport.
- Durable 12R22.5 18PR Tires: Ensure reliable traction and durability on various road surfaces.
Experience the unmatched capacity, unwavering performance, and superior efficiency of the Shacman 8 CBM Concrete Conveyor. Dominate every concrete delivery with a vehicle built to haul and engineered to perform.
SPECIFICATIONS:
| Parameter | Value |
|---|---|
| Drive Type | 8X4 |
| Body Dimensions | 9.8×2.55×3.96 meters |
| Front Overhang/Rear Overhang | 1.525/2.075 meters |
| Wheelbase | 1800+3000+1400mm |
| Rated Load | 17.07 tons |
| Vehicle Weight | 31 tons |
| Maximum Speed | 80 km/h |
| Front Wheel Track/Rear Wheel Track | Front: 2036/2036mm; Rear: 1860/1860mm |
| Engine Parameters | |
| Engine Model | Weichai WP8.340E51 |
| Fuel Type | Diesel |
| Number of Cylinders | 6 cylinders |
| Maximum Output Power | 250 kW |
| Maximum Horsepower | 340 horsepower |
| Displacement | 7.8L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Engine Type | Electronic controlled high-pressure common rail + EGR |
| Fuel Injection System | – |
| Rated Speed | 2100 RPM |
| Upper Installation Parameters | |
| Vehicle Type | Concrete Mixer Transport Vehicle |
| Upper Installation Brand | CSCTRUCK VanTruckTrailer |
| Mixing Tank Capacity | 7.82m³ |
| Cab Parameters | |
| Cab | Delong M300S Pro |
| Transmission Parameters | |
| Transmission Model | Fast 10-speed Transmission |
| Number of Gears | 10 gears |
| Chassis Parameters | |
| Chassis Model | SX5310GJBMB6 |
| Chassis Series | Delong M3000S |
| Frame Size | Not specified |
| Rear Axle Description | Not specified |
| Speed Ratio | Not specified |
| Number of Leaf Springs | 10/10/12 |
| Tires | |
| Number of Tires | 12 |
| Tire Specifications | 12R22.5 18PR |
