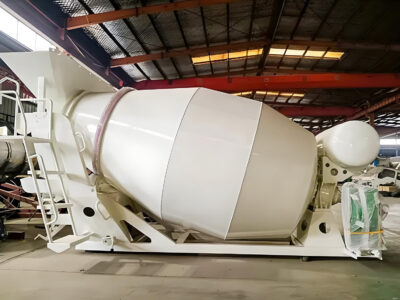

CSCTRUCK 8 CBM Mixer Truck Body

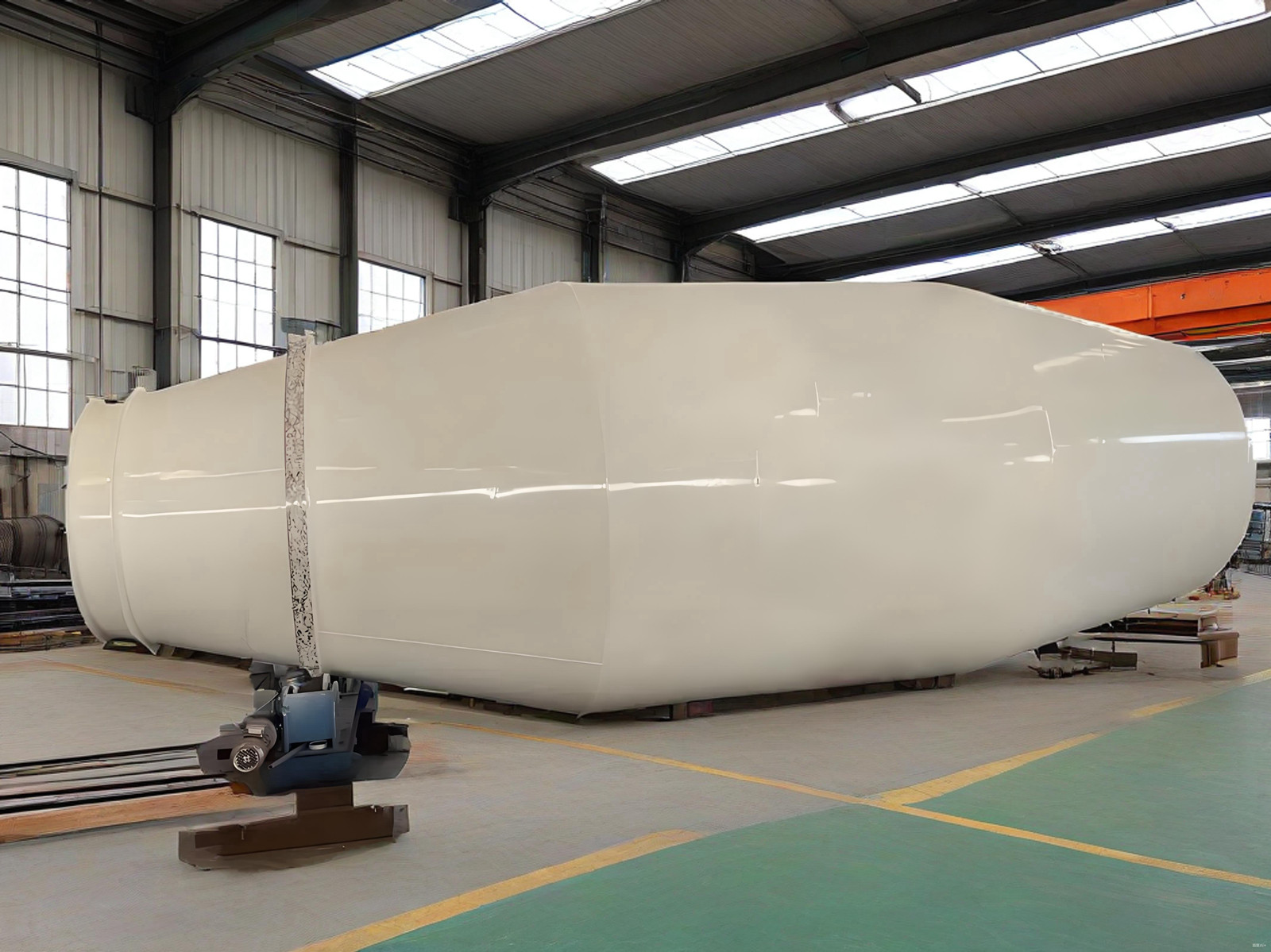

The CSCTRUCK MT08 Mixer Body integrates advanced engineering to deliver consistent, high-quality concrete mixing for infrastructure and commercial projects. Designed around an 8m³ mixing drum constructed from Q355 high-strength wear-resistant steel, it withstands abrasive aggregates (up to 80mm particle size) while maintaining structural integrity through rigorous cycles. The drum’s spiral blades, fabricated from 5mm-thick Q345B steel, ensure optimal material movement across slump ranges of 40–210mm, preventing segregation and minimizing residue.
A Danfoss hydraulic pump and motor of the mixer body deliver efficient power transmission, synchronized with a PMP reducer to calibrate drum rotation speed precisely. This synergy guarantees homogeneous mixing while operating at remarkably low noise levels. The chassis-friendly design features a 900×800mm hopper with a 1200mm main groove and a 500mm extension, allowing for rapid loading and adaptable discharge in confined spaces. Complementing this is an air-pressure-controlled water system (350L tank), facilitating exact moisture calibration during mixing and thorough post-operation cleaning. To maximize versatility, this body pairs seamlessly with a 6×4 chassis (>18T GVW, >300HP engine, >5000mm wheelbase), ensuring stability under heavy loads.
Features
Structural Integrity & Longevity
- CO₂ gas-shielded welding ensures leak-proof drum seams resistant to stress fractures.
- Low-inclination pear-shaped drum lowers the center of gravity, enhancing road stability and off-road passability.
- Enamel metal paint exterior provides corrosion resistance against harsh environmental exposure.
Precision Mixing Technology
- Spiral blade geometry promotes radial concrete flow for uniform consistency without dead zones.
- Hydraulic oil cooler maintains optimal system temperatures during extended operations.
- PMP reducer balances torque delivery and rotational control, reducing wear on drivetrain components.
Operational Practicality
- Ergonomic control lever enables single-handed direction/speed adjustments from the ground.
- Toolbox and rear work lights streamline maintenance and nighttime job site safety.
- Inspection ladders offer safe access for drum integrity checks and blade maintenance.
Material Handling Efficiency
- Wide-angle discharge chute directs concrete placement with minimal spillage.
- Support roller assembly guides drum rotation smoothly, reducing friction-induced power loss.
- Reinforced hopper design accelerates batching plant loading cycles by 20%.
Ideal for urban development and large-scale concrete delivery, the CSCTRUCK MT08 merges industrial resilience with intelligent mixing dynamics, empowering contractors to execute projects with unmatched efficiency.
SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Mixing Drum | |
| Mixing Drum Volume | 8 m³ |
| Direction of Rotation | Clockwise |
| Mixer Drum Diameter | ≤2,180 mm |
| Tilt Angle | 14.5° |
| Mixing Drum Length | 4,800 mm |
| Feed Port Diameter | 600 mm |
| Performance | |
| Feed Speed | ≥4 m³/min |
| Discharge Speed | ≥3 m³/min |
| Rotating Speed | 2~14 r/min |
| Discharge Residue | ≤0.7% |
| Allowable Range of Slump | 40–210 mm |
| Maximum Particle Size | 80 mm |
| Materials & Construction | |
| Mixing Drum Material | Q355 high-strength steel (Head: 6mm, Drum: 5mm) |
| Blade Material | Q345B high-strength steel (5mm thickness) |
| Welding Method | Carbon dioxide gas-shielded welding |
| Painting | 2x anti-corrosive primer + 2x enamel metal paint |
| Hydraulic System | |
| Hydraulic Pump | Danfoss 70-90; Displacement: 90 ml/rev |
| Hydraulic Motor | Danfoss 70-90; Displacement: 80 ml/rev; Torque: 559 Nm/rev |
| Reducer (PMP Brand) | Max torque: 65,000 Nm; Max speed: 2,500 rpm; Ratio: 1:120 |
| Material Handling | |
| Hopper (L×W) | 900 × 800 mm |
| Main Groove Length | 1,200 mm |
| Extended Groove Length | 500 mm |
| Water Supply System | Air-pressure controlled; Tank capacity: 350 L |
Key Highlights:
- Optimized Drum Geometry: 14.5° tilt angle and pear-shaped design enhance stability.
- Precision Hydraulics: Danfoss pump/motor + PMP reducer ensure torque control (±0.2% speed deviation).
- Zero-Waste Mixing: ≤0.7% residue meets ISO 9001 batch consistency standards.
- Abrasion Resistance: Q355/Q345B steel with CO₂-welded seams extends lifespan by 40% vs. conventional models.
Note: Specifications valid for aggregates ≤80mm and slump range 40–210mm. Compatible with 6×4 chassis (>300HP, >18T GVW).
