BRIEF

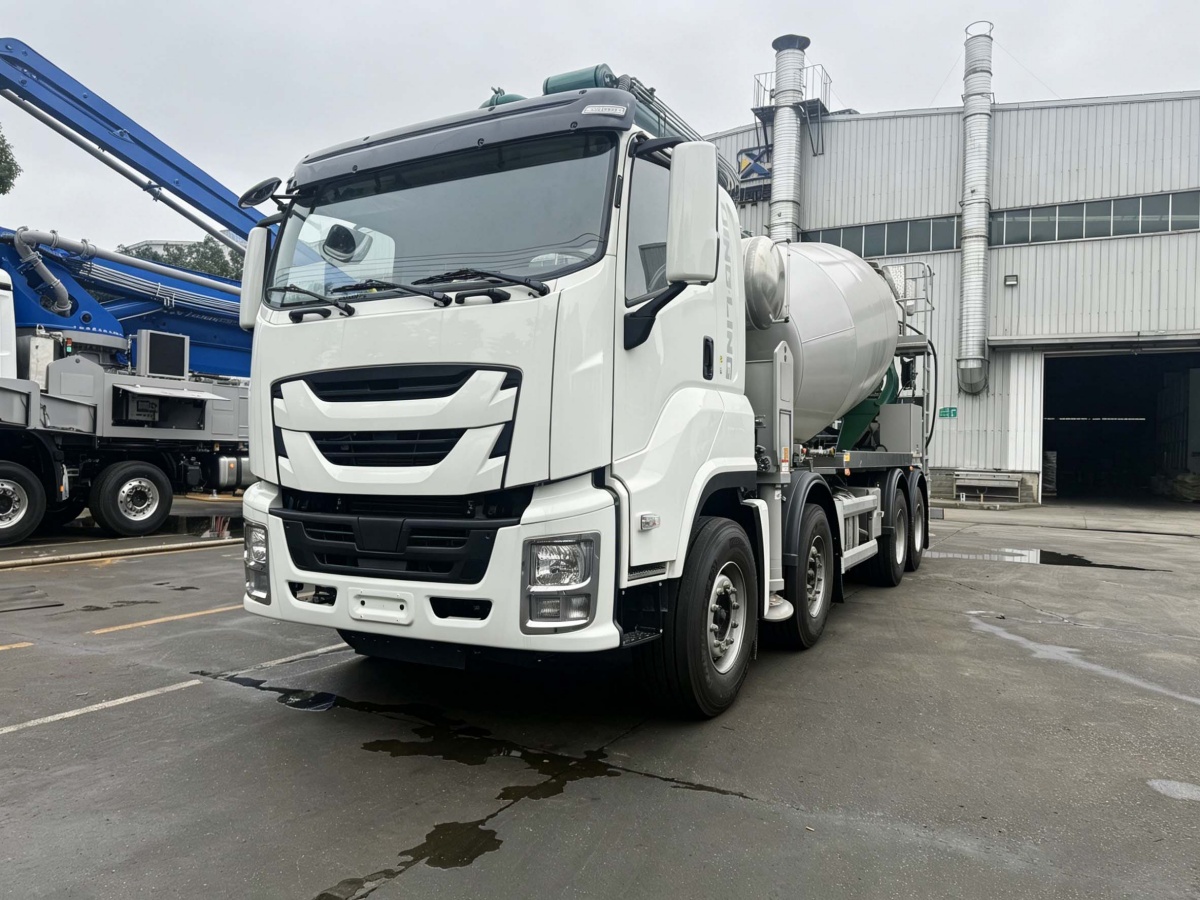

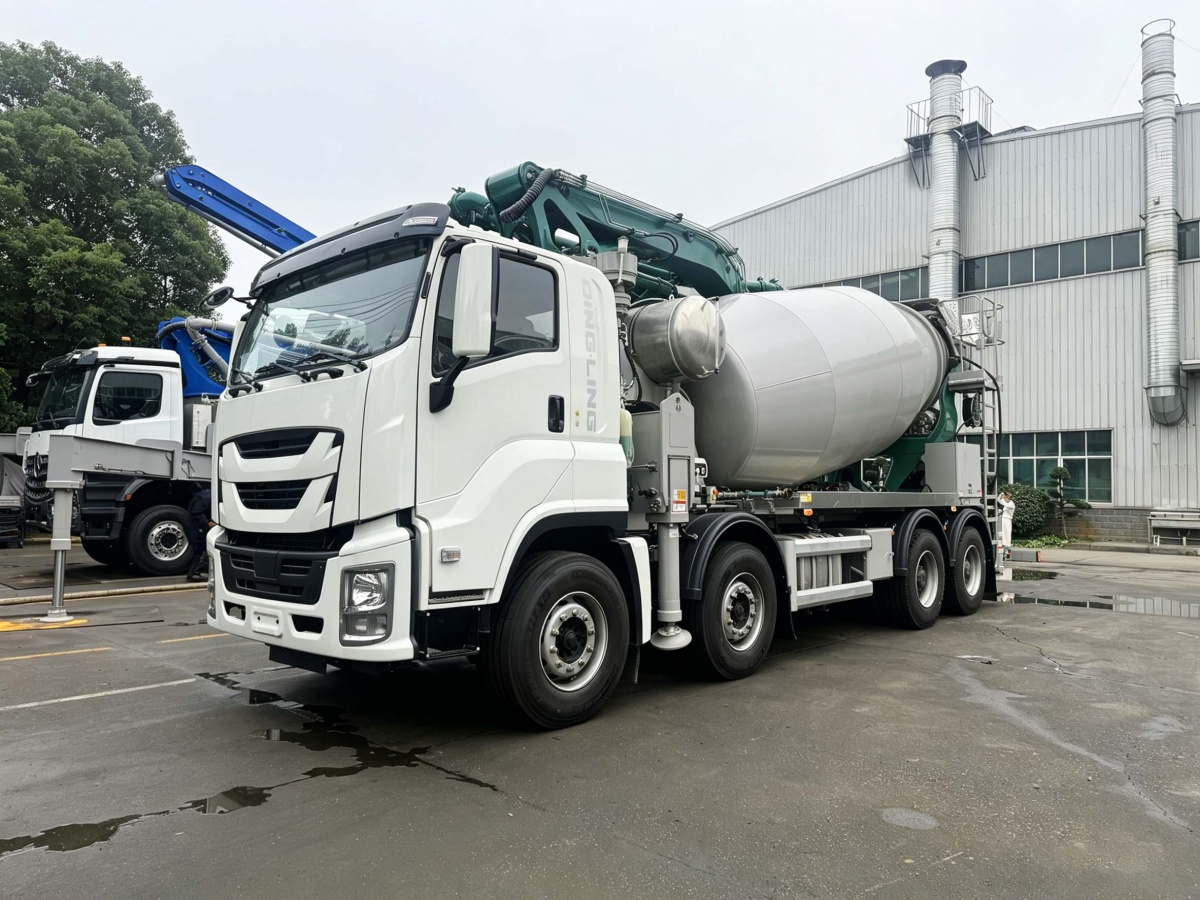

ISUZU 10CBM Concrete Mixer 24m Pump Combined Truck integrates mixing, pumping, and boom placement functions into one compact unit, delivering an efficient and reliable concrete solution for residential and commercial construction projects.
Powered by the ISUZU 6UZ1-TCG61 engine with 279 kW (380 hp) output, it provides strong power and stable performance for heavy-duty operations. The 10m³ mixing drum features wear-resistant steel construction, optimized spiral blades, and a Rexroth hydraulic motor for fast, uniform mixing and smooth operation.
The high-pressure S-valve pumping system offers strong flow capacity, long-distance delivery, and excellent adaptability to different concrete grades and aggregate sizes. The 24m Z-folding boom with proportional remote control ensures flexible placement, precise operation, and enhanced safety.
Equipped with a CAN bus intelligent control system, the mixer truck enables real-time monitoring, coordinated control, and fault diagnosis of key components. Combining compact design, multifunctional integration, and low operating costs, it is an ideal choice for efficient concrete construction.
FEATURE
1. High-Performance Chassis & Comfortable Cab
- ISUZU VC61 6×4 sleeper cab provides a spacious and ergonomic driving environment, reducing fatigue during long working hours.
- Equipped with air conditioning, central locking, power windows, multi-function steering wheel, and LCD instrument cluster for enhanced operator comfort.
- Heavy-duty leaf spring suspension ensures durability and stability under demanding job-site conditions.
- Dual-circuit air brake system with ABS delivers safe and reliable braking performance even under full load.
2. Integrated 3-in-1 Concrete Solution
- Combines a 10m³ mixer, concrete pump, and 24m placing boom into one vehicle, eliminating the need for separate equipment.
- Compact and highly integrated design improves mobility and is ideal for residential, commercial, and space-limited construction projects.
3. Powerful & Reliable Engine
- Powered by ISUZU 6UZ1-TCG61 diesel engine with 9,833 cc displacement, high-pressure common rail injection, turbocharging, and intercooling technology.
- 279 kW (380 HP) output delivers strong torque and stable performance for heavy loads and challenging terrain.
4. Efficient & Durable Mixing System
- 10m³ high-capacity drum reduces transportation cycles and improves construction efficiency.
- Built with wear-resistant steel for extended service life in abrasive concrete environments.
- Optimized spiral blade design ensures fast, uniform mixing with minimal concrete residue.
- Rexroth hydraulic motor drive provides smooth operation and easy switching between mixing and discharge modes.

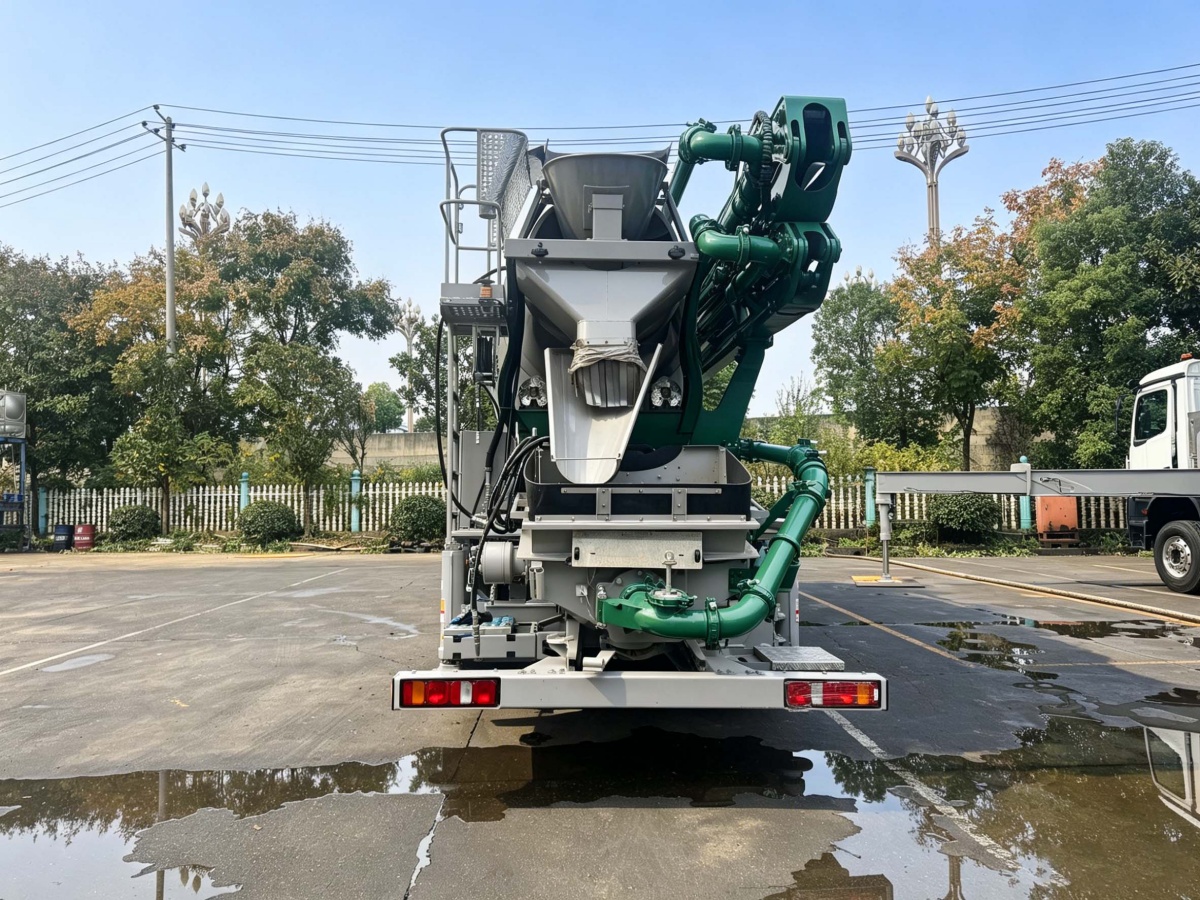

- Wear-resistant inlet and outlet hoppers reduce maintenance requirements.
5. High-Performance Pumping System
- High-pressure S-valve technology ensures stable concrete delivery with reduced blockage risk.
- Wear-resistant concrete cylinders provide excellent durability against abrasion.
- Powerful hydraulic drive enables high flow rates and long-distance pumping.
- Compatible with various concrete grades and aggregate sizes for flexible project applications.

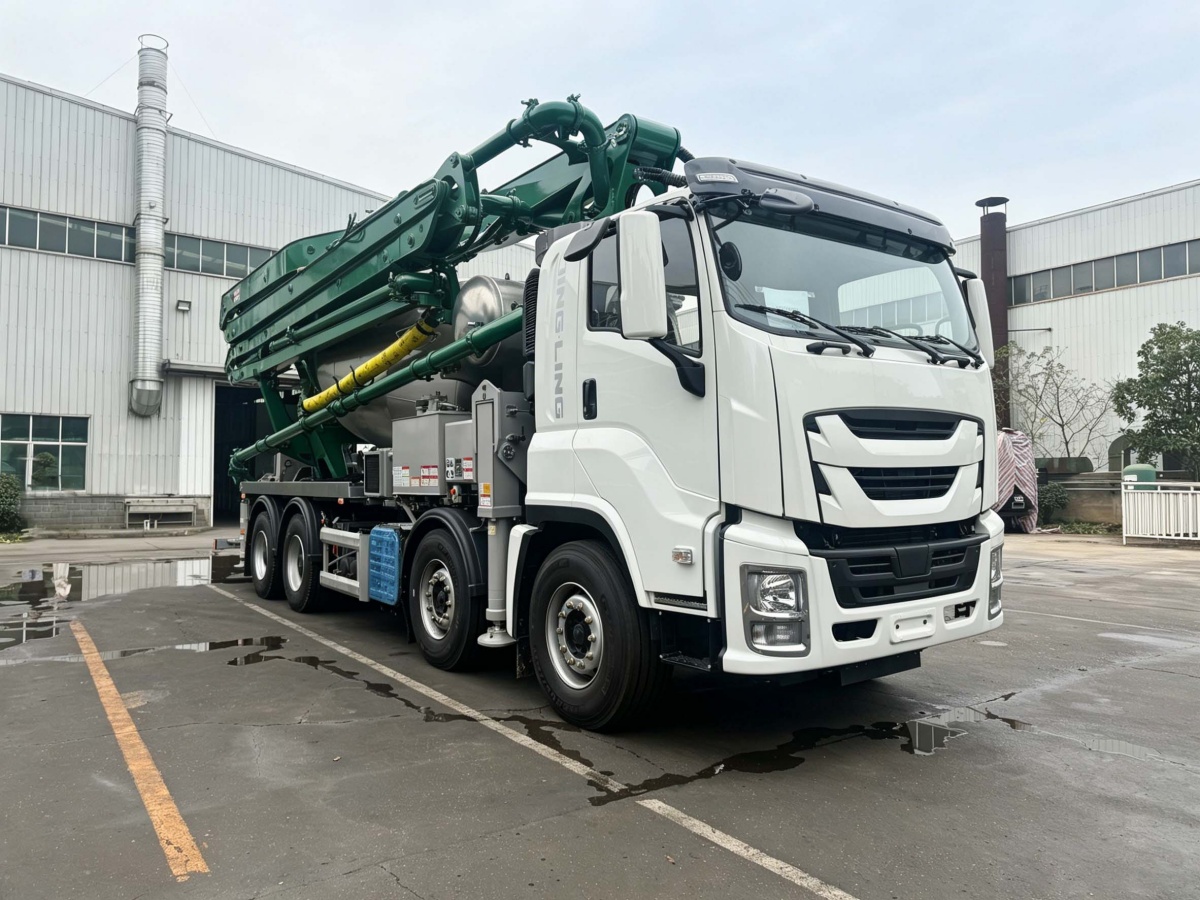

6. 24m Placing Boom – Flexible & Precise Operation
- 3-section Z-folding boom design offers compact transport dimensions and a wide working range up to 24m.
- High-strength steel structure provides excellent rigidity with reduced deflection.
- Proportional remote control enables smooth, accurate, and safe boom operation.
7. Advanced Hydraulic System
- Equipped with Rexroth hydraulic pump and motor for high efficiency and reliability.
- Tokyo Keiki directional valve ensures precise flow control and smooth movement.
- Energy accumulator improves system stability and shock absorption.
- Hydraulic oil cooler maintains optimal operating temperature during continuous work.
- Efficient hydraulic design reduces energy consumption and operating costs.
8. Intelligent CAN Bus Control System
- Integrates engine, hydraulic system, boom control, and control panel into one intelligent network.
- Enables real-time monitoring, proportional control, and fault diagnostics.
- Provides reliable communication with strong anti-interference capability.
9. Water Supply & Cleaning System
- Air-pressure-controlled water supply system supports drum cleaning and concrete mixing water supply.
- Helps maintain consistent concrete quality and simplifies maintenance.
10. Safety & Operator Convenience
- Anti-slip perforated ladder improves access safety in wet or muddy conditions.
- LED rear work lights and side lights enhance visibility for night operations.
- Rear bumper provides additional protection and meets safety requirements.
SPECIFICATION
| Chassis Specification | |
| Chassis Model | ISUZU GIGA |
| Driving Model | 8×4, Left Hand Drive |
| Cab |
|
| Dimension | 10,100×2,550×3,990 mm |
| Wheelbase | 1850+2980+1370 mm |
| Gross Vehicle Weight | 41,000 kg |
| Curb Weight | 20,850 kg |
| Curb Weight | 20,150 kg |
| Front Axle Loading Capacity | 2×7,500 kg |
| Rear Axle Loading Capacity | 2×13,000 kg |
| Axle Number | 4 |
| Engine |
|
| Clutch |
|
| Transmission |
|
| Tire |
|
| Upper Specifications | |
| Weight | 10,900 kg |
| Boom Expansion Type | Z |
| Turret Rotation Angle | ±360° |
| Max. Vertical Height | 24 m |
| Max. Horizontal Length | 20 m |
| Min. Unfolded Height | 10.6 m |
| 1st Boom Length / Rotation Angle | 7000 mm / 90° |
| 2nd Boom Length / Rotation Angle | 6400 mm / 180° |
| 3rd Boom Length / Rotation Angle | 6500 mm / 260° |
| Drum Capacity | 10 m³ |
| Drum Pump | Rexroth |
| Drum Motor | Rexroth |
| Reducer | China brand |
| Water Tank Capacity | 800 L |
| Max. Concrete Displacement | 58 m³/h |
| Max. Pumping Pressure | 7.2 MPa |
| Concrete Pumping Times | 31 stroke/min |
| Concrete Pipe Diameter | 100 mm |
| Delivery Cylinder Diameter | φ200 mm |
| Delivery Cylinder Stroke | 1,000 mm |
| Main Cylinder Diameter | φ95 mm |
| Main Cylinder Stroke | 1,000 mm |
| Hopper Capacity | 0.5 m³ |
| Pumping Pipe | Single layer |
| Hydraulic System | Open |
| Hydraulic Tank Capacity | 300L |
| Main Hydraulic Oil Pump | Rexroth |
| Boom Pump | Control Mode |
| Gear Pump | China brand |
| Main Cyl. E/H Directional Valve | Casappa |
| Swing Cyl. E/H Directional Valve | Tokyo Keiki |
| Swing Cylinder Charging Valve | Tokyo Keiki |
| Energy Accumulator | Olaer |
| Control Mode | CAN Bus |
