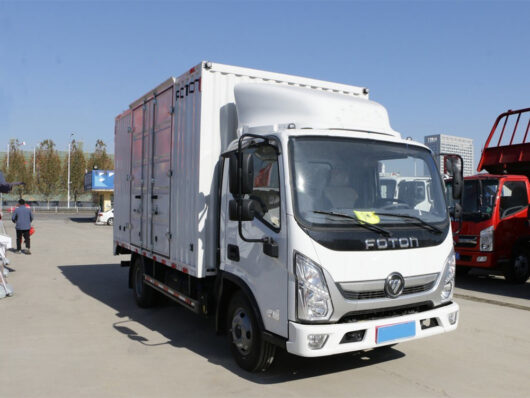

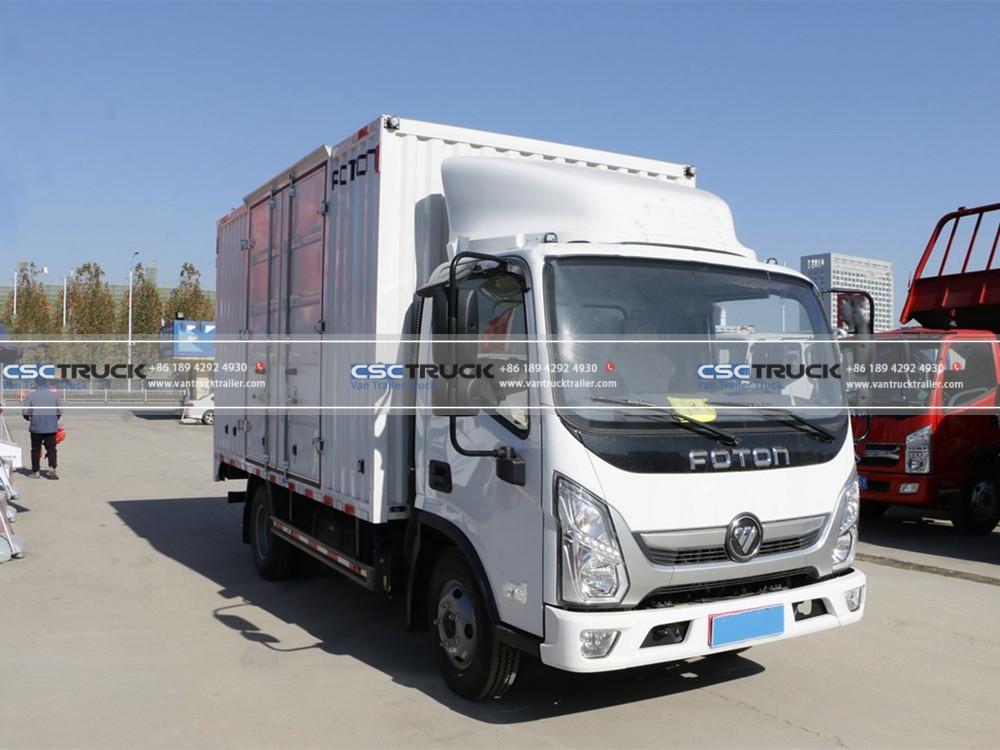

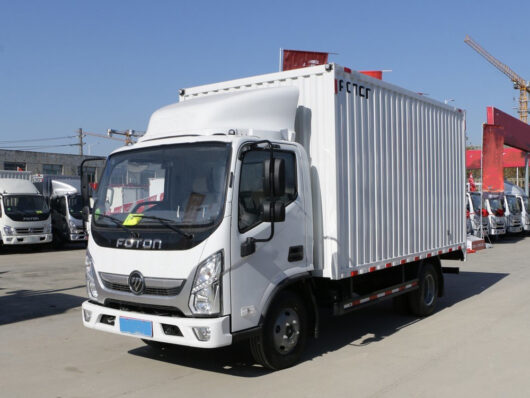

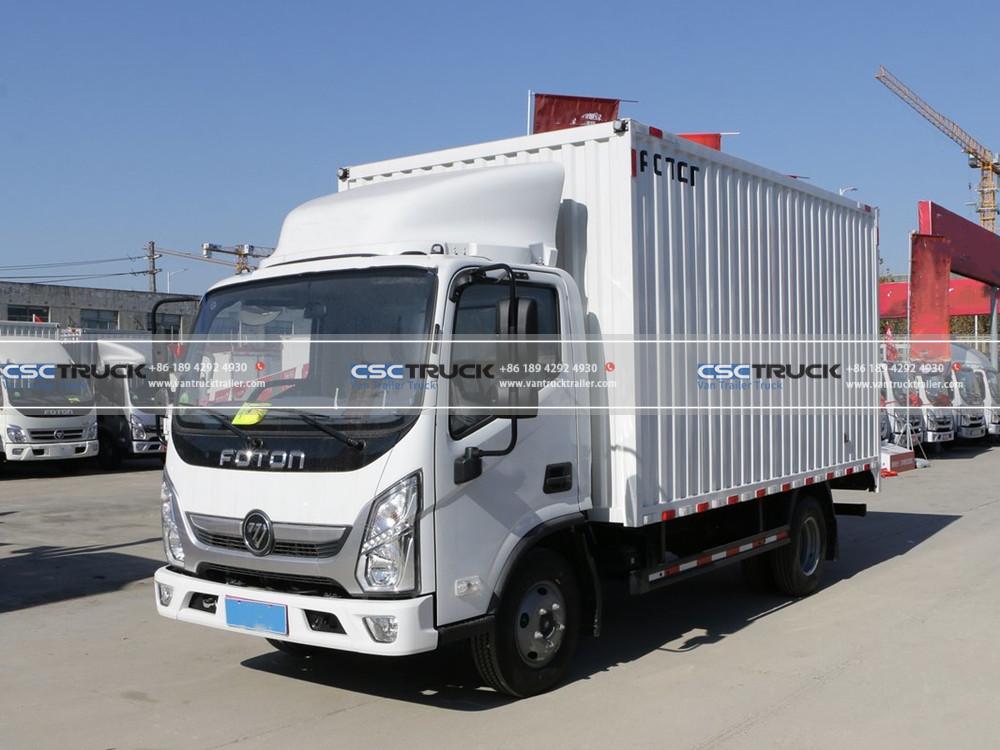

Conquer Every Haul, Deliver Excellence: Introducing the Foton Hauler 18 CBM Dry Van Cargo Truck
The Foton 18 CBM Dry Van Cargo Truck is more than just a cargo truck – it’s your dependable partner for efficient and safe transportation. This versatile and robust vehicle is meticulously engineered to tackle a wide range of logistics and distribution tasks, ensuring you deliver on your promises, every time.
Built to Perform, Engineered to Last

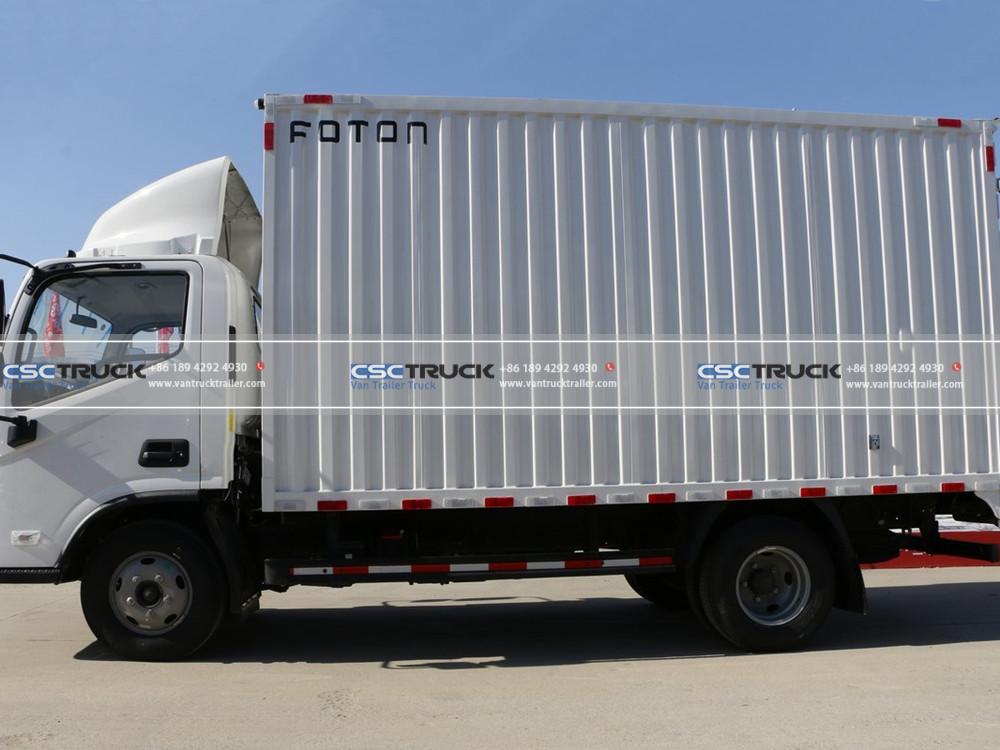

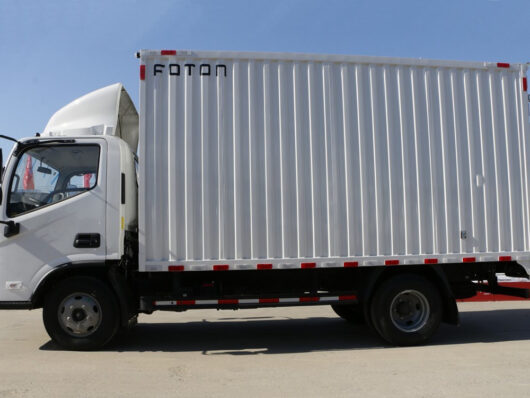

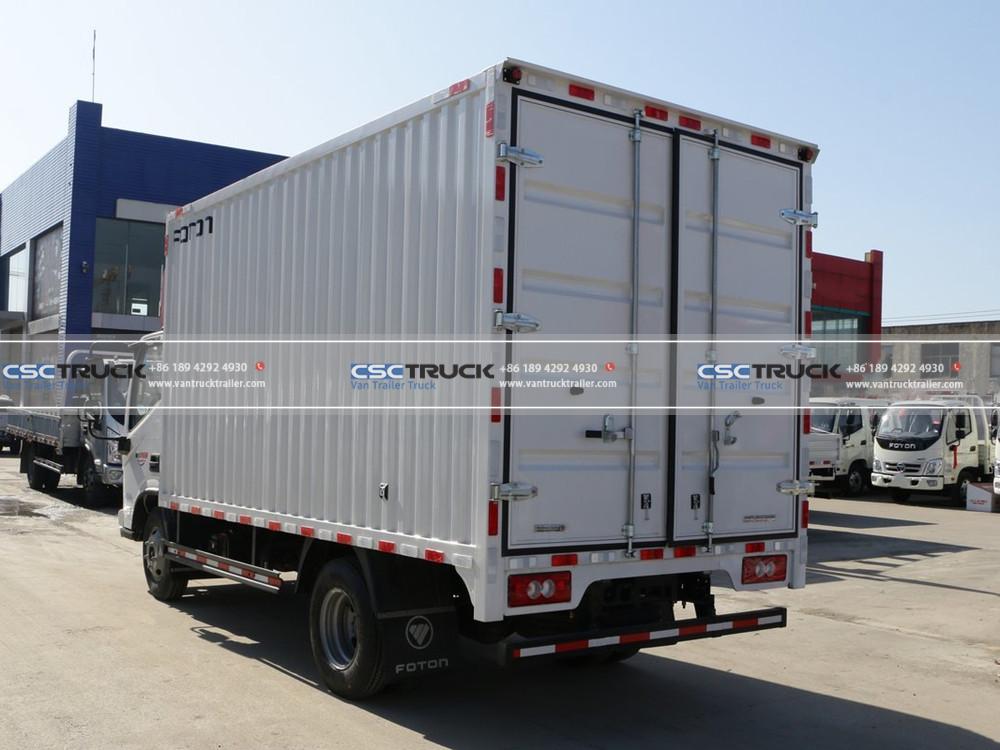

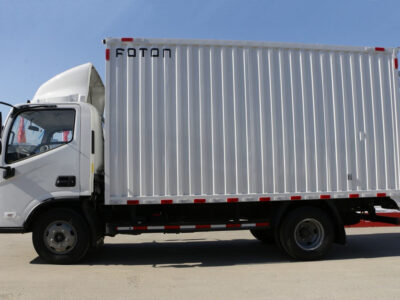

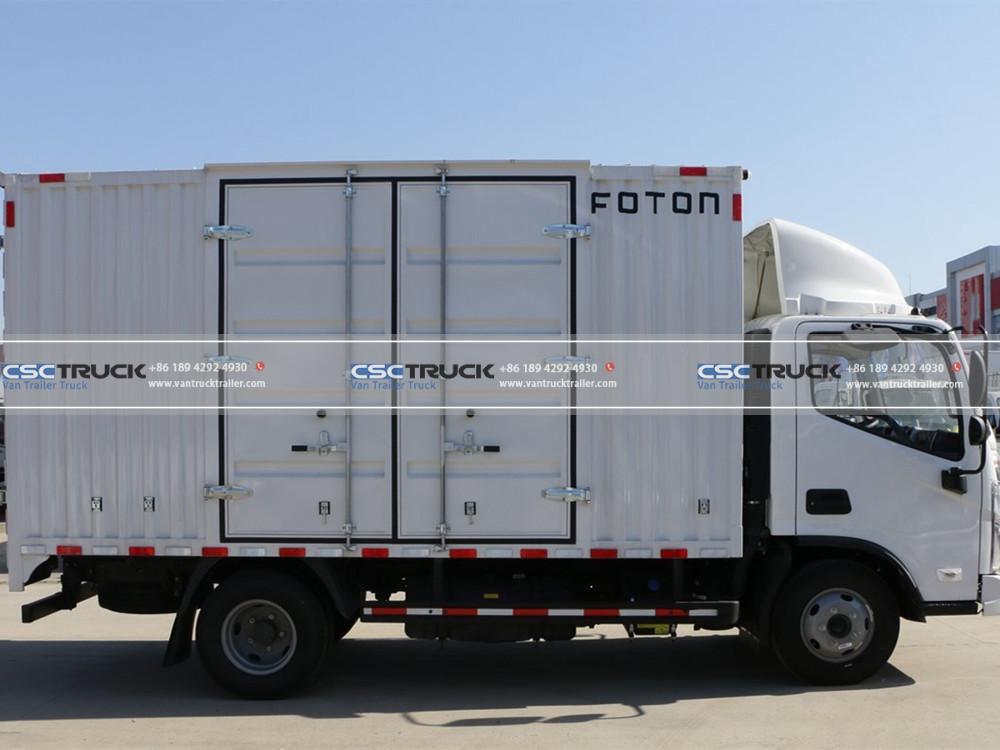

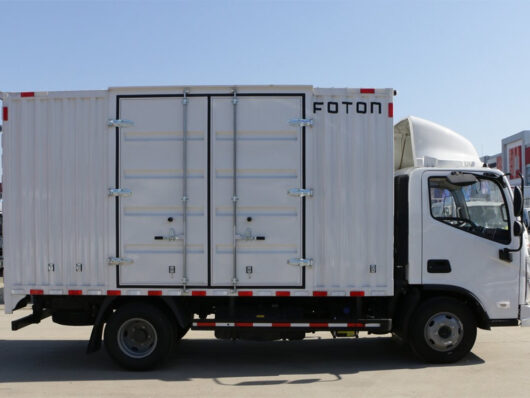

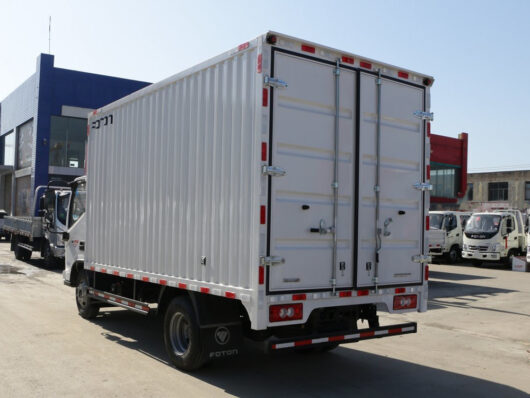

- Spacious Cargo Capacity: Experience exceptional hauling capabilities with a generous cargo compartment measuring 4.14 meters in length, 2.1 meters in width, and 2.1 meters in height. This allows for efficient loading and secure transport of a wide variety of goods.
- Powerful Performance: The Foton Hauler 18 boasts a Quanchai Q23-132E60 engine, delivering 97kW (132 horsepower) for exceptional performance on various road conditions.
- Fuel Efficiency and Environmental Responsibility: Experience the best of both worlds with a clean and efficient EURO VI compliant diesel engine that prioritizes both power and environmental responsibility.
Designed with the Driver in Mind
- Ergonomic Cab Design: Enjoy long hauls in comfort with a spacious cabin designed for driver well-being. The three-person single-row seating configuration allows for ample legroom and headroom, reducing fatigue and promoting alertness.
- Modern Amenities: Stay comfortable and connected on the road with features like power windows, a remote key, and electronic central locking for added security. An auxiliary/USB/iPod interface allows you to enjoy your favorite music while driving.
Safety First, Always
- Advanced Safety Features: The Foton 18 CBM Dry Van Cargo Truck prioritizes driver and passenger safety with a comprehensive suite of features. These include an Anti-lock Braking System (ABS), clutch booster, and power steering for enhanced control in any situation.
A Well-Equipped Workhorse
- Optimum Performance with Upgradable Features: The Foton 18 CBM Dry Van Cargo Truck comes equipped with a 5-speed Wanliyang manual transmission for smooth gear changes and efficient operation. Optional features like a multifunction steering wheel and LCD instrument cluster offer additional customization possibilities to tailor the truck to your specific needs.
The Foton Hauler 18 CBM Dry Van Cargo Truck is a testament to the robust performance, efficient design, and a commitment to driver comfort. Experience the reliable hauling partner that will empower your business to conquer every haul and deliver excellence on the road to success.
SPECIFICATIONS:
| Feature | Details |
|---|---|
| Type | Dry Van Truck |
| Drive Type | 4X2 |
| Wheelbase | 3360mm |
| Box Length Level | 4.2 meters |
| Engine | Quanchai Q23-132E60 |
| Transmission | Wanliyang 5-speed |
| Rear Axle Speed Ratio | 4.33 |
| Body Length | 5.995 meters |
| Body Width | 2.2 meters |
| Body Height | 3.14 meters |
| Front Wheel Track | 1590mm |
| Rear Wheel Track | 1590mm |
| Vehicle Weight | 2.805 tons |
| Rated Load | 1.495 tons |
| Total Mass | 4.495 tons |
| Maximum Speed | 95KM/h |
| Ton Level | Light Truck |
| Approach Angle | 19 degrees |
| Departure Angle | 16 degrees |
| Front/Rear Overhang | 1.11/1.525 meters |
| Engine Parameters | |
| Engine Model | Quanchai Q23-132E60 |
| Engine Brand | Quanchai |
| Number of Cylinders | 4 cylinders |
| Fuel Type | Diesel |
| Cylinder Arrangement | Inline |
| Displacement | 2.3L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Maximum Output Power | 97kw |
| Maximum Horsepower | 132 horsepower |
| Cargo Compartment Parameters | |
| Cargo Type | Van |
| Cargo Length | 4.14 meters |
| Cargo Width | 2.1 meters |
| Cargo Height | 2.1 meters |
| Cab Parameters | |
| Cab | |
| Cab Width | 1880mm |
| Number of Seats | 3 people |
| Seat Row | Single row |
| Transmission Parameters | |
| Transmission Model | Wanliyang 5-speed |
| Shifting Method | Manual |
| Forward Gears | 5 gears |
| Reverse Gears | 1 gear |
| Fuel Tank | |
| Fuel Tank Material | |
| Fuel Tank Capacity | 120L |
| Chassis Parameters | |
| Front Axle Description | |
| Front Axle Allowable Load | 1575KG |
| Frame Size | |
| Rear Axle Description | |
| Rear Axle Allowable Load | 2920KG |
| Speed Ratio | 4.33 |
| Leaf Spring Number | 3/5+2 |
| Frame Type | Aluminum Alloy |
| Tires | |
| Tire Specifications | 7.00R16LT 8PR |
| Number of Tires | 6 |
| Brake System | |
| Brake Type | |
| Control Configuration | |
| ABS Anti-lock Braking System | Yes |
| Clutch Booster | Yes |
| Power Steering | Yes |
| External Configuration | |
| Internal Configuration | |
| Steering Wheel Adjustment | Manual |
| Multifunction Steering Wheel | ○ |
| Air Conditioning Adjustment | Optional Manual |
| Power Windows | Yes |
| Remote Key | Yes |
| Electronic Central Locking | Yes |
| Multimedia Configuration | |
| External Audio Interface | Yes |
| Radio | |
| Normal Instrument | |
| LCD Instrument | Optional |
| Lighting Configuration | |
| Front Fog Lights | Yes |
| Halogen Headlights | Yes |
| Brake System | |
| Vehicle Brake Type | |
| Parking Brake | |
| Front Brake | Drum Brake |
| Rear Brake | Drum Brake |
