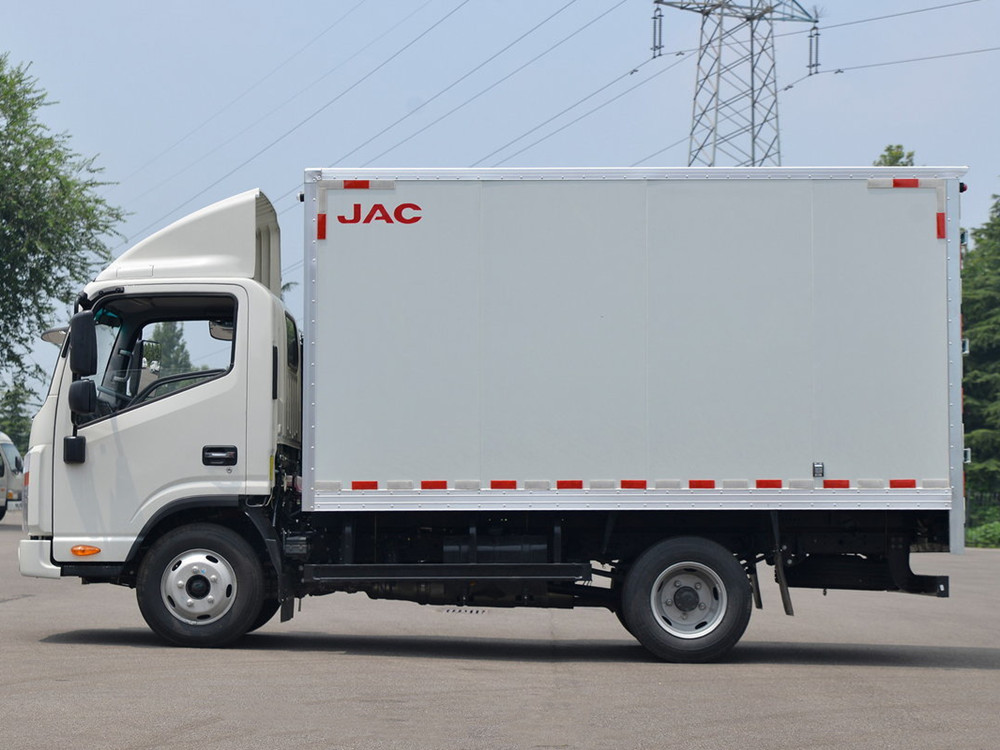

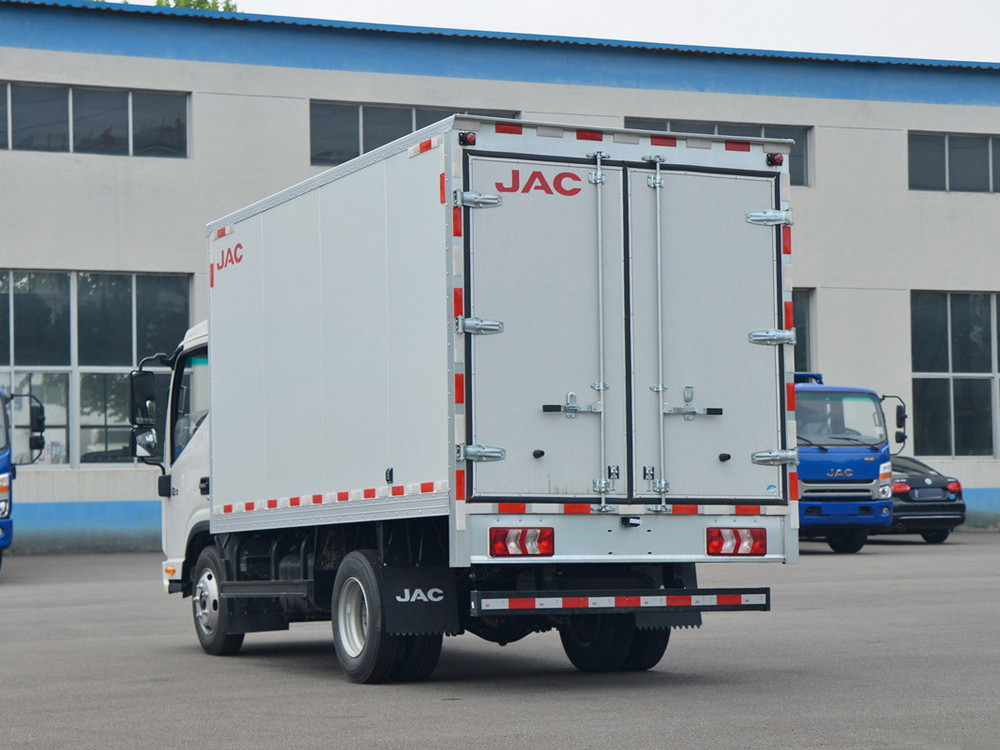

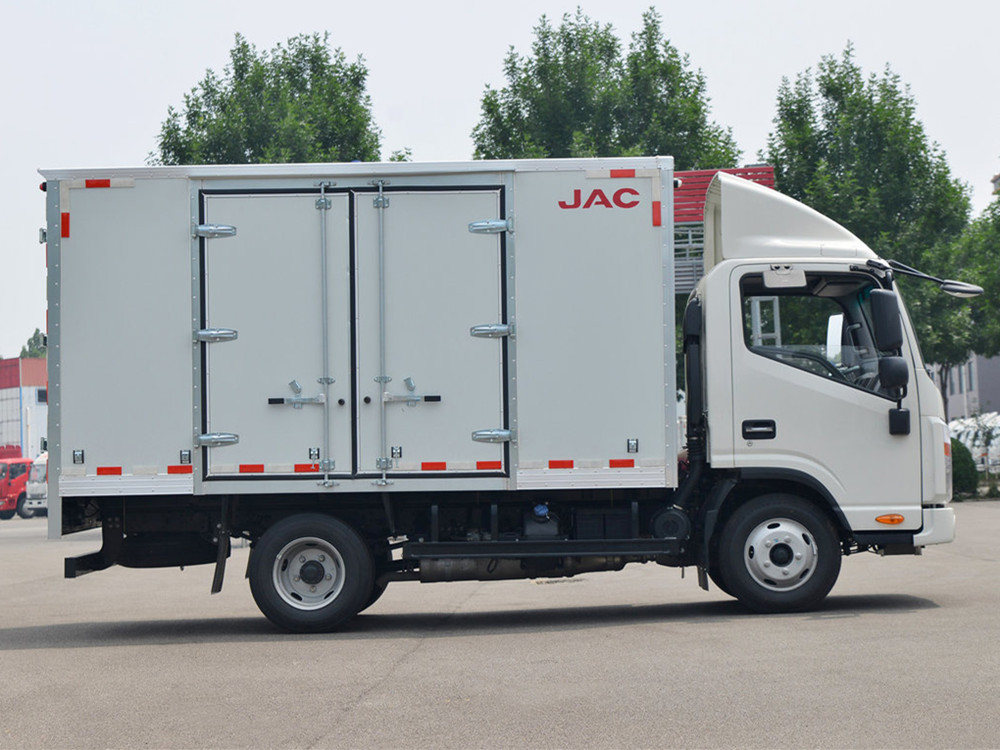

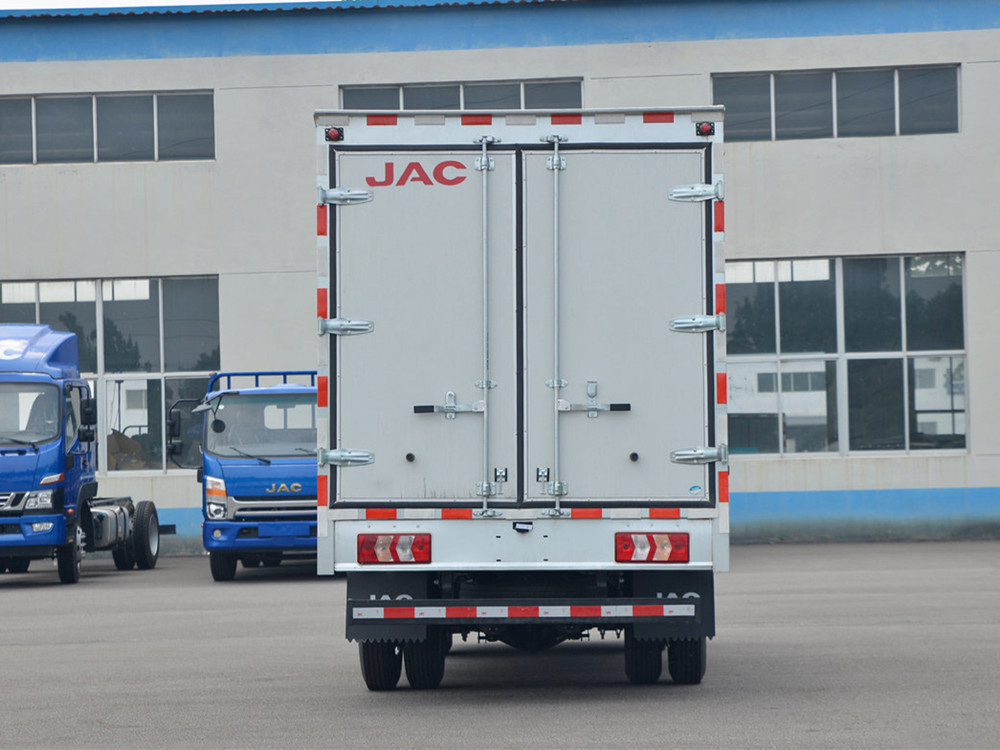

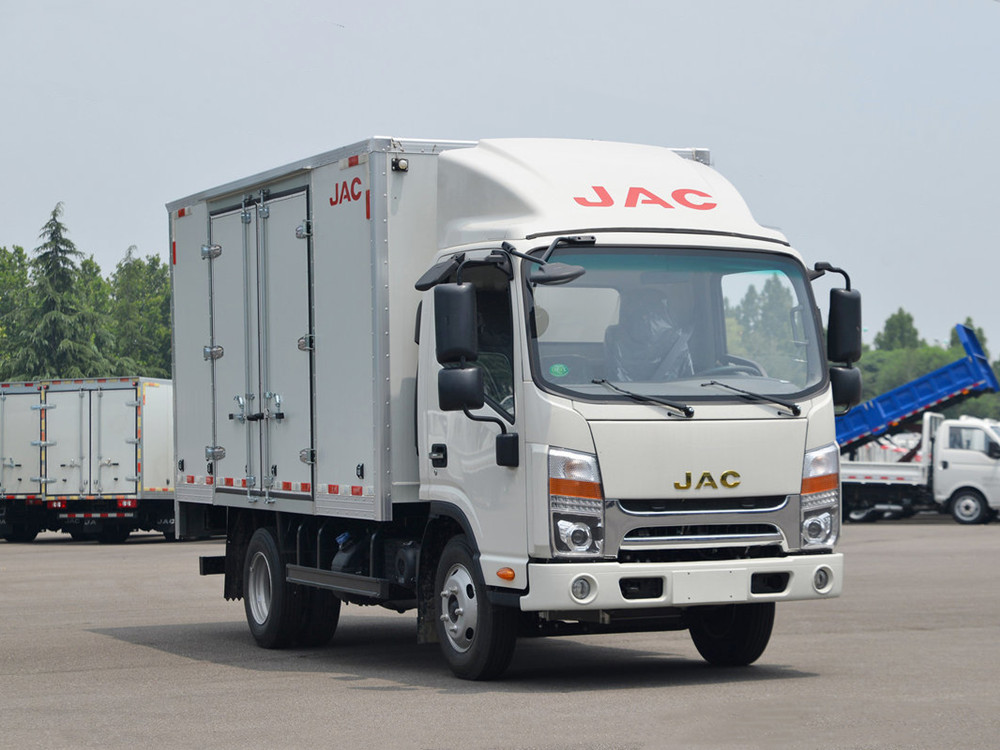

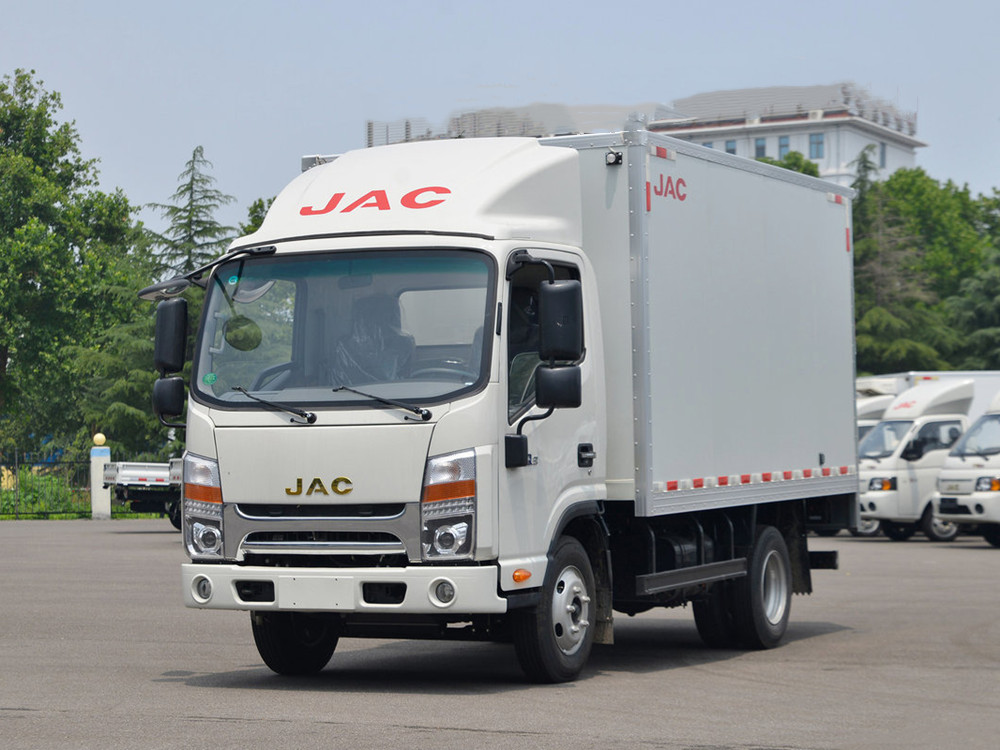

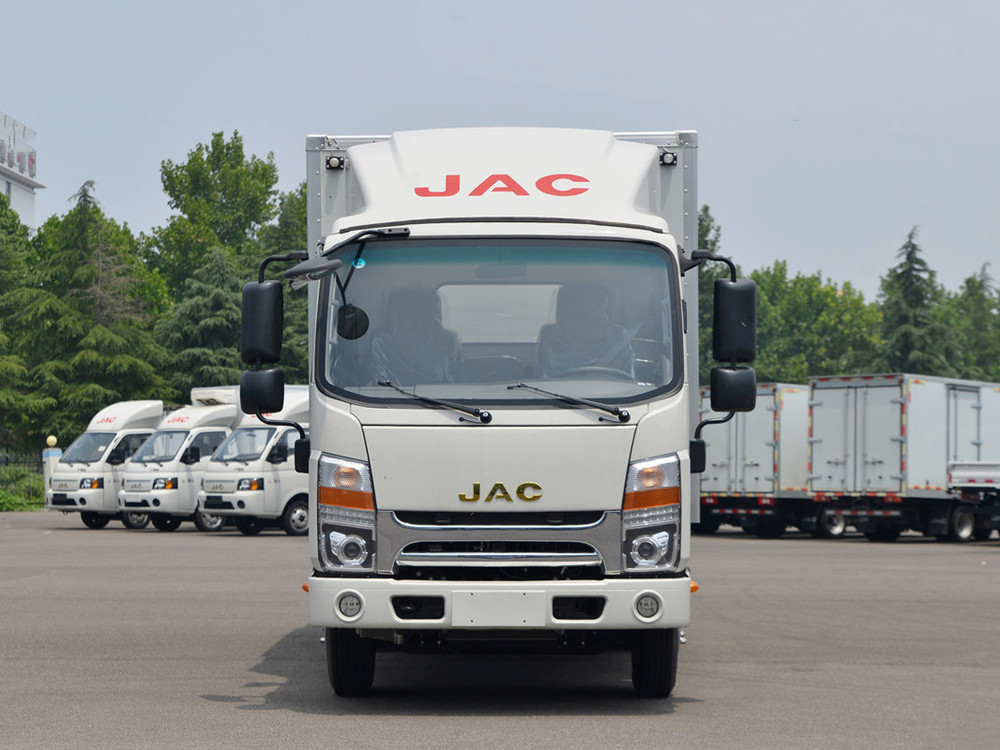

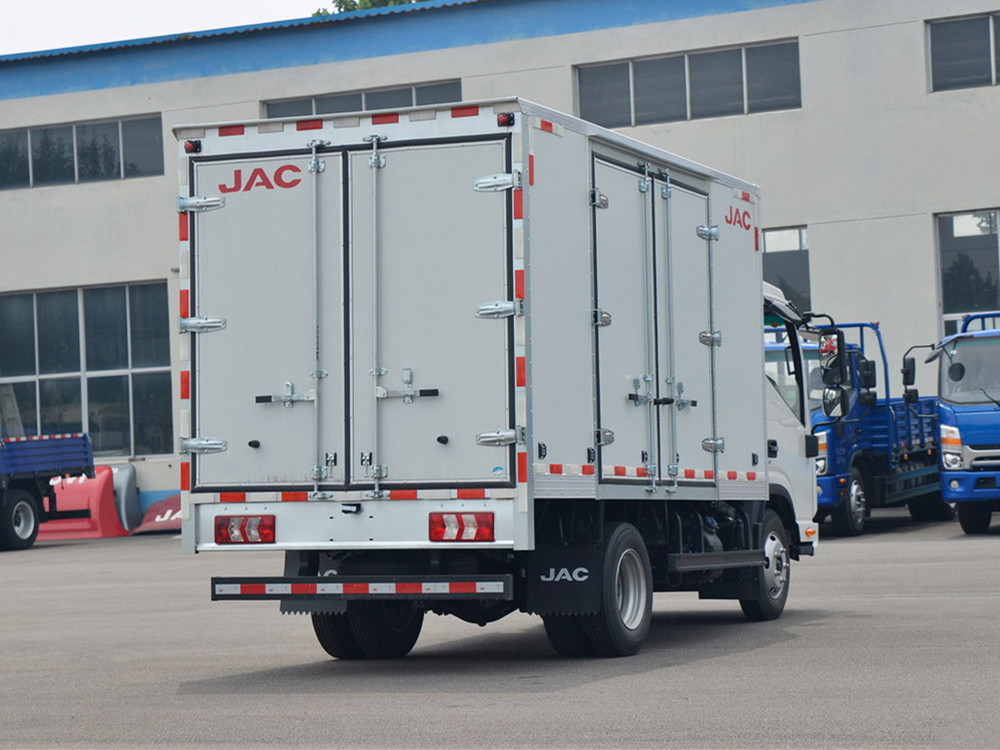

Introducing the JAC 4 Meter Cargo Dry Van Truck: The Efficient and Reliable Solution for Every Delivery
The JAC 4 Meter Cargo Dry Van Truck is more than just a compact vehicle; it’s a versatile workhorse meticulously crafted to conquer the demands of diverse cargo transportation. This feature-rich truck offers the perfect blend of size, performance, and functionality, making it an ideal choice for both urban deliveries and navigating challenging terrains.
Engineered for Efficiency, Built to Last
- Compact Yet Spacious Design: Don’t let its size fool you. The JAC 4 Meter boasts a generous cargo area measuring 4.1 meters in length, 1.9 meters in width, and 2 meters in height, allowing for efficient loading of a wide variety of goods. This, combined with its narrow body cab design, allows for excellent maneuverability in tight spaces.
- Robust Performance, Proven Reliability: Experience the confidence of the JAC Ruijet HFC4DB3-2E engine, renowned for its reliable performance and fuel efficiency. The efficient JAC 5-speed transmission system complements this powertrain with smooth gear changes, optimizing the driving experience.
Unwavering Stability, Confidence on Every Road
- Optimal Traction and Stability: The 4X2 drive configuration and 3365mm wheelbase provide a balanced foundation for the JAC 4 Meter. This design ensures smooth handling on various road surfaces, while also enhancing maneuverability and load-bearing capacity for even the most demanding deliveries.
- Sturdy Chassis Construction: Experience the confidence of a robust chassis with a 180mm frame size and a swan tail beam frame form. This design prioritizes durability and stability, ensuring your cargo reaches its destination safely.
Safety and Convenience Come Standard
- Advanced Safety Features: The JAC 4 Meter prioritizes safety with an Anti-lock Braking System (ABS), clutch and steering assistance, and a standard automatic adjusting arm. These features enhance driver control and maneuverability in various road conditions. Optional reverse radar provides an extra layer of safety during parking and reversing maneuvers.
- Functional and Comfortable Interior: Enjoy a comfortable driving experience with features like power windows, a multi-function steering wheel, and rearview mirror heating.
The JAC 4 Meter Cargo Dry Van Truck is a symbol of versatility, efficiency, and a commitment to safe operations. Experience the ideal transportation solution for conquering every delivery, whether navigating bustling city streets or tackling challenging rural terrains.
Additional Features:
- Durable plastic fuel tank with a 100-liter capacity.
- High-quality tires with specifications of 7.00R16LT 8PR, 6.50R16 8PR, or 6.50R16LT 8PR, offering excellent traction and durability.
- Efficient air brake system with drum brakes on both axles for reliable stopping power.
- External features like guide hood, integrated mudguard, and wiperless wiper type for improved functionality and convenience.
SPECIFICATIONS:
| Parameter | Details |
|---|---|
| Type | Box Cargo Truck |
| Drive Form | 4X2 |
| Wheelbase | 3365mm |
| Box Length Level | 4.1 meters |
| Engine | JAC Ruijet HFC4DB3-2E |
| Transmission | JAC 5-Speed |
| Rear Axle Ratio | 4.875 |
| Vehicle Length | 5.995 meters |
| Vehicle Width | 2.05 meters |
| Vehicle Height | 3.035 meters |
| Front Wheel Track | 1440mm |
| Rear Wheel Track | 1425mm |
| Total Weight | 2.705 tons |
| Rated Load | 1.495 tons |
| Total Mass | 4.33 tons |
| Maximum Speed | 110KM/h |
| Ton Level | Light Truck |
| Approach Angle | 21 degrees |
| Departure Angle | 15 degrees |
| Note | Front Suspension/ Rear Suspension: 1.11/1.52 meters |
| Version | Engine Parameters |
| Engine Parameters | |
| Engine Brand | JAC Ruijet |
| Number of Cylinders | 4 cylinders |
| Fuel Type | Diesel |
| Cylinder Arrangement | In-line |
| Displacement | 2.183L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Maximum Output Power | 95kw |
| Maximum Horsepower | 130 horsepower |
| Maximum Torque | 320N·m |
| Maximum Torque Speed | 1400-2400RPM |
| Rated Speed | 3200RPM |
| Engine Form | In-line four cylinders, water-cooled, four-stroke, turbocharged, high-pressure common rail |
| Cargo Box Parameters | |
| Box Type | Box Type |
| Box Length | 4.13 meters |
| Box Width | 1.9 meters |
| Box Height | 2 meters |
| Cab Parameters | |
| Cab | Narrow Body |
| Cab Width | 1725mm |
| Number of Passengers | 2 people |
| Number of Seat Rows | Single row |
| Transmission Parameters | |
| Transmission Model | JAC 5-Speed |
| Shift Method | Manual |
| Forward Gears | 5 gears |
| Reverse Gears | 1 |
| Fuel Tank | |
| Fuel Tank Material | Plastic |
| Fuel Tank Capacity | 100L |
| Chassis Parameters | |
| Front Axle Description | Allowable Load: 1560KG |
| Frame Size | 180mm |
| Rear Axle Description | Allowable Load: 2770KG |
| Speed Ratio | 4.875 |
| Number of Leaf Springs | 5/4+3,5/5+6 |
| Frame Form | Swan Tail Beam |
| Rear Axle Oil Change Cycle | 60,000 kilometers |
| Tires | |
| Tire Specifications | 7.00R16LT 8PR, 6.50R16 8PR, 6.50R16LT 8PR |
| Tire Type | |
| Number of Tires | 6 |
| Brake System | |
| Whole Vehicle Brake Type | Air Brake |
| Parking Brake | Air Brake Release |
| Front Brake | Drum Brake |
| Rear Brake | Drum Brake |
| Control Configuration | |
| ABS Anti-lock Braking | Yes |
| Clutch Assistance | Yes |
| Steering Assistance | Yes |
| Automatic Adjusting Arm | Standard |
| External Configuration | |
| Guide Hood | Yes |
| Integrated Mudguard | Yes |
| Wiper Type | Wiperless |
| Internal Configuration | |
| Steering Wheel Material | Plastic |
| Steering Wheel Adjustment | Manual |
| Multi-function Steering Wheel | Yes |
| Air Conditioning Adjustment | Manual |
| Power Windows | Yes |
| Rearview Mirror Heating | Yes |
| Reverse Radar | Optional |
