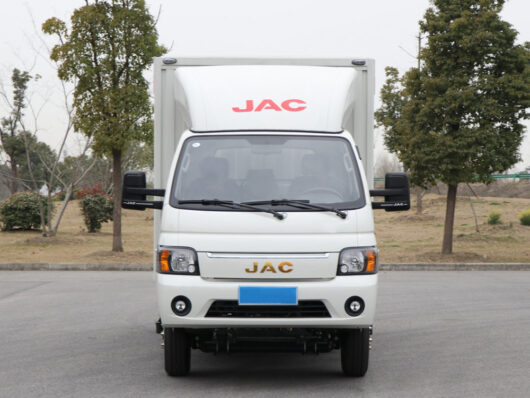

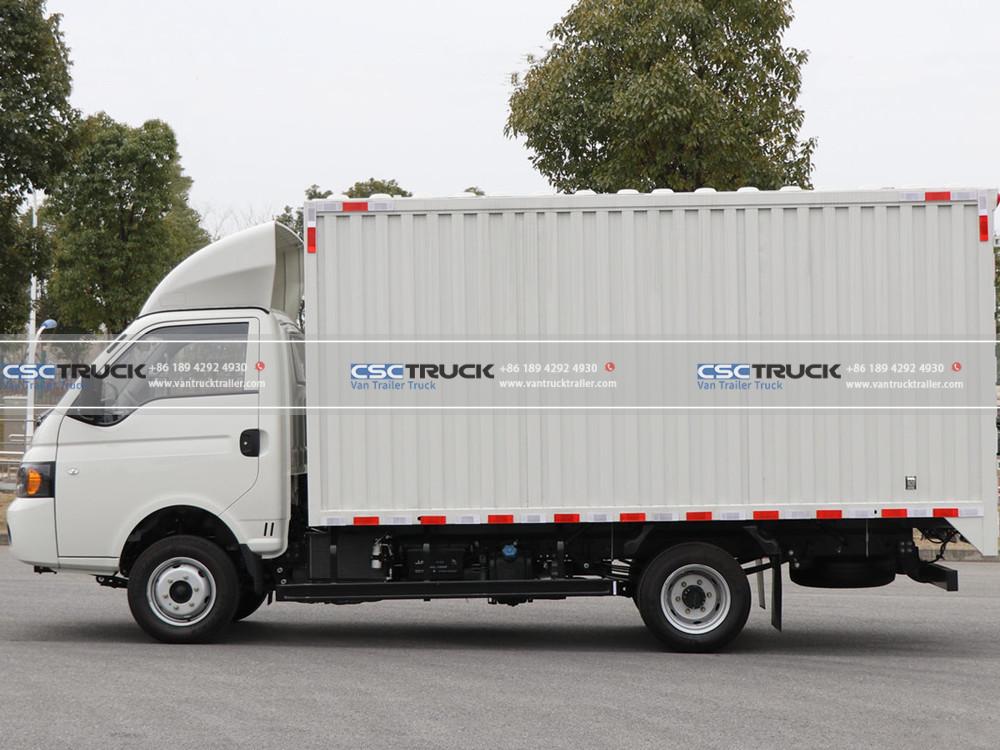

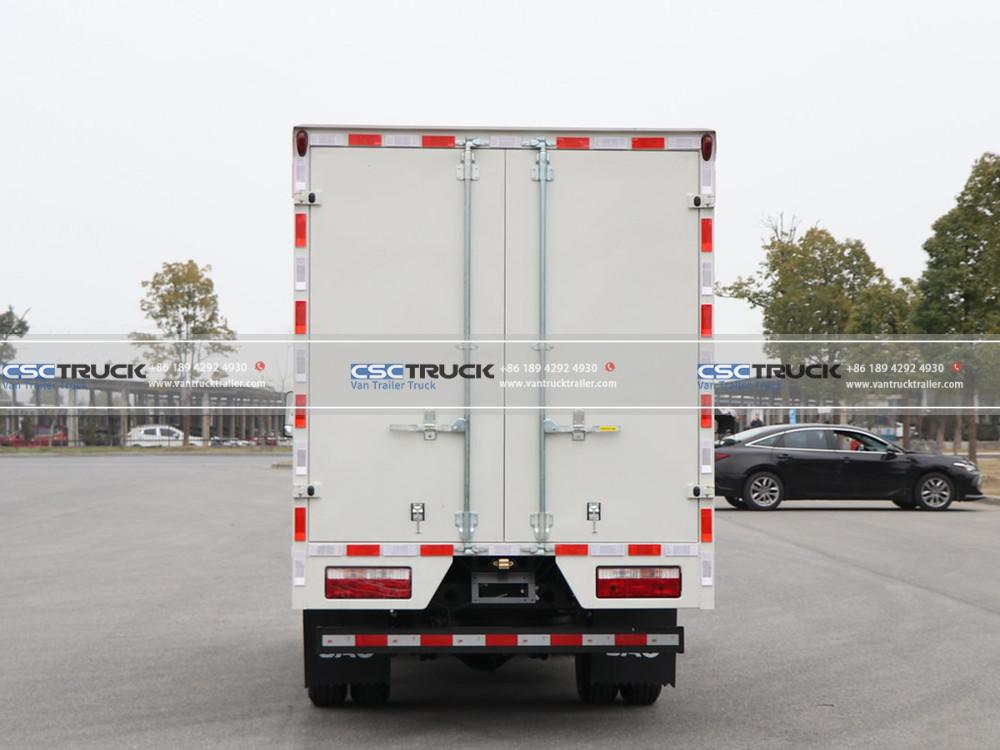

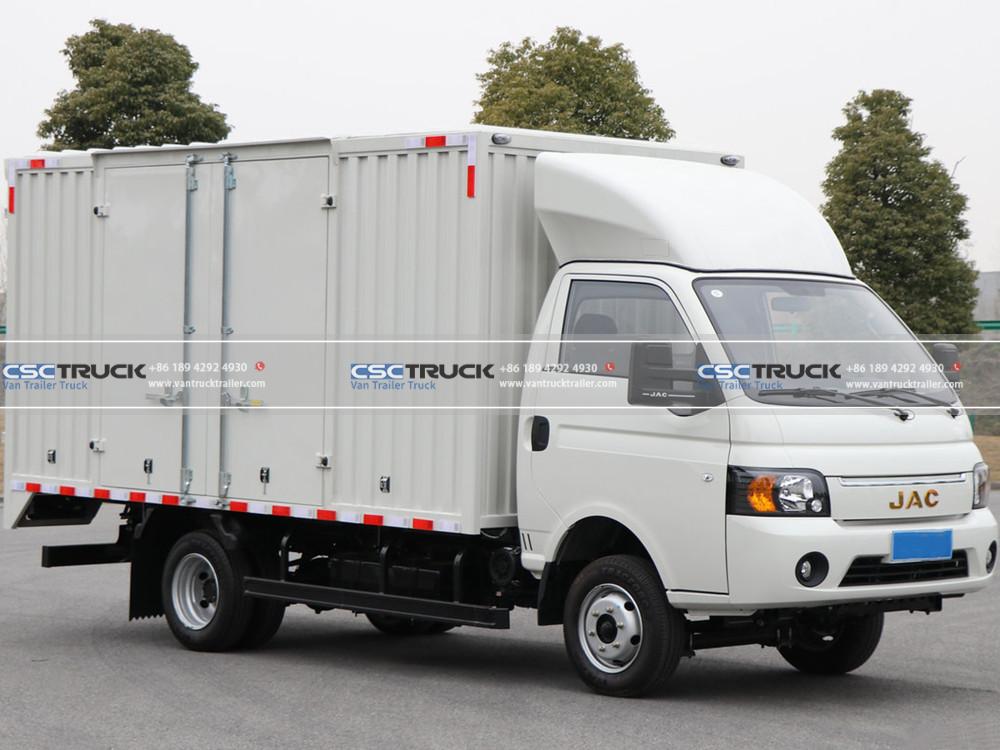

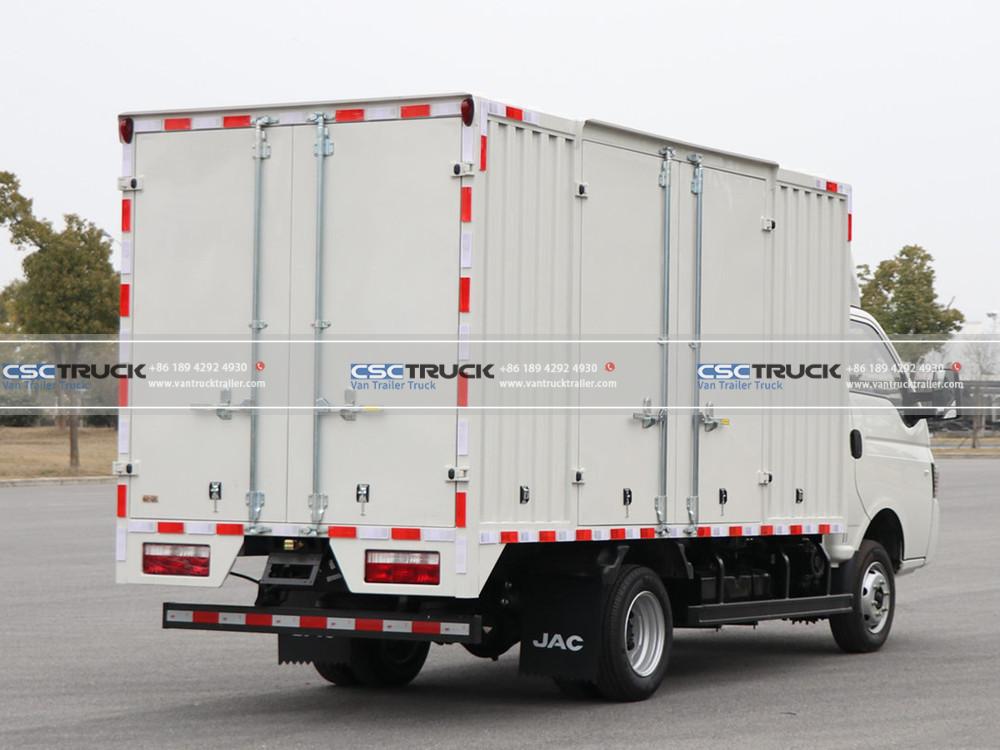

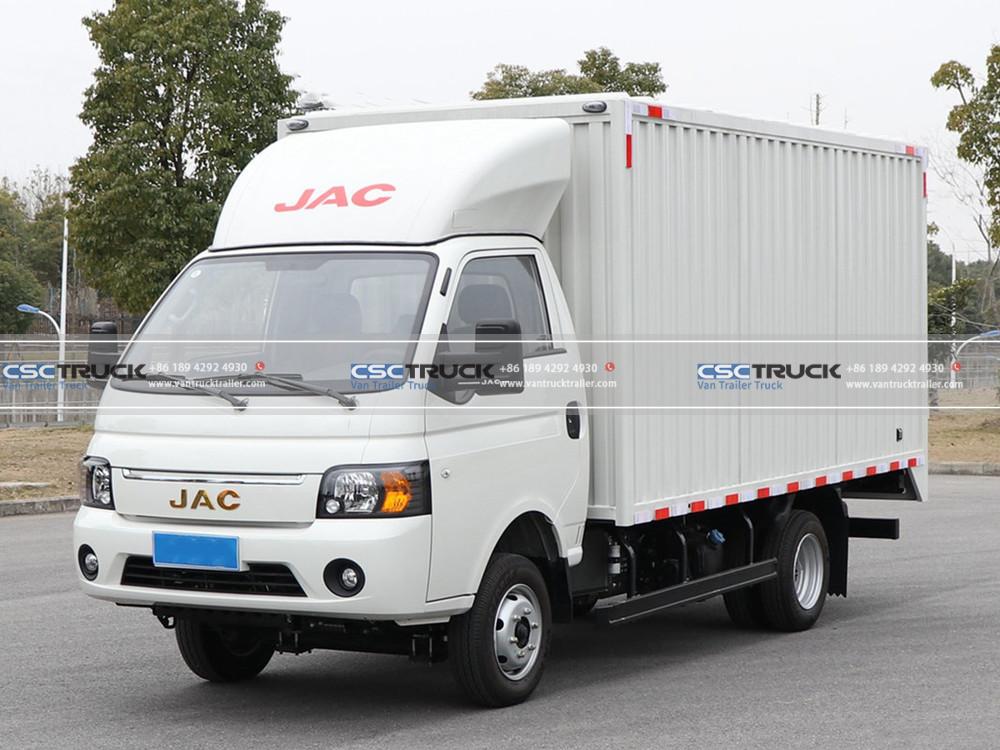

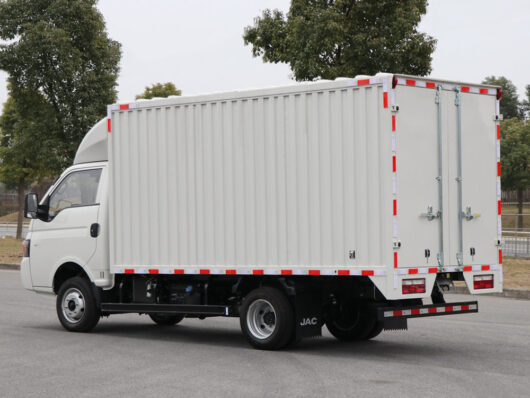

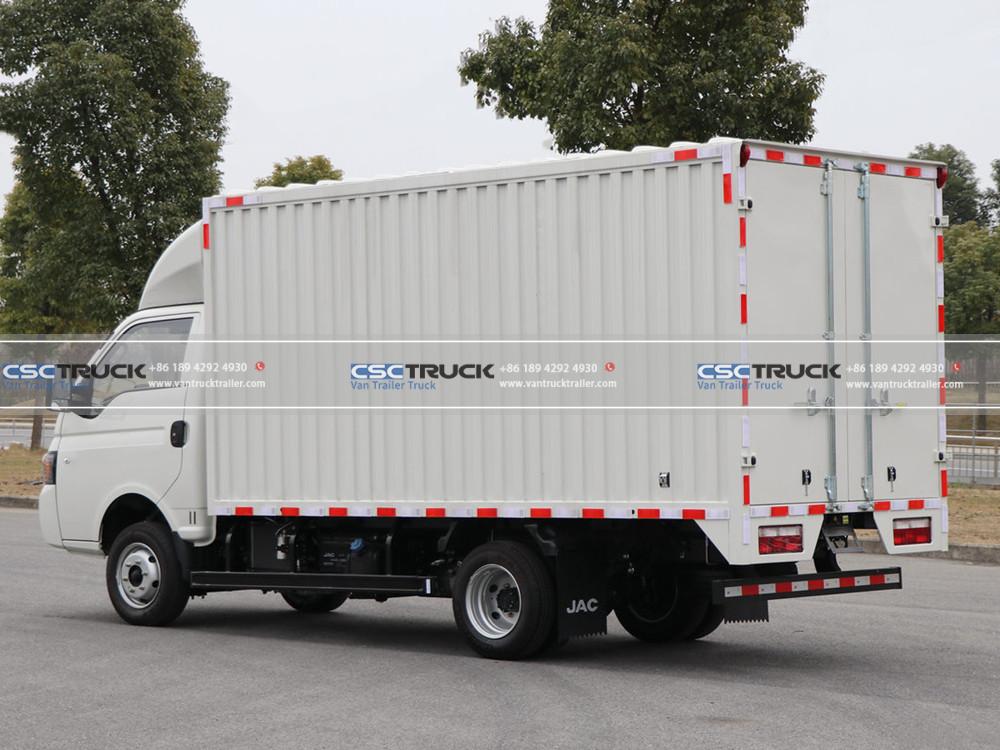

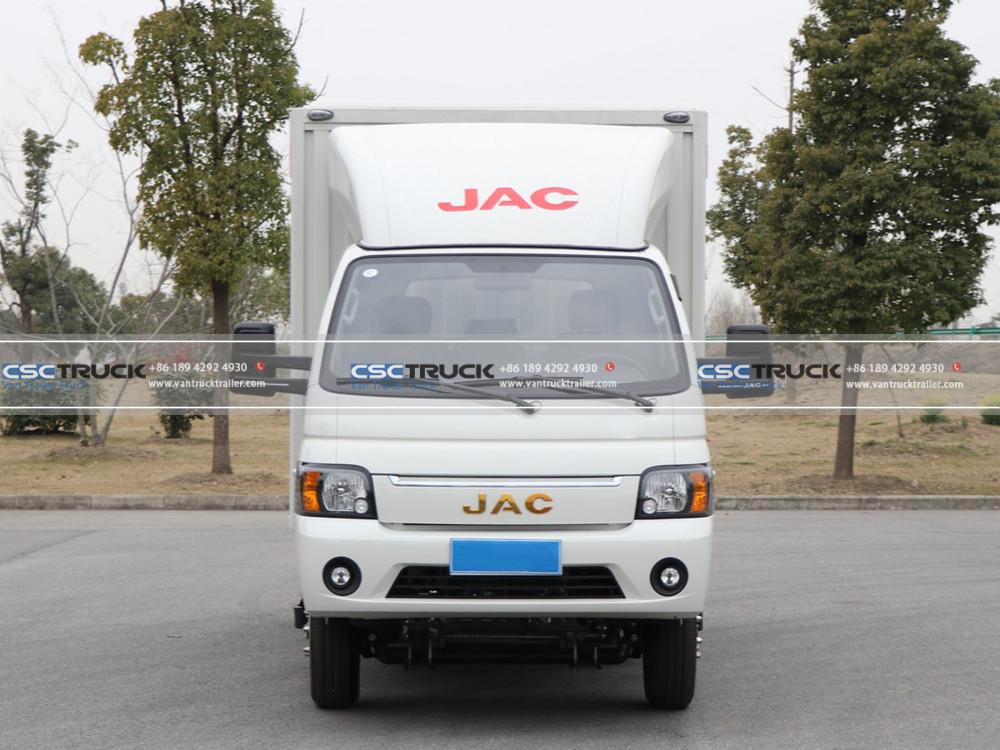

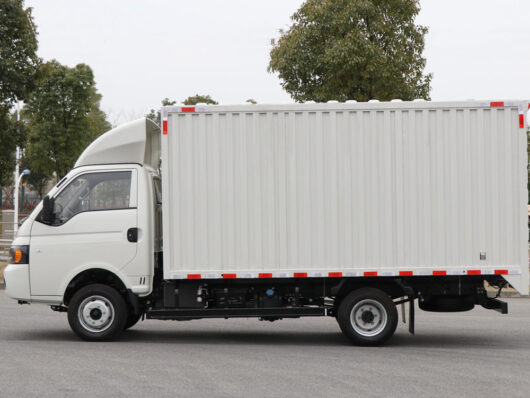

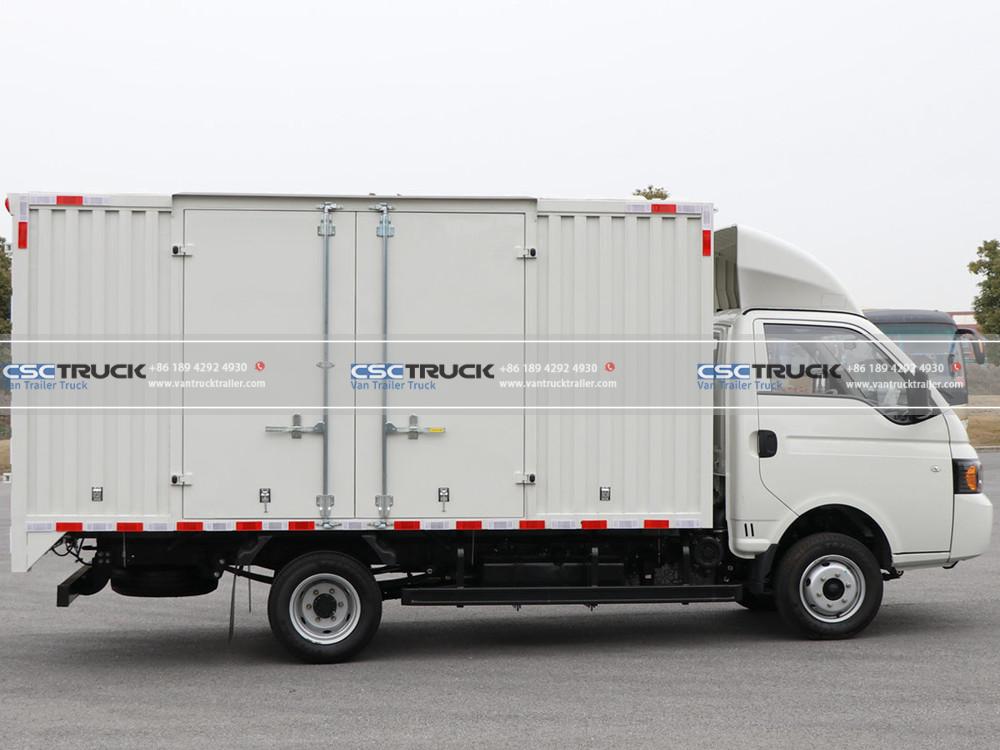

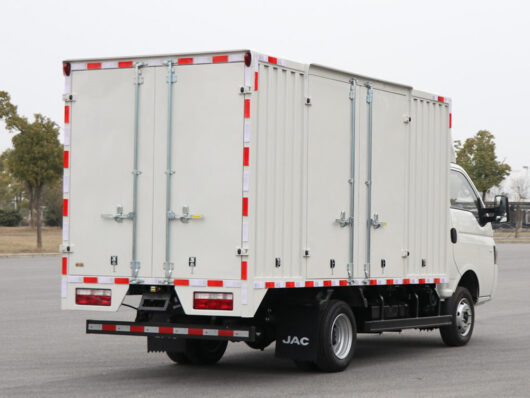

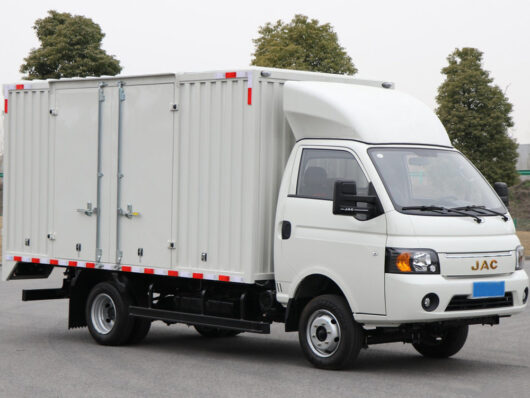

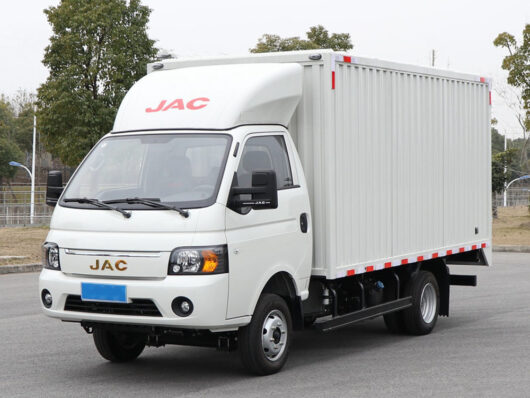

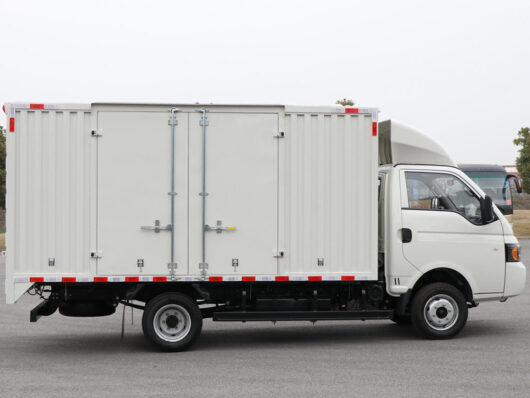

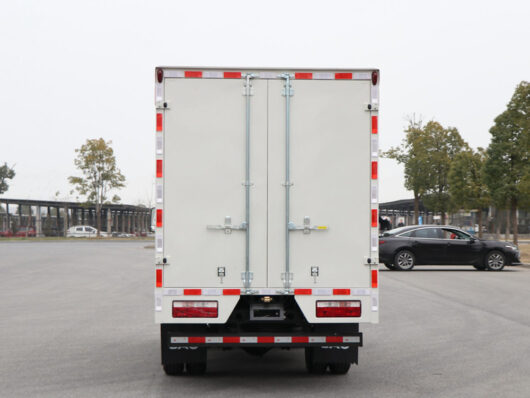

Unleash Unwavering Performance, Conquer Every Cargo Challenge: Introducing the JAC 12 CBM Dry Van Cargo Truck
The JAC 12 CBM Dry Van Cargo Truck is more than just a vehicle – it’s a testament to efficient cargo transportation. This versatile and reliable workhorse is meticulously designed to tackle a wide range of logistics needs, offering the perfect blend of performance, durability, and convenience to empower your business.
Built to Last, Engineered to Deliver
- Robust Construction: Experience the confidence of a robust 4X2 drive train and a 3.8-meter cargo box length, ensuring the capacity and stability to handle even the most demanding deliveries.
- Advanced Features, Effortless Operation: The JAC 12 CBM boasts a Xingrui ML532A 5-speed manual transmission for smooth gear changes and efficient operation. Features like a clutch booster and power steering enhance driver comfort and control.
Optimum Performance, Reduced Emissions
- Yunnei Power D20TCIF13 Engine: Experience the power and efficiency of a Yunnei Power engine, delivering 85kW (116 horsepower) while adhering to strict EURO VI emission standards.
Spacious Design, Effortless Loading
- Generous Cargo Capacity: The JAC 12 CBM offers ample cargo space with dimensions of 3.8 meters (length) x 1.75 meters (width) x 1.75 meters (height), allowing for efficient loading and secure transport of various goods.
- Driver-Centric Comfort
Enjoy a comfortable and functional working environment with a two-person single-row cabin featuring a manually adjustable steering wheel and manual air conditioning. Power windows and a remote key with central locking add an extra layer of convenience.
Enhanced Safety on Every Journey
- Comprehensive Safety Features: The JAC 12 CBM prioritizes driver and passenger safety with advanced features like an Anti-lock Braking System (ABS), Load Sensing Proportioning Valve (SABS), and automatic adjusting arms, ensuring optimal control in diverse road conditions.
Convenience Meets Information
- Stay Connected, Stay Informed: An external audio interface keeps you entertained on the road, while a radio provides real-time updates. Headlights with adjustable height and a wiper blade design ensure optimal visibility during any weather condition.
The JAC 12 CBM Dry Van Cargo Truck is a symbol of versatility, efficiency, and a commitment to safe operations. Experience the reliable partner that will empower your business to optimize every delivery and conquer every cargo challenge.
SPECIFICATIONS:
| Feature | Details |
|---|---|
| Type | Van Cargo Truck |
| Drive Type | 4X2 |
| Wheelbase | 3100mm |
| Box Length Level | 3.8 meters |
| Engine | Yunnei Power D20TCIF13 |
| Transmission | Xingrui ML532A |
| Rear Axle Speed Ratio | 4.33 |
| Body Length | 5.875 meters |
| Body Width | 1.815 meters |
| Body Height | 2.6 meters |
| Front Wheel Track | 1450mm |
| Rear Wheel Track | 1395mm |
| Vehicle Weight | 2.4 tons |
| Rated Load | 1.965 tons |
| Total Mass | 4.495 tons |
| Maximum Speed | 100KM/h |
| Ton Level | Micro Truck |
| Approach Angle | 22 degrees |
| Departure Angle | 12.9 degrees |
| Sub-segment Market | |
| Remarks | |
| Front/Rear Overhang | 1.185/1.59 meters |
| Version | |
| Engine Parameters | |
| Engine Model | Yunnei Power D20TCIF13 |
| Engine Brand | Yunnei Power |
| Number of Cylinders | 4 cylinders |
| Fuel Type | Diesel |
| Cylinder Arrangement | Inline |
| Displacement | 1.999L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Maximum Output Power | 85kw |
| Maximum Horsepower | 116 horsepower |
| Maximum Torque | |
| Maximum Torque Speed | |
| Rated Speed | |
| Engine Oil Change Cycle | Interval 10000km |
| Cargo Compartment Parameters | |
| Cargo Type | Van |
| Cargo Length | 3.8 meters |
| Cargo Width | 1.75 meters |
| Cargo Height | 1.75 meters |
| Cab Parameters | |
| Cab | |
| Cab Width | 1750mm |
| Number of Seats | 2 people |
| Seat Row | Single row |
| Transmission Parameters | |
| Transmission Model | Xingrui ML532A |
| Shifting Method | Manual |
| Forward Gears | 5 gears |
| Reverse Gears | 1 gear |
| Fuel Tank | |
| Fuel Tank Material | |
| Fuel Tank Capacity | |
| Chassis Parameters | |
| Front Axle Description | |
| Front Axle Allowable Load | 1750KG |
| Frame Size | 140×55×4mm |
| Rear Axle Description | |
| Rear Axle Allowable Load | 2745KG |
| Speed Ratio | 4.875 |
| Leaf Spring Number | 4/3+2 |
| Frame Type | Straight Beam |
| Rear Axle Oil Change Cycle | 60000km |
| Wheel Hub Maintenance-Free | Aluminum Alloy |
| Tires | |
| Tire Specifications | 185R15LT 8PR |
| Number of Tires | 6 |
| Control Configuration | |
| ABS Anti-lock Braking System | Yes |
| Clutch Booster | Yes |
| Power Steering | Yes |
| Load Sensing Proportioning Valve (SABS) | Yes |
| Automatic Adjusting Arm | Yes |
| External Configuration | |
| Integrated Mudguards | Yes |
| Wiper Type | Boneless Wiper |
| Internal Configuration | |
| Steering Wheel Material | Plastic |
| Steering Wheel Adjustment | Manual |
| Air Conditioning Adjustment | Manual |
| Power Windows | Yes |
| Power Interface | Yes |
| Remote Key | Yes |
| Electronic Central Locking | Yes |
| External Audio Interface | Yes |
| Radio | Yes |
| Normal Instrument | Yes |
| Lighting Configuration | |
| Headlight Brand | Faruo |
| Headlight Height Adjustable | Yes |
| Halogen Headlights | Yes |
| Brake System | |
| Vehicle Brake Type | Hydraulic Brake |
| Parking Brake | Hand Brake |
| Front Brake | Disc Brake |
| Rear Brake | Drum Brake |
