Deliver Fresh, Drive Green

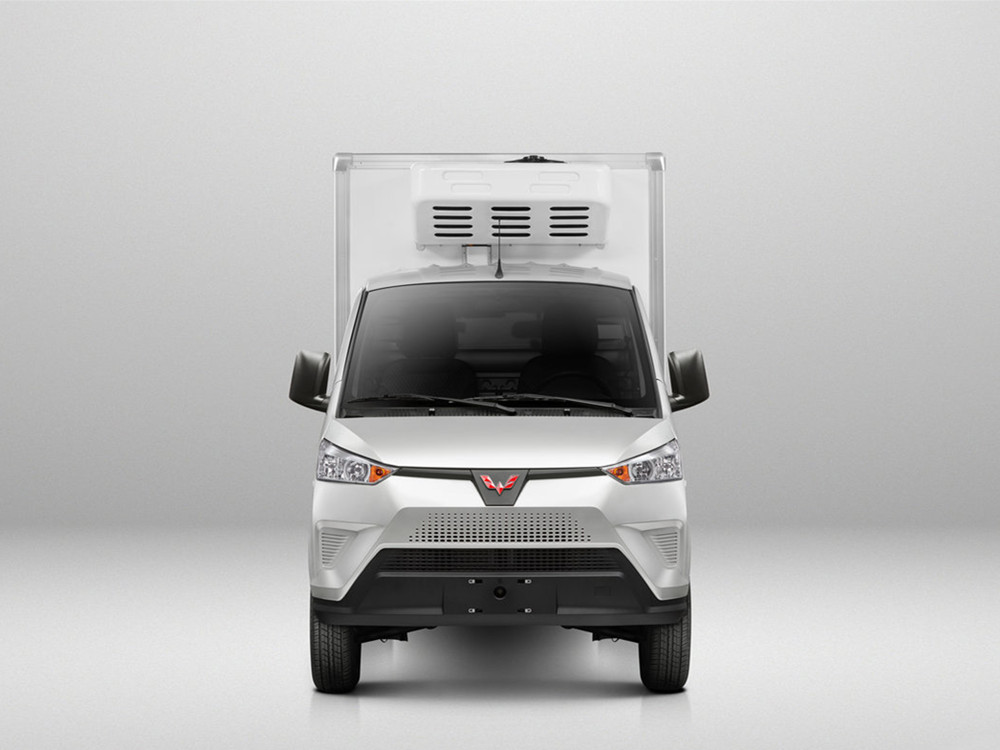

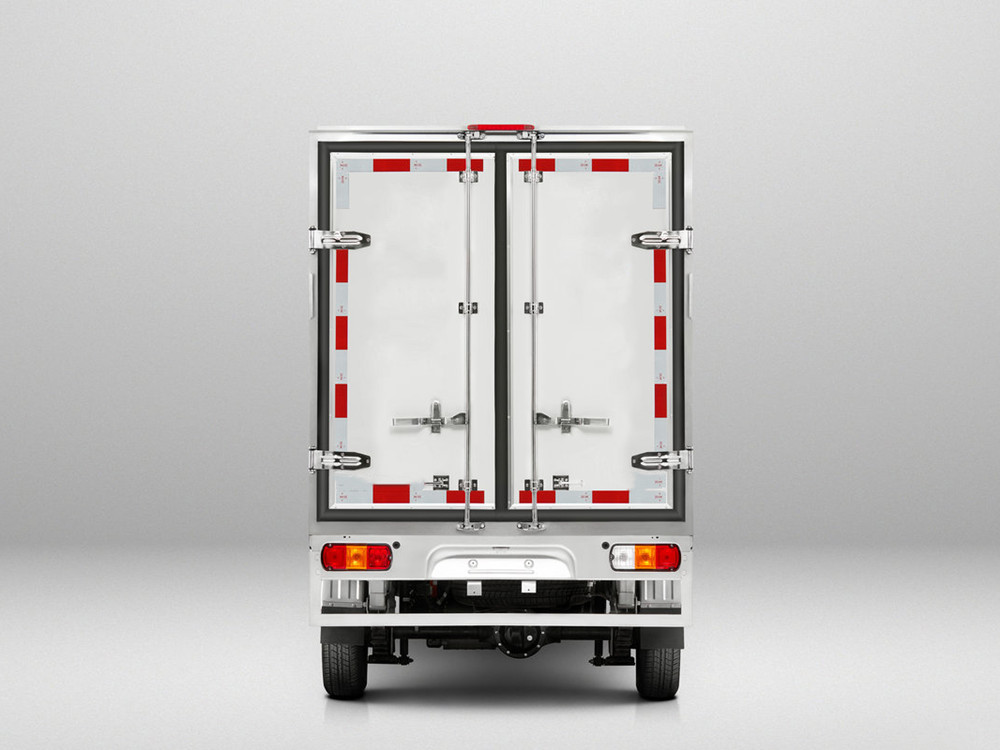

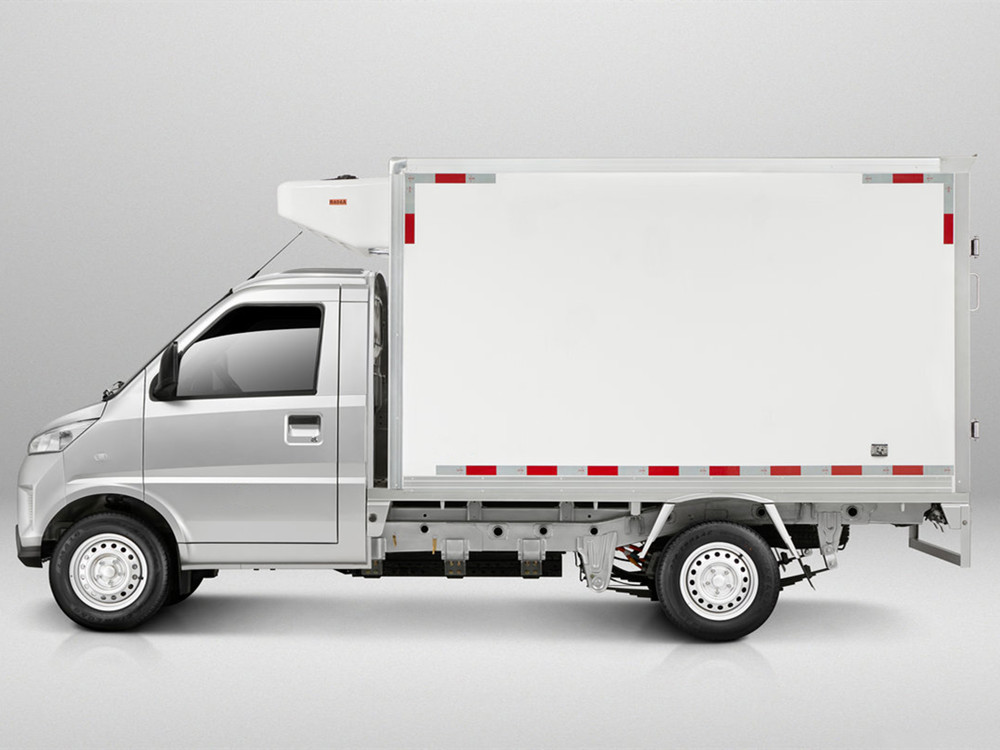

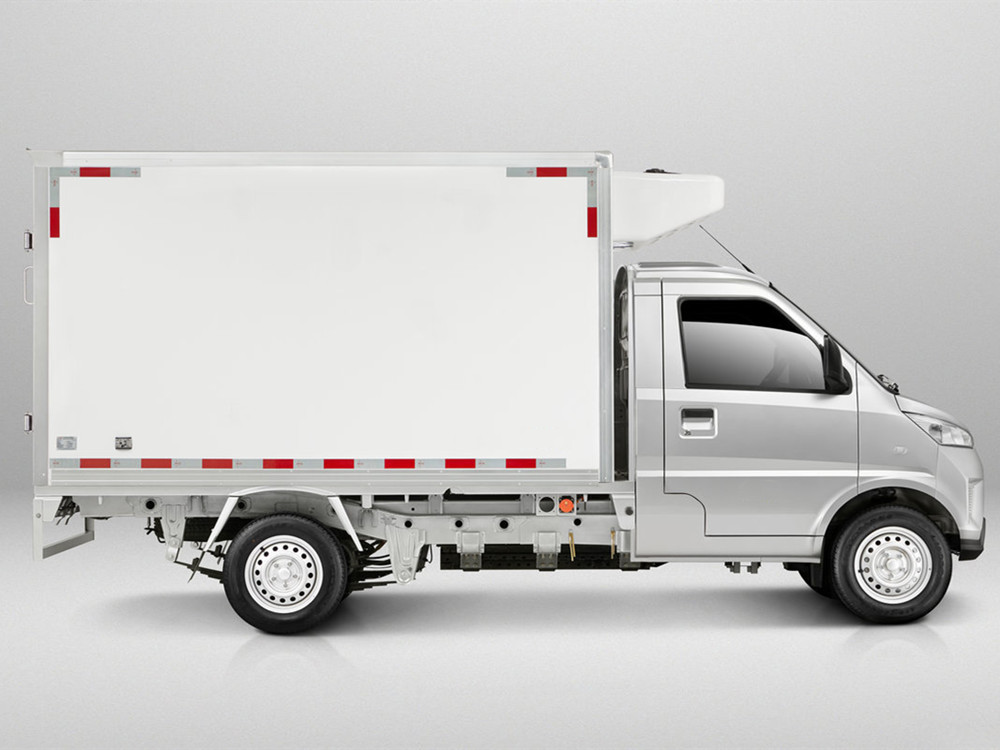

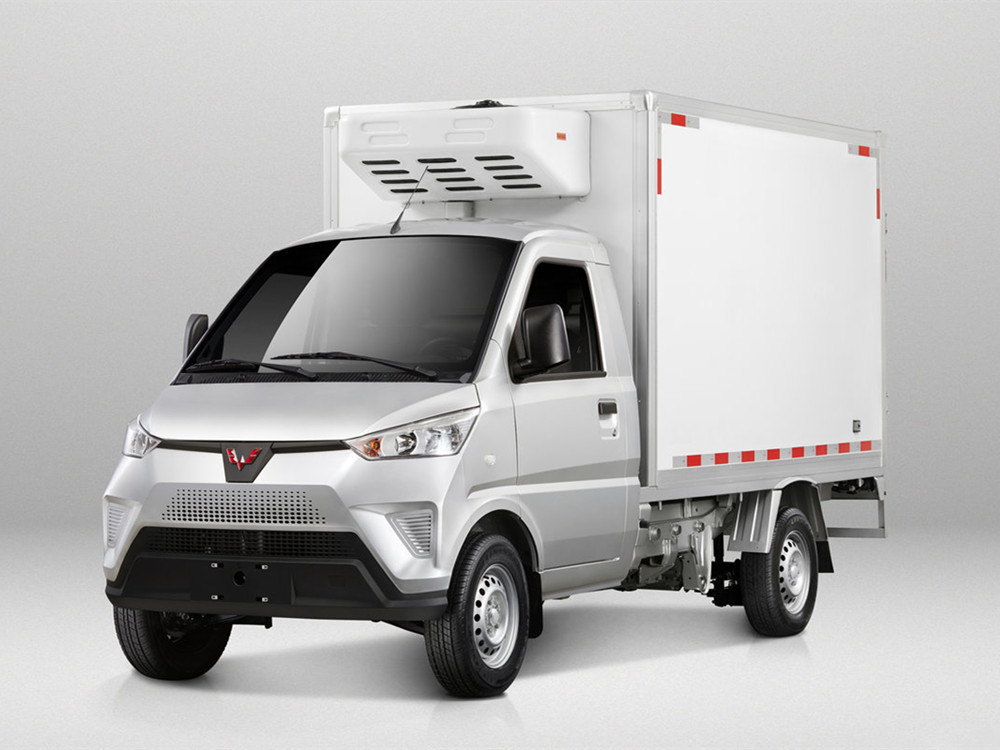

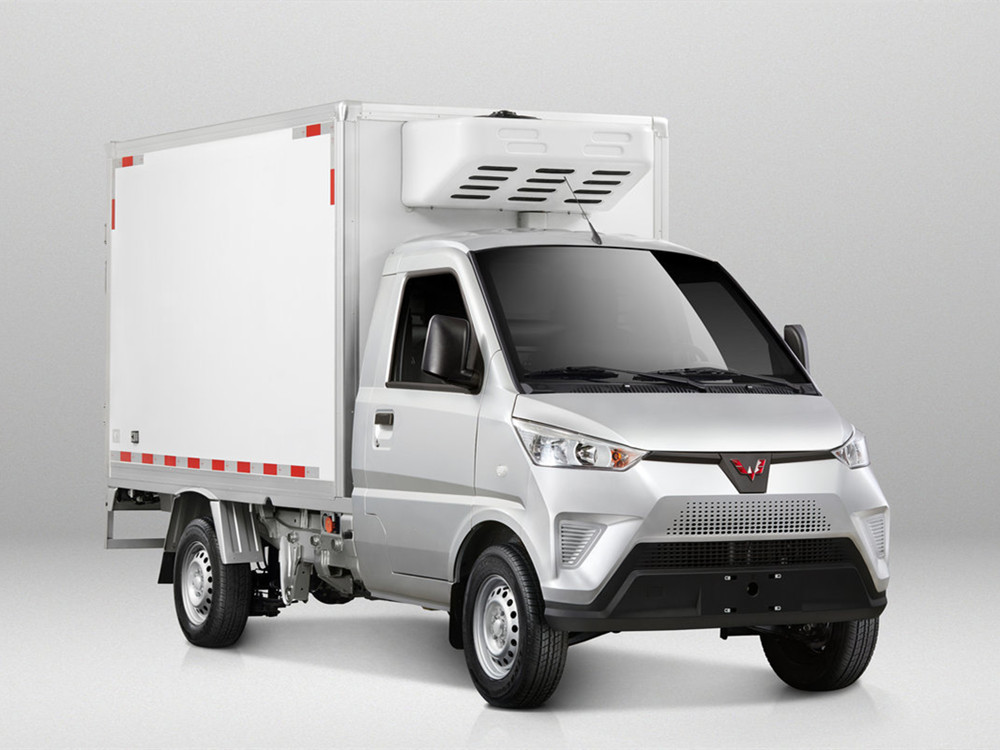

The Wuling Electric 3 Meter Reefer Truck redefines urban deliveries with its innovative blend of eco-friendly operation, efficient performance, and spacious cargo capacity. This compact powerhouse is specifically designed to navigate the bustling streets of the city while keeping your perishable goods fresh and cool.
Powering Progress, Protecting the Planet
The heart of this truck is the Suzhou Huichuan TZ180XSIN102 permanent magnet synchronous motor. This electric marvel delivers a peak power of 60 kW and a rated power of 30 kW, ensuring reliable performance with zero emissions. Reduce your environmental impact and operational costs simultaneously, making a positive difference with every delivery.
Spacious Capacity, Urban Maneuverability
Don’t let the compact size fool you. The cargo box boasts impressive dimensions of 2.77 meters in length, 1.47 meters in width, and 1.51 meters in height, offering a generous 6.2 cubic meters of storage. This makes the Wuling Electric Reefer Truck perfect for transporting a wide variety of temperature-sensitive goods within the city. The 4X2 drive type and 3050mm wheelbase provide exceptional maneuverability and agility, allowing you to navigate tight streets and congested areas with ease.
Long Range, Short Charging Times
The Wuling Electric Reefer Truck is built to keep you moving. Equipped with a high-capacity CATL battery boasting 41.86 kWh and an energy density of 137.6 Wh/kg, this truck offers a factory-rated endurance of 275 km on a single charge. This translates to uninterrupted delivery operations throughout the day. And when it’s time to recharge, the battery supports both fast and slow charging methods. With a fast charging time of just 1.5 hours, downtime is minimized, maximizing your productivity.
Built to Last, Engineered for Efficiency
The Wuling Electric Reefer Truck sits atop the robust Wuling Electric chassis series, specifically the GXA1032DBEV1 model. This foundation ensures unwavering stability and durability, even when fully loaded. The advanced electronic control system, developed by Huichuan, seamlessly integrates and efficiently manages the motor, battery, and other critical components, optimizing performance and reliability for the long haul. Reliable 175/75R14C tires offer excellent traction and grip for confidently handling any urban surface.
The Wuling Electric 3 Meter Reefer Truck – Experience the future of urban deliveries. Choose eco-friendly, efficient, and reliable transportation for your temperature-sensitive goods.
SPECIFICATIONS:
| Parameter | Description |
|---|---|
| Drive Type | 4X2 |
| Wheelbase | 3050mm |
| Body Length | 4.87 meters |
| Body Width | 1.61 meters |
| Body Height | 2.43 meters |
| Vehicle Weight | 1.595 tons |
| Rated Load | 0.965 tons |
| Total Weight | 2.69 tons |
| Maximum Speed | 80 km/h |
| Factory Endurance | 275 km |
| Motor | |
| Motor Brand | Suzhou Huichuan |
| Motor Model | TZ180XSIN102 |
| Motor Type | Permanent Magnet Synchronous Motor |
| Peak Power | 60 kW |
| Rated Power | 30 kW |
| Rated Torque | 220 N·m |
| Fuel Type | Pure Electric |
| Cargo Box Parameters | |
| Cargo Box Length | 2.77 meters |
| Cargo Box Width | 1.47 meters |
| Cargo Box Height | 1.51 meters |
| Box Volume | 6.2 cubic meters |
| Chassis Parameters | |
| Chassis Series | Wuling Electric |
| Chassis Model | GXA1032DBEV1 |
| Number of Leaf Springs | -/6 |
| Front Axle Load | 1145 kg |
| Rear Axle Load | 1545 kg |
| Tires | |
| Tire Specifications | 175/75R14C |
| Number of Tires | 4 |
| Battery | |
| Battery Brand | CATL (Contemporary Amperex Technology Co. Limited) |
| Battery Type | |
| Battery Capacity | 41.86 kWh |
| Energy Density | 137.6 Wh/kg |
| Charging Method | Fast Charging / Slow Charging |
| Charging Time | 1.5 hours |
| Electronic Control System | |
| Electronic Control System Brand | Huichuan |
