Freshness Delivered, Sustainability Achieved

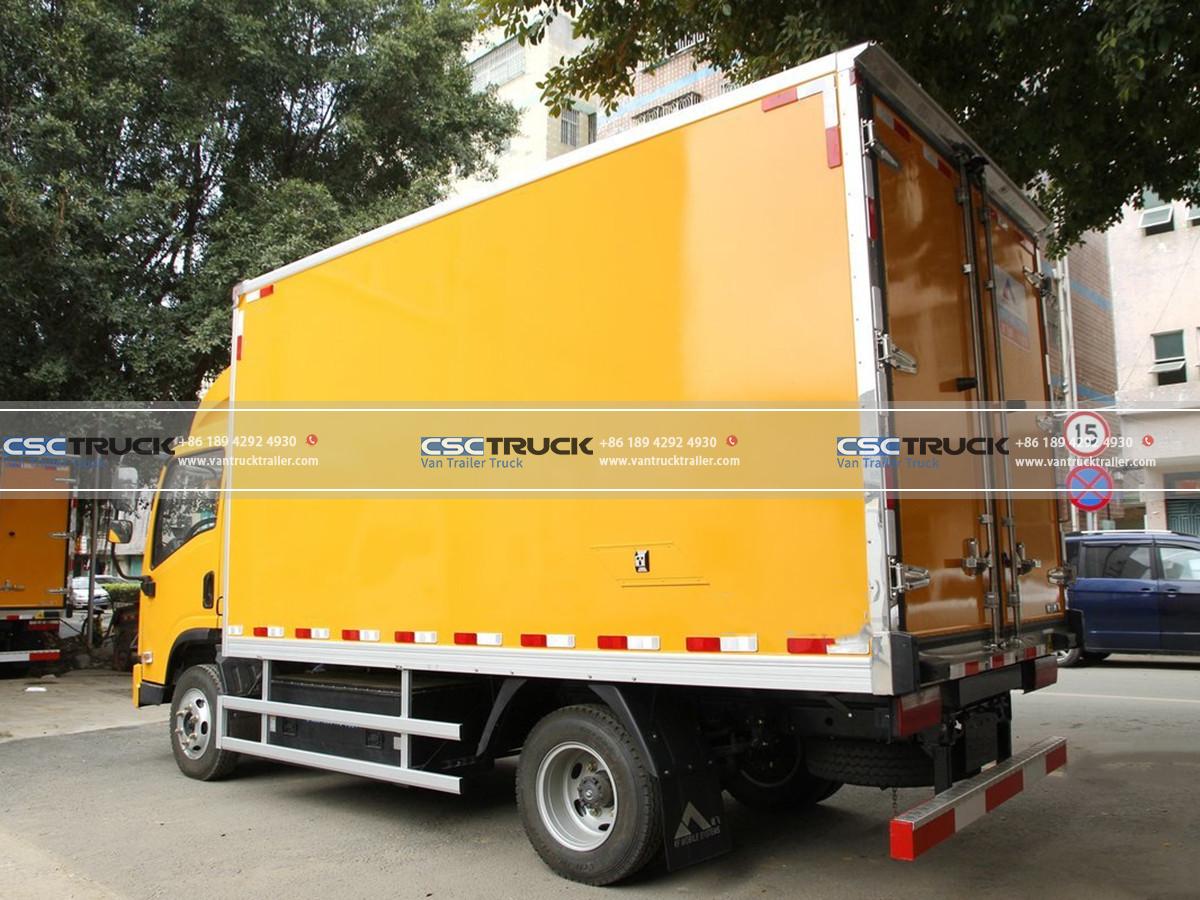

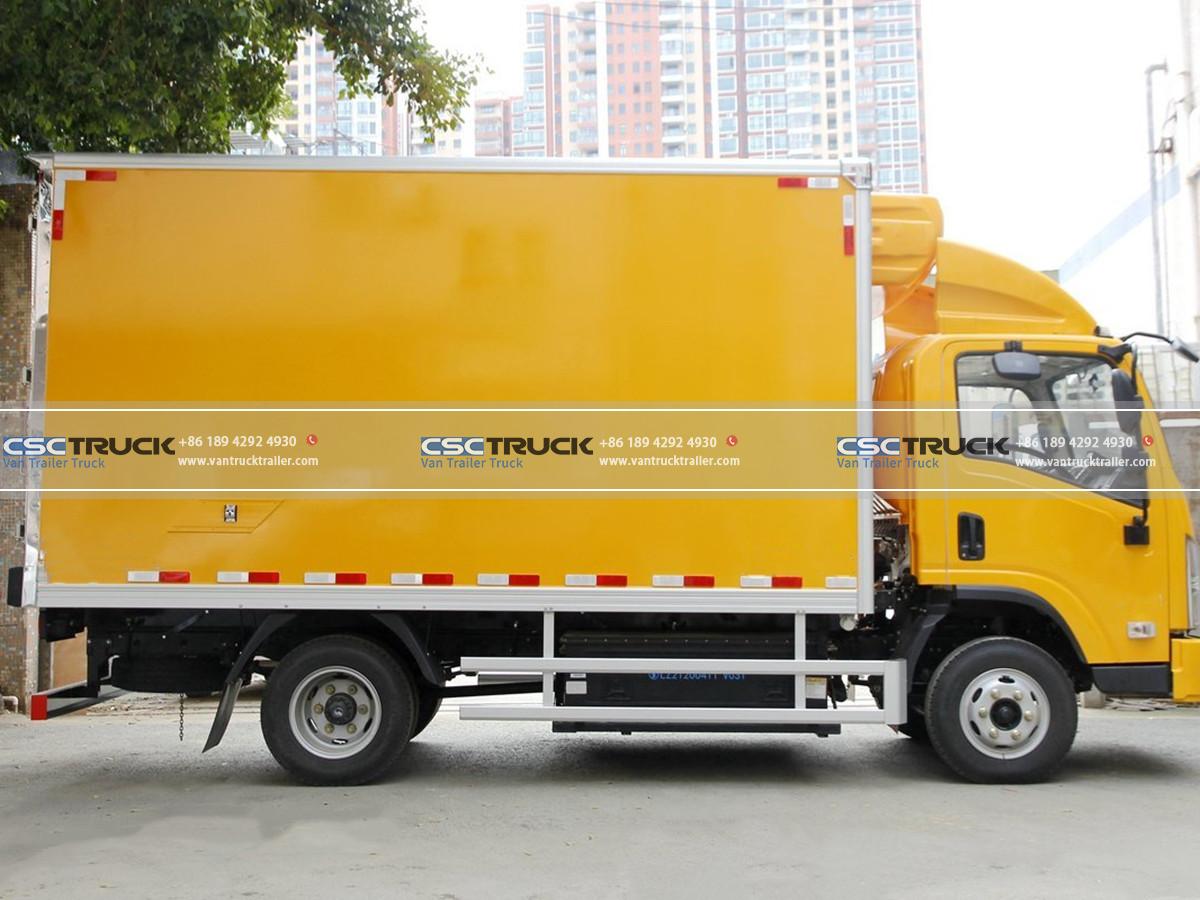

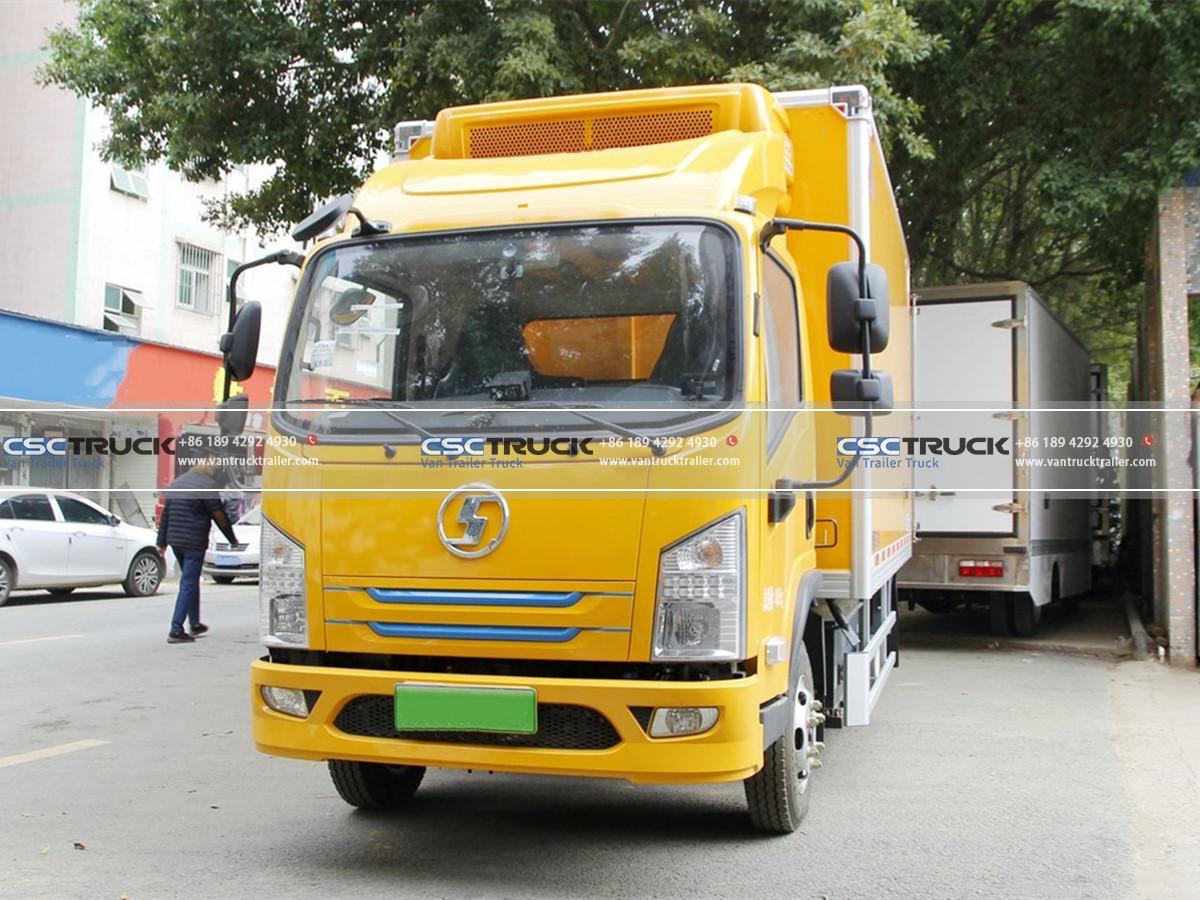

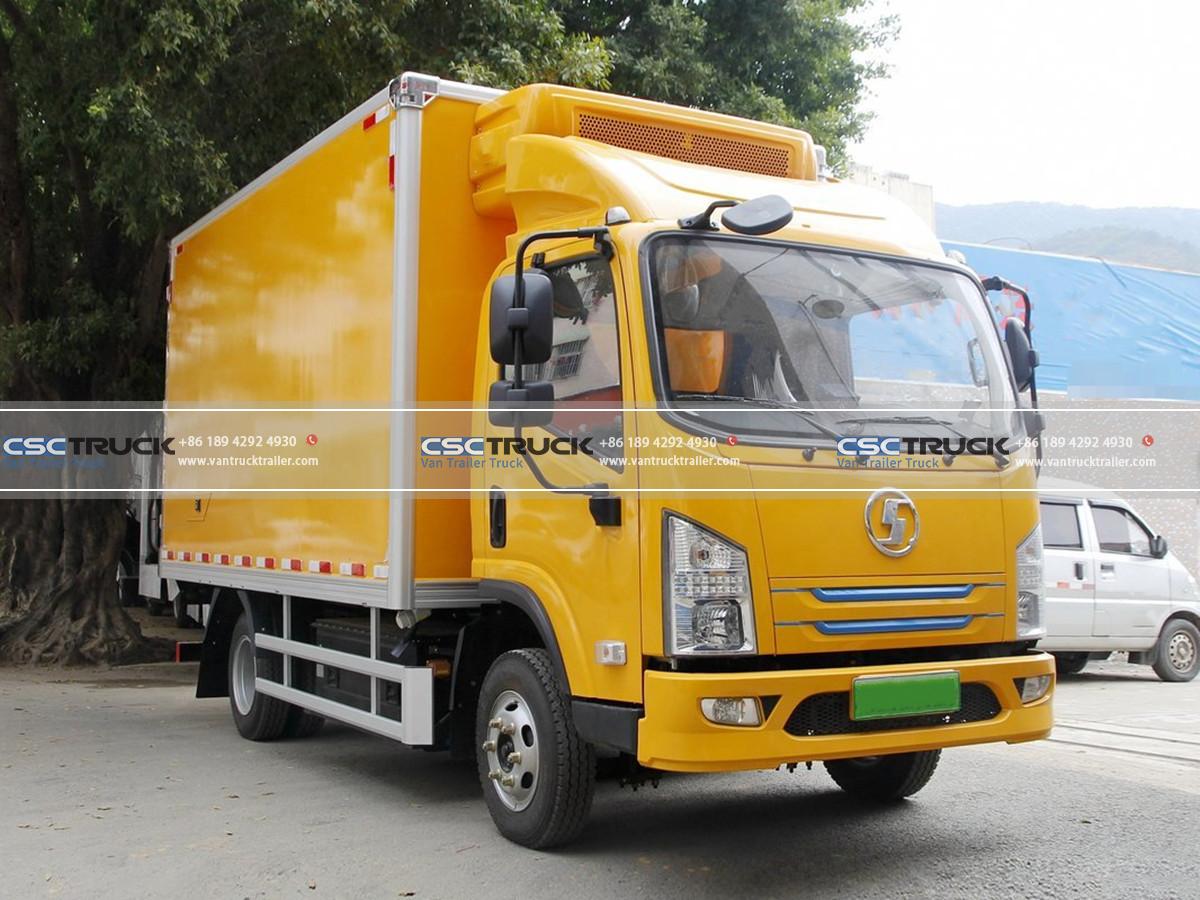

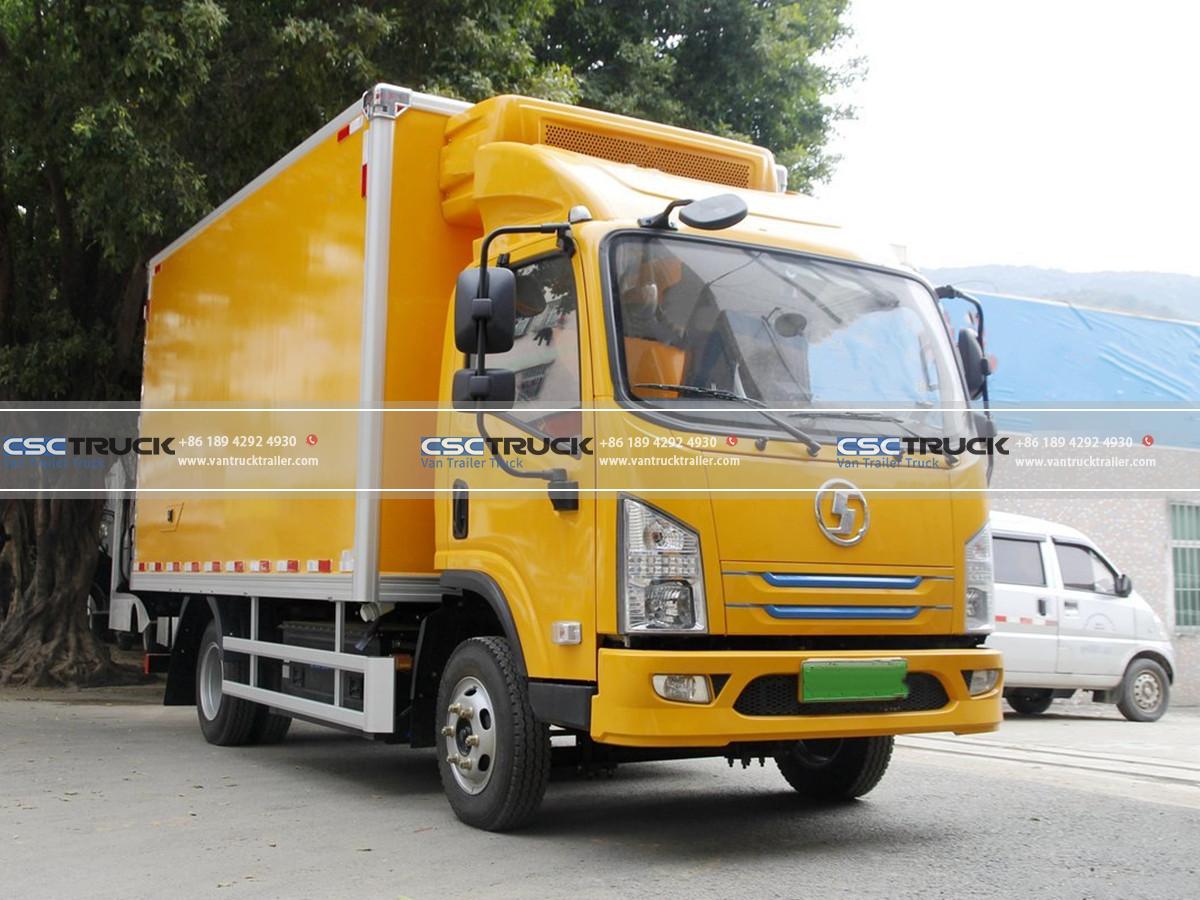

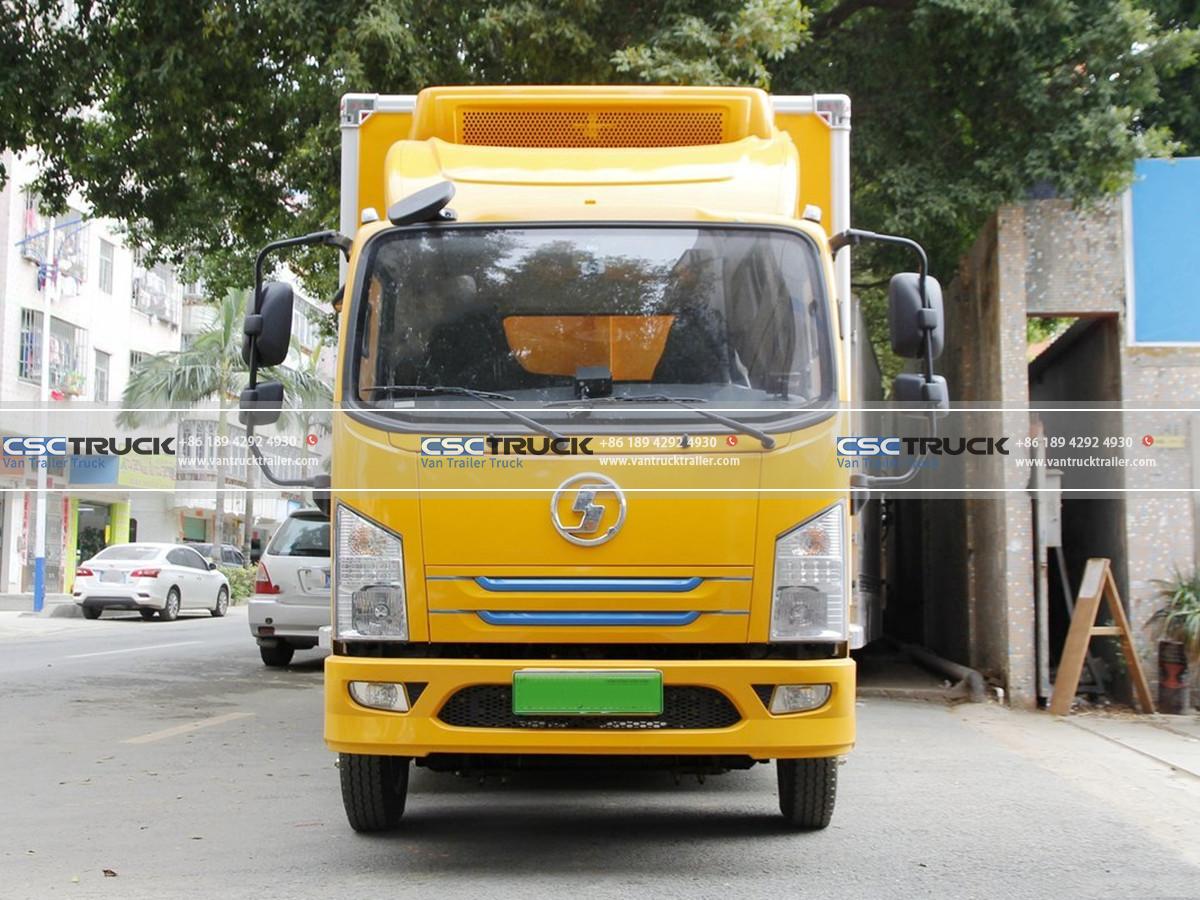

The Shacman Electric 5 Meter Reefer redefines eco-conscious refrigerated transport. This versatile and efficient vehicle seamlessly combines exceptional maneuverability, impressive cargo capacity, and zero-emission operation, making it the ideal choice for businesses seeking a sustainable solution for urban chilled deliveries.
Effortless Maneuverability, Unwavering Stability
The 4X2 drive type and 3300mm wheelbase prioritize agility, allowing you to navigate city streets with ease. Experience confident handling and unwavering stability, even in tight corners and busy traffic.
Spacious Capacity, Efficient Storage

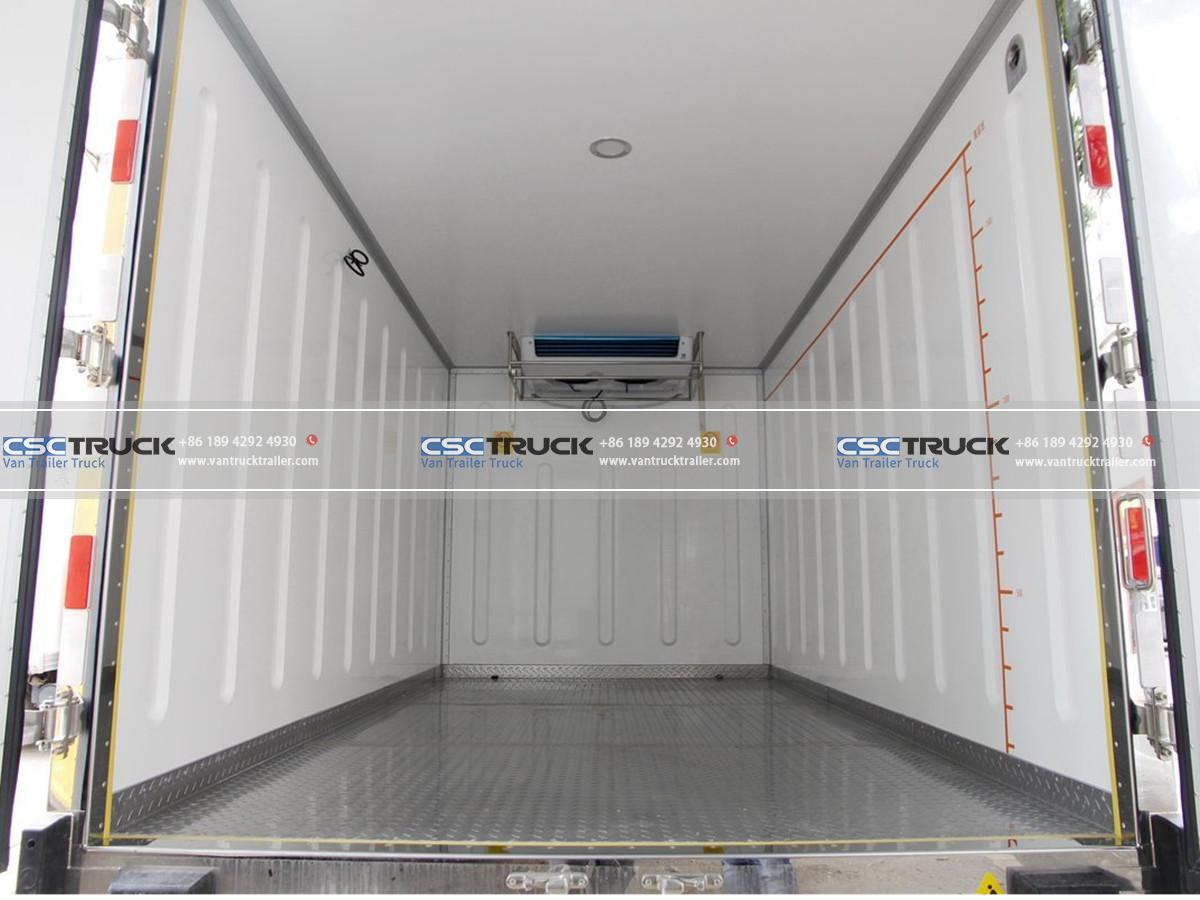

The expansive cargo box, measuring 5.995 x 2.25 x 3.25 meters, offers ample space to accommodate a significant volume of perishable goods. Efficient layout and generous dimensions ensure you can maximize your hauls while maintaining optimal organization.
Silent Power, Sustainable Performance
The reliable electric motor, manufactured by Xi’an Landi New Energy, delivers a peak power of 85kW and a rated power of 45kW, ensuring smooth and efficient operation. Experience the quiet power of electric propulsion without compromising performance.
Advanced Technology, Environmental Responsibility
Featuring a permanent magnet synchronous motor and a high-capacity 91.1kWh lithium-ion battery by Sandon New Energy, the shacman electric 5 meter reefer truck offers exceptional energy efficiency. This translates to reduced operating costs and a minimized environmental footprint, with zero emissions during operation.
Seamless Power Delivery, Unwavering Safety
The 4D380 gearbox with a 4.655 speed ratio facilitates optimal power transmission under various driving conditions. The front axle load of 1860kg and rear axle load of 2635kg, combined with a 3/3+3 leaf spring suspension system, ensure stable handling and weight distribution, prioritizing safety throughout your deliveries.
Durable Performance, Long-Lasting Power
Six 6.50R16LT 12PR tires provide excellent traction and durability, specifically chosen to handle the demands of long-distance journeys. The advanced lithium-ion battery technology boasts a high energy density and a prolonged operational lifespan, ensuring reliable performance for years to come.
Experience the unmatched versatility, efficiency, and environmental responsibility of the Shacman Electric 5 Meter Reefer. Choose the champion for sustainable chilled deliveries and navigate the path towards a greener tomorrow.
SPECIFICATIONS:
| Parameter | Details |
|---|---|
| Drive Type | 4X2 |
| Wheelbase | 3300mm |
| Body Length | 5.995 meters |
| Body Width | 2.25 meters |
| Body Height | 3.25 meters |
| Vehicle Weight | 2.99 tons |
| Rated Load | 1.31 tons |
| Gross Weight | 4.495 tons |
| Maximum Speed | 90 km/h |
| Manufacturer | |
| Motor | |
| Motor Brand | Xi’an Landi New Energy |
| Motor Model | TZ205XS-LDMB045 |
| Motor Type | Permanent Magnet Synchronous Motor |
| Peak Power | 85 kW |
| Rated Power | 45 kW |
| Motor Rated Torque | |
| Fuel Type | Pure Electric |
| Cargo Box Parameters | |
| Cargo Box Length | 4.1 meters |
| Cargo Box Width | 2.05 meters |
| Cargo Box Height | 2.1 meters |
| Additional Parameters | 4D380 gearbox/speed ratio 4.655; 1.8T front axle; |
| 3.5T rear axle/speed ratio 5.857; 3/3+3 leaf springs | |
| Chassis Parameters | |
| Chassis Series | Shacman |
| Number of Leaf Springs | 3/3+3 |
| Front Axle Load | 1860 KG |
| Rear Axle Load | 2635 KG |
| Tires | |
| Tire Specifications | 6.50R16LT 12PR |
| Number of Tires | 6 |
| Battery | |
| Battery Brand | Sandon New Energy |
| Battery Model | EV-014-569160-01 |
| Battery Type | Lithium-ion Battery |
| Battery Capacity | 91.1 kWh |
| Energy Density | |
| Battery Rated Voltage | 569.4 V |
