Master the Frozen Mile with Unmatched Efficiency and Control

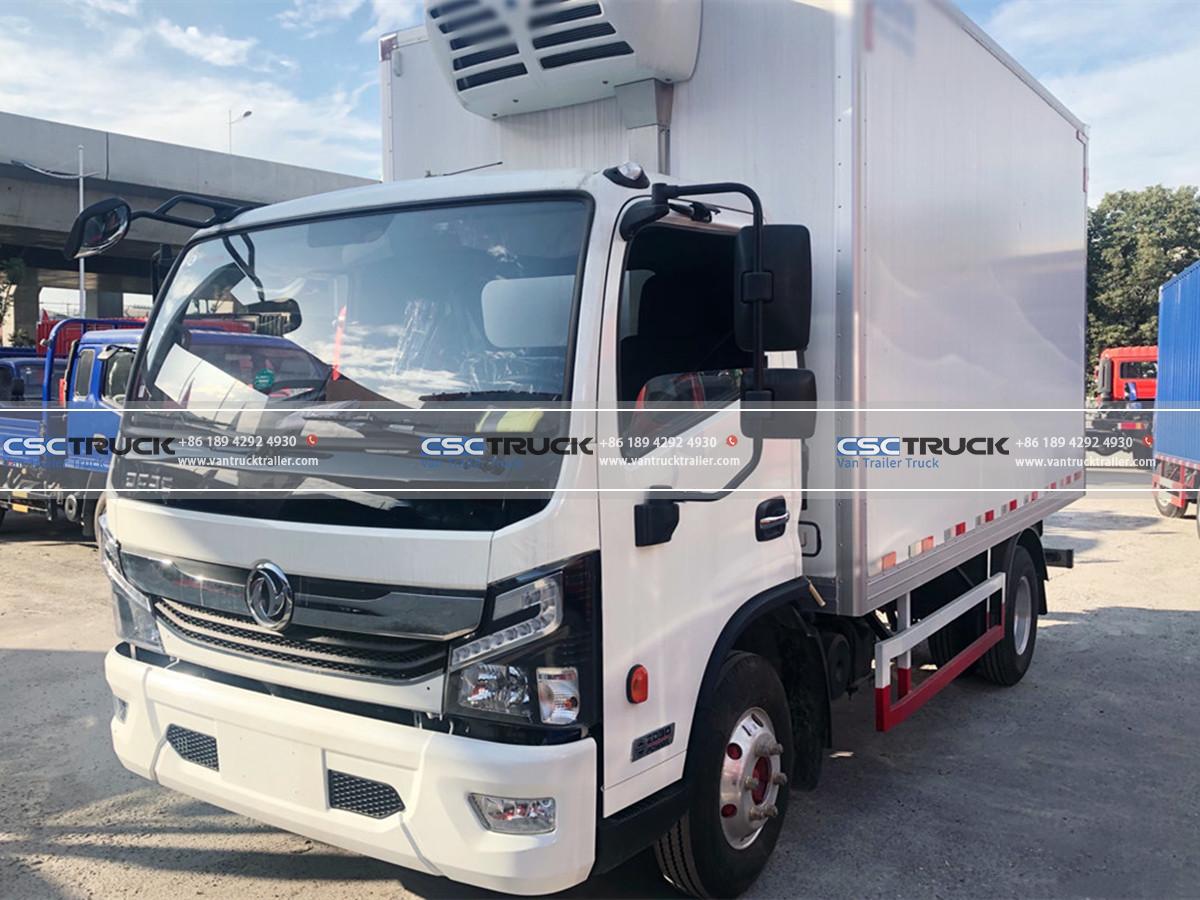

The Dongfeng 4 Meter Freezer Truck is engineered to conquer the demanding world of frozen goods transportation. This powerful and reliable vehicle seamlessly blends advanced features with robust construction, ensuring your perishables reach their destination fresh, frozen, and on time.
Navigate with Agility, Deliver with Power
The 4X2 drive configuration provides exceptional maneuverability, allowing you to navigate busy streets and tight delivery zones with ease. The heart of this truck is the robust Dongfeng ZD30D15-5N engine, generating an impressive 150 horsepower and 370 N·m of torque. This translates to efficient performance and reliable operation, regardless of distance or terrain.
Spacious Capacity, Precise Control

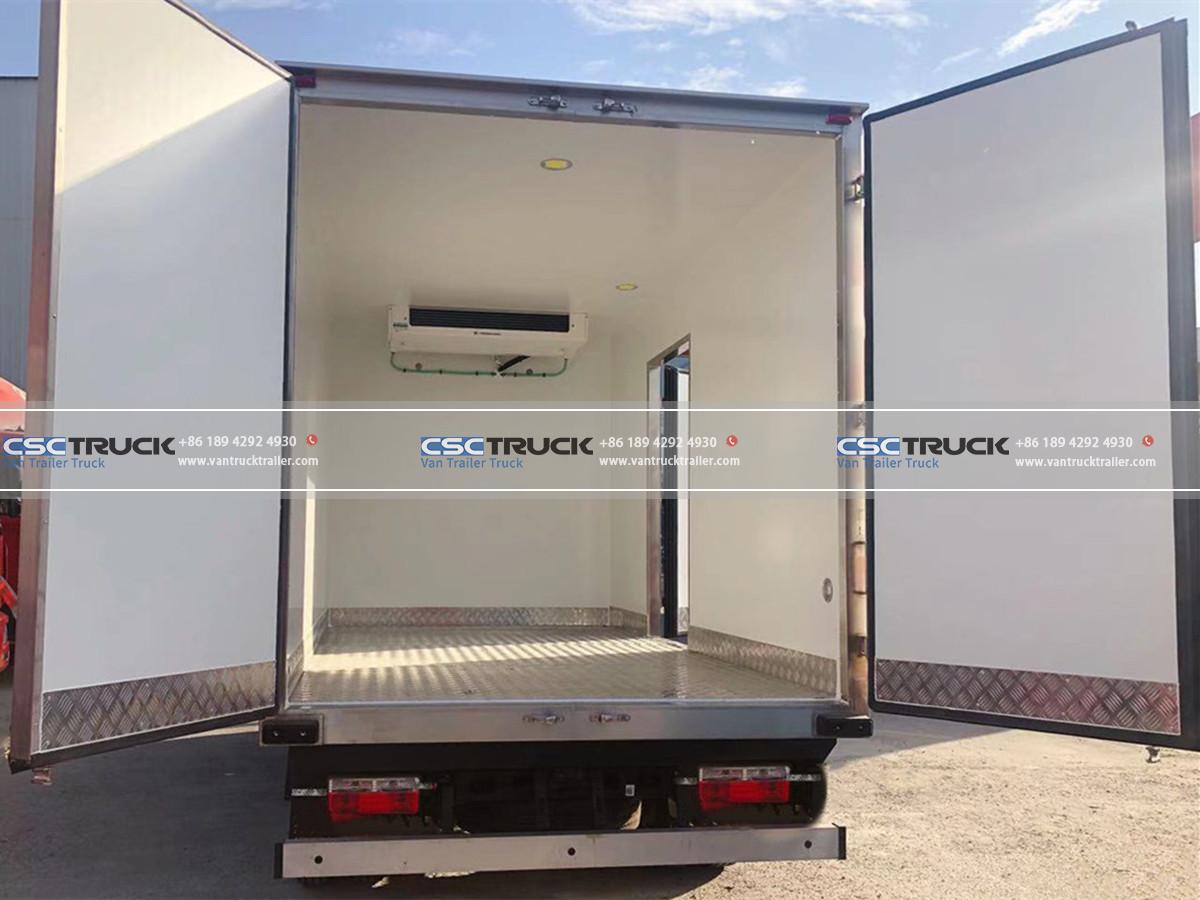

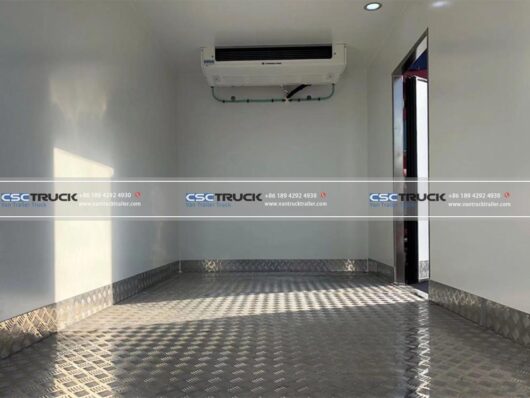

The generously sized 4.09 x 2.3 x 2.1 meter cargo box offers ample space for your frozen goods. The integrated refrigeration system is meticulously designed to maintain precise temperature control, ensuring your cargo stays frozen and fresh throughout the entire journey. Featuring an upper installation by Dongfeng Capt, a trusted name in refrigeration technology, you can be confident in the system’s quality and reliability.
Built to Endure, Engineered for Comfort
The Dongfeng 4 Meter Freezer Truck sits atop a sturdy Dongfeng Truck chassis series, renowned for its robust construction and unwavering durability. This foundation guarantees stability and smooth operation even on the most challenging roads. Optimized leaf spring configurations (8/10+7 and 6/6+5) ensure exceptional load distribution and a comfortable ride. Furthermore, the 7.50R16 8PR and 7.00R16 8PR tire options provide excellent traction and durability, keeping you moving confidently on any surface.
Quality You Can Trust, Efficiency You Can Count On
Manufactured in Wuhan, Hubei, this freezer truck adheres to stringent quality standards and benefits from efficient production processes. This translates into a reliable vehicle built to meet the demanding needs of frozen goods transportation.
With the Dongfeng 4 Meter reefer truck, you don’t just move cargo, you deliver confidence. Experience the perfect blend of power, precision, and efficiency, and redefine the boundaries of frozen transportation.
SPECIFICATIONS:
| Category | Parameter | Details |
|---|---|---|
| Basic Information | Drive Type | 4X2 |
| Wheelbase | 3308mm | |
| Body Dimensions | 5.995×2.35×3.18 meters | |
| Front Overhang/Rear Overhang | 1.13/1.557 meters | |
| Rated Load | 1.1 tons | |
| Vehicle Weight | 3.2 tons | |
| Total Weight | ||
| Front Wheel Track | 1740mm | |
| Rear Wheel Track | 1610mm | |
| Maximum Speed | 103 km/h | |
| Engine Parameters | Engine Model | Dongfeng ZD30D15-5N |
| Number of Cylinders | 4 cylinders | |
| Maximum Output Power | 110 kW | |
| Maximum Horsepower | 150 horsepower | |
| Displacement | 2.95L | |
| Emission Standard | EURO V, EURO Ⅳ, EURO Ⅲ, EURO Ⅱ | |
| Fuel Type | Diesel | |
| Rated Speed | 3200rpm | |
| Engine Type | ||
| Maximum Torque | 370N·m | |
| Cargo Box Parameters | Cargo Box Dimensions | 4.09×2.3×2.1 meters |
| Cargo Box Length | 4.09 meters | |
| Cargo Box Width | 2.3 meters | |
| Cargo Box Height | 2.1 meters | |
| Cargo Box Material | ||
| Upper Installation Parameters | Vehicle Announcement | EQ5041XLC8BDBAC |
| Vehicle Type | Refrigerated Truck | |
| Upper Installation Brand | Dongfeng Capt | |
| Location of Entire Vehicle Production | Wuhan, Hubei | |
| Cab Parameters | Cab | |
| Transmission Parameters | Transmission Model | Fast 6DS40T |
| Number of Gears | 6 gears | |
| Chassis Parameters | Chassis Brand | Dongfeng Truck |
| Chassis Series | CSCTRUCK Van Truck Trailer | |
| Chassis Model | EQ1041SJ8BDB | |
| Frame Dimensions | ||
| Front Axle Description | ||
| Rear Axle Description | ||
| Speed Ratio | ||
| Number of Leaf Springs | 8/10+7, 6/6+5 | |
| Tires | Number of Tires | 6 |
| Tire Specifications | 7.50R16 8PR, 7.00R16 8PR |
