Master the Distance, Deliver Freshness Everywhere
The HOWO 10 Meter Refrigerated Truck is the undisputed leader in transporting temperature-sensitive cargo over long distances. This robust and feature-rich vehicle seamlessly blends efficient performance, exceptional capacity, and unwavering reliability to ensure your perishables arrive fresh, secure, and on time, no matter the journey’s length.
Built for Stability, Engineered for Efficiency
The 4X2 drive configuration provides a perfect balance of stability and maneuverability, keeping you in control of various road conditions. The extended 5600mm wheelbase enhances handling characteristics, especially when fully loaded, giving you peace of mind on long hauls.
Unmatched Capacity, Uncompromising Performance
The expansive 10 x 2.55 x 3.98 meter body offers a staggering amount of storage space, allowing you to maximize your hauls and optimize your business operations. Under the hood, the high-performance CNHTC MC07.24-50 engine delivers an impressive 250 kW (240 horsepower) while adhering to EURO II, III, IV, V, and VI emission standards. Experience exceptional power, fuel efficiency, and environmentally friendly operation, all in one.
Precision Cooling, Guaranteed Freshness

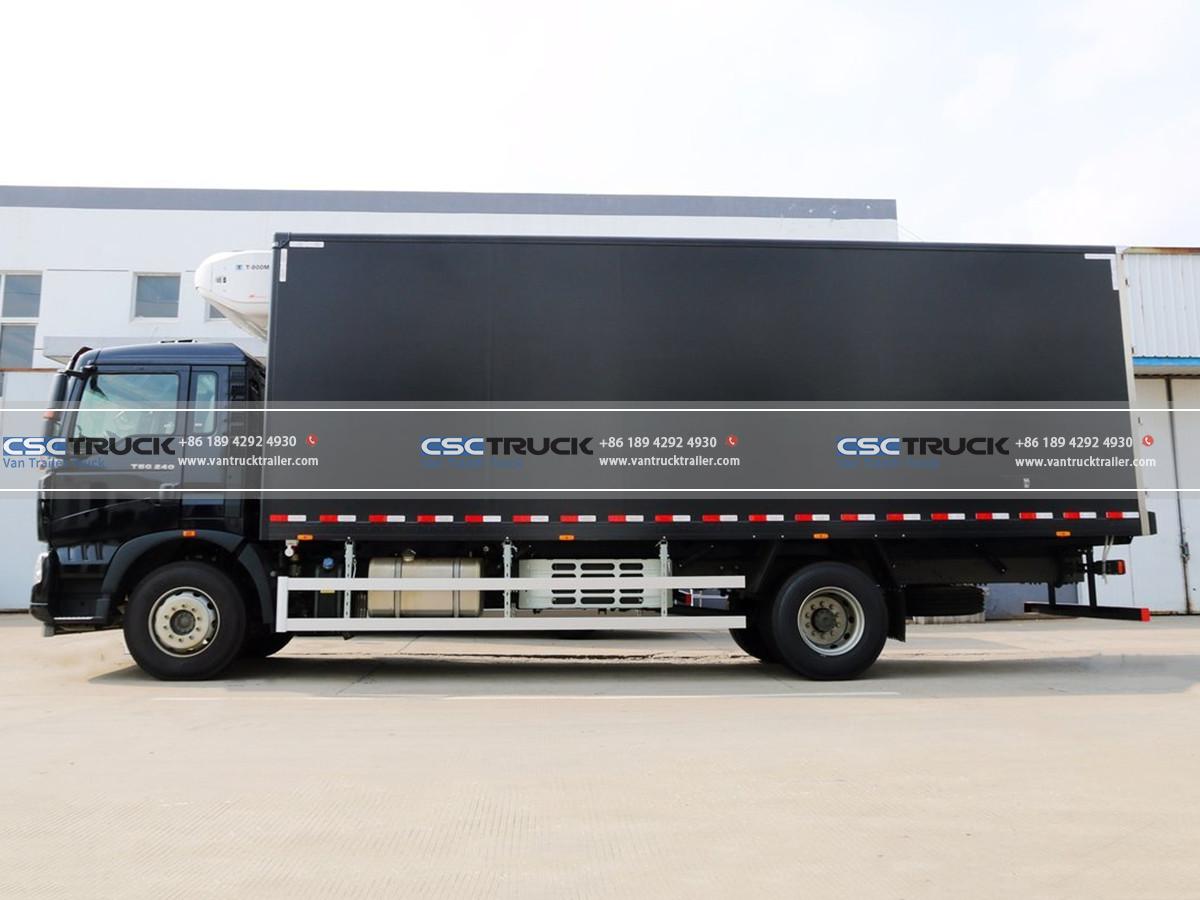

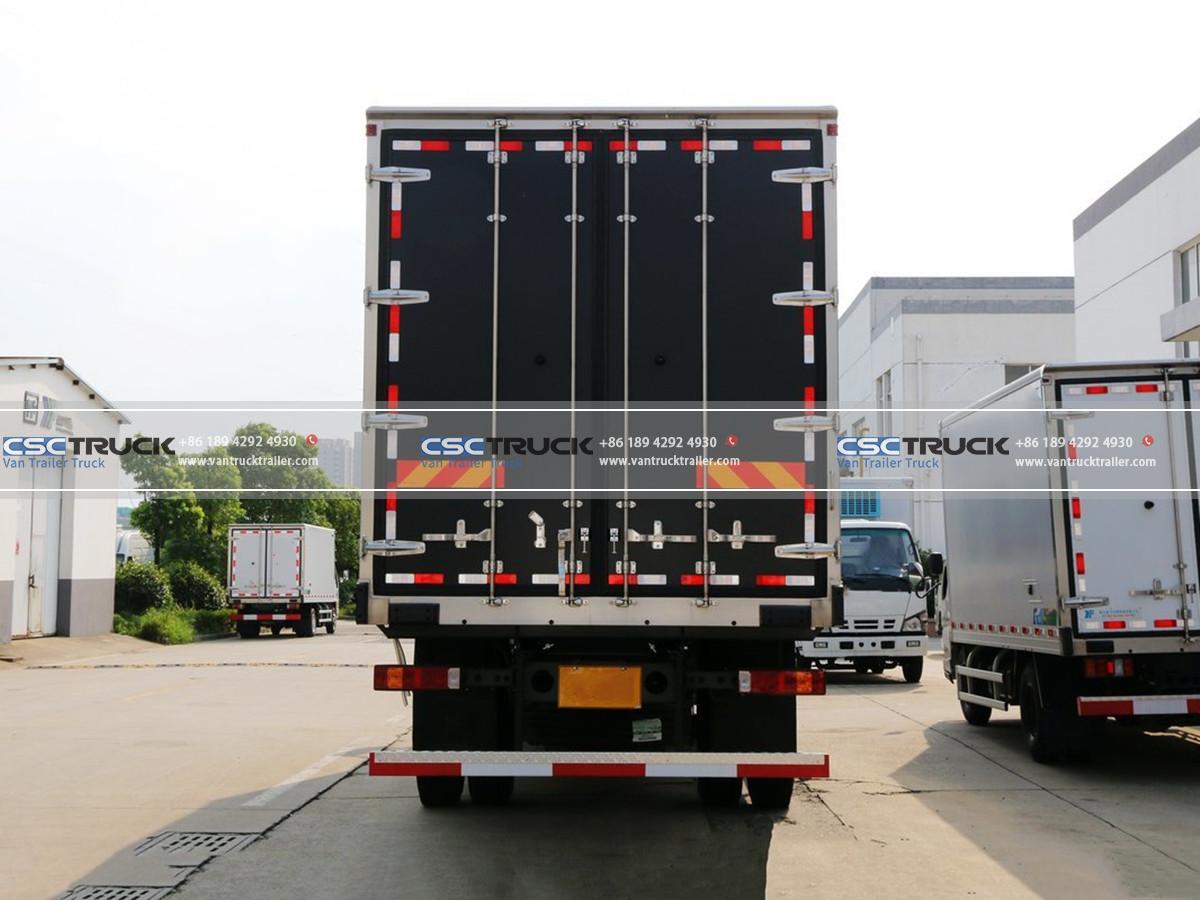

The 7.52 x 2.42 x 2.5 meter refrigerated cargo box, featuring CSCTRUCK VanTruckTrailer upper installation, provides a meticulously controlled environment for your most delicate perishables. This spacious compartment guarantees optimal temperatures are maintained throughout your journey, preserving the freshness and quality of your cargo.
Comfort and Control on Every Haul
The flat-top cab design prioritizes driver comfort, offering an ergonomic workspace that reduces fatigue during long hauls. The 9-speed gearbox transmission enables smooth gear changes and precise control, while the sturdy HOWO T5G chassis (model: ZZ5167XXYM561GE1) ensures exceptional stability and durability for even the most demanding routes. 3/3+2 leaf springs and high-quality 11R22.5 tires further enhance load-bearing capacity, stability, and traction on any road surface.
Experience the unwavering performance and unmatched reliability of the HOWO 10 Meter Refrigerated Truck. Choose the champion for long-haul chilled deliveries and redefine the boundaries of fresh transport.
SPECIFICATIONS:
| Parameter | Description |
|---|---|
| Drive Type | 4X2 |
| Wheelbase | 5600mm |
| Body Dimensions | 10×2.55×3.98 meters |
| Front Overhang/Rear Overhang | 1.43/2.97 meters |
| Rated Load | 7.88 tons |
| Vehicle Weight | 7.99 tons |
| Front Wheel Track | 1860mm |
| Rear Wheel Track | 1960mm |
| Maximum Speed | 101 km/h |
| Engine Parameters | |
| Engine Model | China National Heavy Duty Truck Group (CNHTC) MC07.24-50 |
| Number of Cylinders | 6 cylinders |
| Maximum Output Power | 250 kW |
| Maximum Horsepower | 240 horsepower |
| Displacement | 6.87L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Fuel Type | Diesel |
| Rated Speed | 2300rpm |
| Engine Type | Inline six-cylinder, water-cooled, four-stroke, turbocharged intercooled, high-pressure common rail |
| Fuel Injection System | Common Rail |
| Maximum Torque | 925 N·m |
| Cargo Box Parameters | |
| Cargo Box Dimensions | 7.52×2.42×2.5 meters |
| Cargo Box Length | 7.52 meters |
| Cargo Box Width | 2.42 meters |
| Cargo Box Height | 2.5 meters |
| Upper Installation Parameters | |
| Vehicle Type | Refrigerated Truck |
| Upper Installation Brand | CSCTRUCK VanTruckTrailer |
| Cab Parameters | |
| Cab | Flat top |
| Transmission Parameters | |
| Transmission Model | 9-speed gearbox |
| Number of Gears | 9 gears |
| Chassis Parameters | |
| Chassis Brand | HOWO |
| Chassis Series | HOWO T5G |
| Chassis Model | ZZ5167XXYM561GE1 |
| Number of Leaf Springs | 3/3+2 |
| Tires | |
| Number of Tires | 6 |
| Tire Specifications | 11R22.5 |
