Freshness Guaranteed, Efficiency Delivered

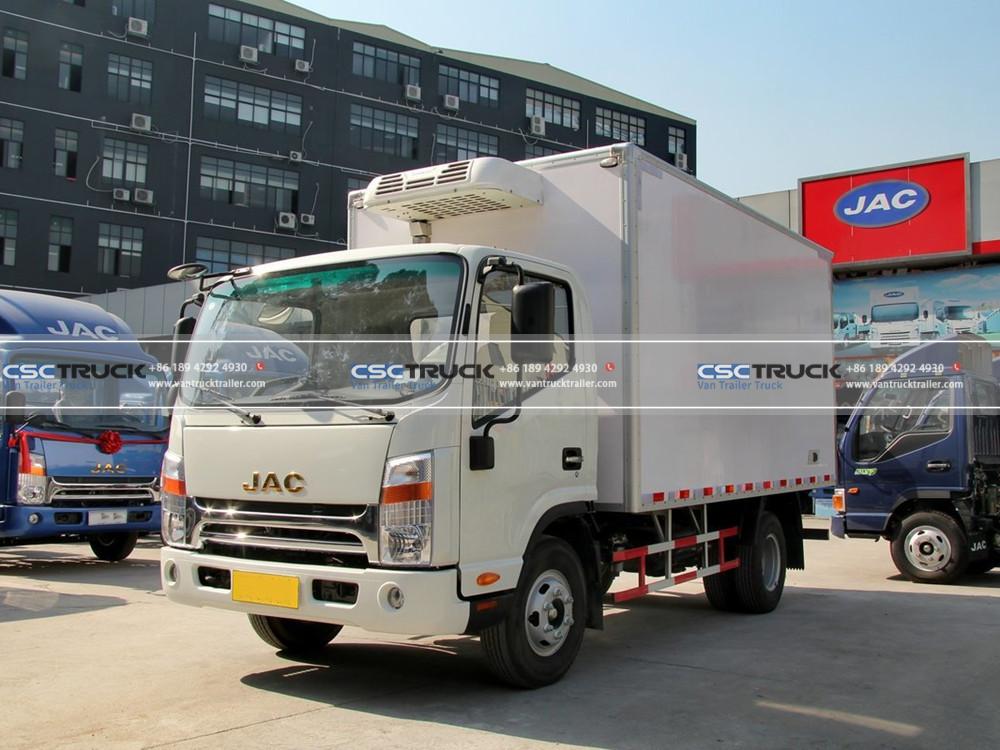

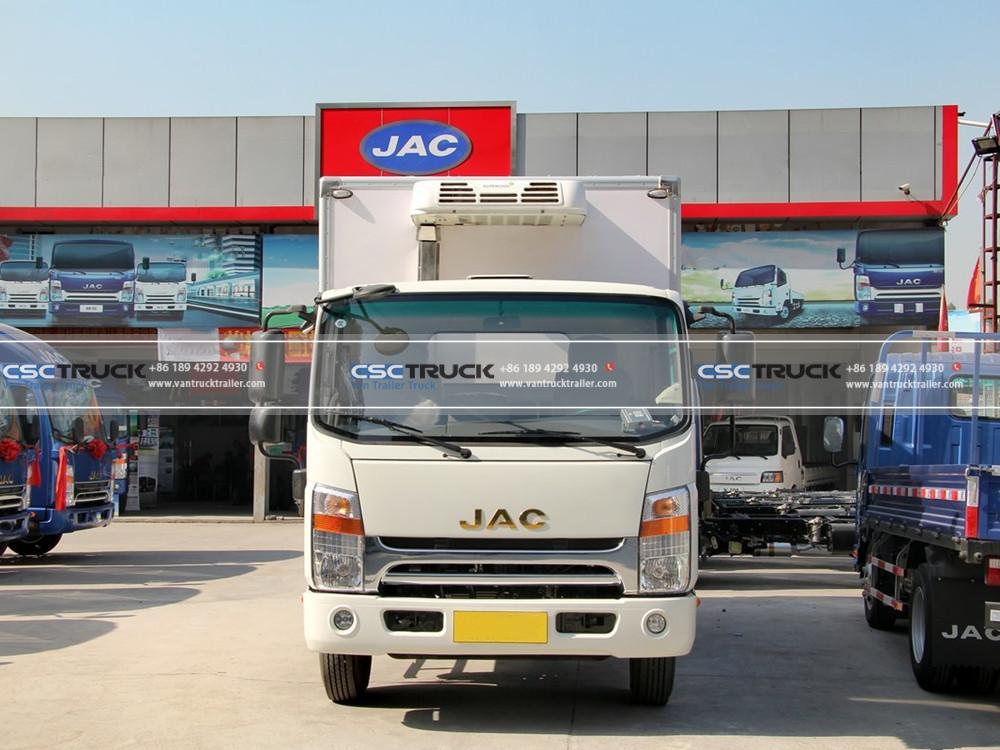

The JAC 4 Meter Refrigerator Box Truck is the perfect solution for urban chilled deliveries. This versatile and efficient vehicle seamlessly combines reliable performance, advanced refrigeration technology, and a compact design, making it ideal for navigating busy streets while keeping your perishables fresh.
Effortless Maneuverability, Unwavering Performance
The 4X2 drive configuration prioritizes maneuverability, allowing you to navigate city streets and highways with ease. Under the hood, the JAC Power HFC4DA1-2C engine delivers a powerful 120 horsepower and 250 N·m of torque, ensuring smooth and efficient operation throughout your deliveries. The 5-speed Liuan LC5T28 gearbox further enhances control and driving experience.
Built to Last, Engineered for Safety

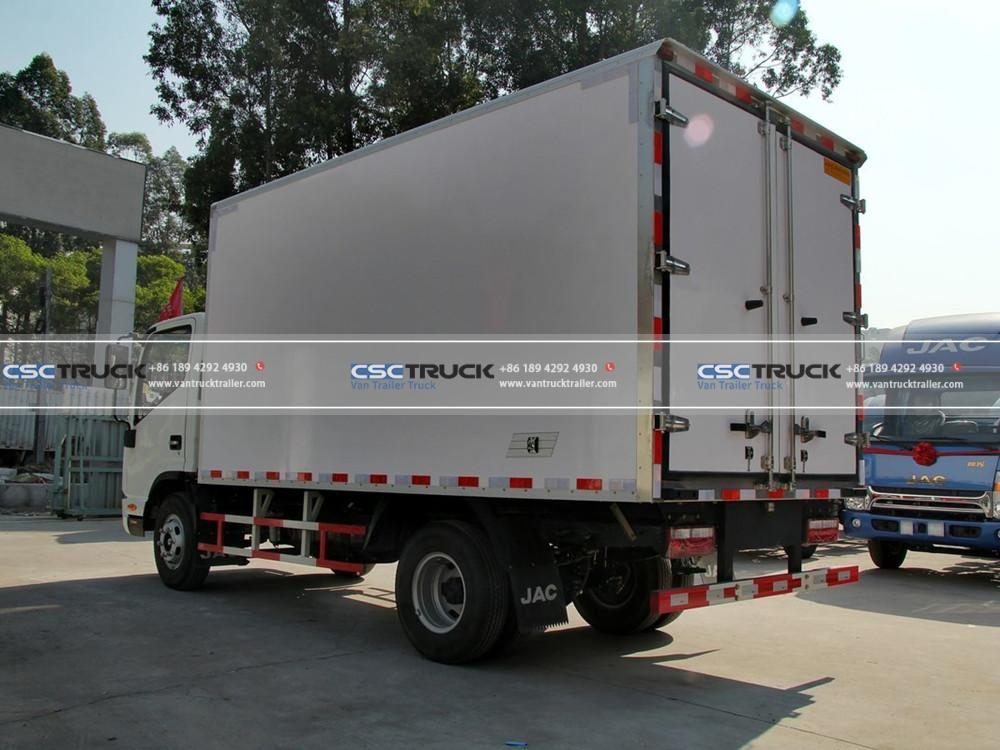

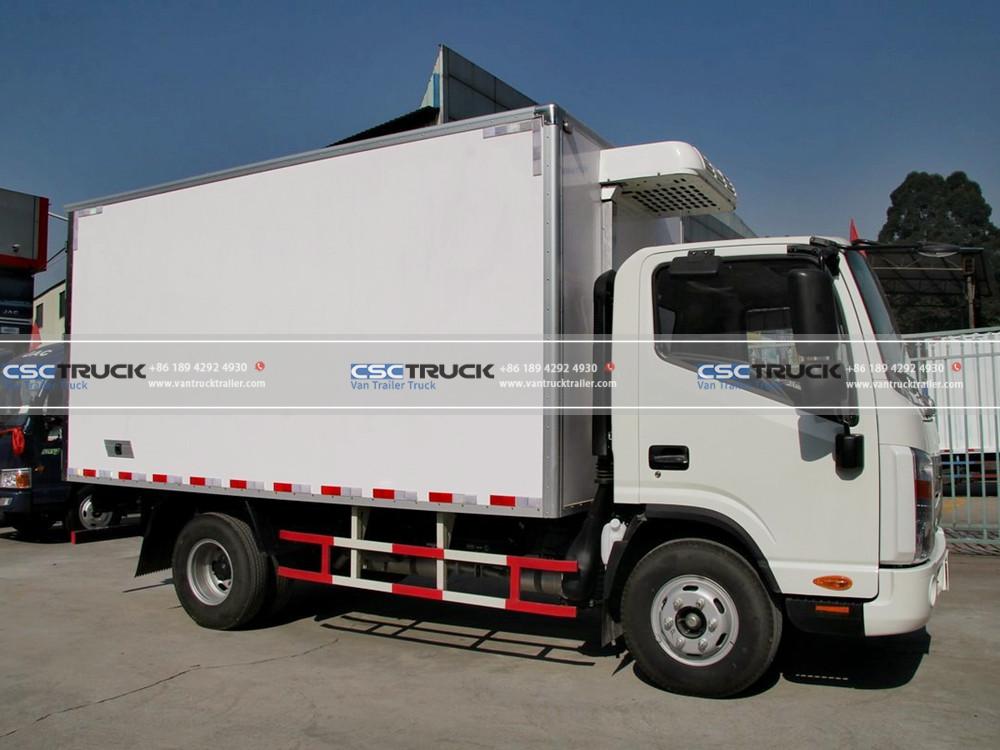

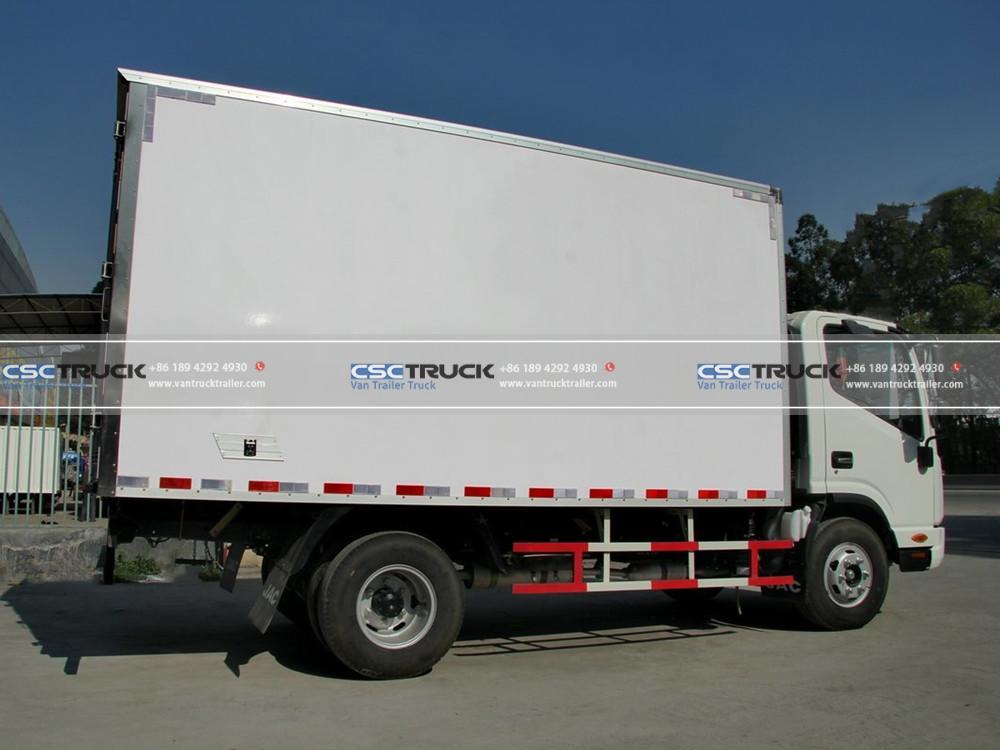

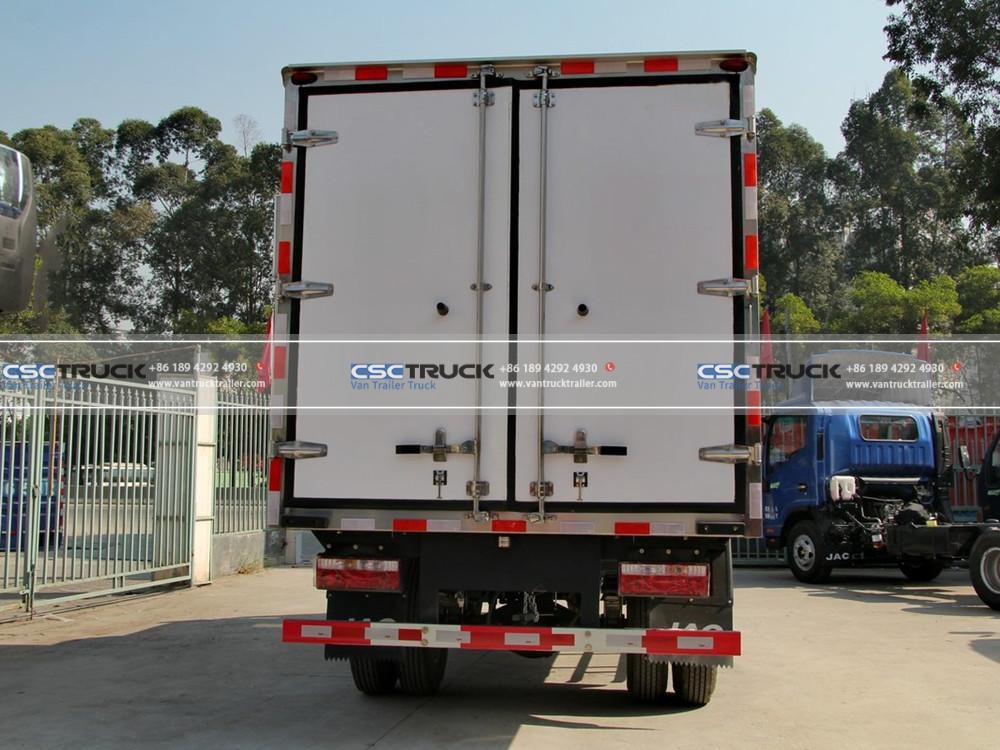

The JAC HFC1048P71K1C2 chassis provides a rock-solid foundation, guaranteeing stability and durability for even the heaviest urban loads. The spacious 4.08 x 2.06 x 2 meter cargo box offers ample space for your goods, while maintaining exceptional structural integrity. Safety remains a priority, with features like optimized wheel tracks (1525mm front, 1665mm rear), well-balanced overhangs (1.11m front, 1.577m rear), and a reliable braking system.
Precision Cooling, Guaranteed Freshness

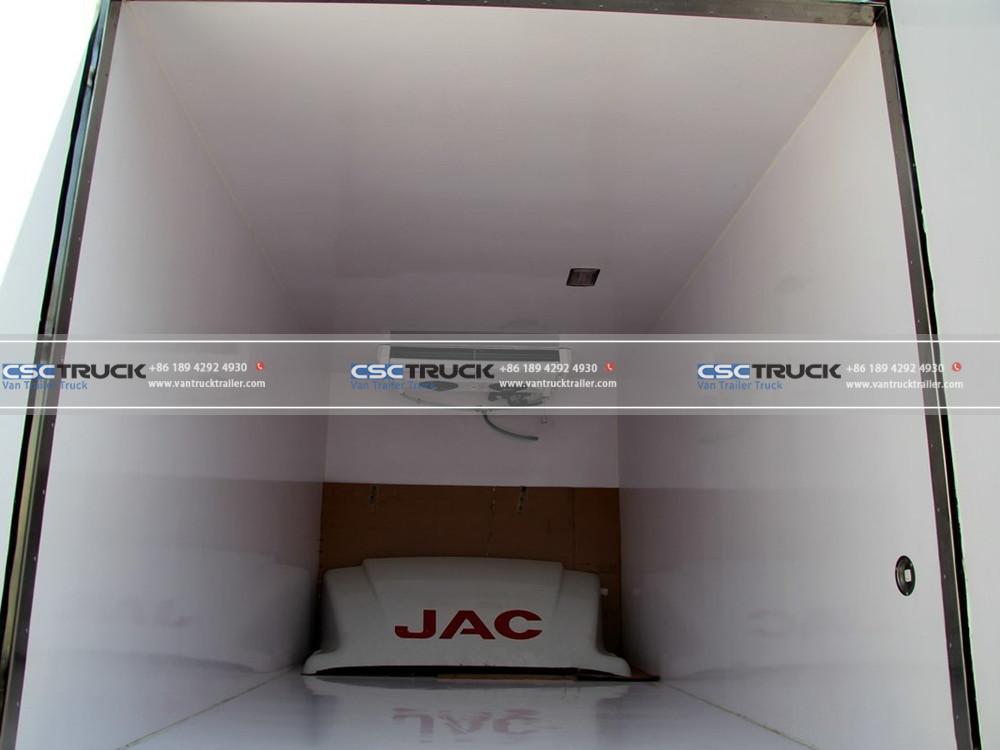

The Songzhi Super Cool refrigeration unit ensures precise temperature control within the cargo box. This advanced technology safeguards the freshness and quality of your most delicate perishables, no matter the distance or traffic conditions.
The Perfect Balance of Size and Performance
The 3308mm wheelbase and 5.995 x 2.240 x 3.15 meter body dimensions strike the ideal balance between agility and cargo capacity. Navigate tight corners with ease while still maximizing your hauling potential.
Environmentally Friendly, Eco-Conscious Operation
The JAC 4 Meter Refrigerator Box Truck adheres to EURO II, III, IV, V, and VI emission standards, minimizing environmental impact and ensuring regulatory compliance. The CSCTRUCK VanTruckTrailer upper installation further guarantees reliable and efficient refrigeration, contributing to a sustainable cold chain operation.
Experience the unmatched efficiency and versatility of the JAC 4 Meter Refrigerator Box Truck. Choose the champion for urban chilled deliveries and navigate the busy city streets with fresh confidence.
SPECIFICATIONS:
| Parameter | Description |
|---|---|
| Drive Type | 4X2 |
| Wheelbase | 3308mm |
| Body Dimensions | 5.995×2.240×3.15 meters |
| Front Overhang/Rear Overhang | 1.11/1.577 meters |
| Rated Load | 1.45 tons |
| Vehicle Weight | 4.495 tons |
| Front Wheel Track | 1525mm |
| Rear Wheel Track | 1665mm |
| Maximum Speed | 98 km/h |
| Engine Parameters | |
| Engine Model | JAC Power HFC4DA1-2C |
| Number of Cylinders | 4 cylinders |
| Maximum Output Power | 88 kW |
| Maximum Horsepower | 120 horsepower |
| Displacement | 2.8L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Engine Type | Turbocharged intercooled, inline 4 cylinders |
| Maximum Torque | 250 N·m |
| Cargo Box Parameters | |
| Cargo Box Dimensions | 4.08×2.06×2 meters |
| Cargo Box Length | 4.08 meters |
| Cargo Box Width | 2.06 meters |
| Cargo Box Height | 2 meters |
| Upper Installation Parameters | |
| Vehicle Type | Refrigerated Truck |
| Upper Installation Brand | CSCTRUCK VanTruckTrailer |
| Refrigeration Unit | Songzhi Super Cool |
| Transmission Parameters | |
| Transmission Model | Luan LC5T28 |
| Number of Gears | 5 gears |
| Chassis Parameters | |
| Chassis Brand | JAC |
| Chassis Model | HFC1048P71K1C2 |
| Rear Axle Description | Speed ratio 6.142 |
| Number of Leaf Springs | 12/8+6 |
| Tires | |
| Number of Tires | 6 |
| Tire Specifications | 7.50R16 |
