Freshness Guaranteed, Every Haul

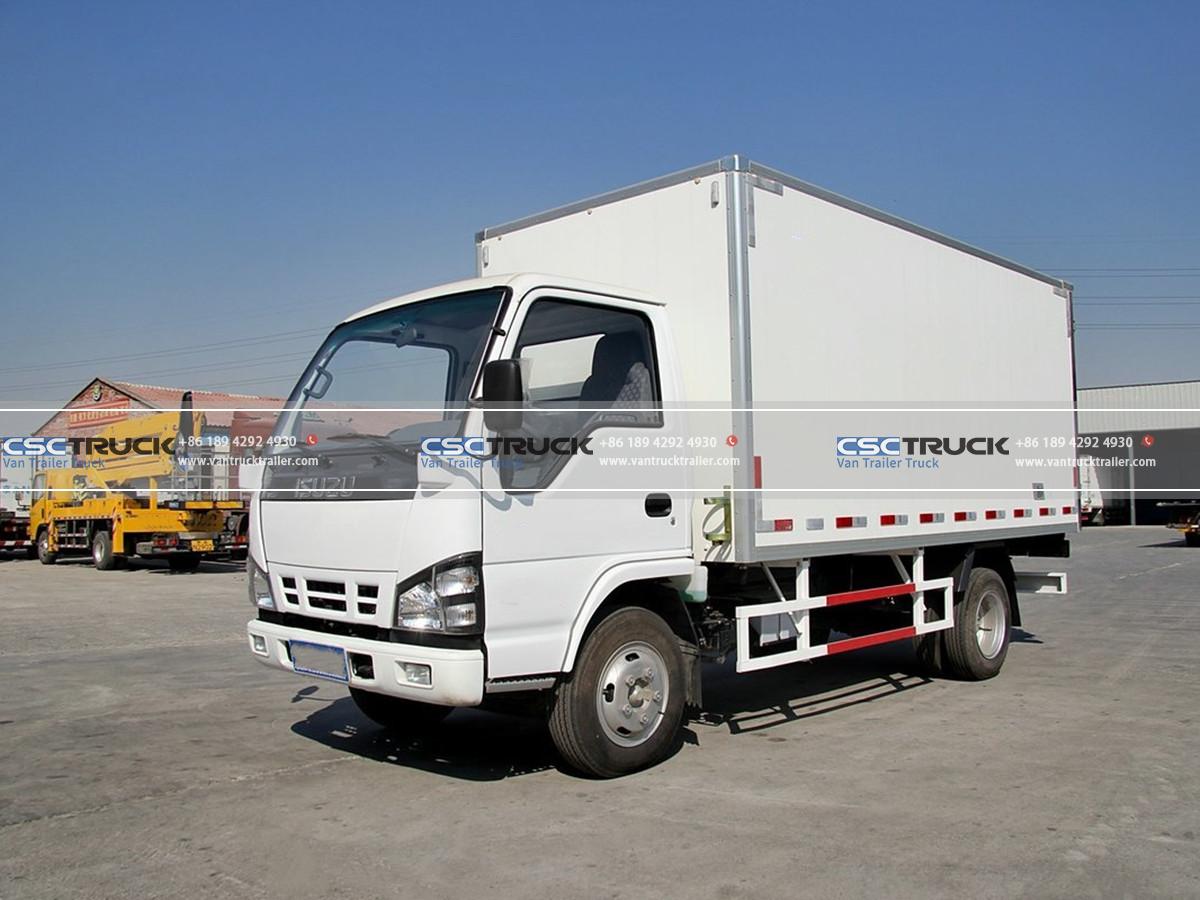

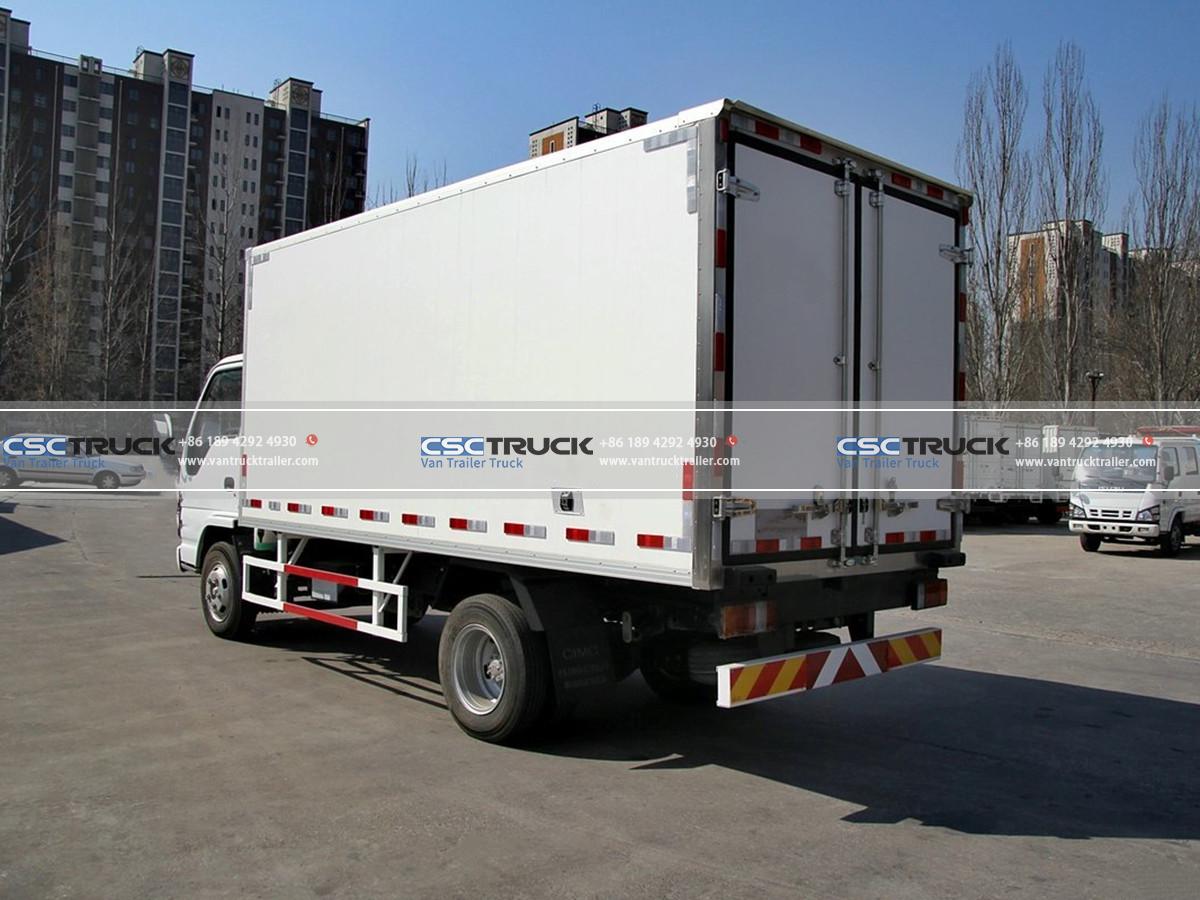

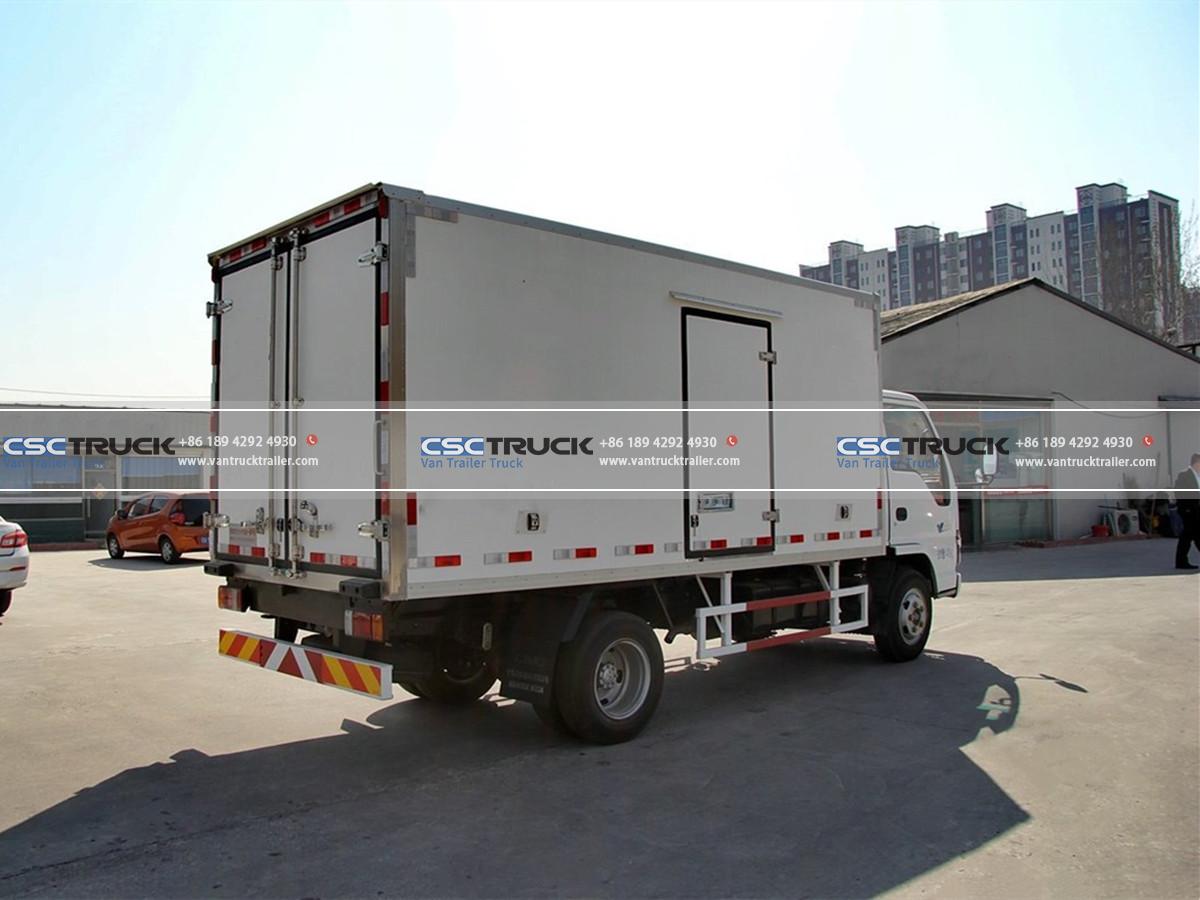

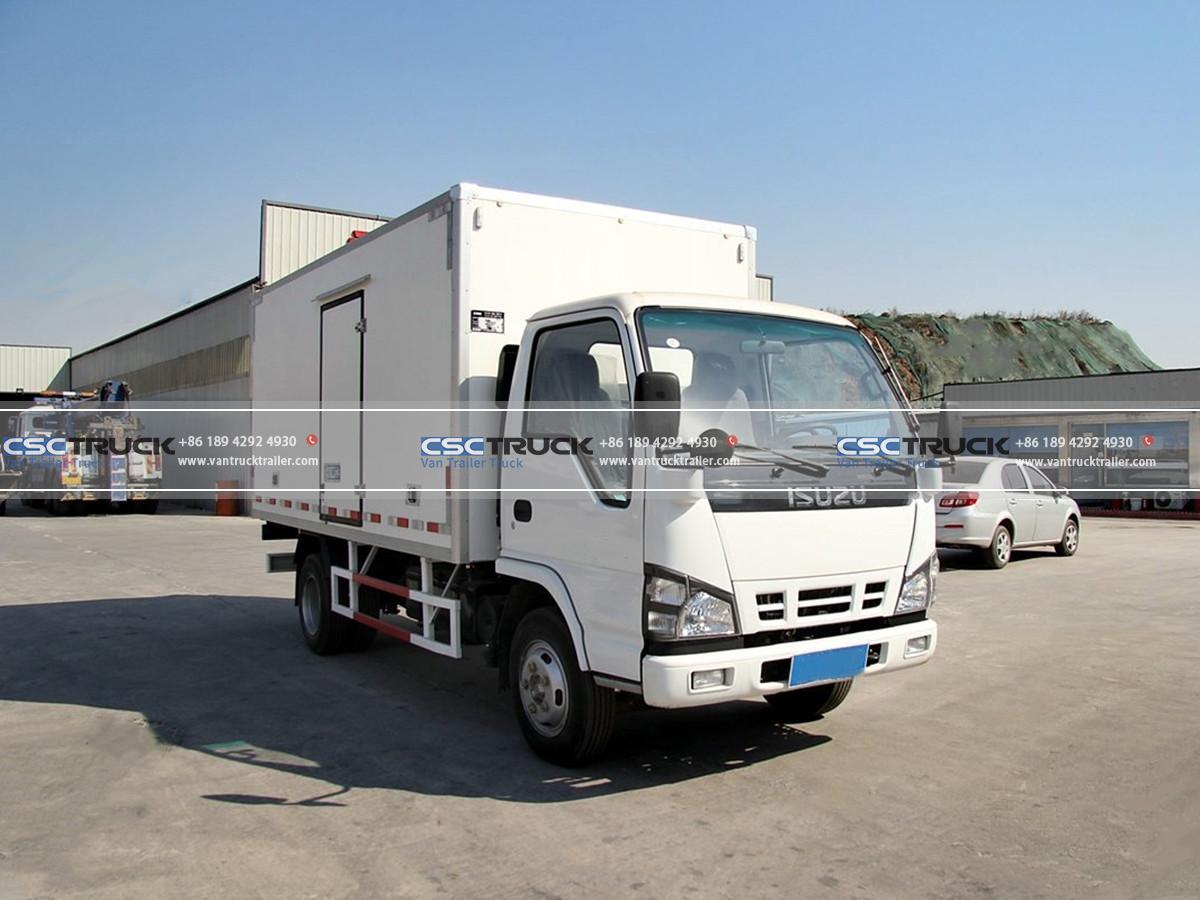

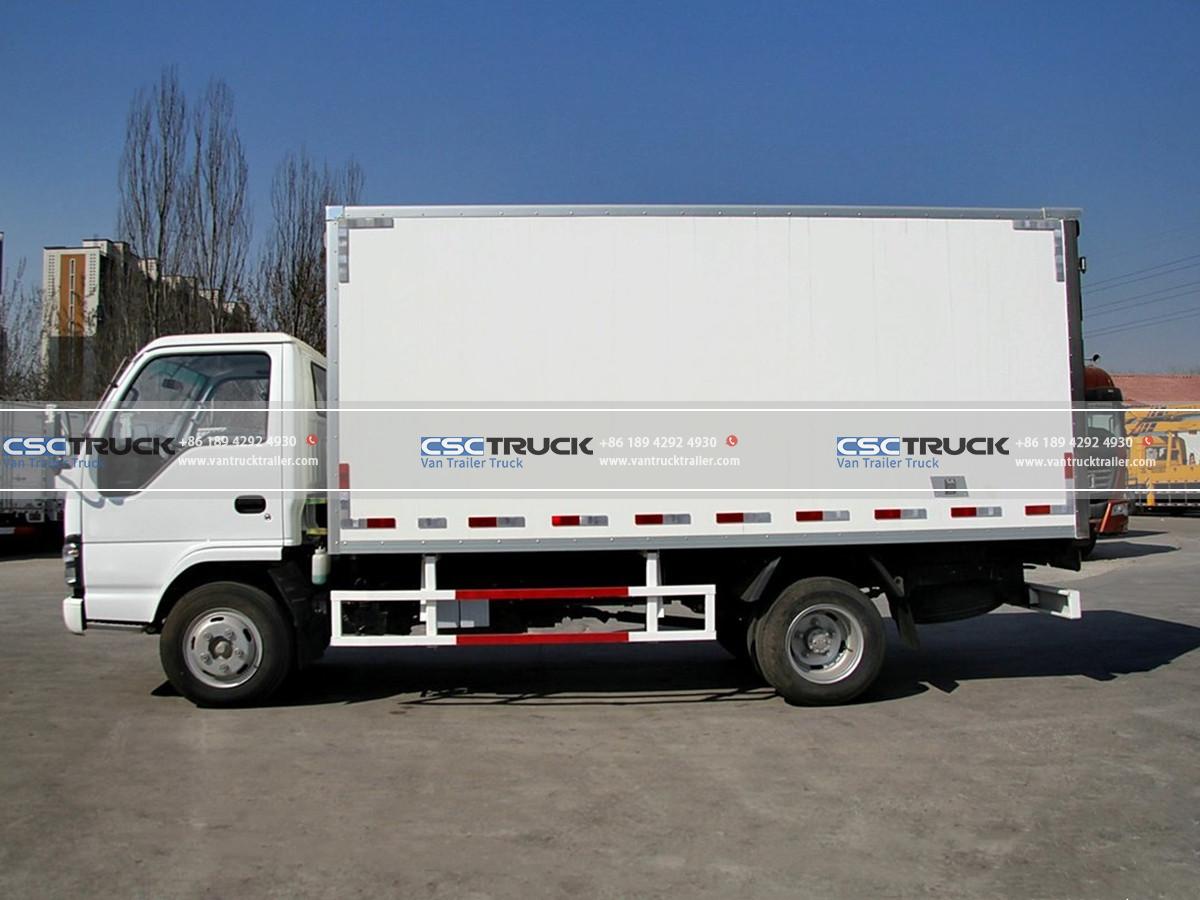

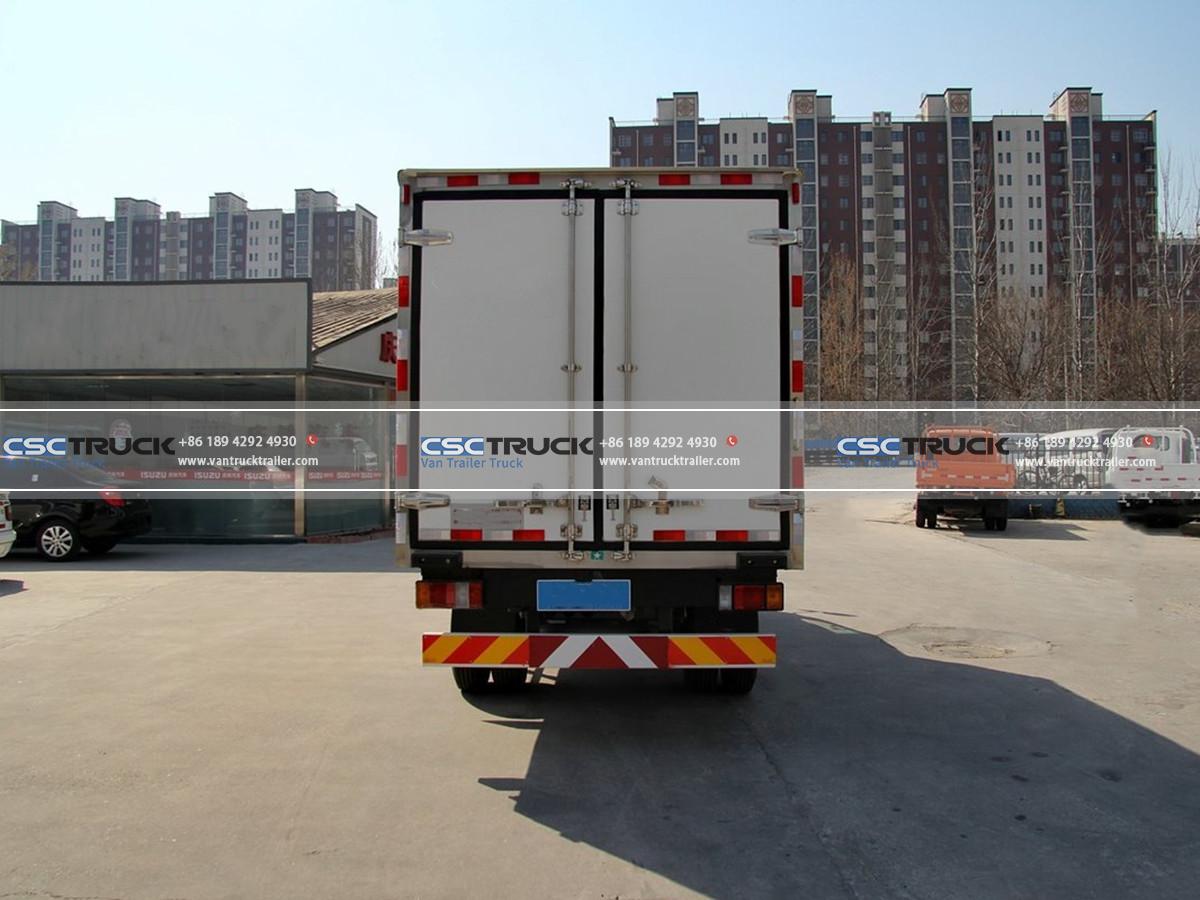

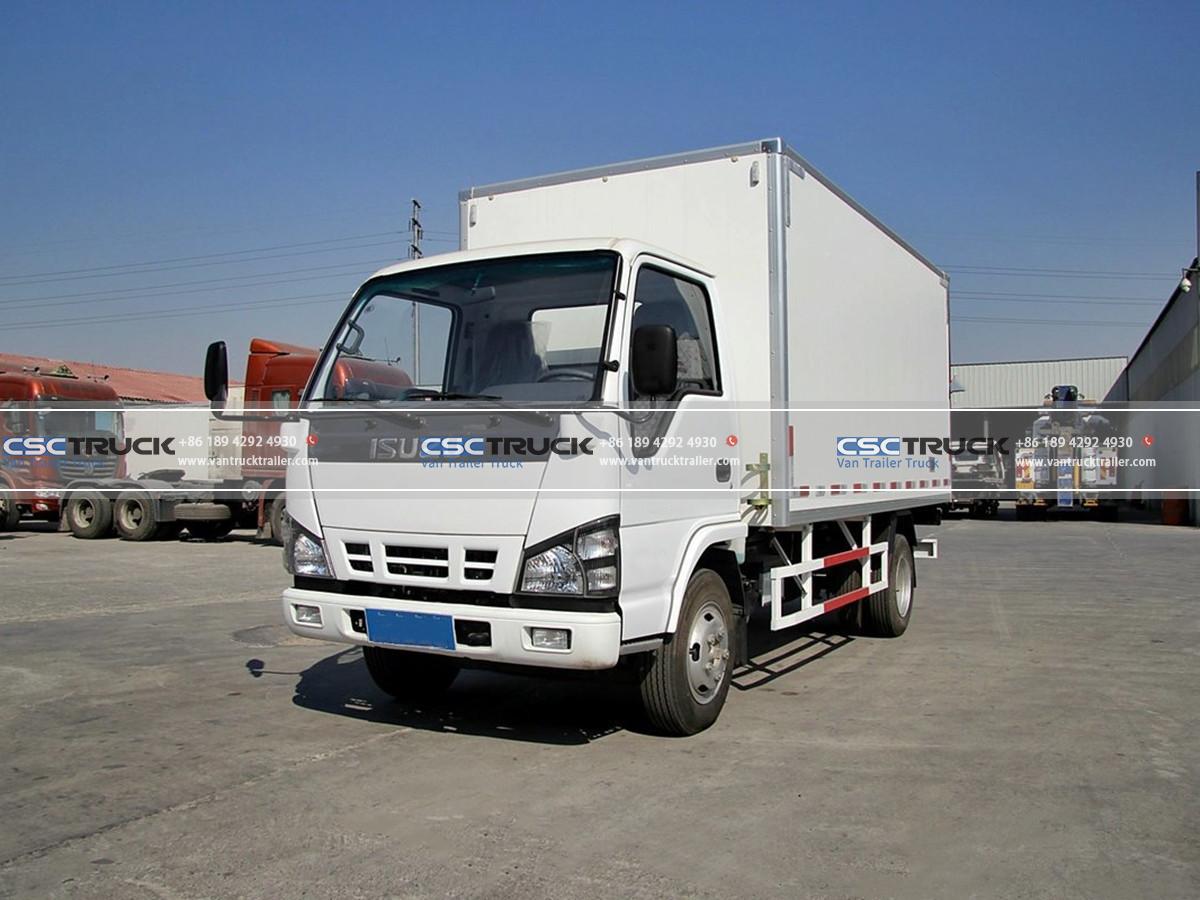

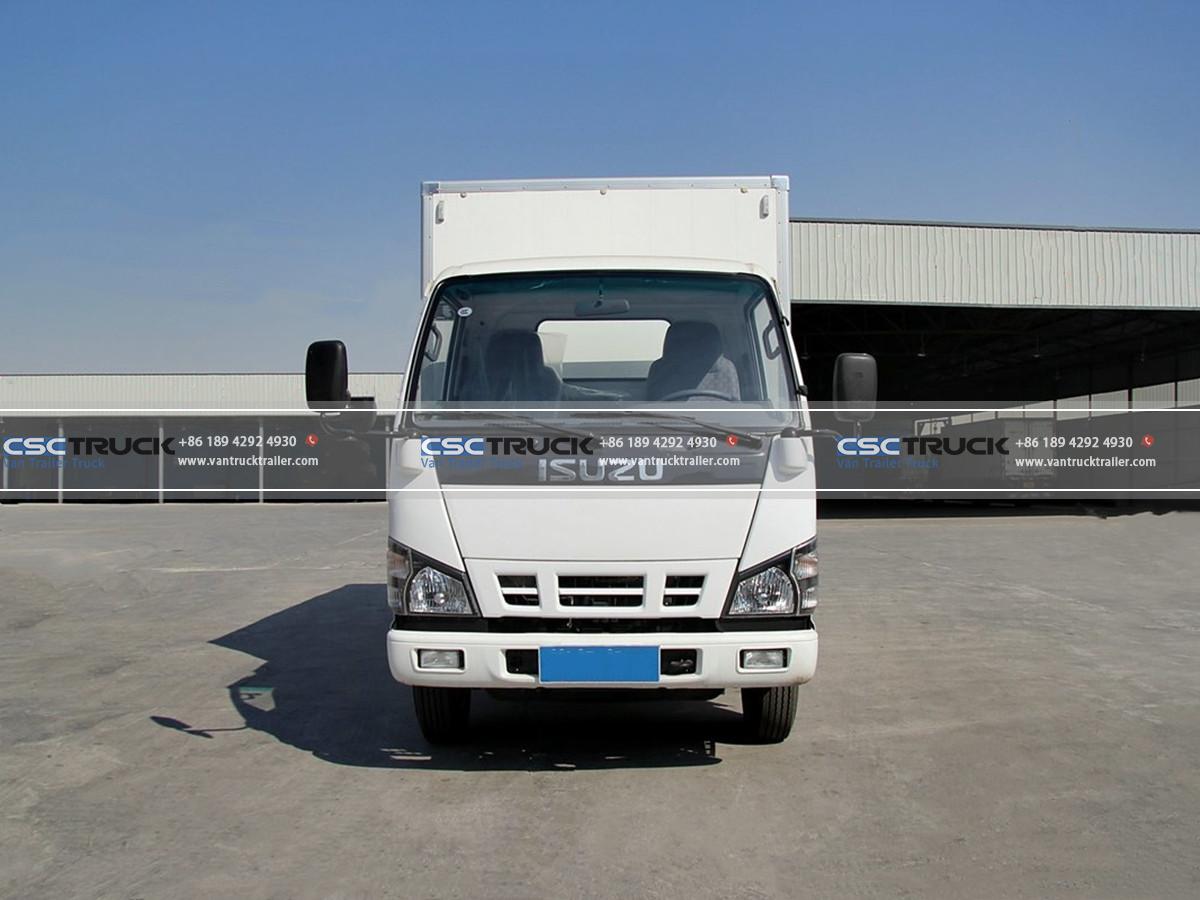

The Isuzu 6 Meter Reefer is the embodiment of versatility and reliability for refrigerated transport. This feature-rich vehicle tackles both urban and rural environments with ease, ensuring your perishables arrive fresh and on time, regardless of the distance.
Maneuverability Meets Stability, Efficiency Meets Sustainability
The 4X2 drive configuration prioritizes agility in tight spaces, while the 3360mm wheelbase offers a stable platform for confident handling and optimal load distribution. The compact footprint (5.995 x 1.99 x 2.84 meters) maximizes maneuverability without sacrificing cargo capacity.
Advanced Powertrain, Eco-Conscious Operation
The Isuzu 4KH1-TCG40 engine delivers a powerful 120 horsepower (88 kW) with a 2.999L displacement. This efficient engine adheres to EURO II, III, IV, V, and VI emission standards, minimizing environmental impact while ensuring smooth and steady operation under challenging conditions.
Spacious Storage, Optimal Preservation

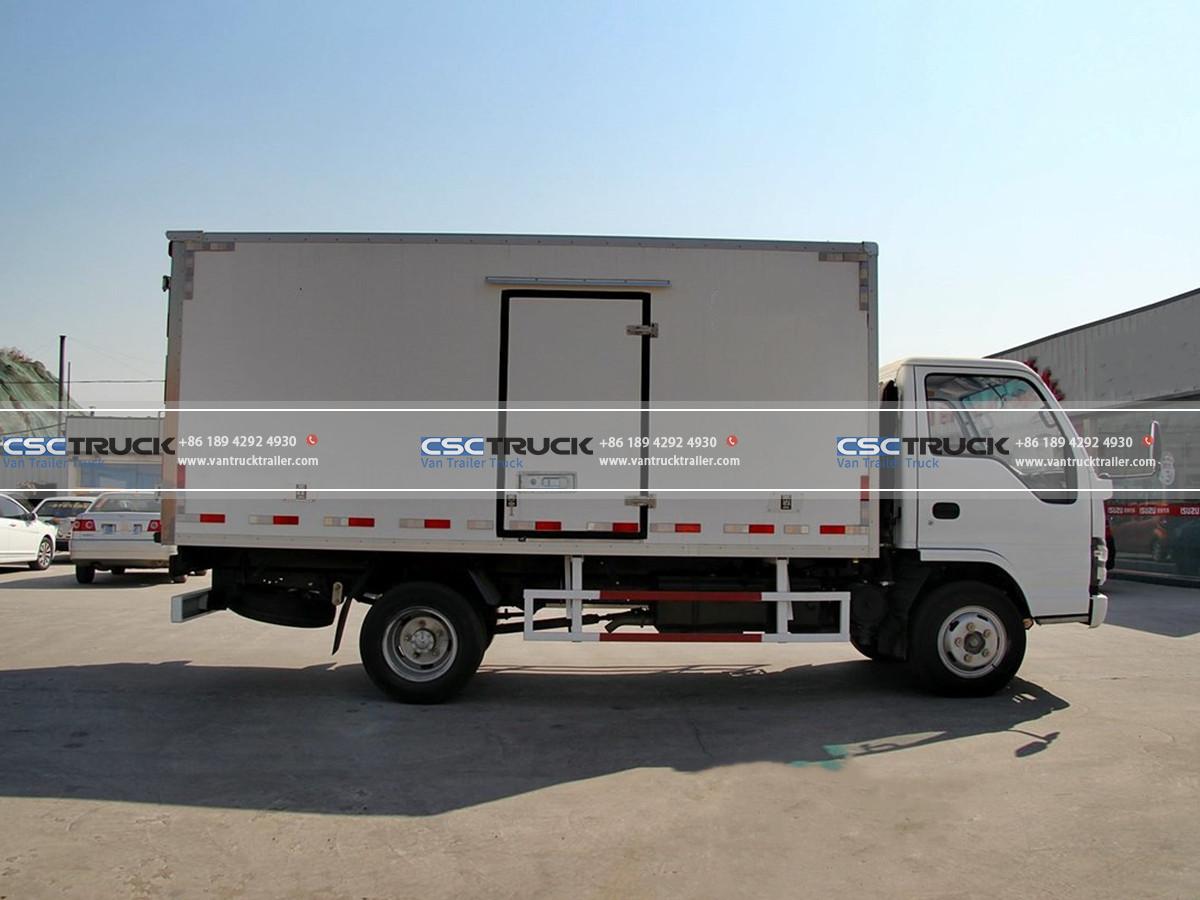

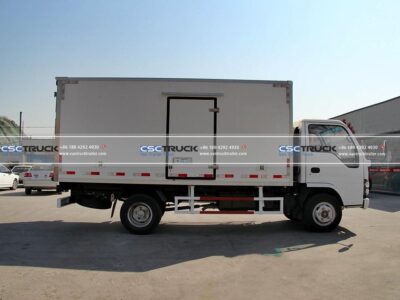

The expansive 4.135 x 1.785 x 1.7 meter cargo box offers a generous 12.5 cubic meters of storage, ideal for a wide variety of perishable goods. The CSCTRUCK VanTruckTrailer upper installation guarantees efficient cooling and preservation throughout your deliveries.
Seamless Performance, Unwavering Durability
The 5-speed gearbox ensures smooth gear shifts and optimal power delivery, while the robust Isuzu QL1040A1HAY chassis prioritizes durability and reliability. The 8/6+5 leaf spring configuration and 6.50R16 10PR tires further enhance stability and support, ensuring a safe and confident driving experience on any road surface.
Experience the unwavering performance and unmatched versatility of the Isuzu 6 meter reefer truck. Choose the champion for chilled deliveries and navigate the path to fresh success.
SPECIFICATIONS:
| Parameter | Value |
|---|---|
| Drive Type | 4X2 |
| Wheelbase | 3360mm |
| Body Dimensions | 5.995×1.99×2.84 meters |
| Front Overhang/Rear Overhang | 1.015/1.62 meters |
| Rated Load | 1.4 tons |
| Vehicle Weight | 2.96 tons |
| Front Wheel Track | 1504mm |
| Rear Wheel Track | 1425mm |
| Maximum Speed | 100 km/h |
| Engine Parameters | |
| – Engine Model | ISUZU4KH1-TCG40 |
| – Number of Cylinders | 4 cylinders |
| – Maximum Output Power | 88 kW |
| – Maximum Horsepower | 120 horsepower |
| – Displacement | 2.999L |
| – Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| – Fuel Type | Diesel |
| – Rated Speed | – |
| – Engine Type | Four-stroke, water-cooled, 4-valve, turbocharged, intercooled |
| – Maximum Torque | – |
| Cargo Box Parameters | |
| – Cargo Box Dimensions | 4.135×1.785×1.7 meters |
| – Cargo Box Length | 4.135 meters |
| – Cargo Box Width | 1.785 meters |
| – Cargo Box Height | 1.7 meters |
| – Box Volume | 12.5m³ |
| Upper Installation Parameters | |
| – Vehicle Type | Refrigerated Truck |
| – Upper Installation Brand | CSCTRUCK VanTruckTrailer |
| – Vehicle Origin | – |
| Transmission Parameters | |
| – Transmission Model | 5-speed gearbox |
| – Number of Gears | 5 gears |
| Chassis Parameters | |
| – Chassis Brand | ISUZU |
| – Chassis Model | QL1040A1HAY |
| – Speed Ratio | – |
| – Number of Leaf Springs | 8/6+5 |
| Tires | |
| – Number of Tires | 6 |
| – Tire Specifications | 6.50R16 10PR |
