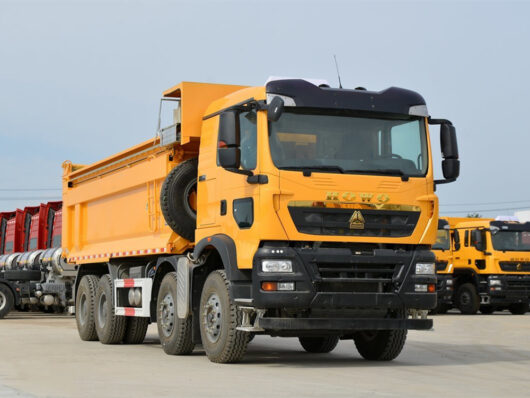

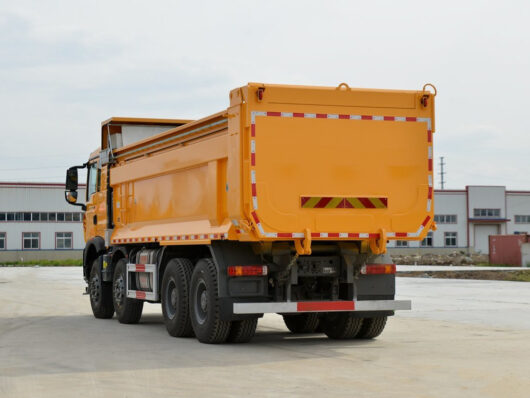

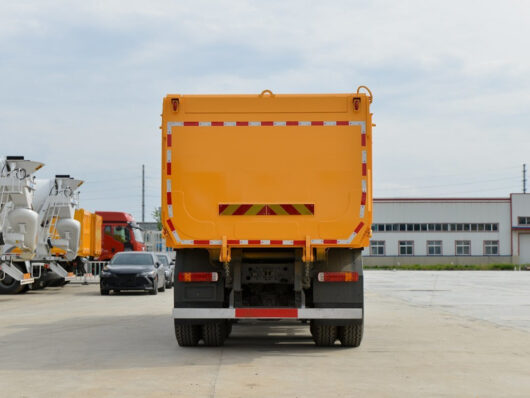

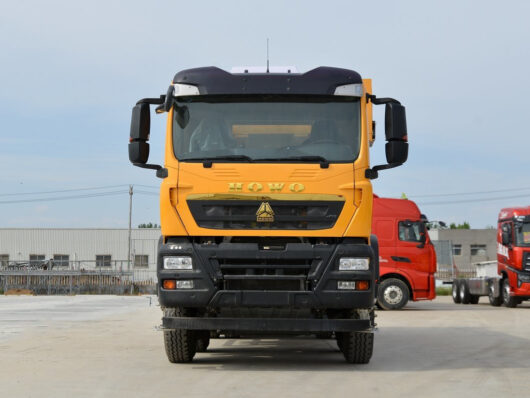

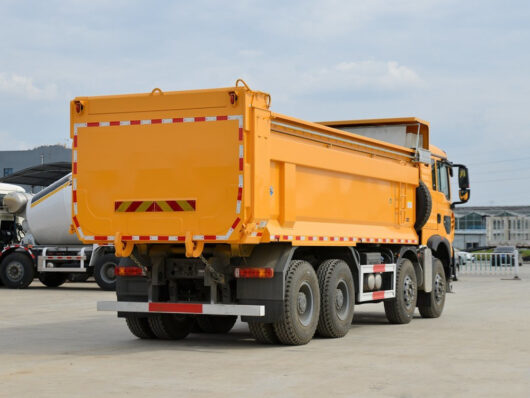

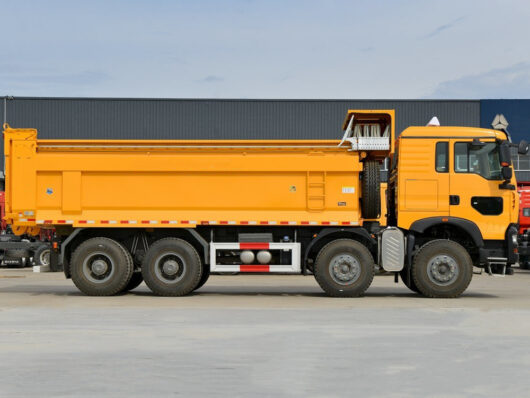

Unleash Unmatched Power, Conquer Any Construction Challenge: Introducing the HOWO 16-Ton Titan
The HOWO 16 Ton Construction Dump Truck is the undisputed champion of heavy-duty construction hauling. This meticulously engineered workhorse is built to dominate even the most demanding projects, delivering exceptional performance and unwavering reliability in transporting any construction material. With its powerful engine, robust build, and innovative features, the HOWO 16-Ton Titan is your key to maximizing efficiency and productivity on every job site.
Conquer Any Terrain, Haul Any Load
- 8X4 Drive Configuration: Experience exceptional traction and stability on any terrain, conquering challenging landscapes with ease.
- Powerful Engine (SINOTRUK MC11.44-60 Engine – 440 HP): This powerhouse engine delivers exceptional performance and torque, effortlessly hauling heavy loads and conquering steep inclines.
- Spacious Cargo Compartment (6.5m x 2.35m x 1.5m): Transport a wide variety of construction materials with ease, maximizing efficiency on every project.
Built to Endure, Engineered to Perform
- Robust Frame Construction: The HOWO 16-Ton Titan boasts a sturdy chassis engineered to handle heavy loads with unwavering durability and stability.
- Advanced Transmission (HW25712XSL Transmission – 12 Forward Gears): Experience smooth gear shifting and optimal power transfer for efficient operation under even the heaviest loads.
Safety First, Efficiency Always
- Large Aluminum Alloy Fuel Tank (400L Capacity): Experience long-range operation with ample fuel capacity, minimizing downtime and maximizing efficiency.
- Advanced Safety Features (ABS Anti-Lock Braking System): Prioritize safety with exceptional stopping power and control in any situation.
Operator Comfort, Unmatched Durability
- Spacious Cabin with Airbag Seats: Experience a comfortable and fatigue-free driving experience, even during long hours of operation.
- Heavy-Duty Tires (12.00R20): Maintain excellent traction and durability on diverse terrains, ensuring a smooth ride and long tire life.
- Jinan-Made Quality: Experience the peace of mind that comes with a vehicle built in Suizhou, Hubei, a region renowned for its quality manufacturing standards and expertise in heavy-duty vehicle production.
The HOWO 16 Ton Construction Dump Truck is more than just a truck – it’s a statement of power, performance, and capability. Experience the unrivaled hauling capacity, innovative features, and operator-centric design that will help you conquer any construction challenge.
SPECIFICATIONS:
| Parameter | Value |
|---|---|
| Drive Type | 8X4 |
| Wheelbase | 1950+3225+1350mm |
| Body Length | 9.58 meters |
| Body Width | 2.55 meters |
| Body Height | 3.55 meters |
| Front Wheel Track | 2022/2022mm |
| Rear Wheel Track | 1860/1860mm |
| Vehicle Weight | 15.5 tons |
| Rated Load | 15.37 tons |
| Total Mass | 31 tons |
| Ton Level | Heavy Truck |
| Approach Angle | 17 degrees |
| Departure Angle | 21 degrees |
| Origin | Suizhou, Hubei |
| Sub-segment Market | Urban Construction Waste |
| Engine Model | HOWO MC11.44-60 |
| Engine Brand | SINOTRUK |
| Number of Cylinders | 6 cylinders |
| Fuel Type | Diesel |
| Displacement | 10.518L |
| Emission Standard | EURO Ⅱ, EURO Ⅲ, EURO Ⅳ, EURO Ⅴ, EURO Ⅵ |
| Maximum Horsepower | 440 horsepower |
| Maximum Output Power | 324 kW |
| Maximum Torque | 2100N·m |
| Maximum Torque Speed | 1000-1400rpm |
| Rated Speed | 1900rpm |
| Engine Type | High-pressure common rail + EGR + SCR |
| Cargo Length | 6.5 meters |
| Cargo Width | 2.35 meters |
| Cargo Height | 1.5 meters |
| Cargo Type | Dump |
| Transmission Model | SINOTRUK HW25712XSL |
| Transmission Brand | SINOTRUK |
| Forward Gears | 12 gears |
| Reverse Gears | 2 gears |
| Fuel Tank Material | Aluminum alloy |
| Fuel Tank Capacity | 400L |
| Front Axle Allowable Load | 6500/7000kg |
| Rear Axle Allowable Load | 17500kg (tandem axle) |
| Speed Ratio | – |
| Leaf Spring Number | 4/4/12, 11/11/12 |
| Tire Specifications | 12.00R20 |
| Number of Tires | 12 |
| Tire Type | – |
| ABS Anti-lock Braking System | Yes |
