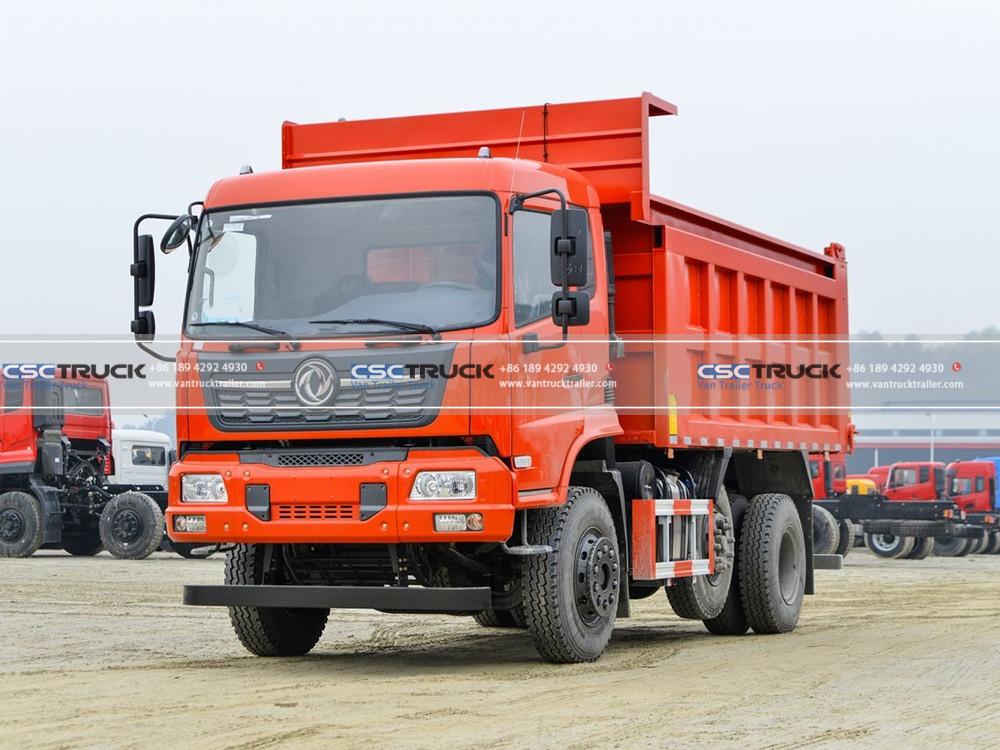

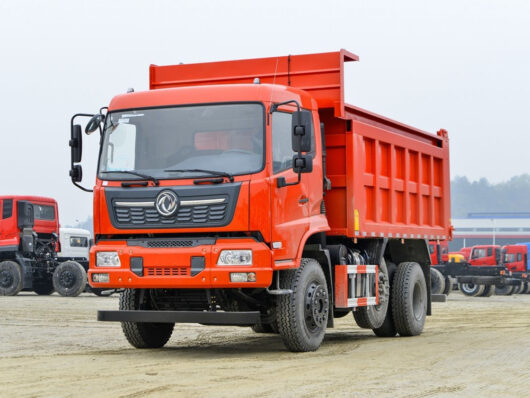

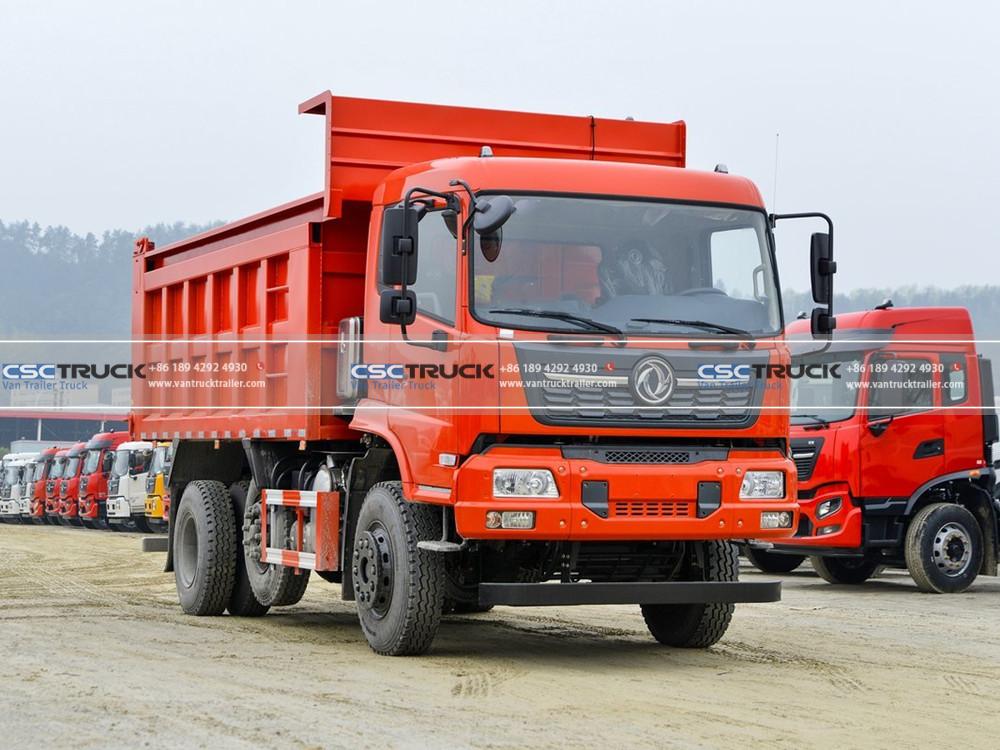

Unleash Unmatched Power, Deliver Unwavering Performance: Introducing the Dongfeng 16-Ton Titan
The Dongfeng 16-Ton Dump Truck is the undisputed champion of heavy-duty hauling. This meticulously engineered workhorse is built to conquer even the most demanding construction and industrial applications, ensuring reliable transportation of heavy loads across any terrain. With its powerful engine, robust build, and innovative features, the Dongfeng 16-Ton Titan is your key to maximizing productivity and efficiency on every job site.
Built to Endure, Engineered to Perform
- Robust Construction: A sturdy chassis and reinforced body structure ensure the Dongfeng 16-Ton Titan can withstand the toughest operating conditions, conquering any construction challenge.
Unmatched Power, Unwavering Performance
- Yuchai YCS06245-60 Engine (245 HP, 180 kW): This powerhouse engine delivers exceptional performance and torque, effortlessly hauling heavy loads and conquering steep inclines.
Clean Power, Sustainable Future
- Advanced Emission Control: Featuring EURO II-VI compliance, high-pressure common rail technology, and a suite of clean emission technologies (EGR, DOC, DPF, SCR, ASC), the Dongfeng 16-Ton Titan prioritizes environmental responsibility without sacrificing power.
Unmatched Hauling Capacity

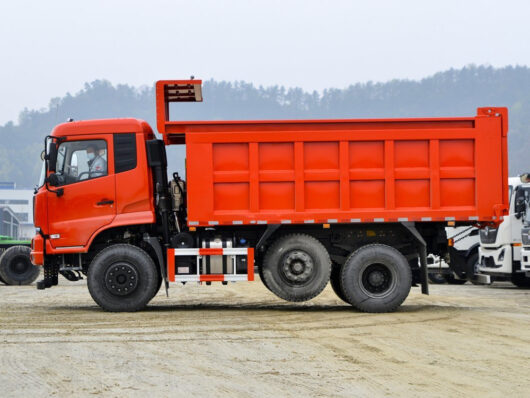

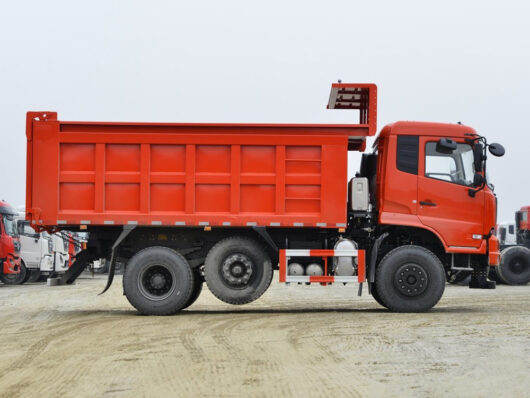

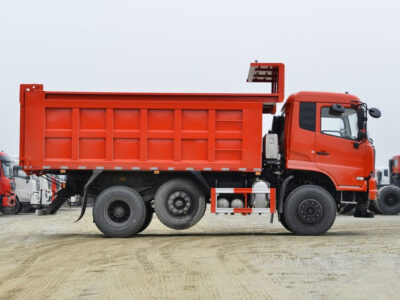

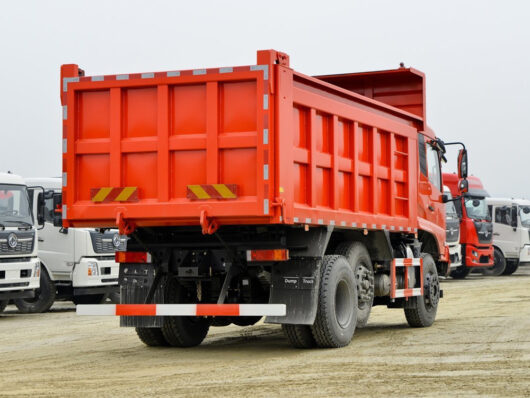

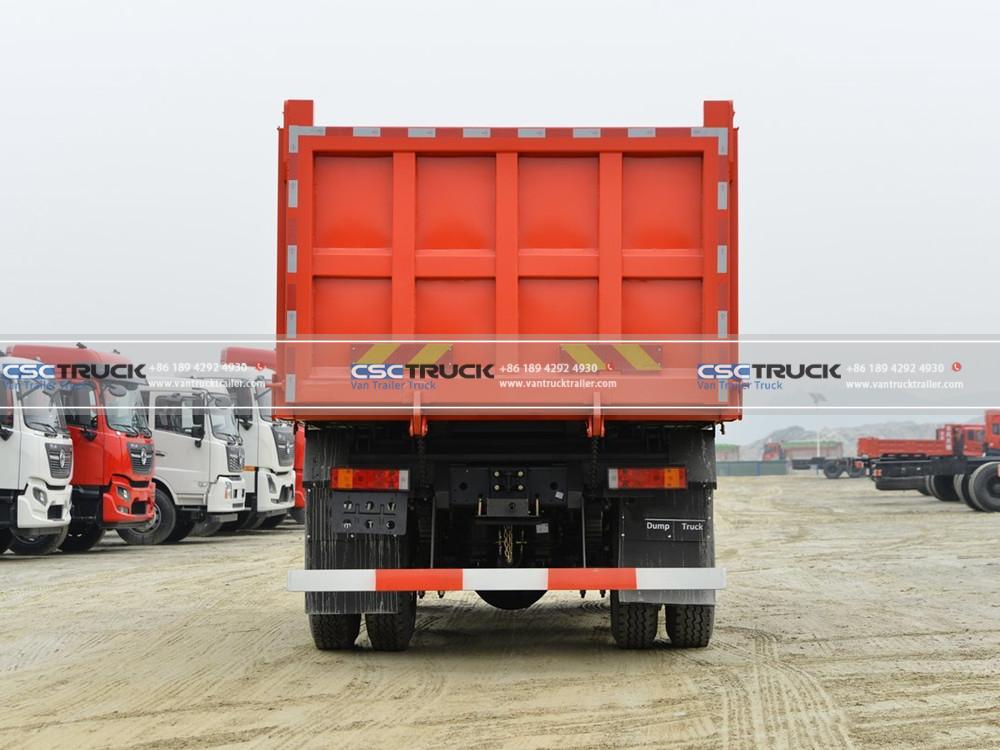

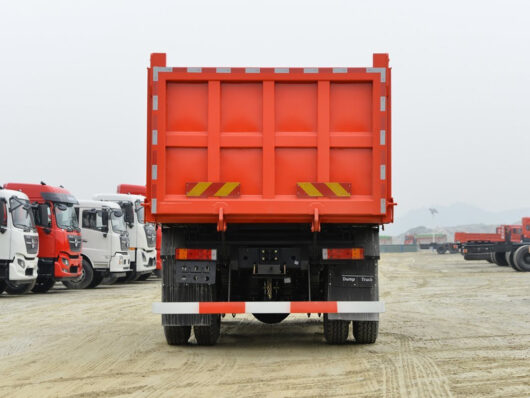

- Spacious Cargo Compartment (4.3m x 2.35m x 1.2m): Transport a wide variety of construction materials and equipment with ease, maximizing efficiency on every project.
Smooth Operation, Efficient Power Delivery
- Fast 10JS90A-B Transmission (10 Forward Gears / 2 Reverse Gears): Experience smooth gear shifting and optimal power transfer under even the heaviest loads.
Unwavering Stability, Exceptional Load-Bearing Capacity
- Tandem Axle Configuration (DF460 Rear Axle + Lifting Axle): Provides exceptional stability and a maximum load-bearing capacity of 18,000kg, ensuring confident handling of heavy cargo.
- 6-Ton Front Axle (7,000kg Load Capacity): Contributes to superior handling and control on diverse terrains.
Safety First
- ABS Anti-Lock Braking System & Engine Brake: Prioritize safety with enhanced braking performance and control during descents, ensuring operator and site safety in every situation.
Operator Comfort, Enhanced Efficiency
- Comfortable & Ergonomic Cabin: Experience a spacious and well-appointed workspace featuring manual air conditioning, power windows, and electronic central locking for a comfortable and fatigue-free driving experience.
Long-Distance Capability
- Aluminum Alloy Fuel Tank (200L Capacity): The Dongfeng 16-Ton Titan offers ample fuel capacity for extended operations, keeping you productive throughout the workday.
Experience the unmatched power, unwavering performance, and superior engineering of the Dongfeng 16-Ton Dump Truck. Dominate any construction challenge with a vehicle built to haul and engineered to conquer.
SPECIFICATIONS:
| Parameter | Description |
|---|---|
| Drive Type | 6X2 |
| Wheelbase | 2650+1250mm |
| Body Length | 7.125 meters |
| Body Width | 2.55 meters |
| Body Height | 3.3 meters |
| Front Wheel Track | 1960mm |
| Rear Wheel Track | 1840/1750mm |
| Vehicle Weight | 8.8 tons |
| Rated Load | 16.07 tons |
| Total Mass | 25 tons |
| Ton Level | Heavy Truck |
| Approach Angle | 16.5 degrees |
| Departure Angle | 16 degrees |
| Engine Parameters | |
| Engine Model | Yuchai YCS06245-60 |
| Engine Brand | Yuchai |
| Number of Cylinders | 6 cylinders |
| Fuel Type | Diesel |
| Displacement | 6.23L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Maximum Horsepower | 245 horsepower |
| Maximum Output Power | 180 kW |
| Maximum Torque | 850 N·m |
| Maximum Torque Speed | 1200-1700rpm |
| Rated Speed | 2300rpm |
| Engine Type | High-pressure common rail + EGR + DOC + DPF + SCR + ASC |
| Cargo Compartment Parameters | |
| Cargo Length | 4.3 meters |
| Cargo Width | 2.35 meters |
| Cargo Height | 1.2 meters |
| Cargo Type | Dump |
| Cab Parameters | |
| Cab Width | |
| Number of Seats | |
| Cab Lifting | |
| Main Driver Seat Type | |
| Transmission Parameters | |
| Transmission Model | Fast 10JS90A-B |
| Transmission Brand | Fast |
| Forward Gears | 10 gears |
| Reverse Gears | 2 gears |
| Shifting Method | Manual |
| Fuel Tank | |
| Fuel Tank Material | Aluminum alloy |
| Fuel Tank Capacity | 200L |
| Chassis Parameters | |
| Frame Size | 280x80x(8+4)mm |
| Front Axle Description | 6T |
| Front Axle Allowable Load | 7000kg |
| Rear Axle Description | DF460 + lifting axle |
| Rear Axle Allowable Load | 18000kg (tandem axle) |
| Speed Ratio | 5.286 |
| Number of Leaf Springs | 10/7/10+8 |
| Tires | |
| Tire Specifications | 11.00R20 18PR |
| Number of Tires | 8 |
| Control Configuration | |
| ABS Anti-lock Braking System | Yes |
| Internal Configuration | |
| Air Conditioning Adjustment Form | Manual |
| Power Windows | Yes |
| Electronic Central Locking | Yes |
| Brake System | |
| Engine Brake | Yes |
