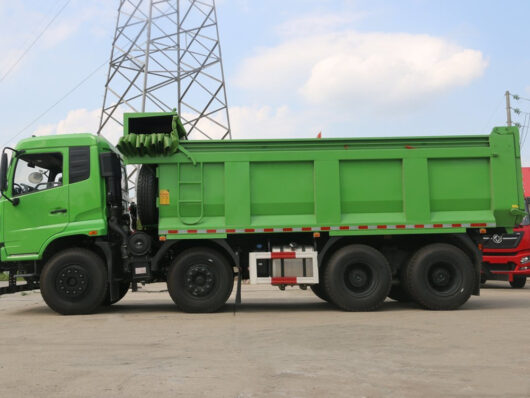

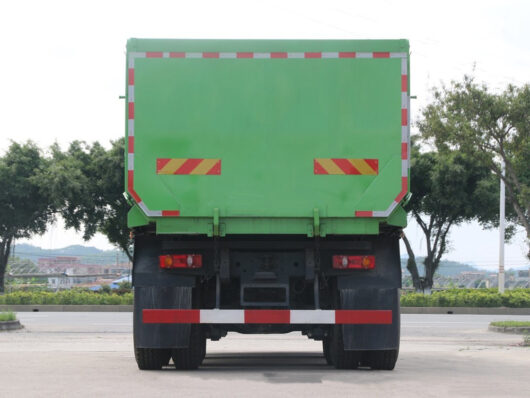

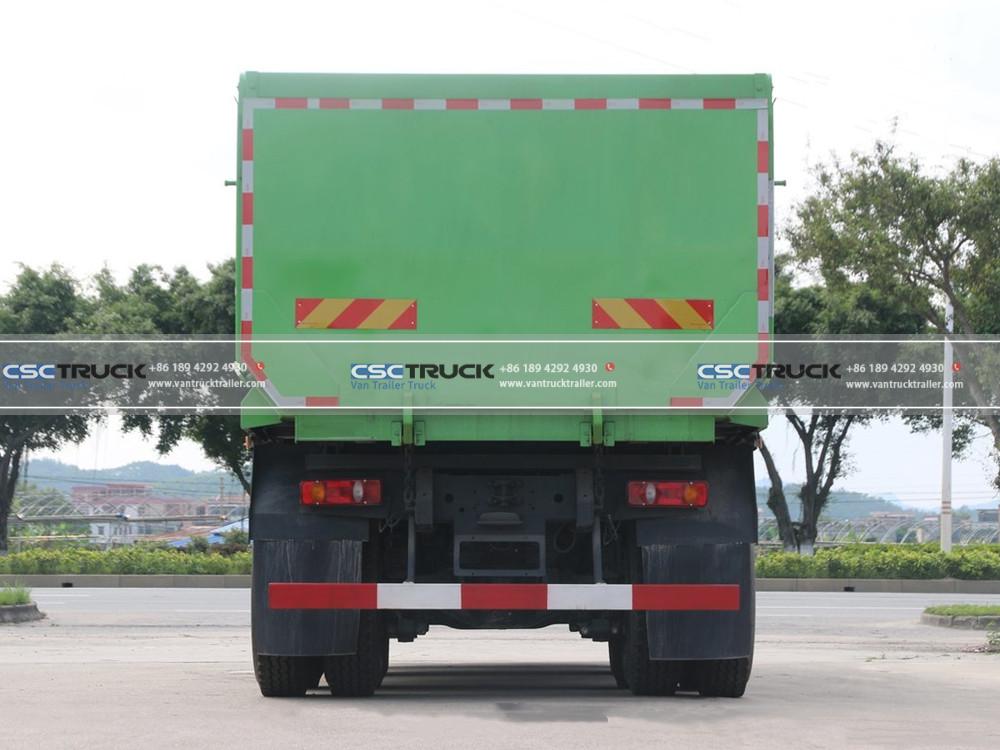

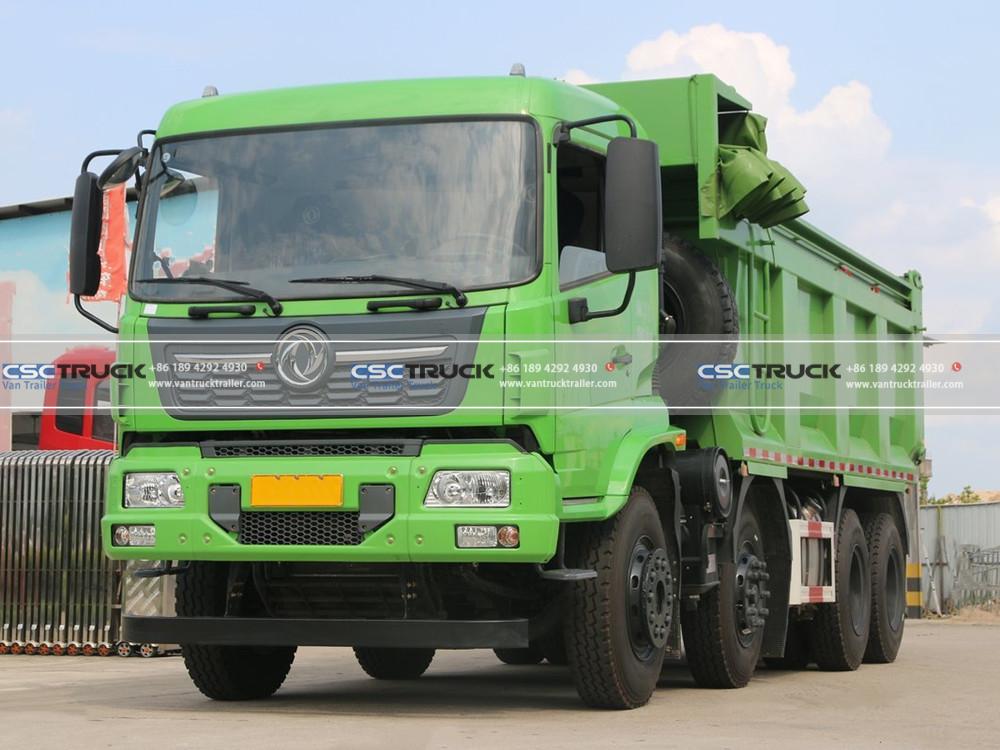

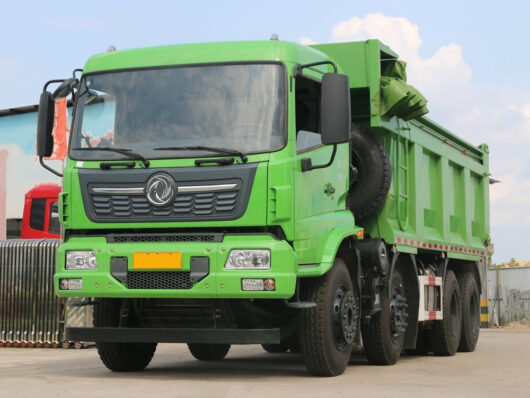

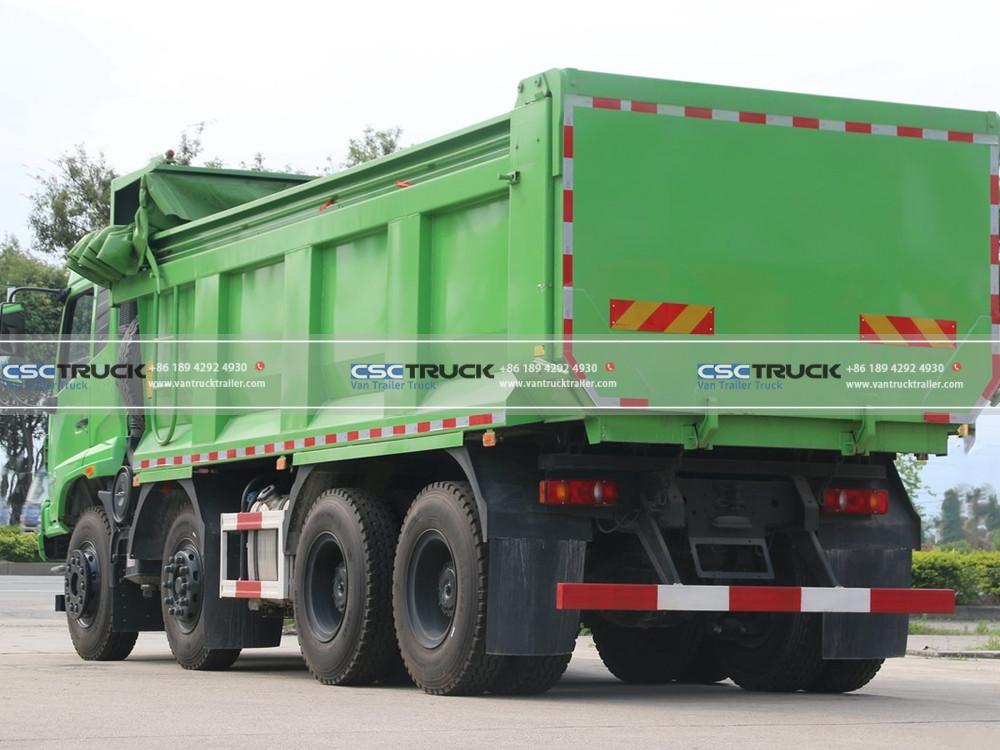

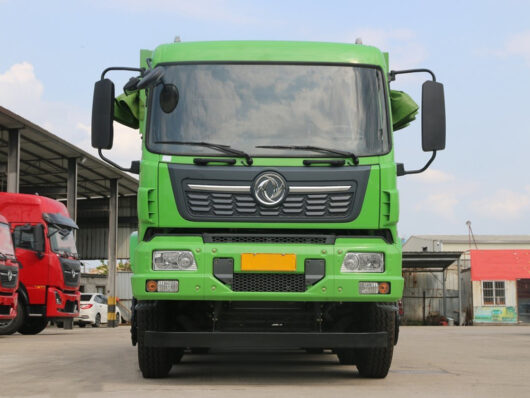

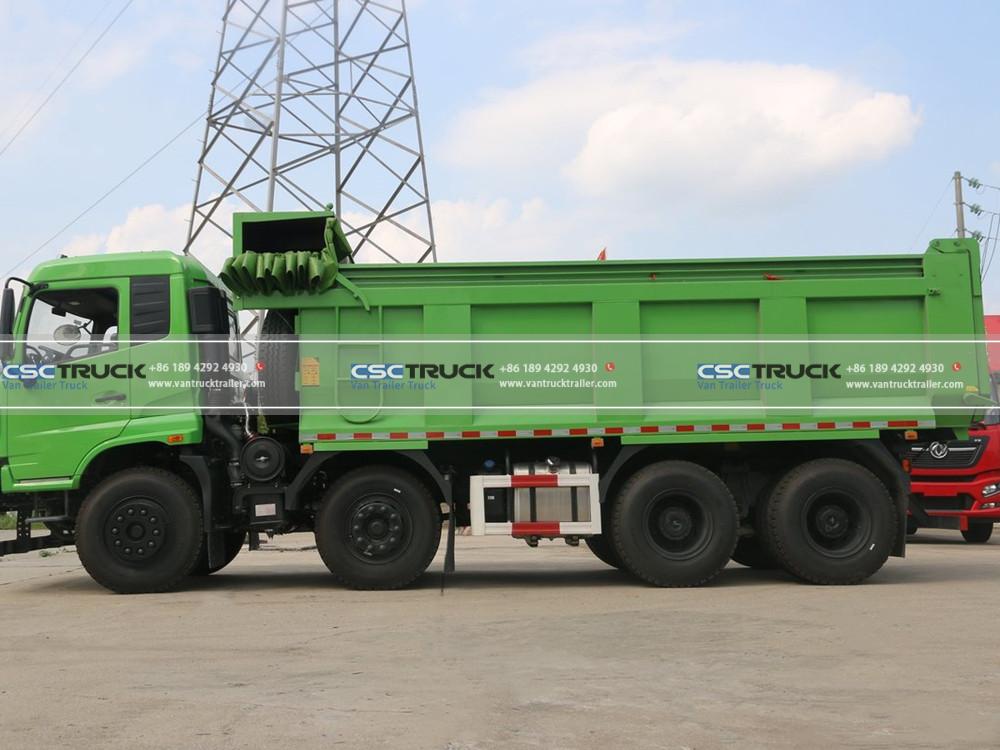

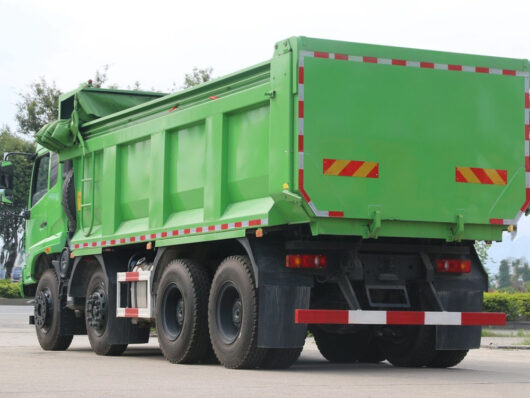

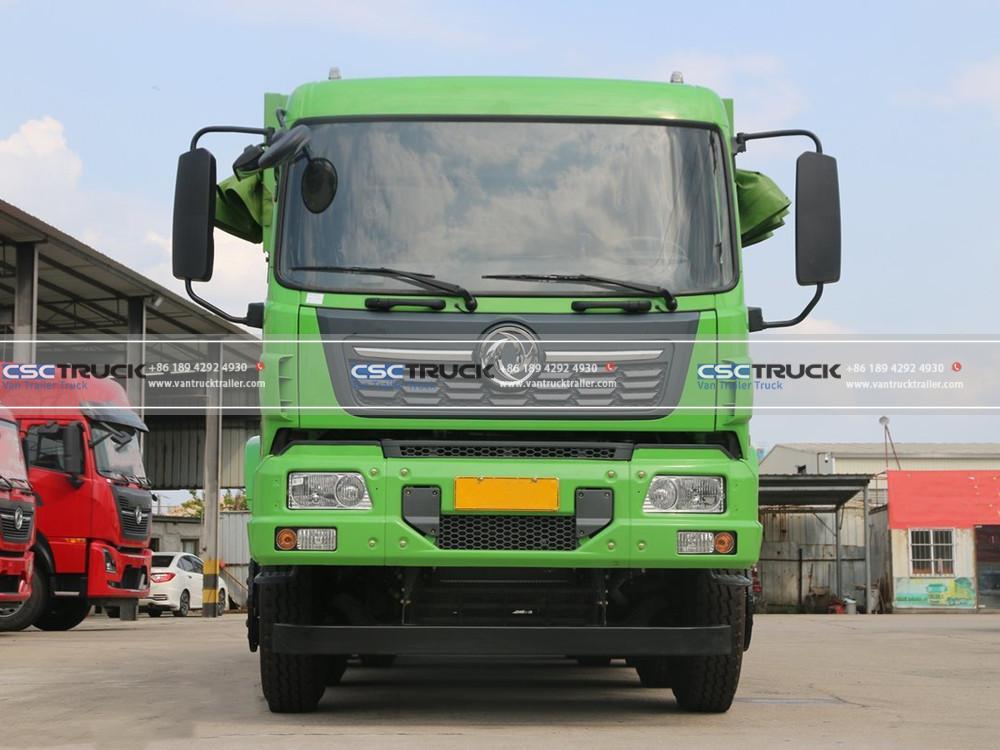

Unleash Unmatched Power, Dominate Any Haul: Introducing the DONGFENG 19 Ton Construction Dump Truck
The DONGFENG 19 Ton Construction Dump Truck is the undisputed king of heavy-duty hauling. This meticulously engineered machine is built to conquer even the most demanding construction and industrial applications, hauling massive loads with unwavering performance. With its exceptional capabilities and innovative features, the Dongfeng 19-Ton Juggernaut is your key to maximizing efficiency and productivity on any project site.
Built to Haul, Engineered to Conquer
- 8X4 Drive Type: Experience exceptional power distribution and superior traction on any terrain, conquering challenging landscapes with ease.
- Substantial Load Capacity (18.925 Tons): Effortlessly transport enormous loads, maximizing productivity on every haul.
- Spacious Cargo Compartment (5.8m x 2.35m x 1.4m): Accommodate a wide variety of construction materials and equipment, ensuring efficient loading and unloading operations.
Unwavering Performance, Unmatched Durability
- Yuchai YCK08350-60 Engine (350 HP, 7.7L Displacement): This powerhouse engine delivers exceptional performance and torque, conquering steep inclines and handling heavy loads with ease.
- Fast 10JSD60TB Transmission (10 Forward Gears / 2 Reverse Gears): Experience smooth gear shifting and optimal power transfer for efficient operation under even the heaviest loads.
- Reinforced Frame & Suspension: The Dongfeng 19-Ton Juggernaut boasts a sturdy chassis and reinforced suspension, ensuring unwavering stability and long-term durability for the most demanding jobs.
Safety First, Efficiency Always
- Efficient Braking System (ABS Anti-Lock Braking System): Prioritize safety with exceptional stopping power and control in any situation.
- Aluminum Alloy Fuel Tank (280L Capacity): Experience long-range operation with ample fuel capacity, minimizing downtime and maximizing efficiency.
Commanding Control, Exceptional Maneuverability
- Optimized Wheelbase and Track Configuration (1995+2500+1350mm / 1960mm Front & Rear): Experience a perfect balance between maneuverability for tight spaces and superior control on open roads.
The Dongfeng 19-Ton Dump Truck is more than just a truck – it’s a statement of power, performance, and capability. Experience the unrivaled hauling capacity and innovative features that will help you conquer any challenge and dominate every haul.
SPECIFICATIONS:
| Parameter | Description |
|---|---|
| Drive Type | 8X4 |
| Wheelbase | 1995+2500+1350mm |
| Body Length | 8.8 meters |
| Body Width | 2.55 meters |
| Body Height | 3.6 meters |
| Front Wheel Track | 1960/1960mm |
| Rear Wheel Track | 1860/1860mm |
| Vehicle Weight | 11.88 tons |
| Rated Load | 18.925 tons |
| Total Mass | 31 tons |
| Ton Level | Heavy Truck |
| Approach Angle | 15 degrees |
| Departure Angle | 18 degrees |
| Version | Lightweight |
| Engine Parameters | |
| Engine Model | Yuchai YCK08350-60 |
| Engine Brand | Yuchai |
| Number of Cylinders | 6 cylinders |
| Fuel Type | Diesel |
| Displacement | 7.7L |
| Emission Standard | EURO Ⅱ, EURO Ⅲ, EURO Ⅳ, EURO Ⅴ, EURO Ⅵ |
| Maximum Horsepower | 350 horsepower |
| Maximum Output Power | 257 kW |
| Maximum Torque | 1450 N·m |
| Maximum Torque Speed | 1300-1500rpm |
| Rated Speed | 2200rpm |
| Engine Type | High-pressure common rail + EGR + DOC + DPF + SCR + ASC |
| Cargo Compartment Parameters | |
| Cargo Length | 5.8 meters |
| Cargo Width | 2.35 meters |
| Cargo Height | 1.4 meters |
| Cargo Type | Dump |
| Cab Parameters | |
| Cab | |
| Cab Width | |
| Number of Seats | |
| Cab Lifting | |
| Main Driver Seat Type | |
| Transmission Parameters | |
| Transmission Model | Fast 10JSD60TB |
| Transmission Brand | Fast |
| Forward Gears | 10 gears |
| Reverse Gears | 2 gears |
| Shifting Method | Fuel Tank |
| Fuel Tank | |
| Fuel Tank Material | Aluminum alloy |
| Fuel Tank Capacity | 280L |
| Chassis Parameters | |
| Frame Size | |
| Front Axle Description | |
| Front Axle Allowable Load | 6500/6500kg |
| Rear Axle Description | |
| Rear Axle Allowable Load | 18000kg (tandem axle) |
| Speed Ratio | 5.92 |
| Number of Leaf Springs | |
| Tires | |
| Tire Specifications | 11.00R20 18PR |
| Number of Tires | 12 |
| Control Configuration | |
| ABS Anti-lock Braking System | Yes |
