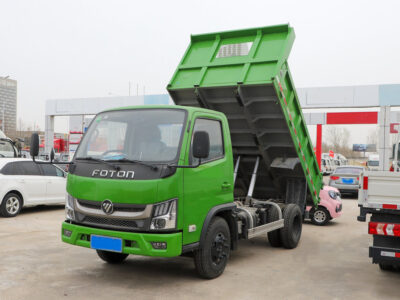

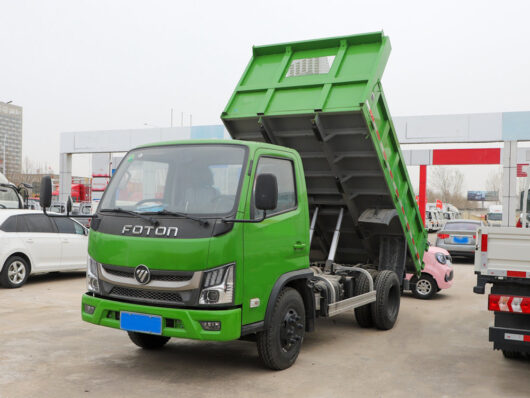

Unleash Unwavering Performance, Conquer Every Challenge: Introducing the Foton 5-Ton Dump Truck
The Foton 5-Ton Dump Truck is the micro truck that packs a punch. This meticulously engineered machine is built to dominate demanding construction sites and conquer diverse road transportation tasks with precision and unwavering reliability. Featuring superior performance, advanced safety features, and an operator-centric design, the Foton 5-Ton Workhorse is your key to maximizing efficiency and productivity on every project.
Built to Endure, Engineered to Excel
- Robust Construction: A solid build with durable materials ensures the Foton 5-Ton Workhorse can withstand the toughest environments and heavy loads, offering long-term reliability you can count on.
Power Meets Efficiency
- Quanchai H20-120E60 Engine: This 4-cylinder powerhouse delivers exceptional performance (EURO II-VI compliant) while prioritizing clean operation and reduced emissions.
Efficient Cargo Handling

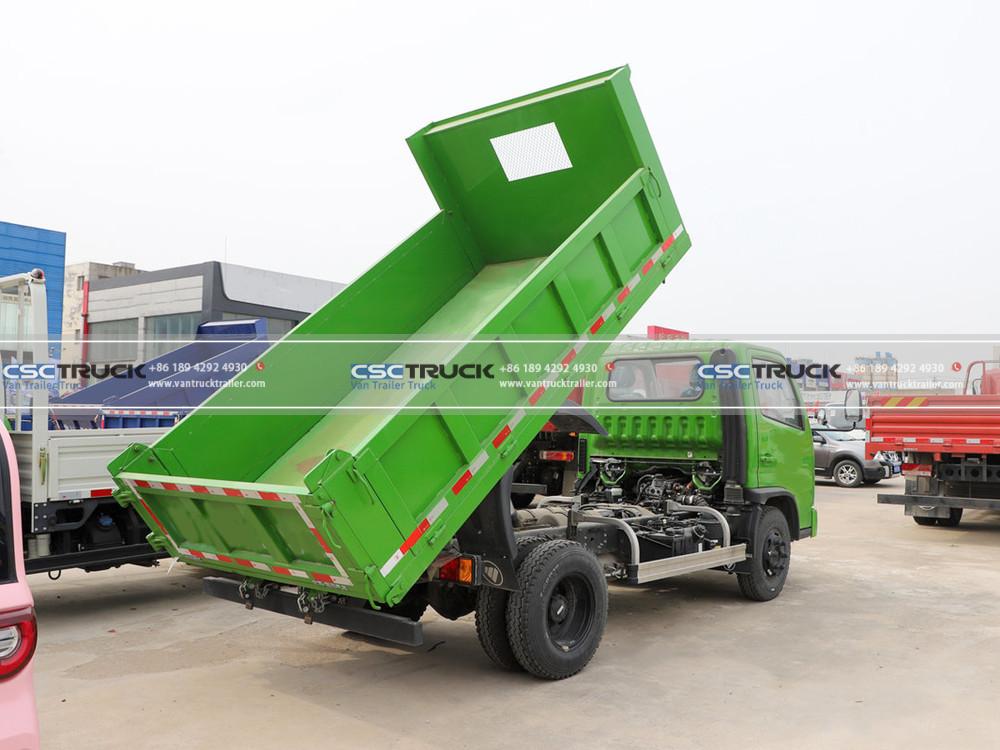

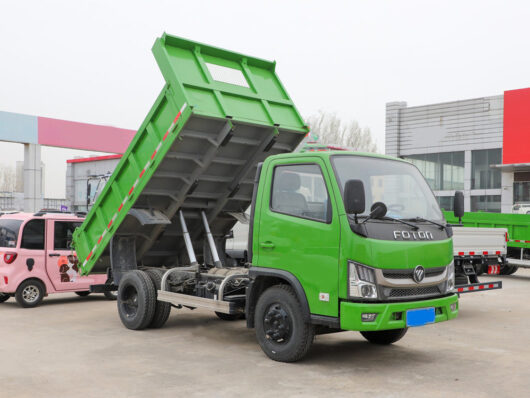

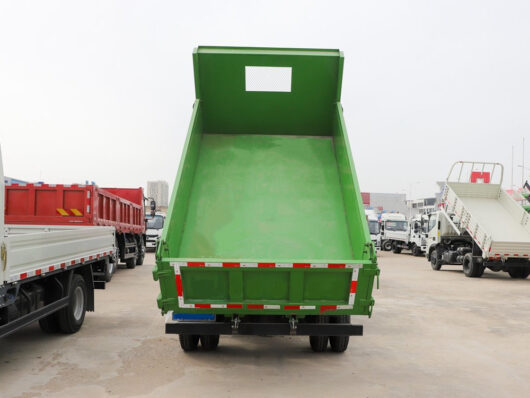

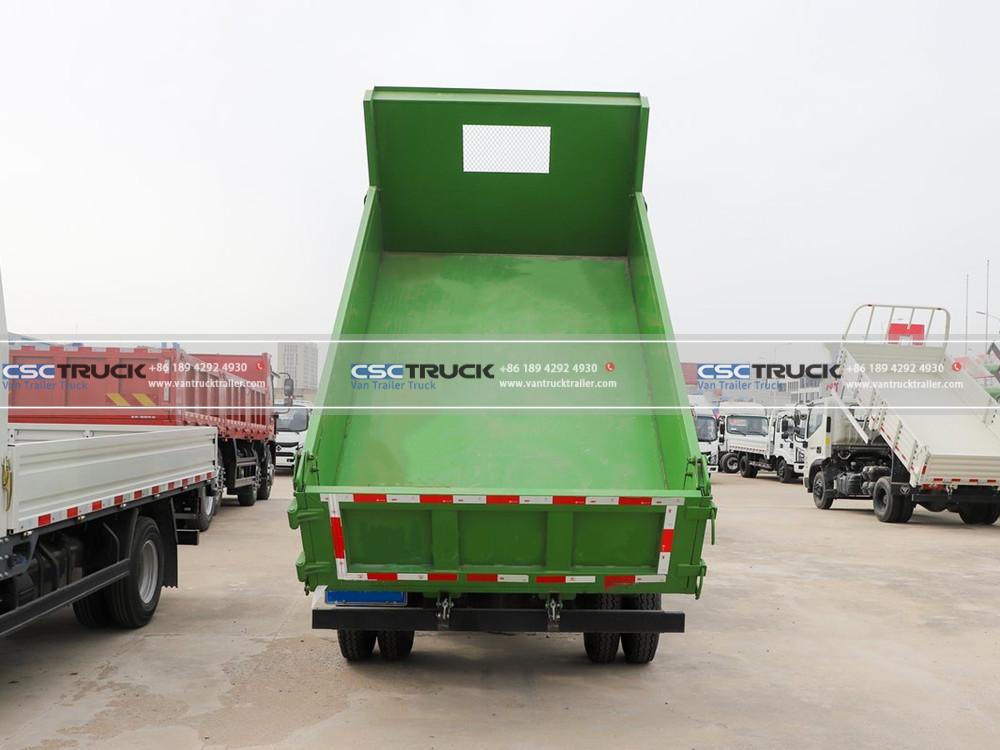

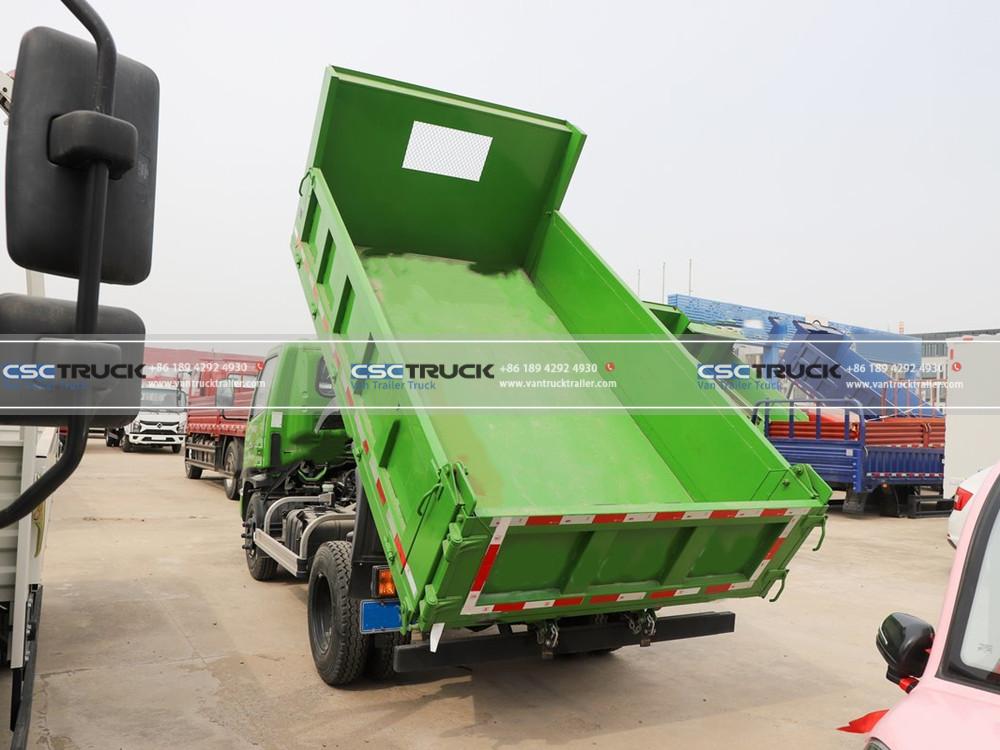

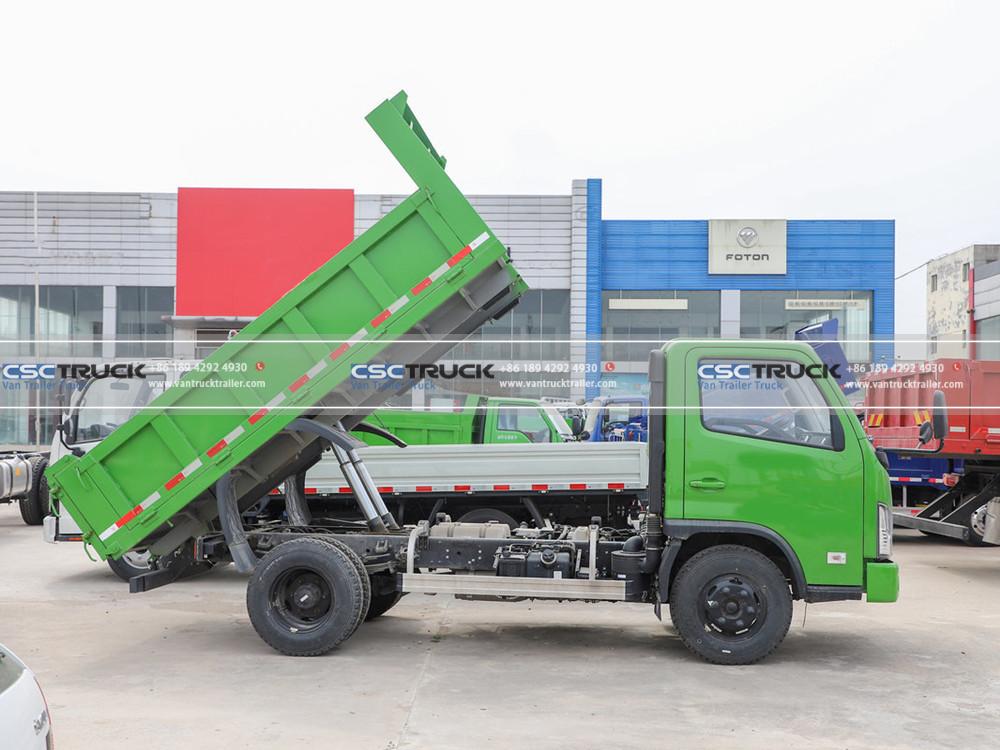

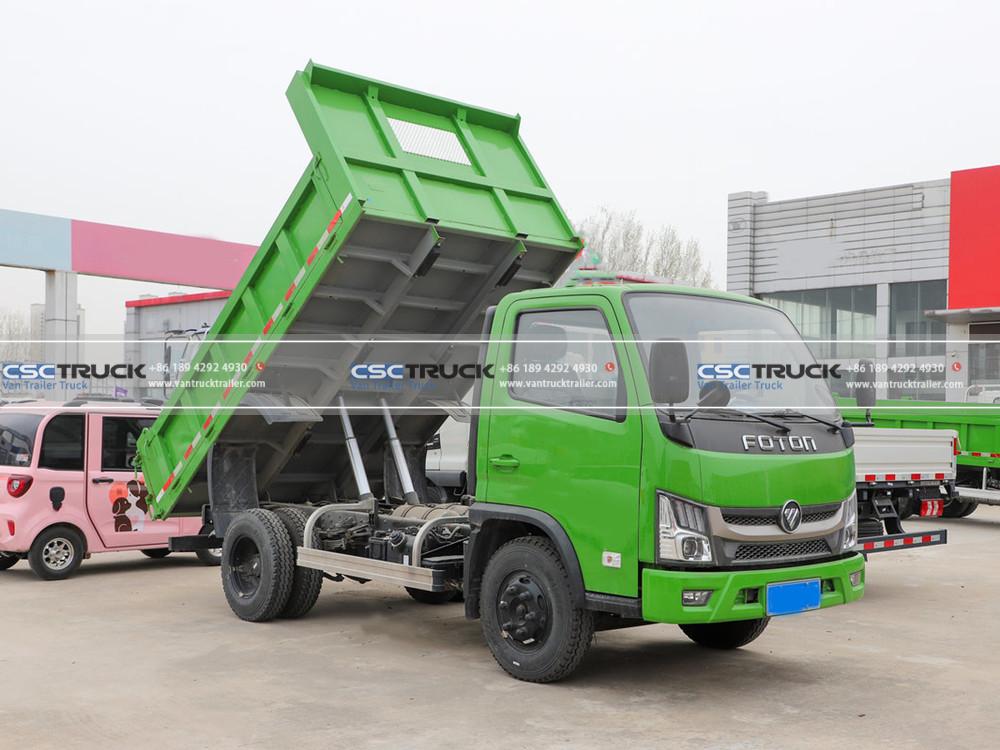

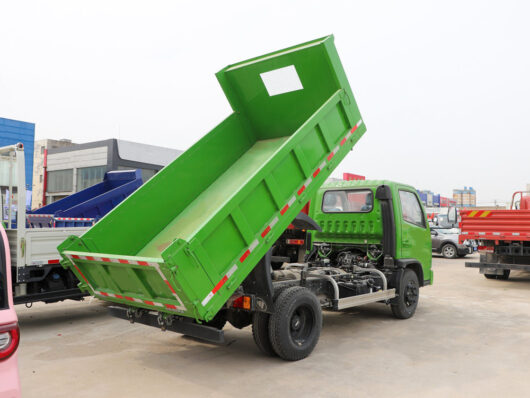

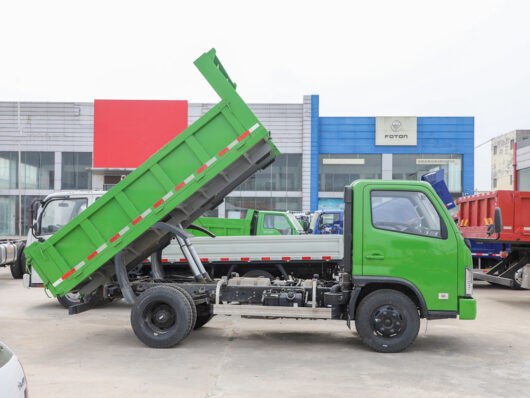

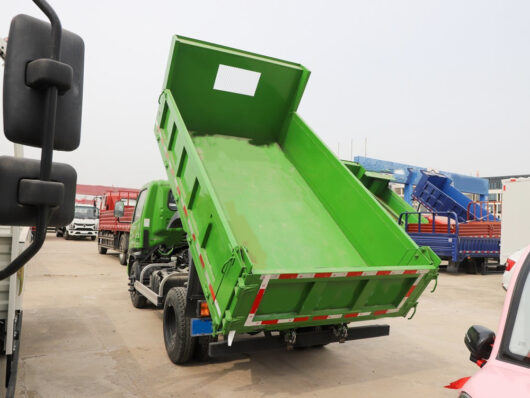

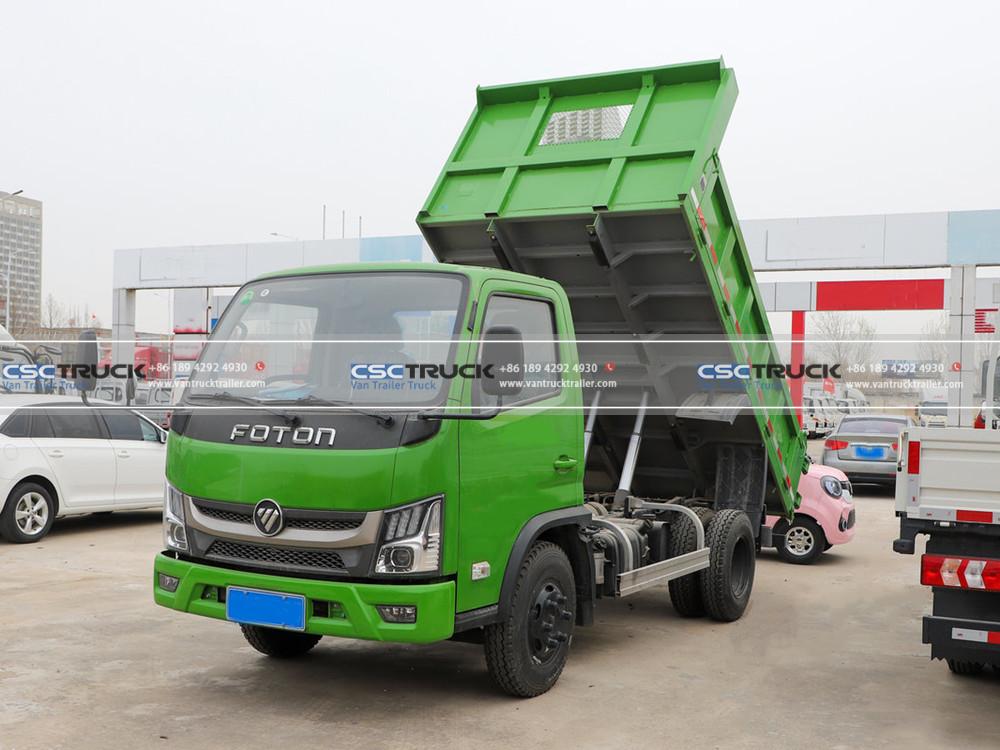

- Rear Dump Cargo Compartment (3.3m x 1.8m x 0.45m): Transport a wide variety of construction materials and equipment with ease, maximizing efficiency on every job site.
Precision Control, Effortless Operation
- Advanced Transmission: The Wanliyang WLY545CHF transmission system (5 forward gears / 1 reverse gear) ensures smooth operation, allowing for precise control and confident handling on any terrain.
Safety First
- Enhanced Safety Features: The ABS anti-lock braking system prioritizes operator safety and stability during braking, minimizing risks and maximizing confidence on the road.
Operator Comfort, Enhanced Efficiency

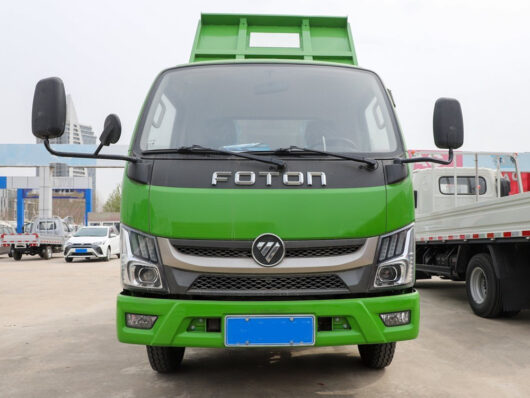

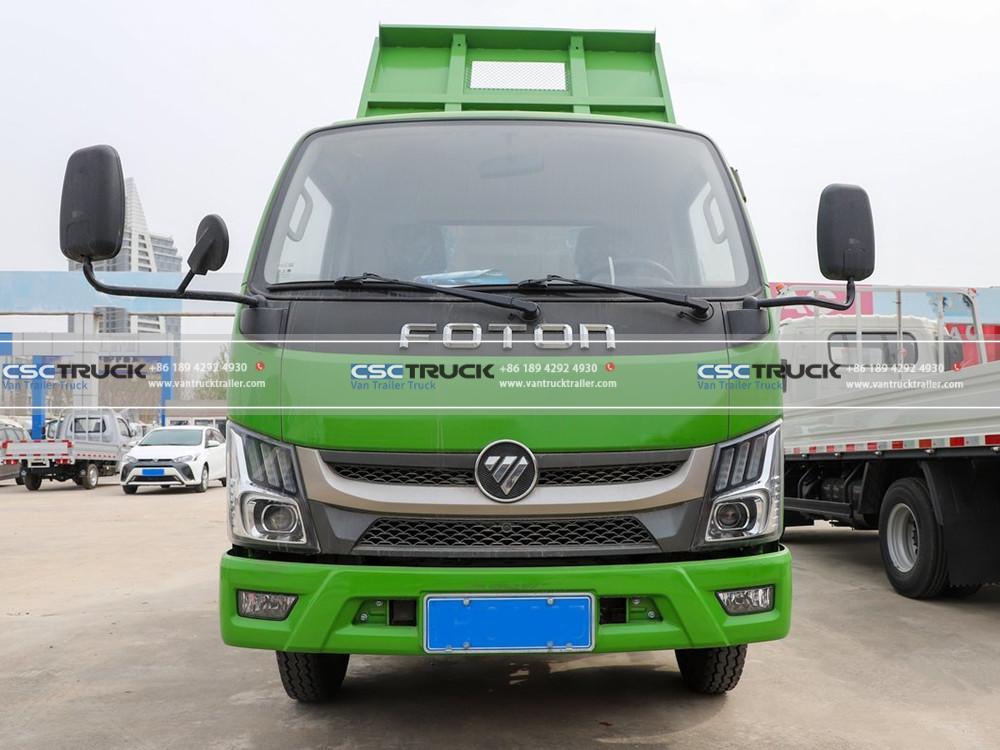

- Comfortable Cab: The spacious and ergonomic single-row cab offers comfortable seating for two occupants, featuring power windows, remote key access, and electronic central locking for a convenient and fatigue-free driving experience.
Unwavering Strength, Superior Stability
- Optimized Chassis: Featuring a sturdy frame, exceptional front axle capacity (2640kg), and robust rear axle capacity (4720kg), the chassis is engineered for superior strength and exceptional load-bearing capability.
Smooth Ride, Confident Handling
- Reliable Suspension: The 3/8+5 leaf spring suspension system and 7.00R16LT 14PR tires ensure a smooth and stable ride, even on rough terrain, enhancing overall performance and operator comfort.
Experience the unwavering performance, precision control, and operator-centric design of the Foton 5-Ton Dump Truck. Conquer every challenge with a micro truck built for power and engineered for excellence.
SPECIFICATIONS:
| Parameter | Specification |
|---|---|
| Drive Type | 4X2 |
| Wheelbase | 2800mm |
| Body Length | 5.13 meters |
| Body Width | 1.96 meters |
| Body Height | 2.09 meters |
| Front Wheel Track | 1535mm |
| Rear Wheel Track | 1550mm |
| Vehicle Weight | 3 tons |
| Rated Load | 4.23 tons |
| Total Mass | 7.36 tons |
| Ton Level | Micro Truck |
| Approach Angle | 19 degrees |
| Departure Angle | 23 degrees |
| Sub-segment Market | Road Transportation |
| Engine Parameters | |
| Engine Model | Quanchai H20-120E60 |
| Engine Brand | Quanchai |
| Number of Cylinders | 4 cylinders |
| Fuel Type | Diesel |
| Displacement | 2L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Maximum Horsepower | 120 horsepower |
| Maximum Output Power | 90 kW |
| Maximum Torque | 325 N·m |
| Maximum Torque Speed | 2000rpm |
| Rated Speed | 3200rpm |
| Engine Type | Inline four-cylinder, water-cooled, four-stroke, turbocharged intercooled, high-pressure common rail |
| Cargo Compartment Parameters | |
| Cargo Length | 3.3 meters |
| Cargo Width | 1.8 meters |
| Cargo Height | 0.45 meters |
| Cargo Type | Rear dump |
| Upper Installation Parameters | |
| Lifting Form | Double top |
| Cab Parameters | |
| Cab | Single row |
| Cab Width | 1730mm |
| Number of Seats | 2 |
| Main Driver Seat Type | |
| Transmission Parameters | |
| Transmission Model | Wanliyang WLY545CHF |
| Transmission Brand | Wanliyang |
| Forward Gears | 5 gears |
| Reverse Gears | 1 gear |
| Shifting Method | Manual |
| Fuel Tank | |
| Fuel Tank Capacity | |
| Chassis Parameters | |
| Frame Size | 215×65×6-760mm |
| Front Axle Allowable Load | 2640kg |
| Rear Axle Description | 1068C |
| Rear Axle Allowable Load | 4720kg |
| Speed Ratio | 4.875 |
| Number of Leaf Springs | 3/8+5 |
| Tires | |
| Tire Specifications | 7.00R16LT 14PR |
| Number of Tires | 6 |
| Control Configuration | |
| ABS Anti-lock Braking System | Yes |
| Internal Configuration | |
| Power Windows | Yes |
| Remote Key | Yes |
| Electronic Central Locking | Yes |
