BRIEF

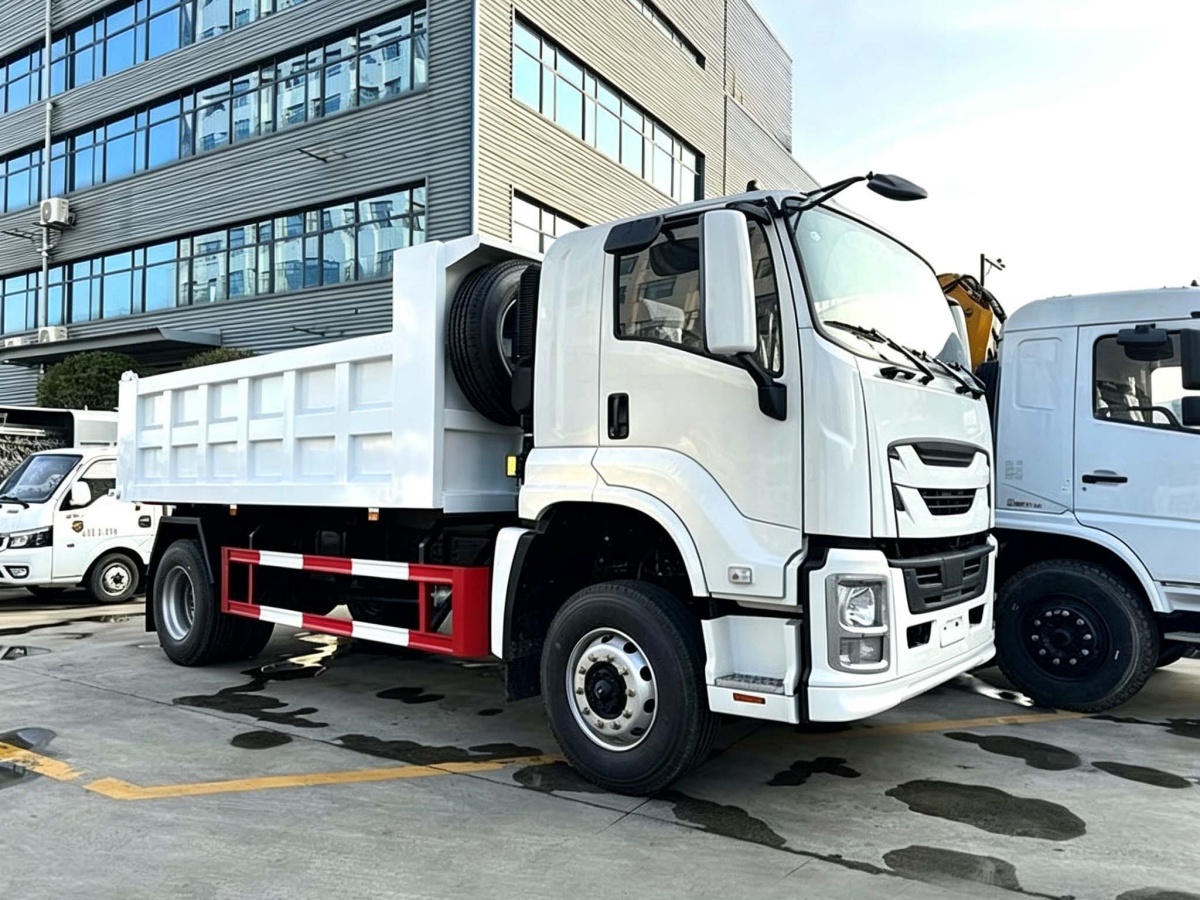

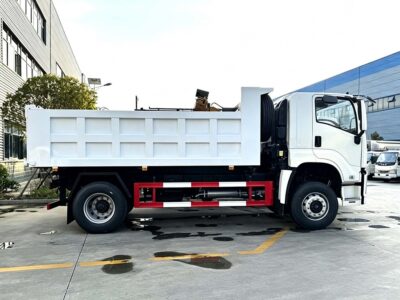

The ISUZU FTR 10T Heavy Duty Dump Truck is a heavy-duty commercial truck designed for construction, earthmoving, and general material hauling tasks. It combines the proven durability of the ISUZU FTR chassis with a robust dump body for efficient loading and unloading of loose materials such as sand, gravel, and debris. This truck is renowned for its high reliability, load-bearing capacity, and versatility, making it suitable for use in complex road conditions, including urban areas and construction sites.
This dump truck is equipped with an ISUZU 4HK1-TCG60 diesel engine, providing ample power output while maintaining fuel economy and durability to meet heavy-duty transport needs. Paired with an MLD manual transmission, it offers smooth shifting and stable performance during inclines and starts, making it suitable for frequent starts and stops and harsh working conditions.
The dump body is constructed from high-strength steel with a reinforced cross-grid rectangular structure, ensuring strength and durability. Equipped with a front lifting cylinder hydraulic system, the superstructure delivers smooth and stable lifting with a maximum tipping angle of 45°. The tipping operation is conveniently controlled by a lever inside the cab. An electrophoretic primer coating provides effective corrosion protection, extending service life in demanding working environments.
FEATURE
1. Driver-Oriented Cab Design: Comfort, Visibility & Control
- Spacious VC61 cab design provides a comfortable driving environment with excellent visibility, helping reduce operator fatigue during long-distance hauling and continuous working shifts.
- Passenger-car-style features, including air conditioning, central locking, and power windows, improve driving comfort and convenience compared with traditional heavy-duty truck cabins.
- Equipped with a multi-function steering wheel and digital LCD instrument cluster, the driver can easily monitor key vehicle information and maintain efficient operation.
2. Durable Chassis & Enhanced Safety: Built for Heavy Loads
- Mechanical leaf spring suspension delivers outstanding durability, strong load-bearing capability, and simple maintenance, making it ideal for harsh construction environments.
- Drum brake system with ABS improves braking stability and helps prevent wheel locking, providing safer control on wet roads, slopes, and challenging working conditions.
- 295/80R22.5 radial tires provide excellent traction, wear resistance, and stability, ensuring reliable performance on both highways and construction sites.

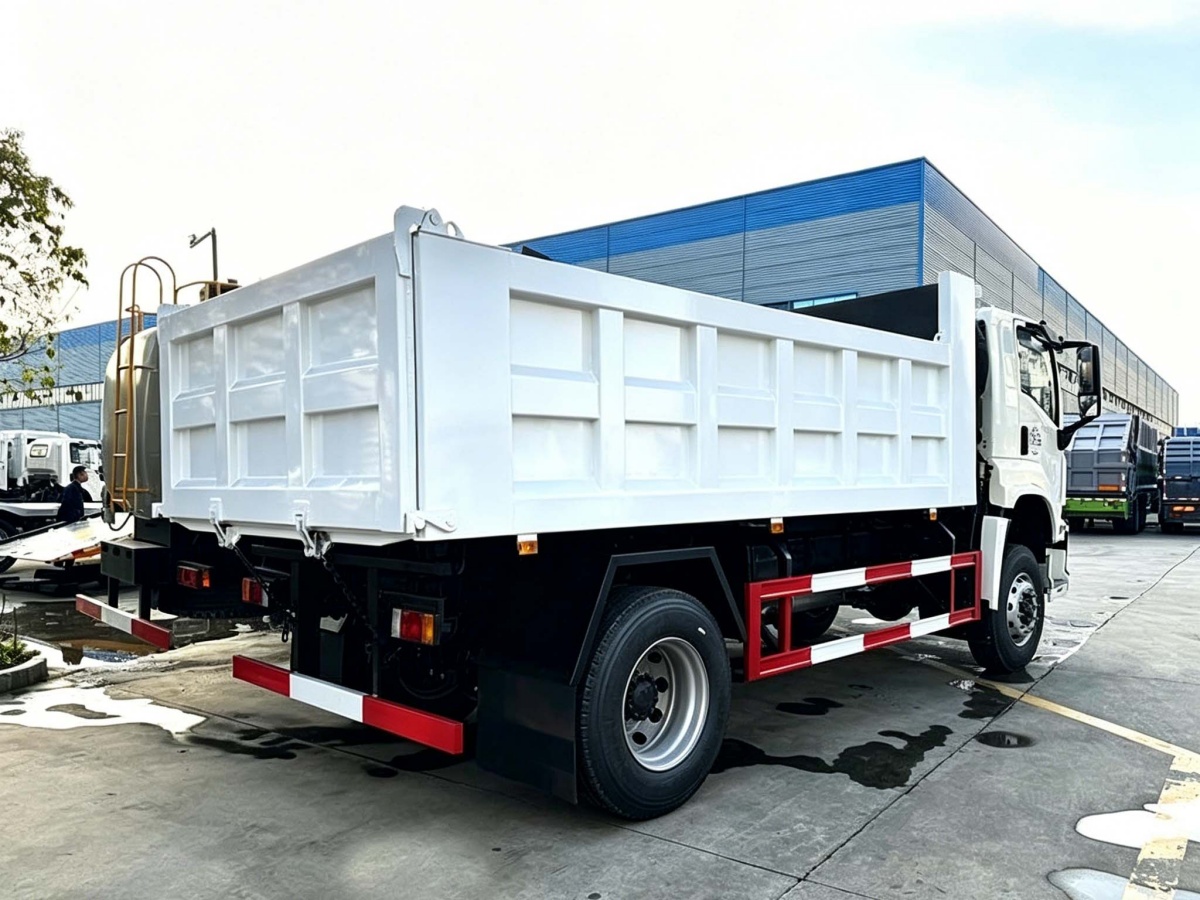

3. Reinforced Dump Body: Maximum Strength & Efficient Unloading
- The 8 m³ large-capacity dump body increases payload efficiency by carrying more material per trip, reducing transport cycles and improving overall productivity.
- Cross-grid reinforced body structure enhances impact resistance and prevents deformation when handling heavy or abrasive materials.
- Built with Q235 high-strength carbon steel. The body is specifically designed for demanding applications such as rock, gravel, slag, and construction waste transportation.
- Reinforcement ribs and ladder-type subframe design distribute loads evenly across the chassis, reducing stress concentration and extending service life.
4. Hydraulic Lifting System: Smooth, Powerful & Reliable
- The front-mounted hydraulic lifting cylinder provides a strong lifting force, stable operation, and improved balance compared with alternative mounting designs.
- With a maximum 45° dumping angle, the system allows sticky materials to discharge smoothly with minimal residue, reducing manual cleaning requirements.
- Cab-mounted tipping controls allow drivers to operate the lifting system conveniently from inside the cab, improving efficiency and safety in harsh weather or nighttime operations.
5. Tailgate & Safety Protection: Secure Transport & Road Compliance

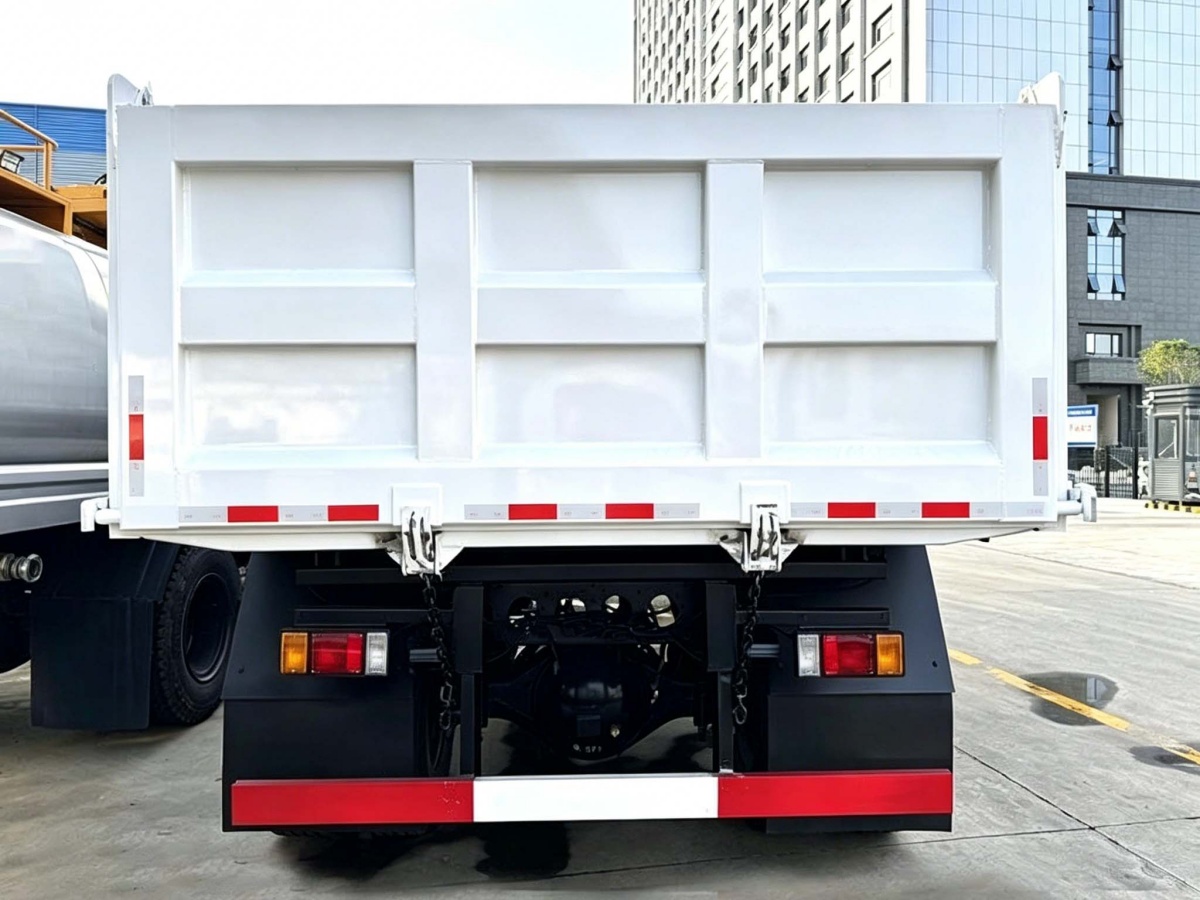

- The swing-type rear tailgate with locking mechanism keeps materials securely contained during transportation while allowing fast and reliable unloading at the destination.
- Side guards and rear bumper protection improve road safety and help meet transportation regulations by reducing risks to pedestrians and other road users.
- High-brightness LED lighting system provides better visibility during night operations and early morning work while offering longer service life compared with traditional lighting solutions.
6. Advanced Corrosion Protection: Longer Service Life
- The dump body features a full electrophoretic primer coating process, providing excellent coating adhesion and strong resistance against corrosion, moisture, and harsh operating environments.
- This advanced surface protection helps maintain vehicle appearance, structural durability, and long-term residual value.
SPECIFICATION
| Chassis Specification | |
| Chassis Model | ISUZU FTR |
| Driving Model | 4×2, Left Hand Drive |
| Cab |
|
| Dimension | 6,970×2,500×3,050 mm |
| Wheelbase | 3,900 mm |
| Gross Vehicle Weight | 19,300 kg |
| Curb Weight | 7,800 kg |
| Curb Weight | 11,500 kg |
| Front Axle Loading Capacity | 6,300 kg |
| Rear Axle Loading Capacity | 13,000 kg |
| Axle Number | 2 |
| Engine |
|
| Transmission |
|
| Tire |
|
| Upper Specifications | |
| Tipping Box Size | 4,500×2,300×800 mm |
| Capacity | 8 CBM |
| Box Structure | Rectangular box with cross-grid structure |
| Material | Q235 Carbon Steel |
| Floor Thickness | 5 mm |
| Side Wall Thickness | 4 mm |
| Tailgate | Single-swing rear door |
| Hydraulic System Brand | China brand |
| Lifting Cylinder Type | Front-end cylinder |
| Maximum Tipping Angle | 45° |
| Tipping Control | By the lever in the cab |
| Painting | Electrophoretic primer |
