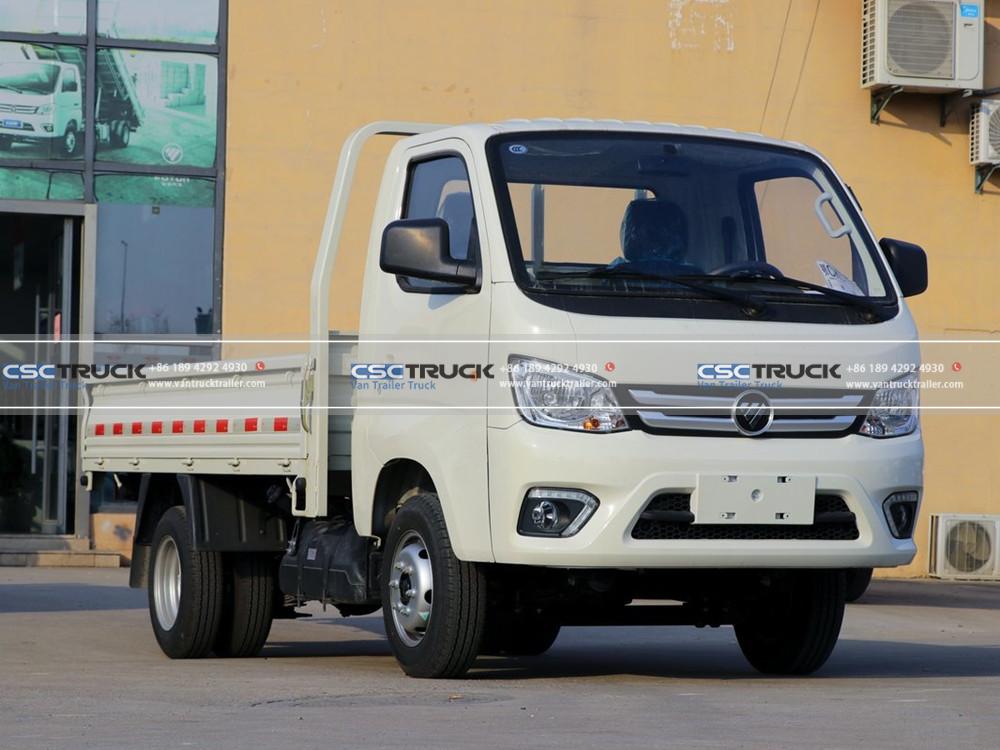

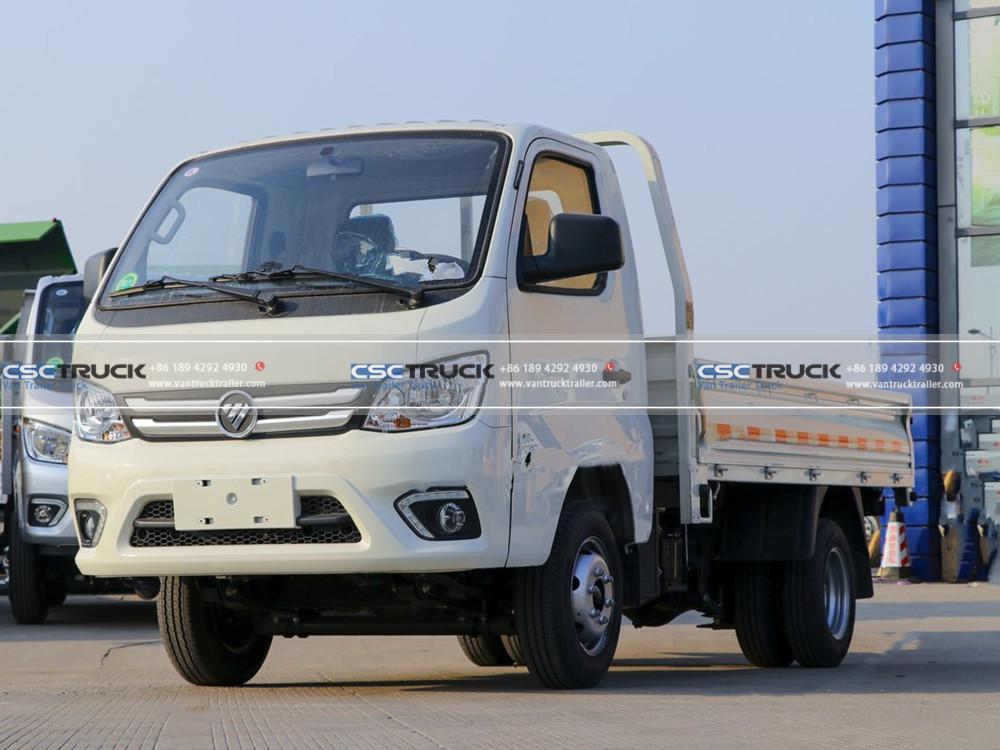

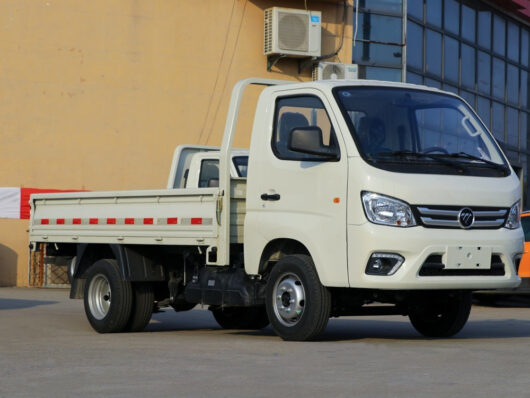

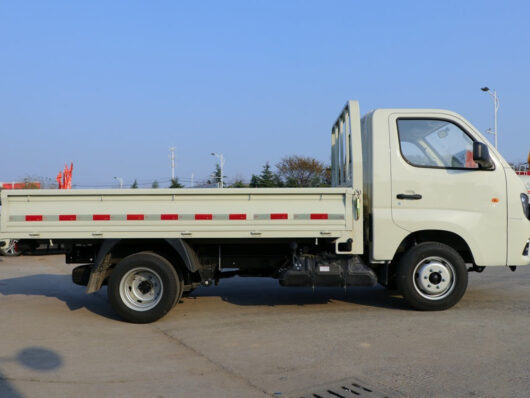

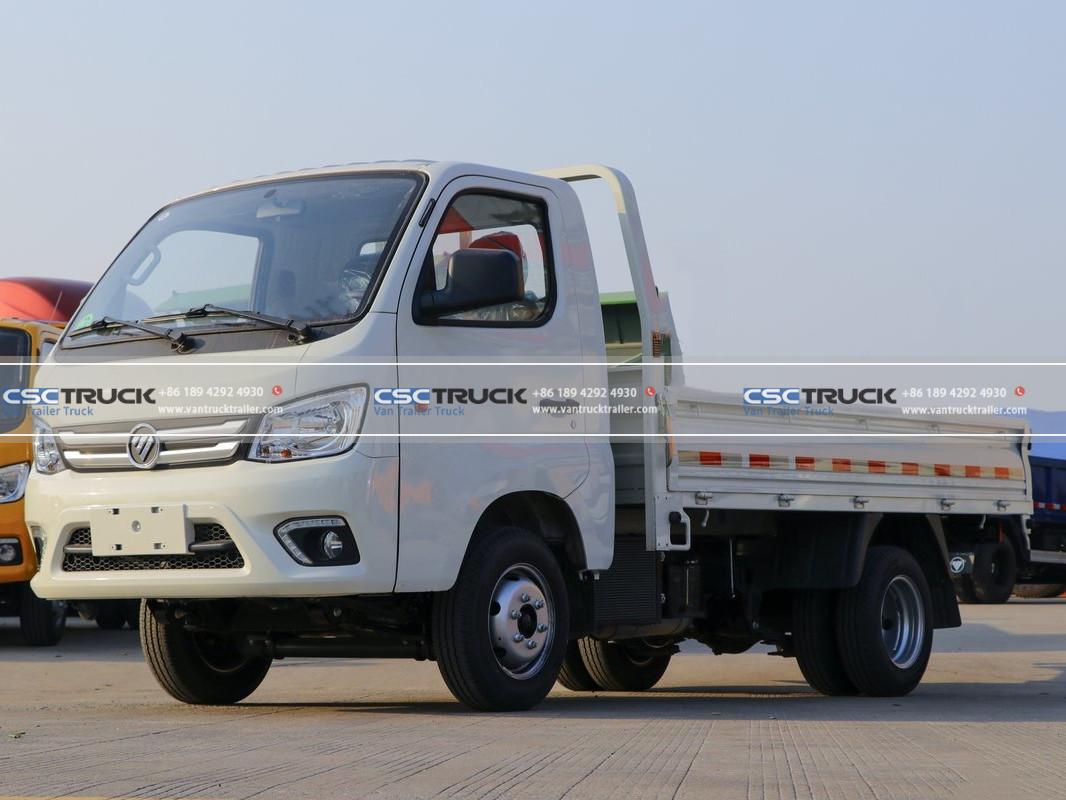

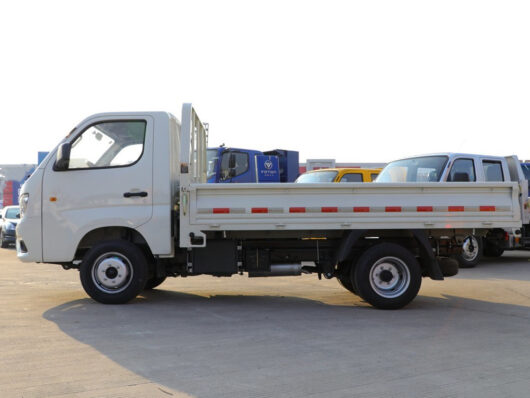

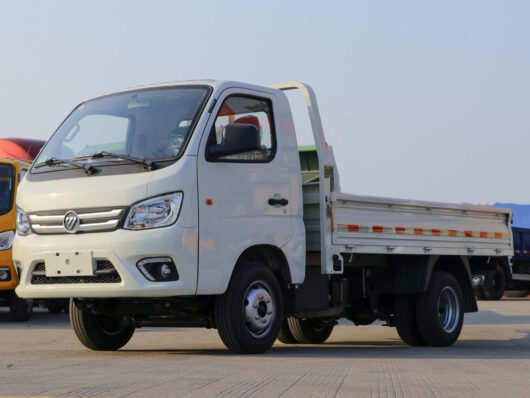

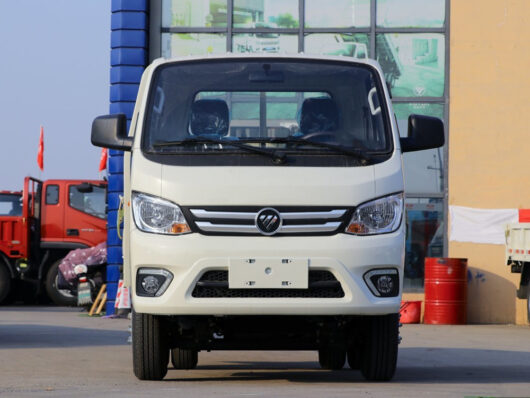

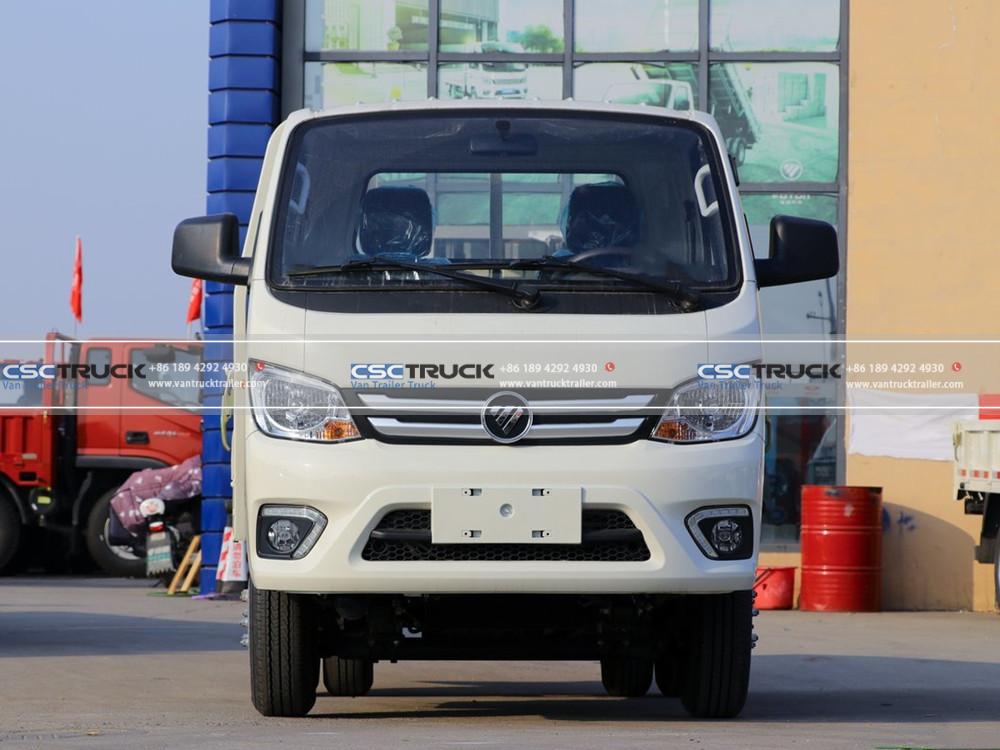

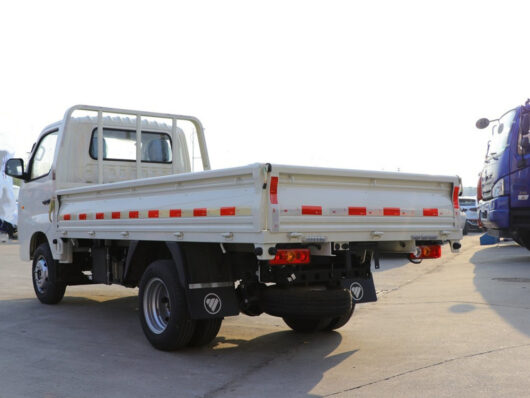

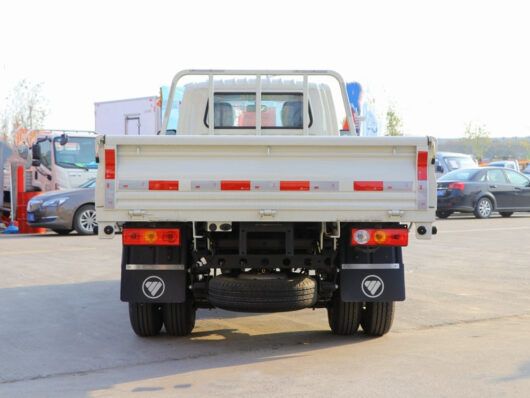

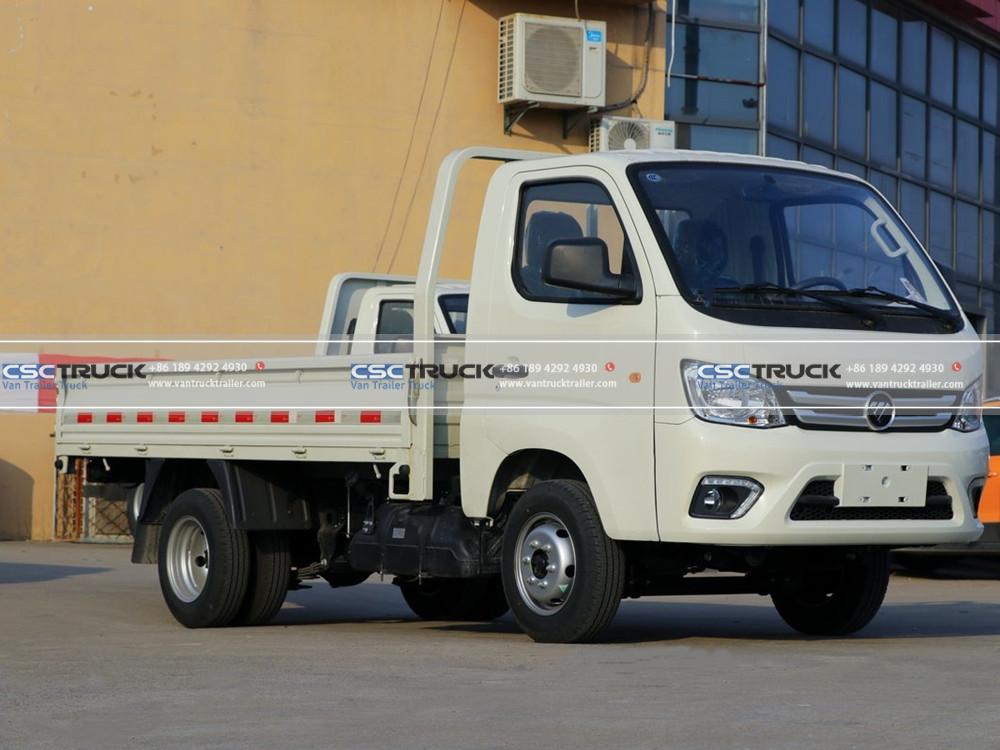

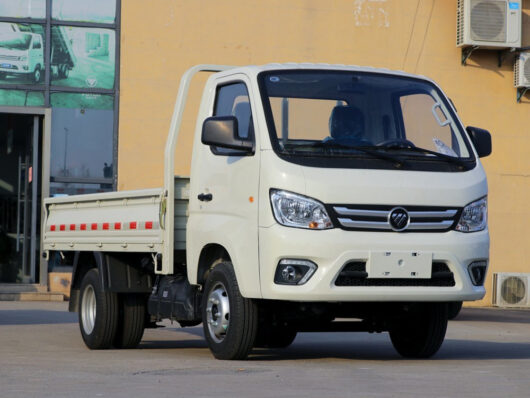

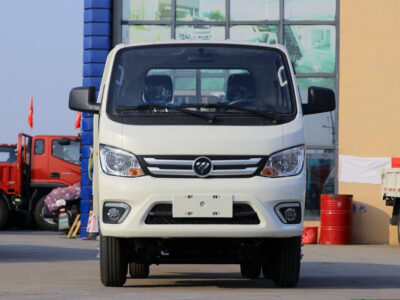

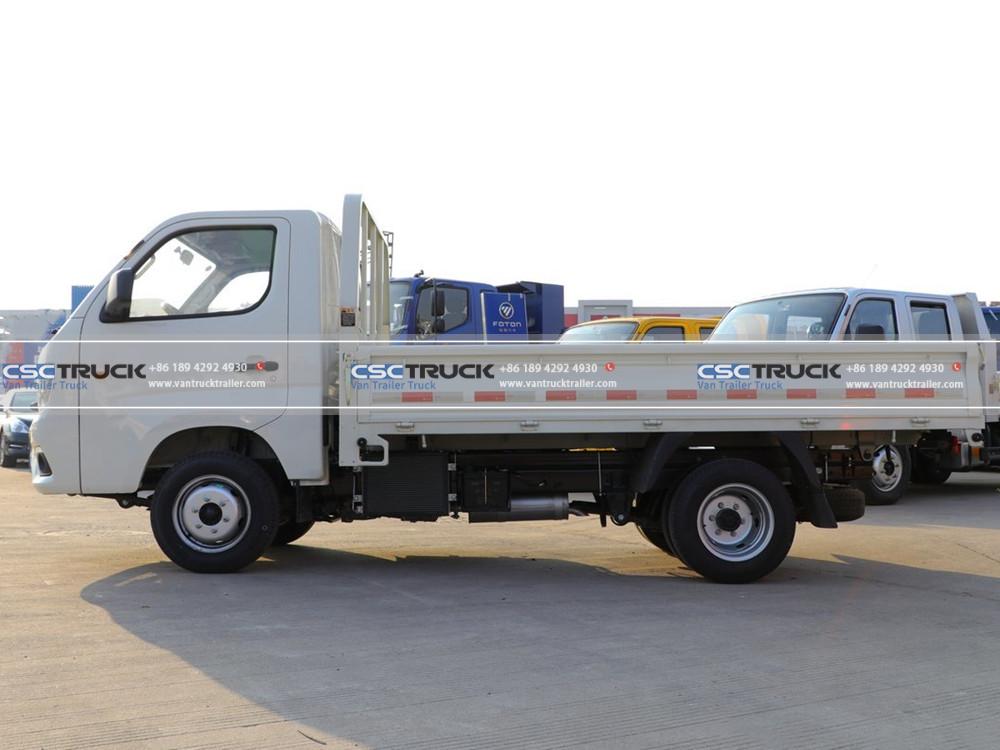

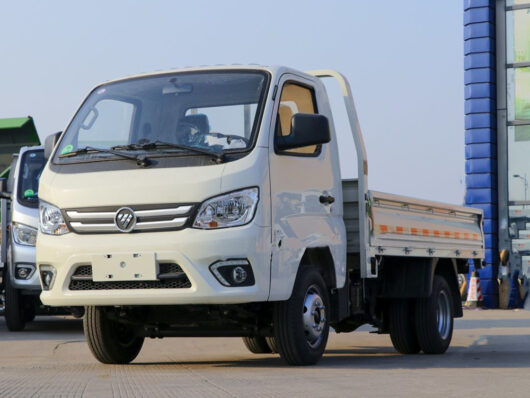

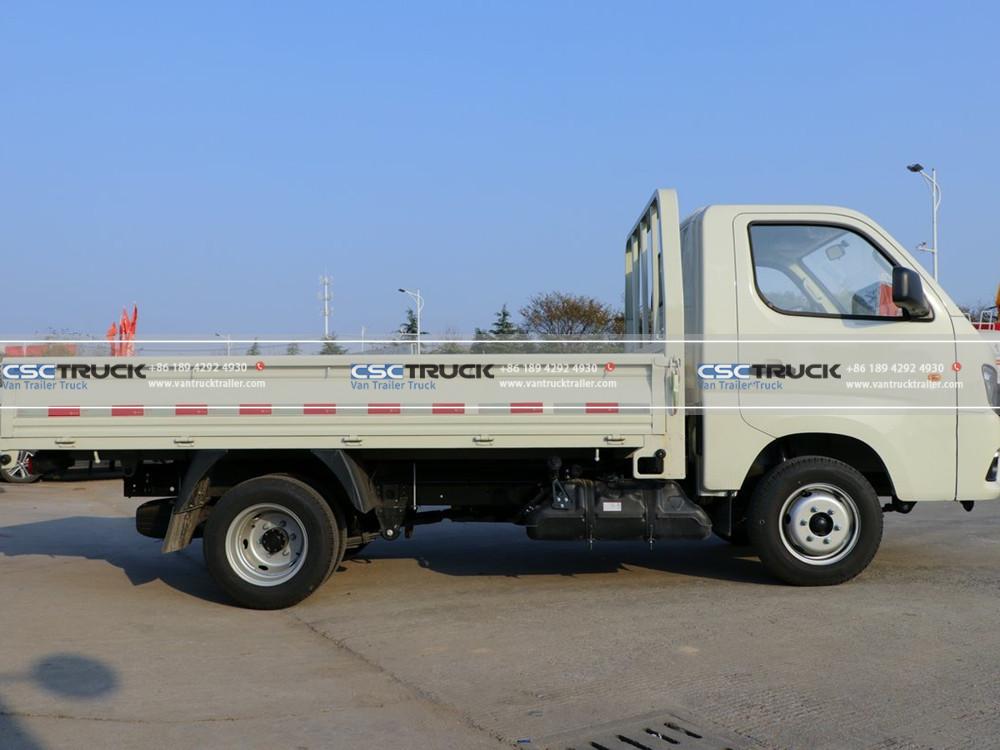

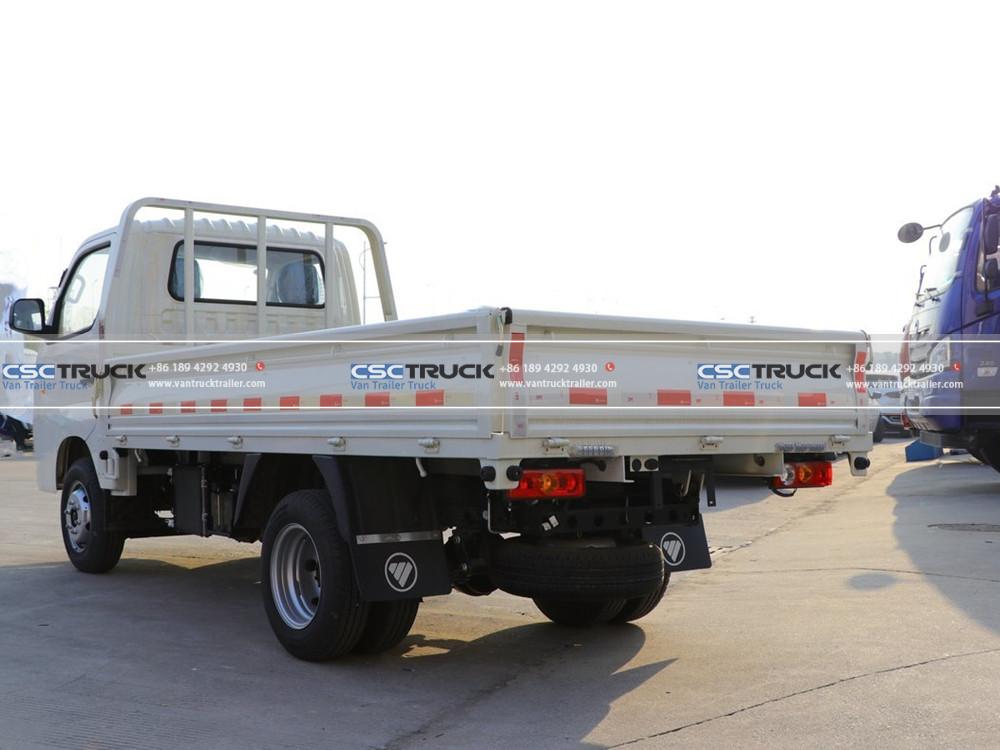

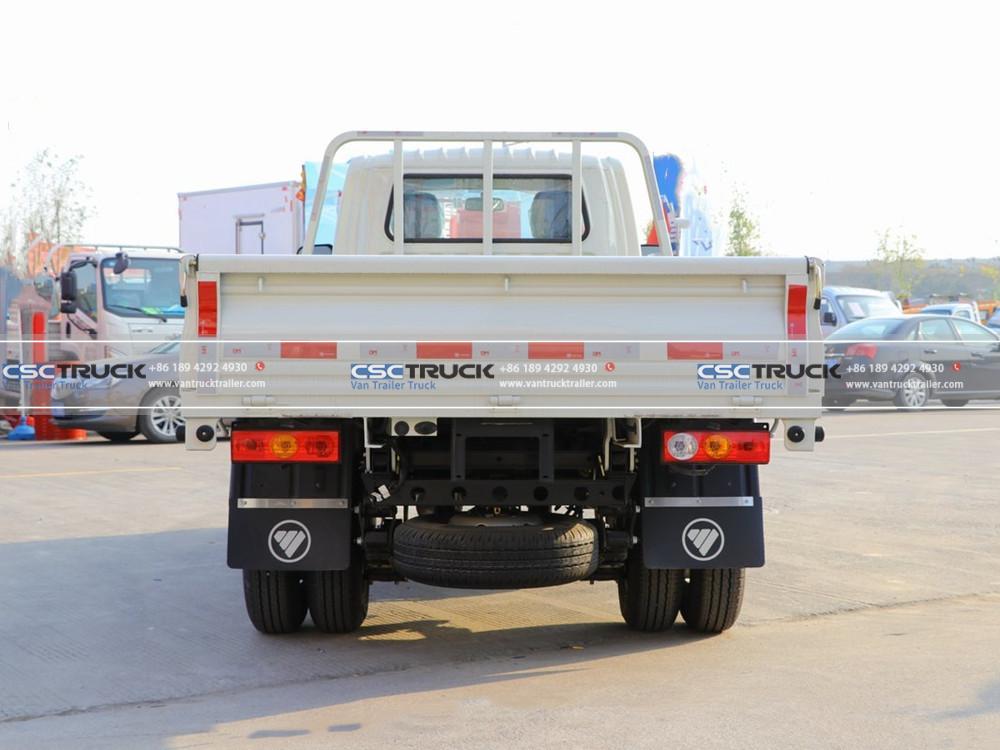

Conquer Any Job, Big or Small: Introducing the Foton 1-Ton Tuff Truck
The Foton 1-Ton Dump Truck is a compact powerhouse that tackles any light-duty hauling task with ease. This meticulously engineered machine is your secret weapon for conquering small-scale construction projects, landscaping jobs, and material transport needs. With its agile maneuverability, robust construction, and efficient operation, the Foton 1-Ton Tuff Truck is tailor-made for urban and suburban environments where limited space and flexibility reign supreme.
Master Maneuvering, Conquer Your Workspace
- Compact Design (Wheelbase: 2400mm, Body: 5.025m x 1.77m x 1.96m): Nav easily tight spaces, ensuring exceptional accessibility on any job site.
Built to Last, Engineered to Perform
- Durable Construction: A sturdy chassis and cargo compartment ensure the Foton 1-Ton Tuff Truck can handle rigorous use, offering unwavering performance and longevity.
Efficient Power Delivers Reliable Performance
- Dong’an DAM16KL Engine (122 HP, 90 kW): This 4-cylinder powerhouse delivers ample power and torque, optimizing operation and ensuring efficiency on every job.
Clean Operation, Environmentally Friendly
- EURO II-VI Emission Standards Compliance: Reduce your environmental footprint with a clean-running engine that adheres to strict emission regulations.
Comfort Meets Convenience (Optional Features)
- Multimedia Options: Enhance driver comfort and entertainment during long hauls.
- Air Conditioning: Maintain a cool and comfortable working environment in any weather condition.
Precise Dumping, Effortless Operation
- Hydraulic Dump System (70 Double Top Cylinder): Experience smooth and efficient material unloading with a high degree of control and precision.
Versatile Cargo Handling
- Cargo Compartment (3.1m x 1.65m x 0.36m): Transport a wide variety of cargo with ease, utilizing the convenient dump function for quick unloading.
Spacious Cab, Comfortable Driving
- Spacious Cab (Width: 1550mm): Offers comfortable seating for two occupants, ensuring a pleasant driving experience.
Safety First
- ABS Anti-Lock Braking System: Delivers reliable braking performance and stability on various road surfaces, prioritizing safety in every situation.
Convenience at Your Fingertips (Optional Features)
- Power Windows & Electronic Central Locking: Enhance security and add a touch of convenience to your workday.
- Reverse Image Camera: Maneuver confidently and avoid blind spots in tight spaces.
The Foton 1-Ton Dump Truck: Where efficiency meets versatility and compact design conquers any challenge. Experience the power, performance, and convenience that will transform your light-duty hauling operations.
SPECIFICATIONS:
| Parameter | Description |
|---|---|
| Drive Type | 4X2 |
| Wheelbase | 2400mm |
| Body Length | 5.025 meters |
| Body Width | 1.77 meters |
| Body Height | 1.96 meters |
| Front Wheel Track | 1320mm |
| Rear Wheel Track | 1280mm |
| Vehicle Weight | 1.63 tons |
| Rated Load | 0.995 tons |
| Total Mass | 2.755 tons |
| Ton Level | Light Truck |
| Approach Angle | 22 degrees |
| Departure Angle | 18 degrees |
| Sub-segment Market | Road Transportation |
| Note | Hydraulic brake system, multimedia optional, T-BOX optional, electric power steering |
| Version | |
| Engine Parameters | |
| Engine Model | Dong’an DAM16KL |
| Engine Brand | Dong’an |
| Number of Cylinders | 4 cylinders |
| Fuel Type | Gasoline |
| Displacement | 1.597L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Maximum Horsepower | 122 horsepower |
| Maximum Output Power | 90 kW |
| Maximum Torque | |
| Maximum Torque Speed | |
| Rated Speed | |
| Cargo Compartment Parameters | |
| Cargo Length | 3.1 meters |
| Cargo Width | 1.65 meters |
| Cargo Height | 0.36 meters |
| Cargo Type | Dump |
| Hydraulic Cylinder Brand/Model | 70 double top |
| Upper Installation Parameters | |
| Lifting Form | |
| Cab Parameters | |
| Cab | |
| Cab Width | 1550mm |
| Number of Seats | 2 |
| Transmission Parameters | |
| Transmission Model | Dong’an DAT18R |
| Transmission Brand | Dong’an |
| Forward Gears | 5 gears |
| Reverse Gears | 1 gear |
| Shifting Method | Manual |
| Fuel Tank | |
| Fuel Tank Material | |
| Chassis Parameters | |
| Frame Size | |
| Front Axle Description | |
| Front Axle Allowable Load | 875kg |
| Rear Axle Description | |
| Rear Axle Allowable Load | 1880kg |
| Speed Ratio | 4.875 |
| Number of Leaf Springs | 3/5 |
| Tires | |
| Tire Specifications | 175R14LT 8PR |
| Number of Tires | 6 |
| Control Configuration | |
| ABS Anti-lock Braking System | Yes |
| Internal Configuration | |
| Air Conditioning Adjustment Form | Manual |
| Power Windows | Yes |
| Electronic Central Locking | Yes |
