BRIEF

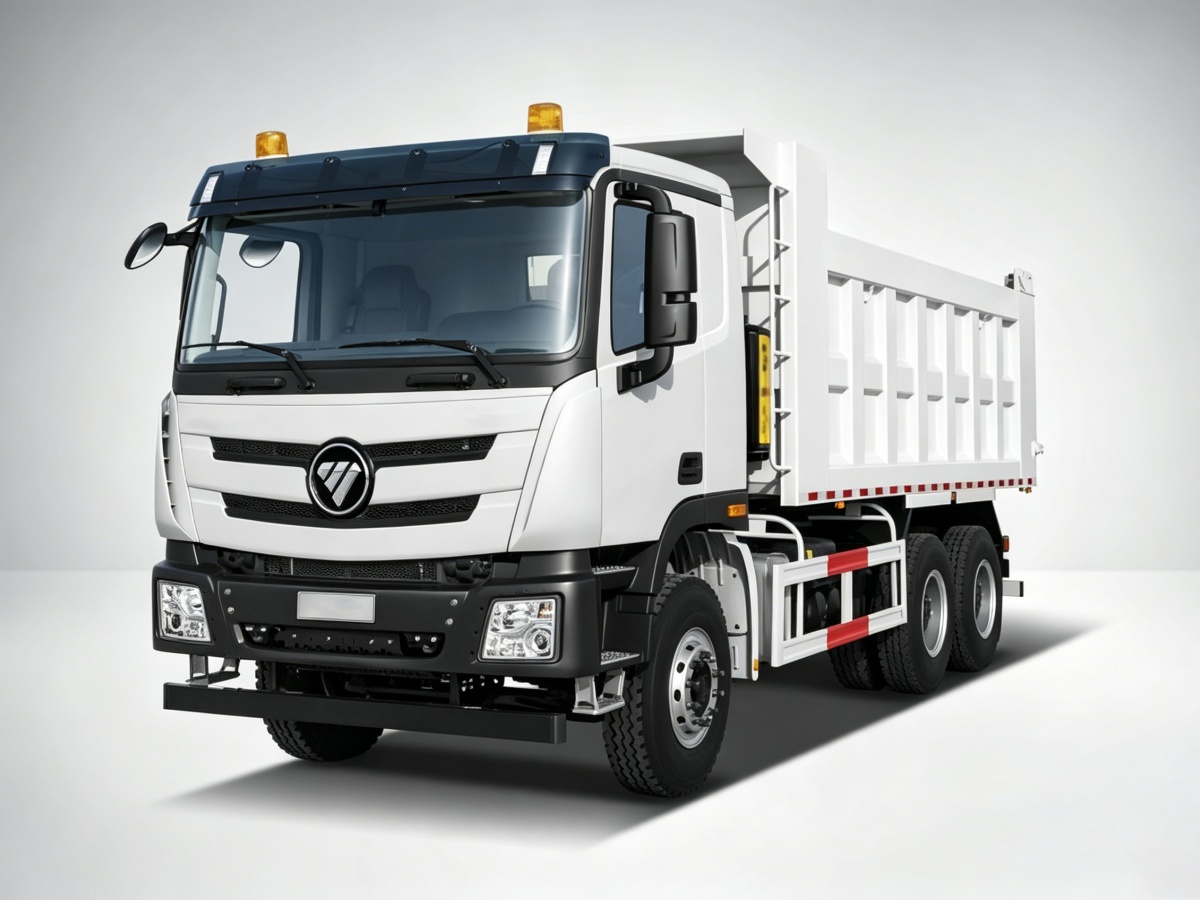

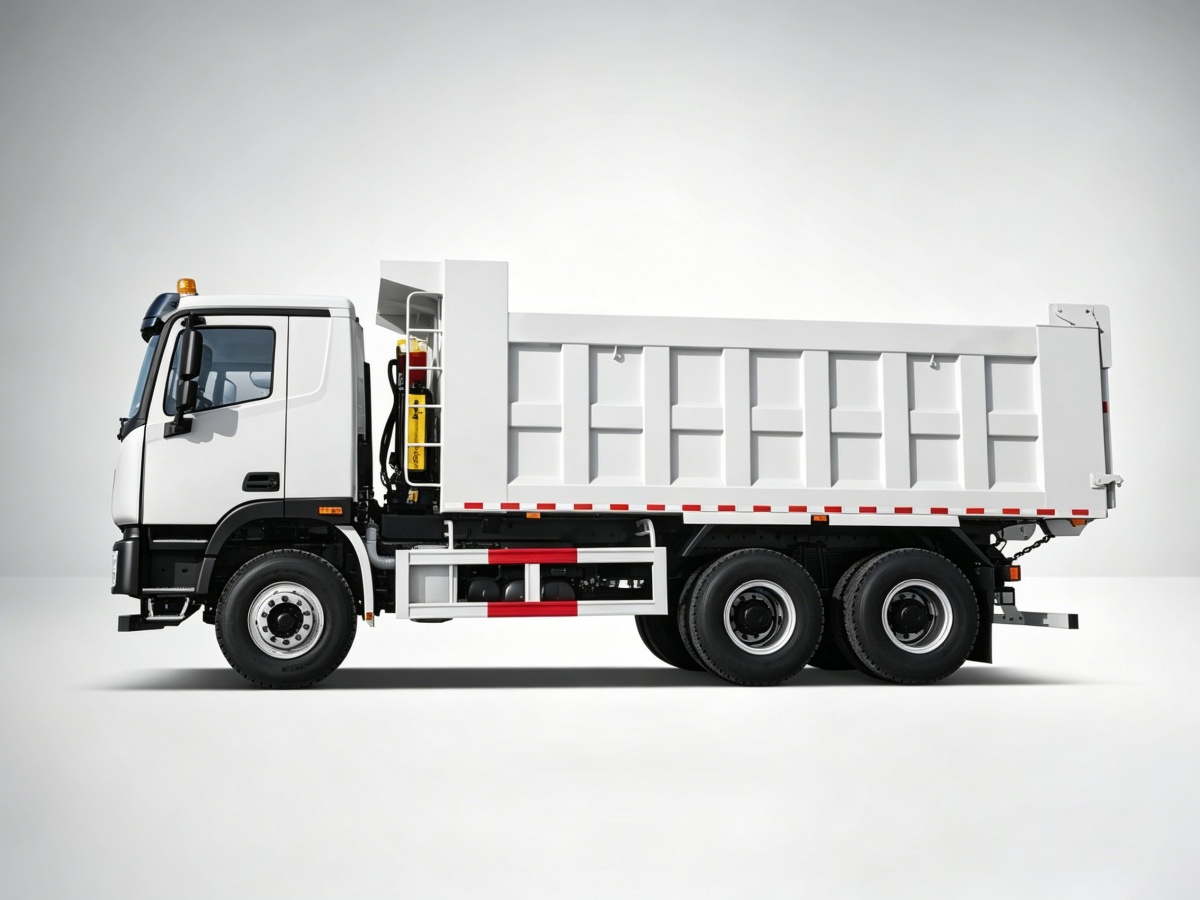

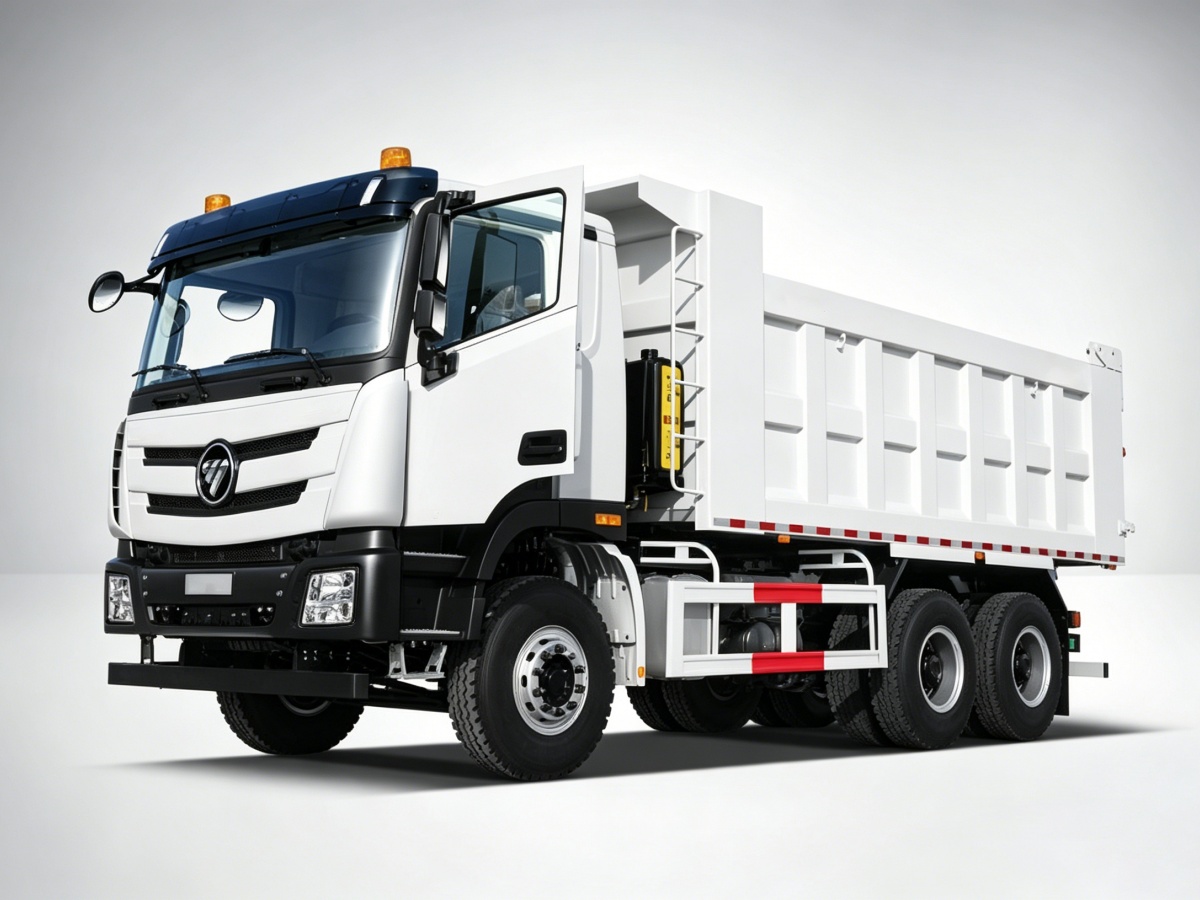

The FOTON 28-Ton Heavy Duty Dump Truck is engineered for heavy-duty mining, construction, and earthmoving applications, combining robust structural design with reliable performance. It is equipped with the durable HW23712 iron transmission and AM105L-S steering gear, ensuring smooth gear shifting, precise steering, and dependable handling under demanding working conditions. A 16-ton middle/rear axle capacity provides outstanding load-bearing capability, while the 450L aluminum alloy fuel tank supports long-distance operations with fewer refueling stops.
Powered by the proven Cummins ISGe5-460 diesel engine, featuring an 11.8L displacement, the truck delivers exceptional power, strong low-speed torque, and excellent fuel efficiency for heavy-haul operations. With a gross combined weight (GCW) of 70,000 kg, it is built to transport heavy payloads with confidence across highways, construction sites, and challenging off-road environments.
To maximize productivity, the dump body is equipped as standard with a large-displacement hydraulic gear pump and a multi-stage hydraulic cylinder, providing fast lifting speeds and smooth, efficient dumping. The system supports rear tipping for rapid material unloading, significantly improving job-site efficiency. Heavy-duty 12.00R20 all-steel radial tires deliver superior traction, wear resistance, and stability, ensuring reliable performance on muddy roads, gravel surfaces, and other complex terrains. With its powerful drivetrain, high-capacity hydraulic tipping system, and rugged chassis design, this dump truck delivers the durability, efficiency, and reliability required for demanding heavy-duty transportation and earthmoving operations.
FEATURES
1. Chassis & Frame – Built for Extreme Durability
- U-profile parallel ladder frame with cold-riveted cross members – Provides exceptional torsional rigidity and strength, ensuring the chassis remains straight and true even under the heaviest loads and roughest terrain.
- High-strength iron bumper – Offers superior front-end protection against impacts on construction sites, reducing damage risks and repair costs.
- Leaf spring mechanical suspension – Simple, robust, and proven design that handles heavy loads with minimal maintenance, ideal for demanding off-road conditions.
- Heavy-duty 16T rear axle load capacity – Provides ample strength for carrying maximum payloads, ensuring long-term reliability even under constant heavy hauling.

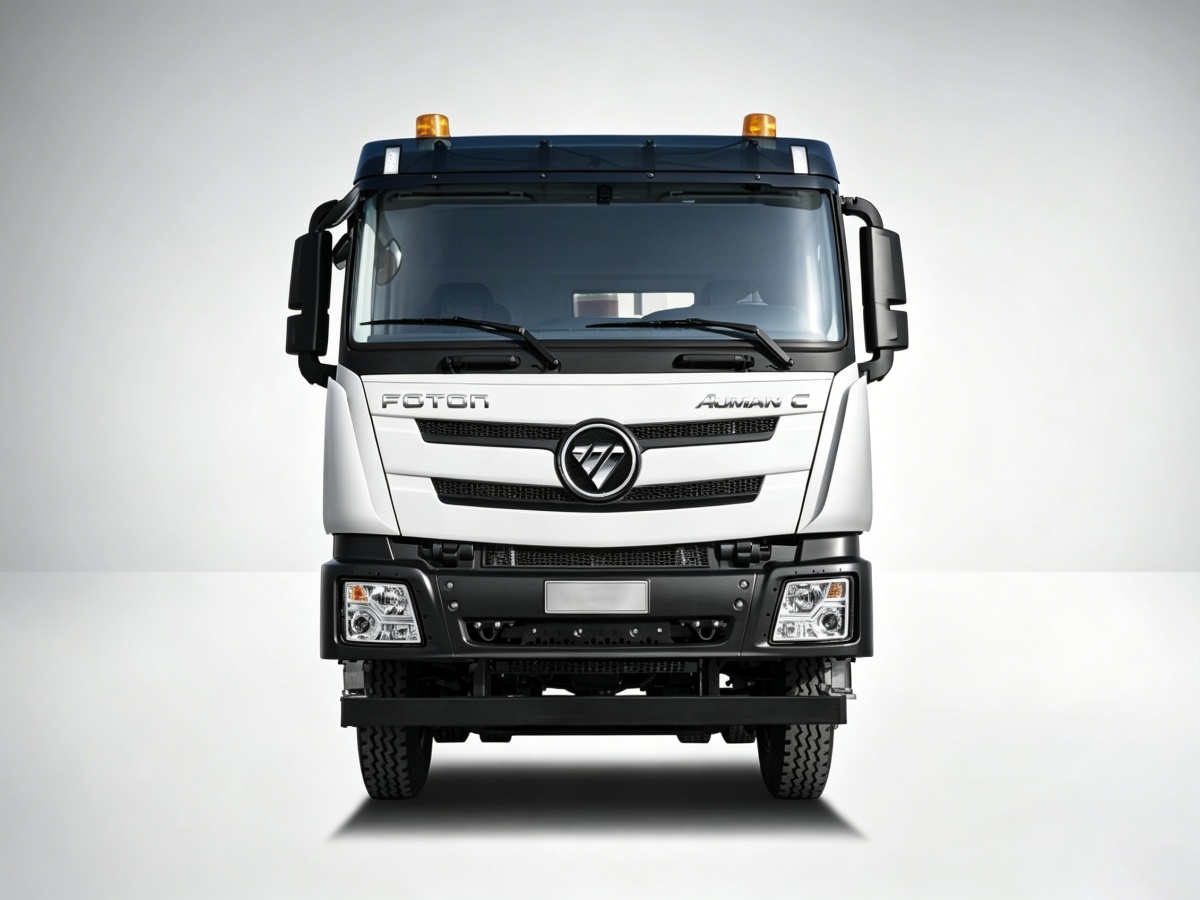

2. Cab & Driver Comfort – Safety and Convenience
- All-steel, four-point airbag suspension cab – Absorbs road shocks and vibrations, significantly improving driver comfort during long shifts on rough terrain and reducing fatigue.
- Manual cab reversal – Allows easy tilting of the cab for straightforward engine and component access, simplifying routine maintenance and repairs.
- Bright long-lasting LED lights – Provide excellent visibility for night operations and adverse weather conditions, improving safety on and off the road.
3. Powertrain – Powerful and Fuel-Efficient
- ISGe5-460 engine (11.8L displacement) – Delivers 460 HP of reliable power with excellent fuel efficiency, providing the muscle needed for heavy loads and steep grades while keeping operating costs low.
- HW23712 Iron transmission – Robust and durable gearbox designed for heavy-duty applications, delivering smooth shifting and reliable power transfer even under extreme loads.
- AM105L-S steering gear – Ensures precise, responsive steering control, making the truck easy to manoeuvre in tight construction sites and busy job yards.

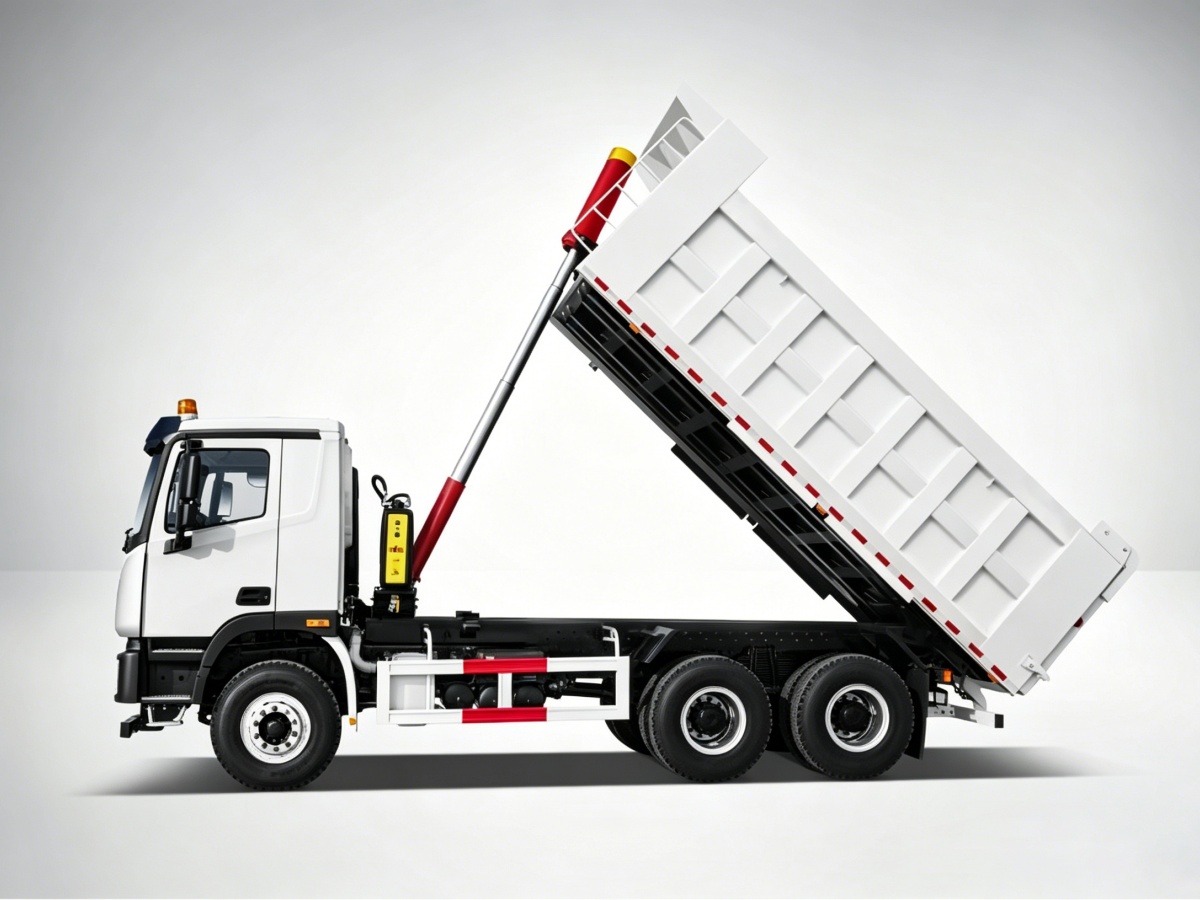

4. Hydraulic System – Fast and Efficient Dumping
- Hyva hydraulic lifting system – World-renowned brand for reliability and performance, ensuring consistent, trouble-free tipping operations day after day.
- Large-displacement gear pump – Delivers high hydraulic flow for rapid lifting speeds, significantly reducing cycle times and improving unloading efficiency.
- Multi-stage cylinder – Provides smooth, powerful lifting action with excellent stability, ensuring the tipping body raises evenly even when loaded unevenly.
- Support for back-turning dumping – Allows flexible unloading from the rear, adapting to various job site conditions and material types.

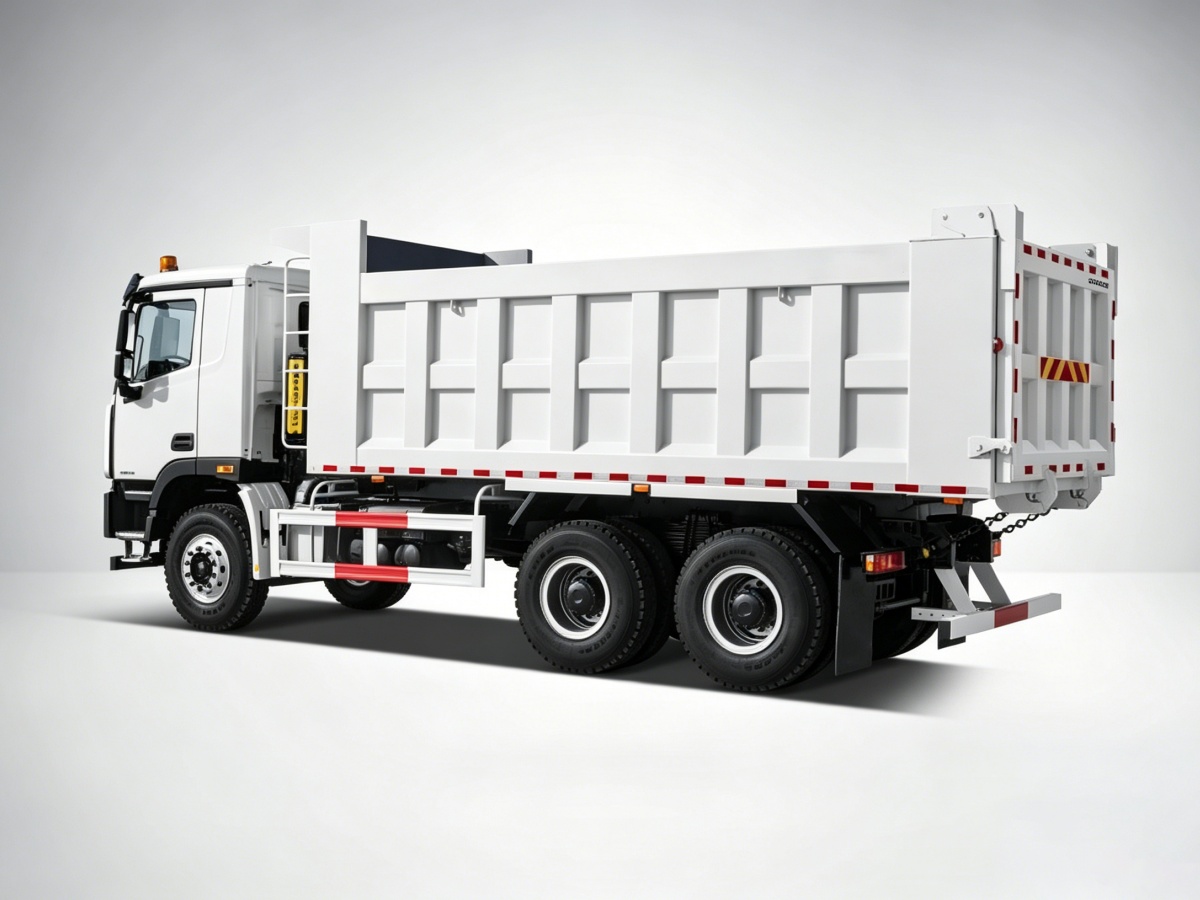

5. Tipping Body – Strong and Durable
- T700 high-strength steel tipping body – Lightweight yet exceptionally strong, offering superior resistance to deformation and wear from abrasive materials like rocks, gravel, and demolition waste.
- Openable tailgate for convenient unloading – Allows quick and controlled material discharge, reducing spillage and improving job site cleanliness.
- Safety chains and hooks – Securely fasten the tailgate during transport, preventing accidental opening and ensuring load security on the road.
6. Fuel System & Longevity – Extended Range
- Large-capacity 450L aluminium alloy fuel tank – Provides extended range for long-haul operations, reducing the need for frequent refuelling stops and maximising productivity.
- High-precision, low-rolling-resistance bearings – Reduce friction and heat generation, improving fuel efficiency and extending component life.
7. Tires & Traction – Conquer Any Terrain
- 12.00R20 all-steel radial tyres – Heavy-duty tyres with excellent load-carrying capacity, providing superior grip on mud, gravel, and other complex road surfaces common at construction and mining sites.
- All-steel radial construction – Offers superior puncture resistance and longer tread life compared to bias-ply tyres, reducing downtime from tyre failures.
8. Corrosion Protection – Built to Last
- Electrophoretic coating – Provides superior corrosion protection by ensuring complete coverage of all metal surfaces, including hard-to-reach internal cavities, extending the truck’s service life even in harsh, high-humidity environments.
- Durable exterior finish – Maintains the truck’s professional appearance and resale value over years of tough service.
SPECIFICATION
| Chassis Specification | |
| Chassis Model | FOTON GTL-E |
| Driving Model | 6×4, Left Hand Drive |
| Cab |
|
| Dimension | 8,400×2,550×3,800 mm |
| Wheelbase | 3,800+1,400 mm |
| Gross Vehicle Weight | 41,000 kg |
| Curb Weight | 12,500 kg |
| Payload Weight | 28,500 kg |
| Front Axle Loading Capacity | 9,000 kg |
| Rear Axle Loading Capacity | 2×16,000 kg |
| Number of Axles | 3 |
| Engine |
|
| Transmission |
|
| Tire |
|
| Brake |
|
| Upper Specification | |
| Tipping Box Size | 5,600×2,300×1,500 mm |
| Capacity | 19 CBM |
| Material | T700 High-strength steel |
| Floor Thickness | 10 mm |
| Side Wall Thickness | 8 mm |
| Hydraulic System Brand | HYVA |
| Lifting Cylinder Type | Front-end cylinder |
| Max. Working Pressure | 250 bar |
| Max. Thrust First Stage | 195 |
| Number of stages | 3 |
| Painting | Electrophoretic primer |
