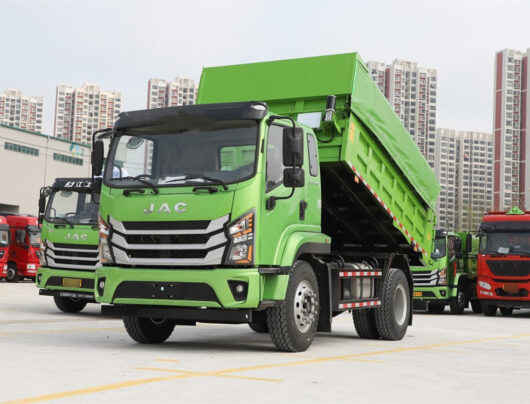

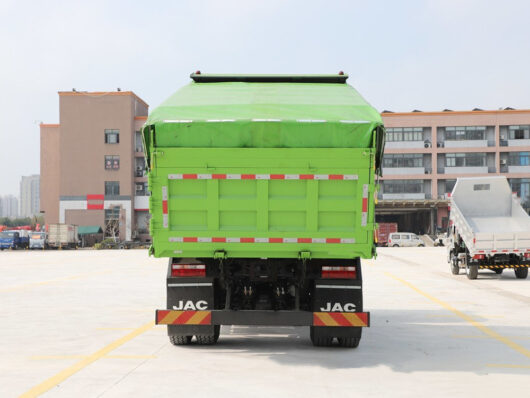

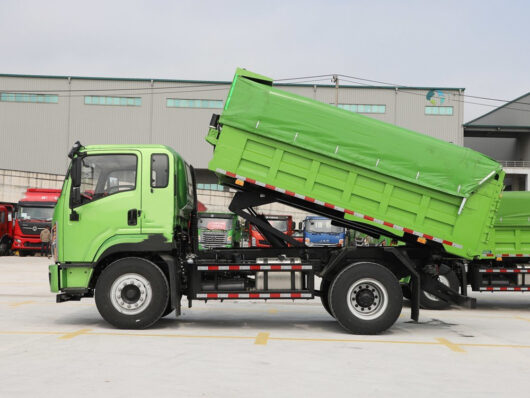

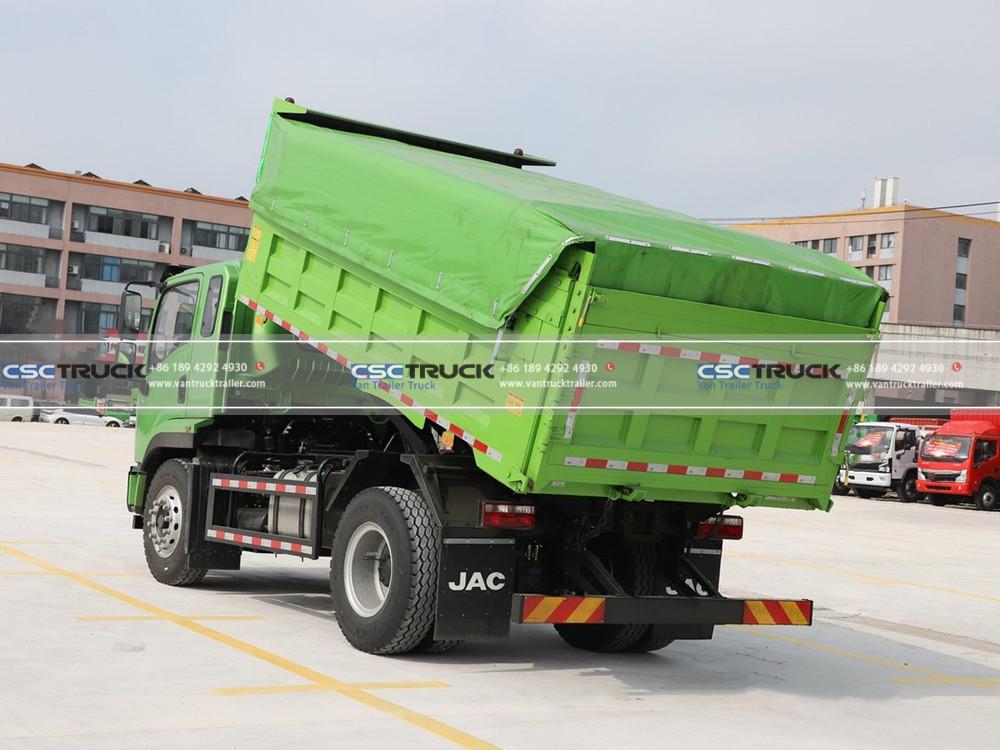

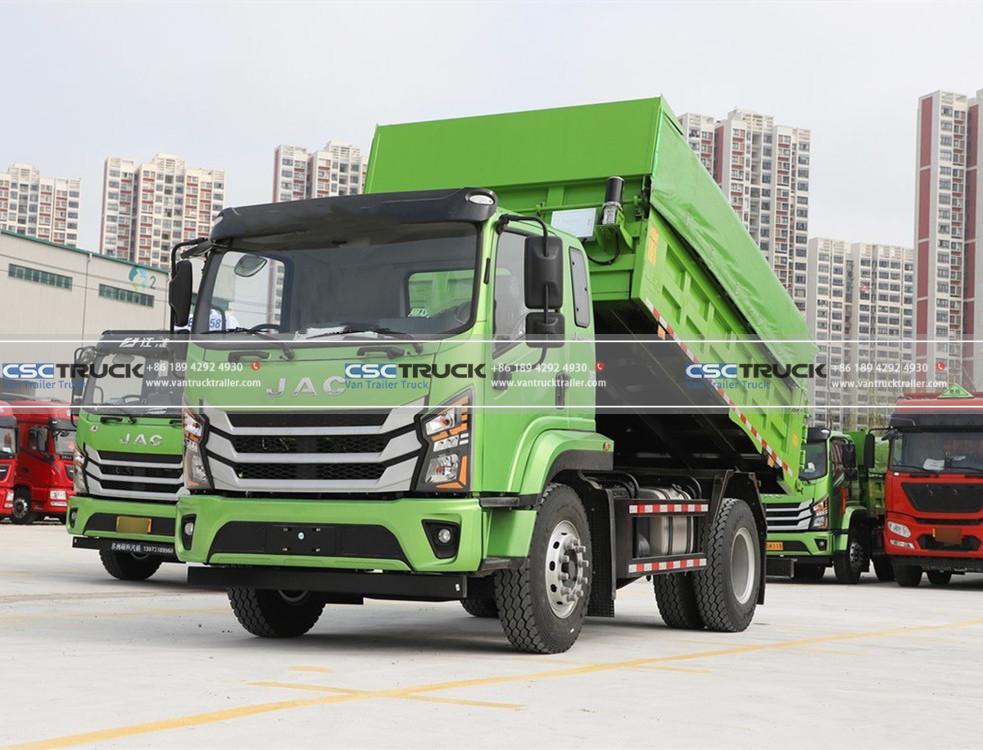

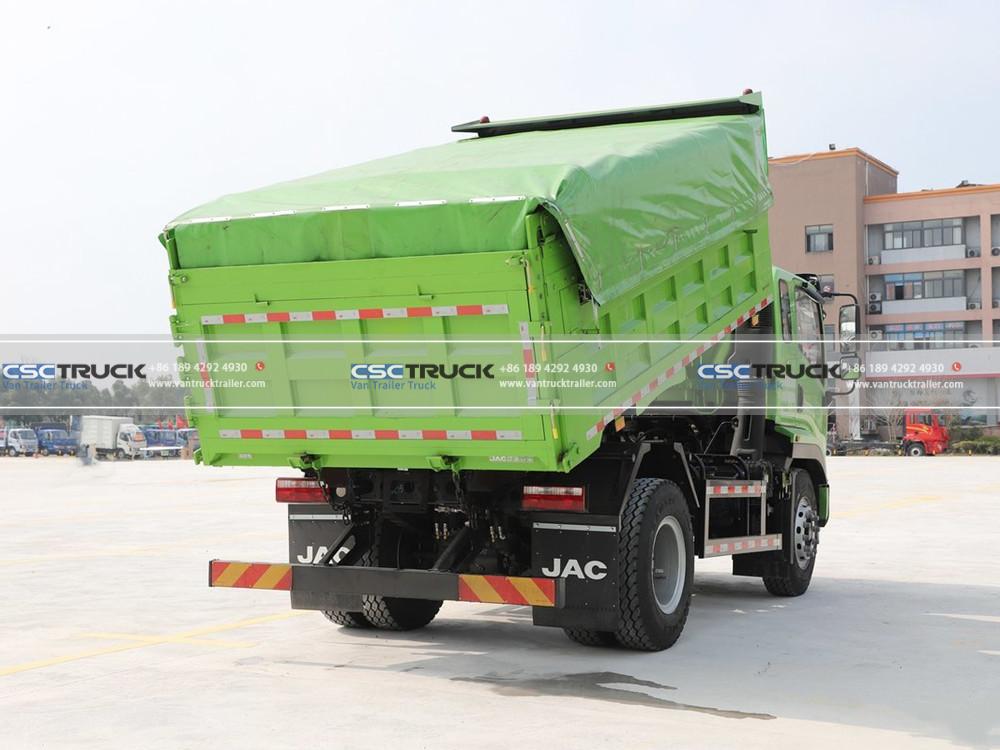

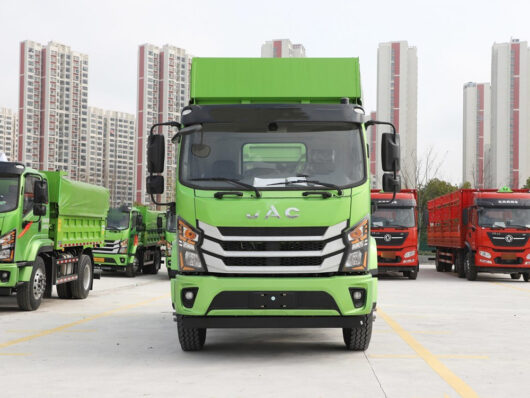

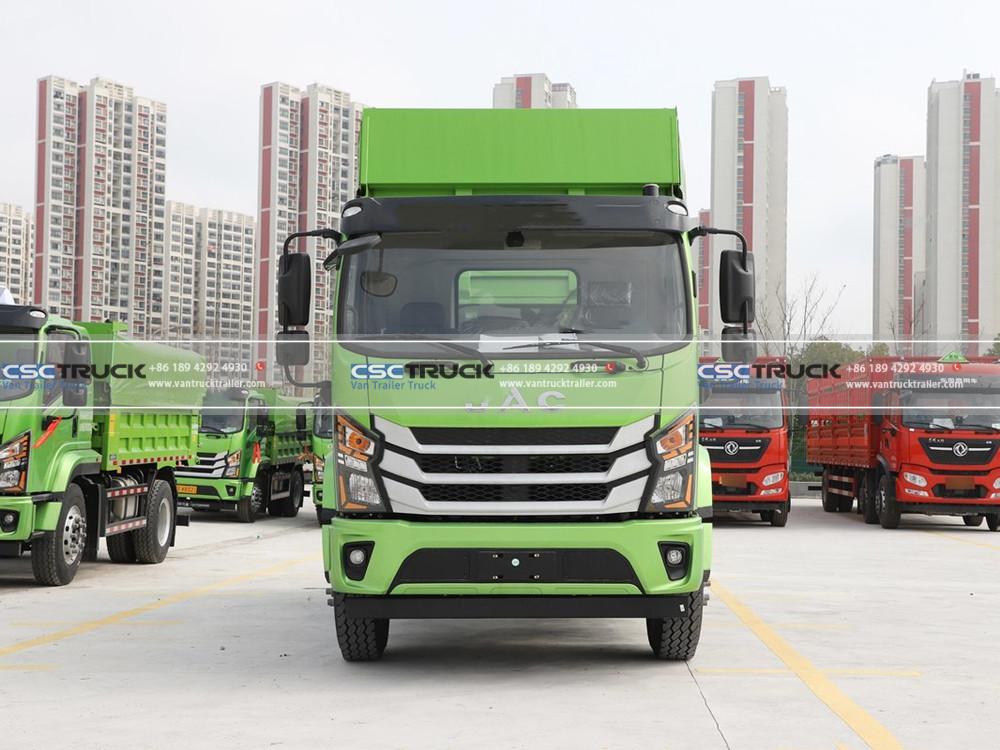

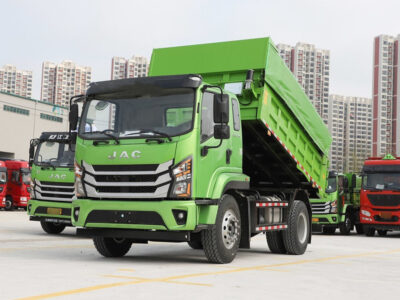

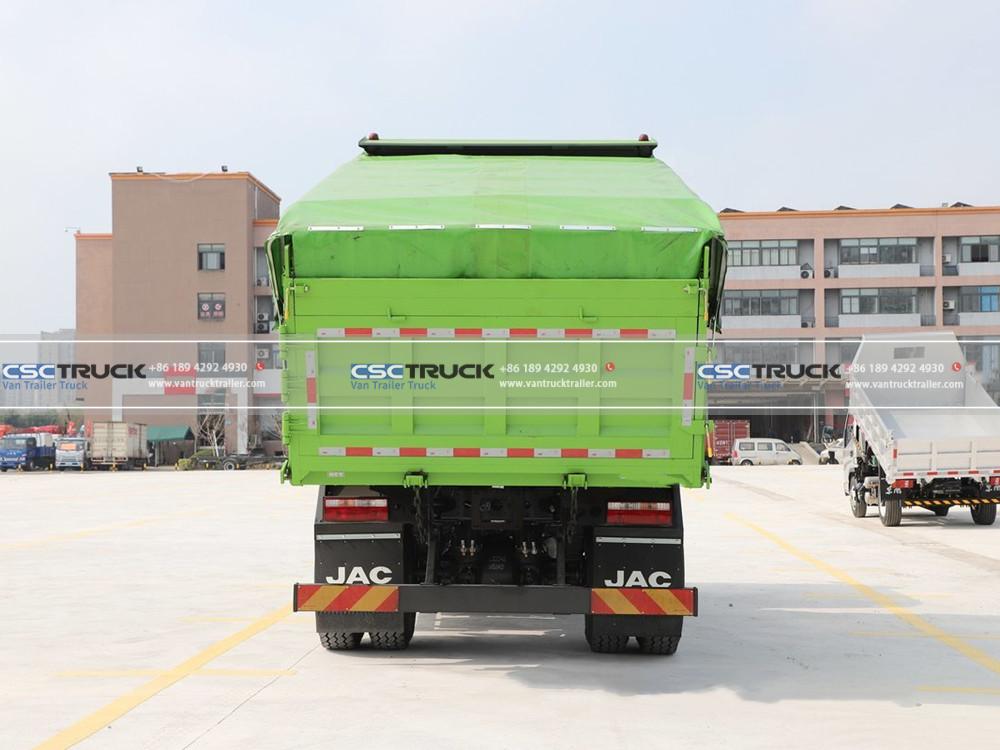

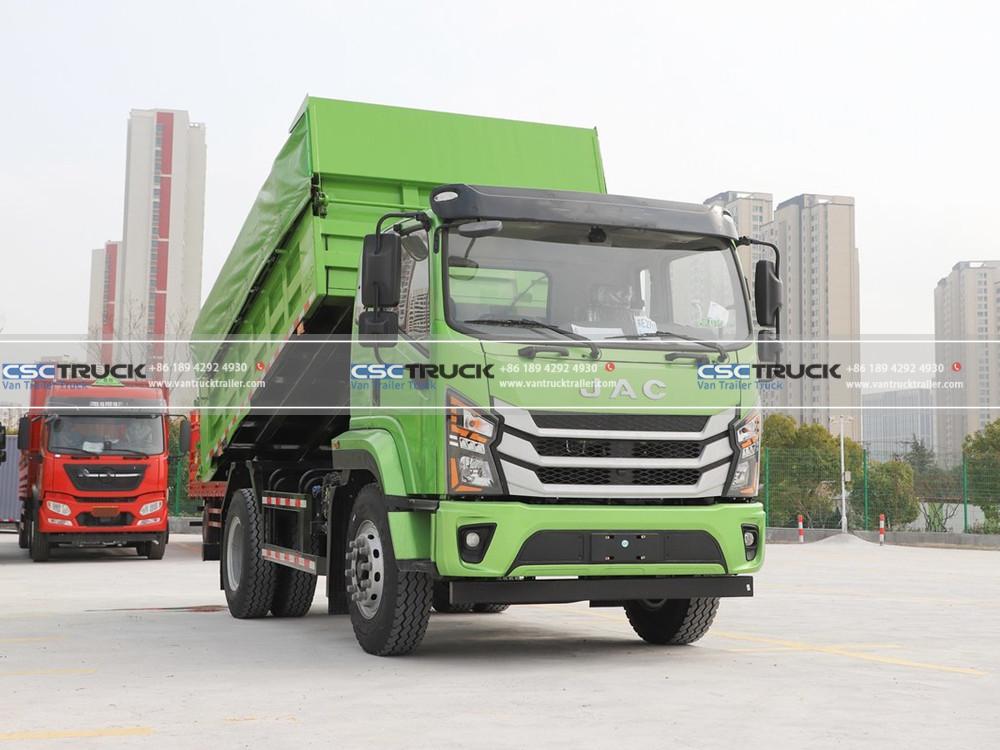

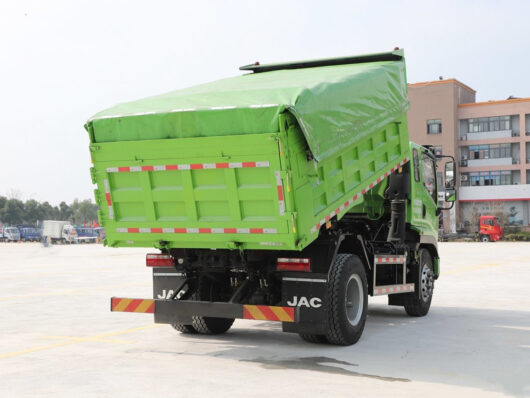

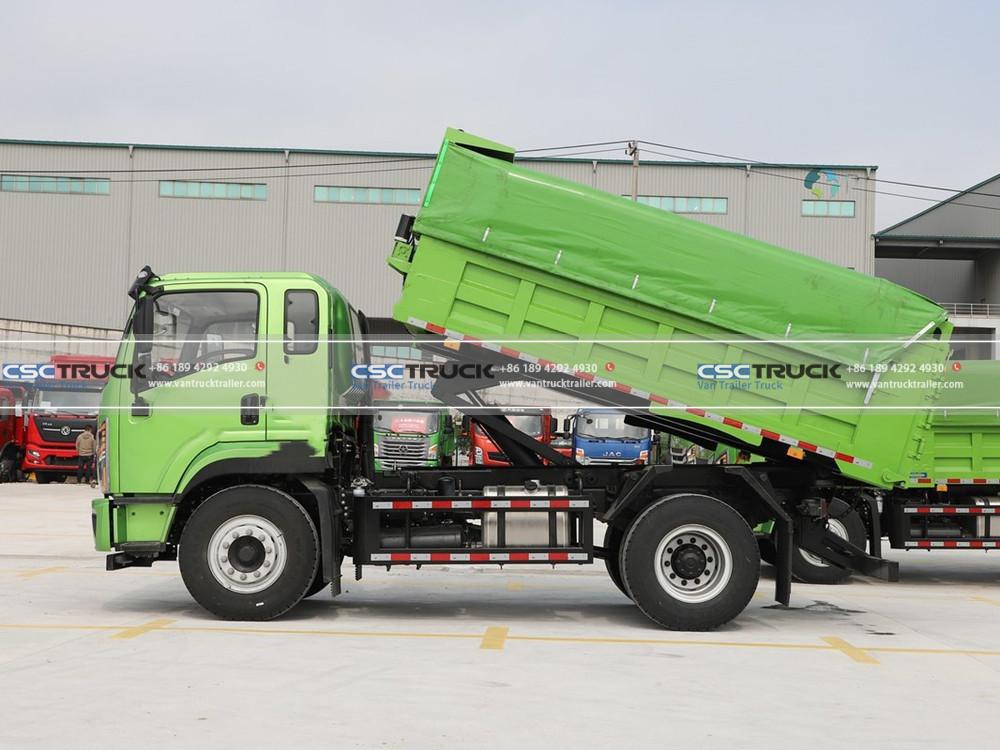

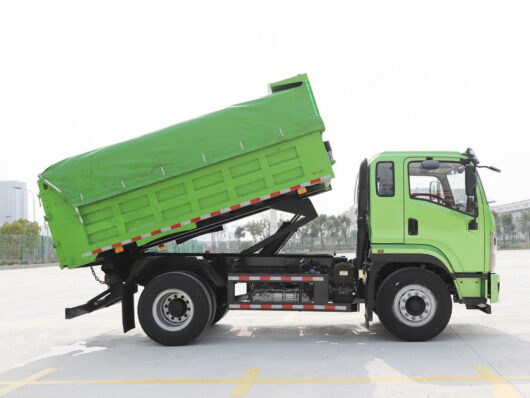

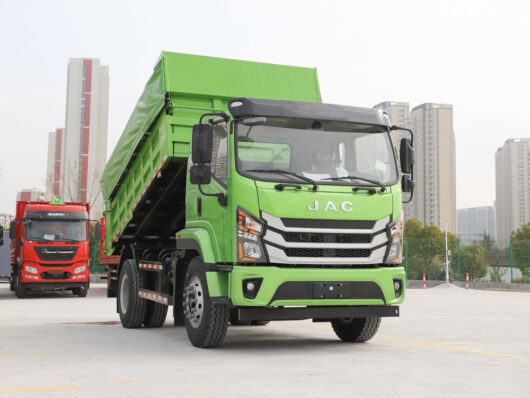

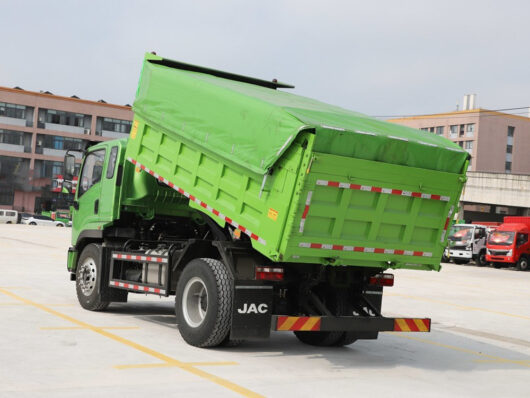

Unleash Unwavering Efficiency, Dominate Urban Construction Waste: Introducing the JAC 10-Ton Urban Taskmaster
The JAC 10-Ton dump truck is the meticulously engineered workhorse built to tackle the demanding world of urban construction waste management. Featuring a perfect blend of power, maneuverability, and innovative features, this machine is your key to maximizing efficiency and productivity on every project site.
Designed for Urban Domination
- 4X2 Drive Type: Experience exceptional maneuverability in tight urban environments, navigating congested streets and busy job sites with ease.
- Spacious Cargo Compartment (4.2m x 2.3m x 0.8m): Transport a wide variety of construction waste materials efficiently, maximizing your hauling capacity on every haul.
- Optimum Wheelbase (3900mm): Maintain superior stability and control on various terrains, ensuring smooth and confident operation.
Power Meets Efficiency
- Yuchai YCS04180-68 Engine (180 HP, 132 kW): This reliable engine delivers exceptional performance while adhering to strict EURO II-VI emission standards, prioritizing both power and environmental responsibility.
- Fast 8JS85F-C Transmission (8 Forward Gears): Experience smooth gear shifting and optimal power transfer for efficient operation under even heavy loads.
Operator Comfort, Enhanced Safety
- J3 Semi-High-Top Cab (2120mm Width): Enjoy a spacious and comfortable working environment with excellent visibility, minimizing fatigue during long workdays.
- Advanced Safety Features (ABS, Power Windows, Electronic Central Locking): Prioritize operator safety and convenience with exceptional stopping power, convenient controls, and a secure cab environment.
Built to Endure, Engineered to Excel
- Sturdy Frame Construction (245×75×(7+4)mm): Experience unwavering structural integrity and long-term durability, conquering demanding tasks with ease.
- Durable Tires (10.00R20 18PR): Maintain excellent traction and stability on rugged terrain, ensuring a smooth ride and long tire life.
- Customizable Options: Tailor the JAC 10-Ton Urban Taskmaster to your specific needs with a variety of optional features, including a dual-stage air filter, rear axle differential lock, and more.
The JAC 10-Ton Urban Taskmaster is more than just a construction dump truck – it’s a statement of power, efficiency, and urban prowess. Experience the maneuverability, innovative features, and operator-centric design that will help you dominate the challenges of urban construction waste management.
SPECIFICATIONS:
| Category | Description |
|---|---|
| General Information | |
| Drive Type | 4X2 |
| Wheelbase | 3900mm |
| Body Length | 7.05 meters |
| Body Width | 2.55 meters |
| Body Height | 2.95 meters |
| Front Wheel Track | 1840mm |
| Rear Wheel Track | 1810mm |
| Vehicle Weight | 8.25 tons |
| Rated Load | 9.93 tons |
| Total Mass | 18 tons |
| Ton Level | Medium Truck |
| Approach Angle | 15 degrees |
| Departure Angle | 35 degrees |
| Sub-segment Market | Urban Construction Waste |
| Remarks | Standard Configuration: Iron air reservoir, pole-type rearview mirror, main driver airbag seat; Optional: Dual-stage air filter, rear axle differential lock, tires, radiator protection frame, flat roof cab, electric flip |
| Version | Standard Edition |
| Engine Parameters | |
| Engine Model | Yuchai YCS04180-68 |
| Engine Brand | Yuchai |
| Number of Cylinders | 4 cylinders |
| Fuel Type | Diesel |
| Displacement | 4.16L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Maximum Horsepower | 180 horsepower |
| Maximum Output Power | 132 kW |
| Maximum Torque | 650N·m |
| Maximum Torque Speed | 1200-1900rpm |
| Rated Speed | 2300rpm |
| Engine Type | High-pressure common rail + EGR + DOC + DPF + SCR + ASC |
| Engine Oil Change Cycle | |
| Cargo Compartment Parameters | |
| Cargo Length | 4.2 meters |
| Cargo Width | 2.3 meters |
| Cargo Height | 0.8 meters |
| Cargo Material | |
| Cargo Thickness | |
| Cargo Type | |
| Upper Installation Parameters | |
| Lifting Form | |
| Cab Parameters | |
| Cab | J3 Semi-high-top Cab |
| Cab Width | 2120mm |
| Number of Seats | |
| Cab Lifting | |
| Main Driver Seat Type | |
| Transmission Parameters | |
| Transmission Model | Fast 8JS85F-C |
| Transmission Brand | Fast |
| Forward Gears | 8 gears |
| Reverse Gears | 2 gears |
| Shifting Method | |
| Fuel Tank | |
| Fuel Tank Material | Aluminum alloy |
| Fuel Tank Capacity | 200L |
| Chassis Parameters | |
| Frame Size | 245×75×(7+4)mm |
| Front Axle Description | 5T |
| Front Axle Allowable Load | 6500kg |
| Rear Axle Description | 153 Narrow Axle |
| Rear Axle Allowable Load | 11500kg |
| Speed Ratio | 5.143 |
| Leaf Spring Number | 9/10+8 |
| Tires | |
| Tire Specifications | 10.00R20 18PR |
| Number of Tires | 6 |
| Tire Type | |
| Control Configuration | |
| ABS Anti-lock Braking System | Yes |
| Power Windows | Yes |
| Electronic Central Locking | Yes |
| Radio | Yes |
